[GB] Dia Keyboard Kit

$335.00

Colorway
Layout

GB Details

GB Open: August 17th - September 18th 2026
Estimated Fulfillment: Q3 2027
Designer: NoNumbers
Price: $400 (updates to full correct amount when you select your plate and PCB)

Checkout the Landing Page

Case Specifications

Keyboard

  • Layout: 60%, WKL, 7U HHKB, 6U HHKB, WK
  • Typing Angle: 6 Degrees
  • Front height: 18.5 mm
  • EKH: 21.5 mm
  • Weight: ~1.2Kg
  • Mount: Top, Gummy Oring
  • Materials: 6063 Aluminum, Copper, Stainless Steel

Colorways

Name Top Case Bottom Case  Inner Weight Outer Weight Badge

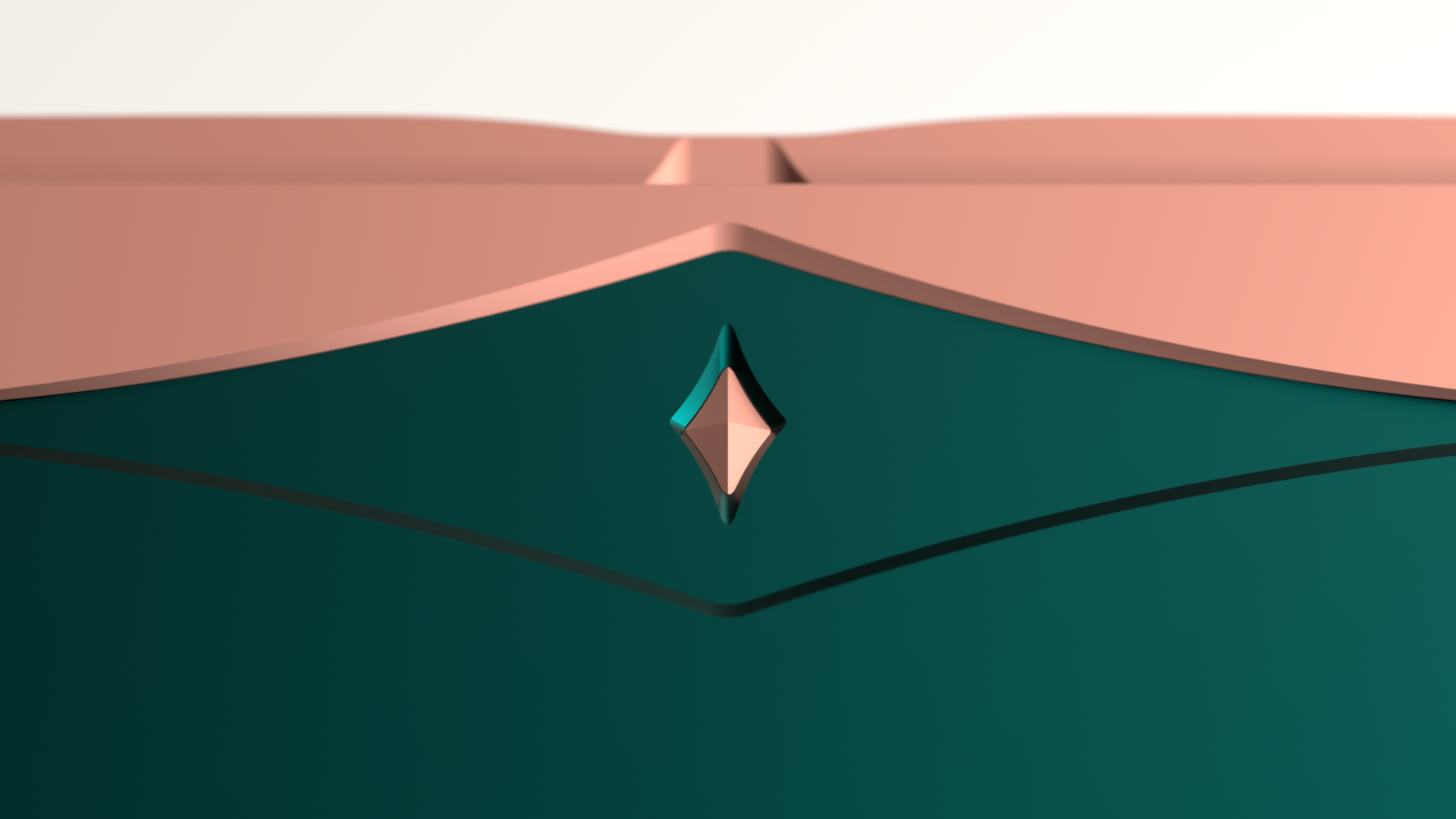

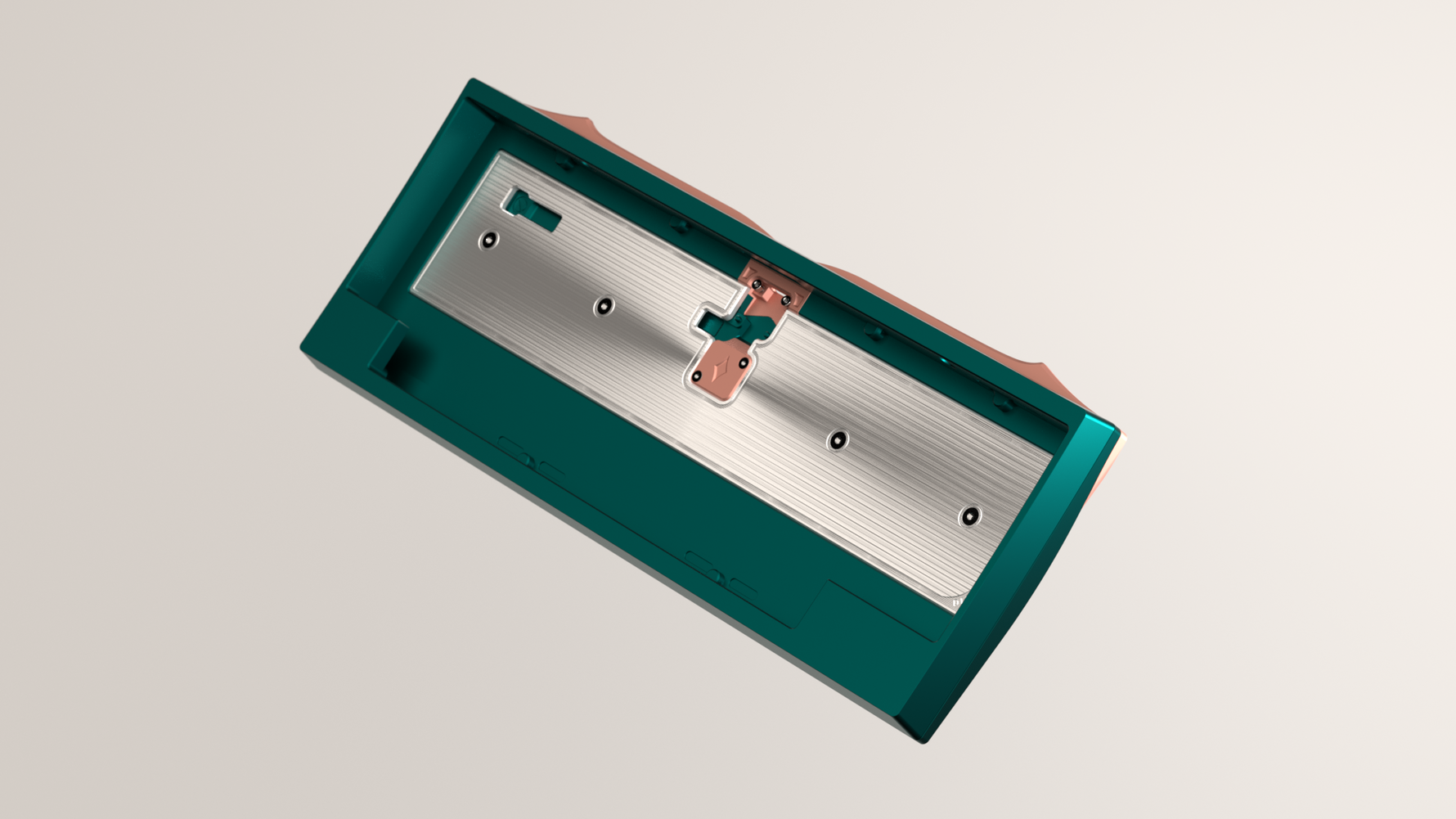

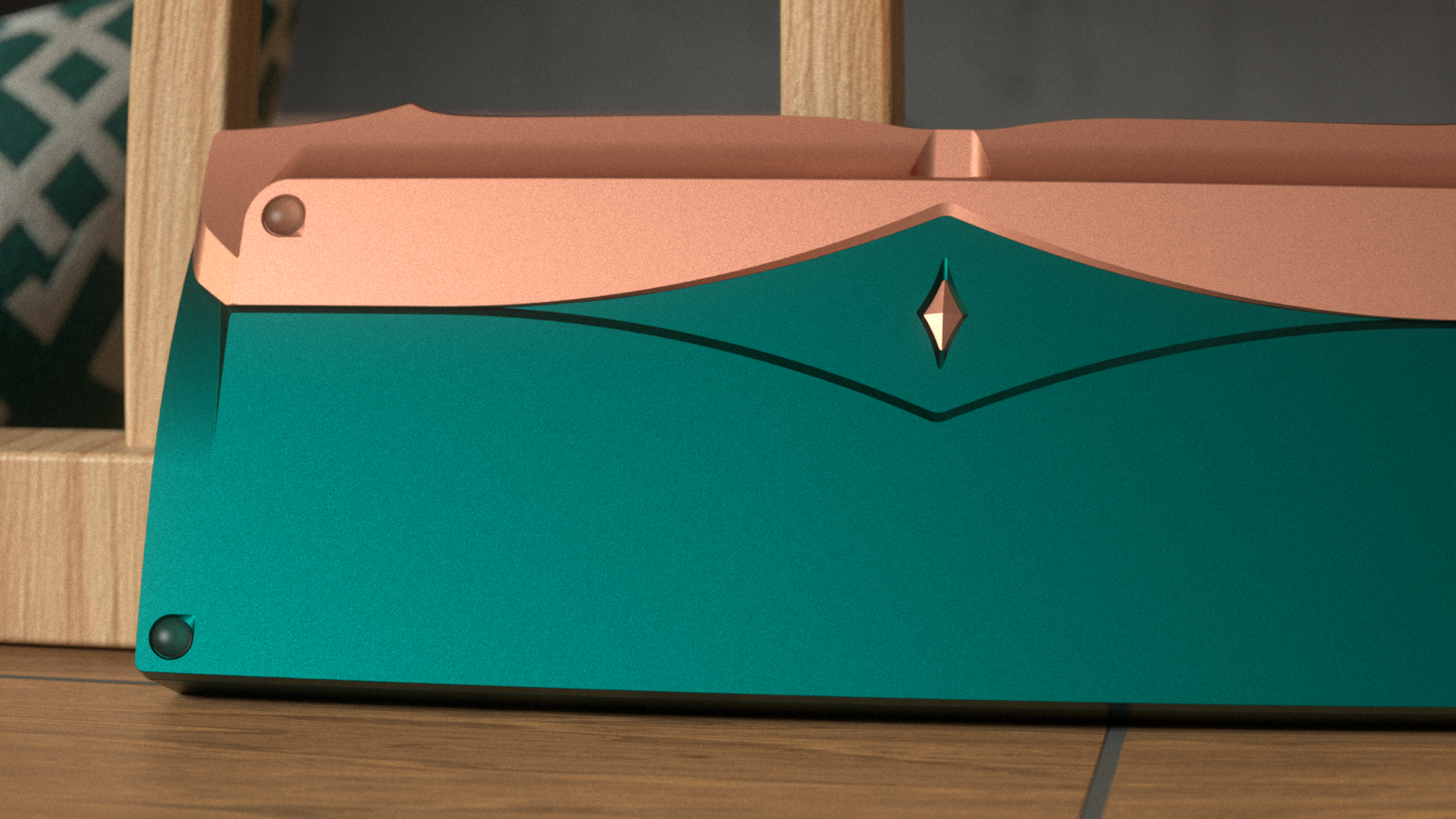

Solar Teal Anodized Teal Anodized Machinist Stainless Steel Sandblasted Copper Sandblasted Copper

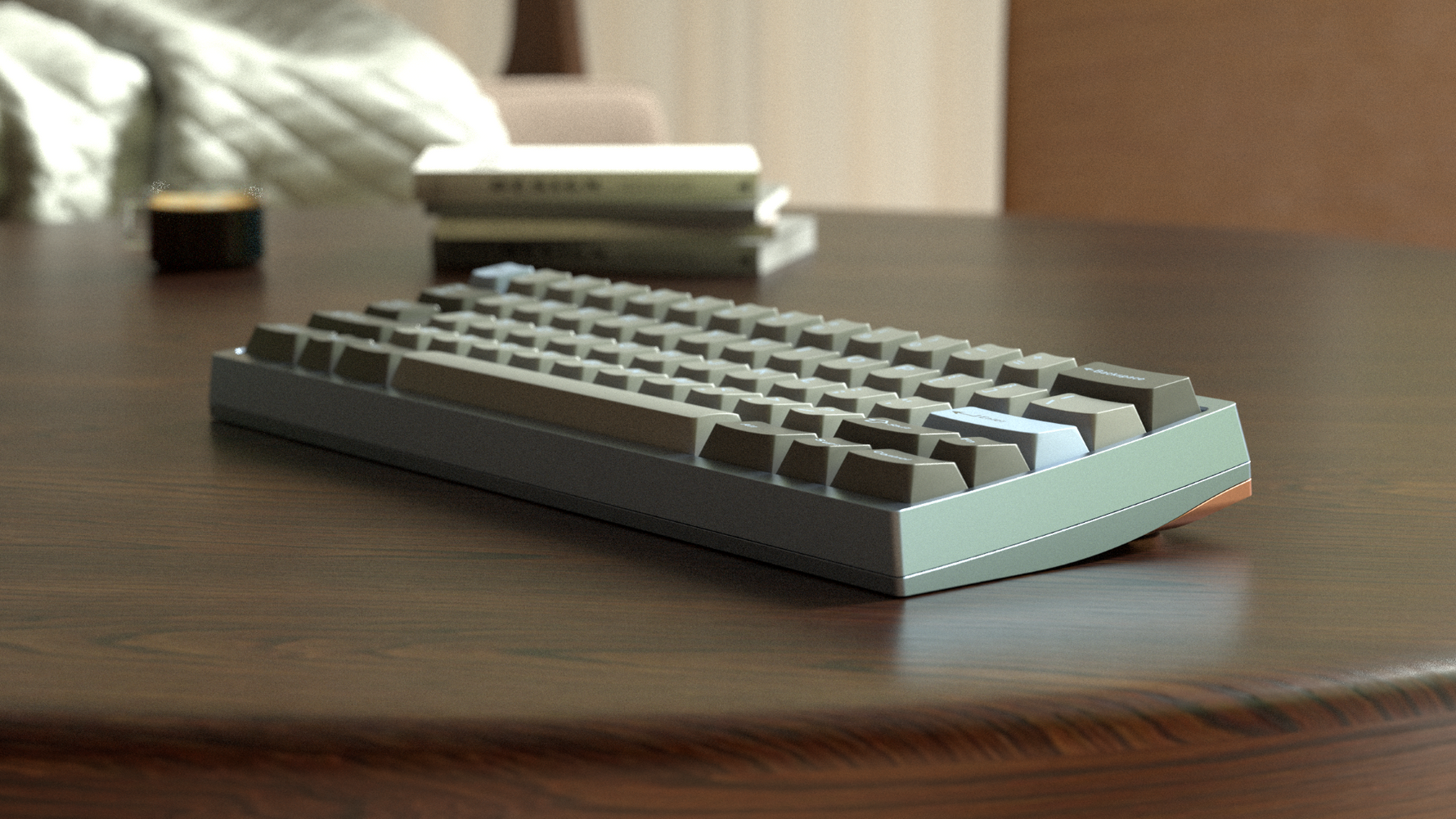

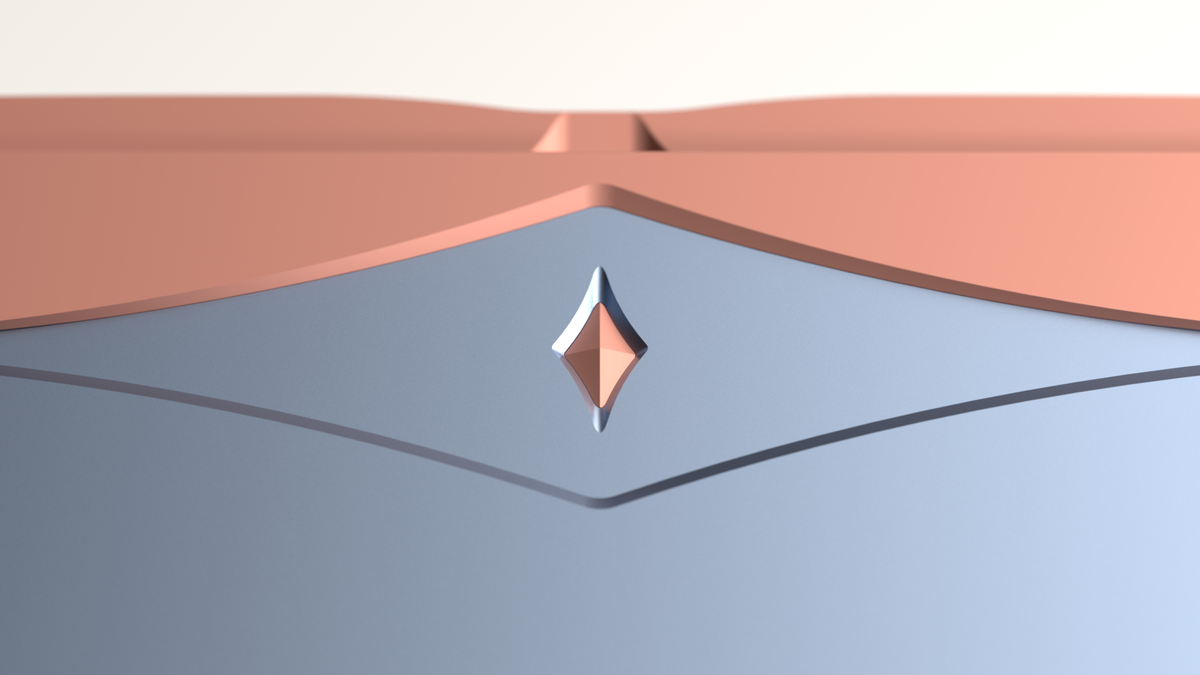

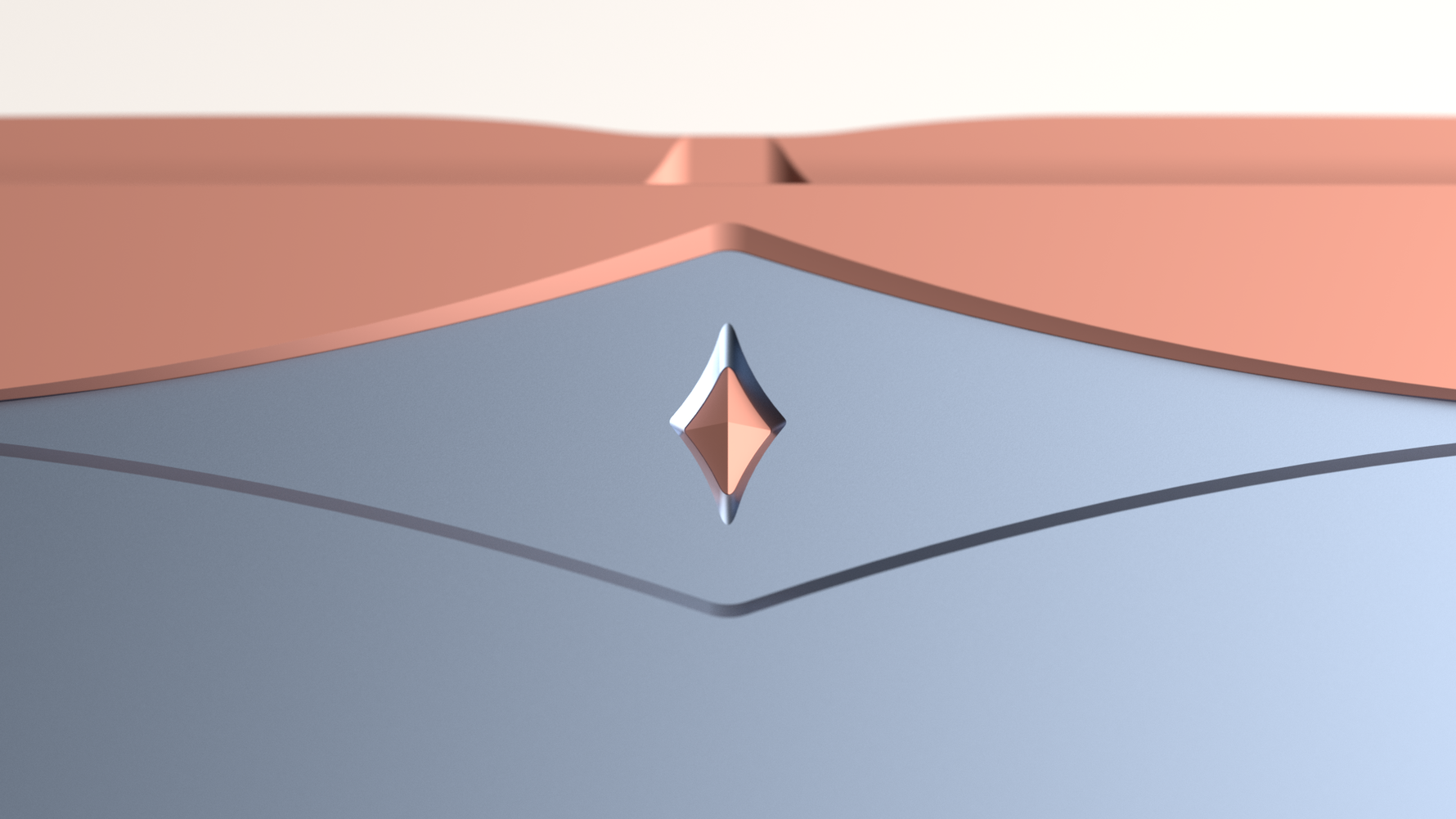

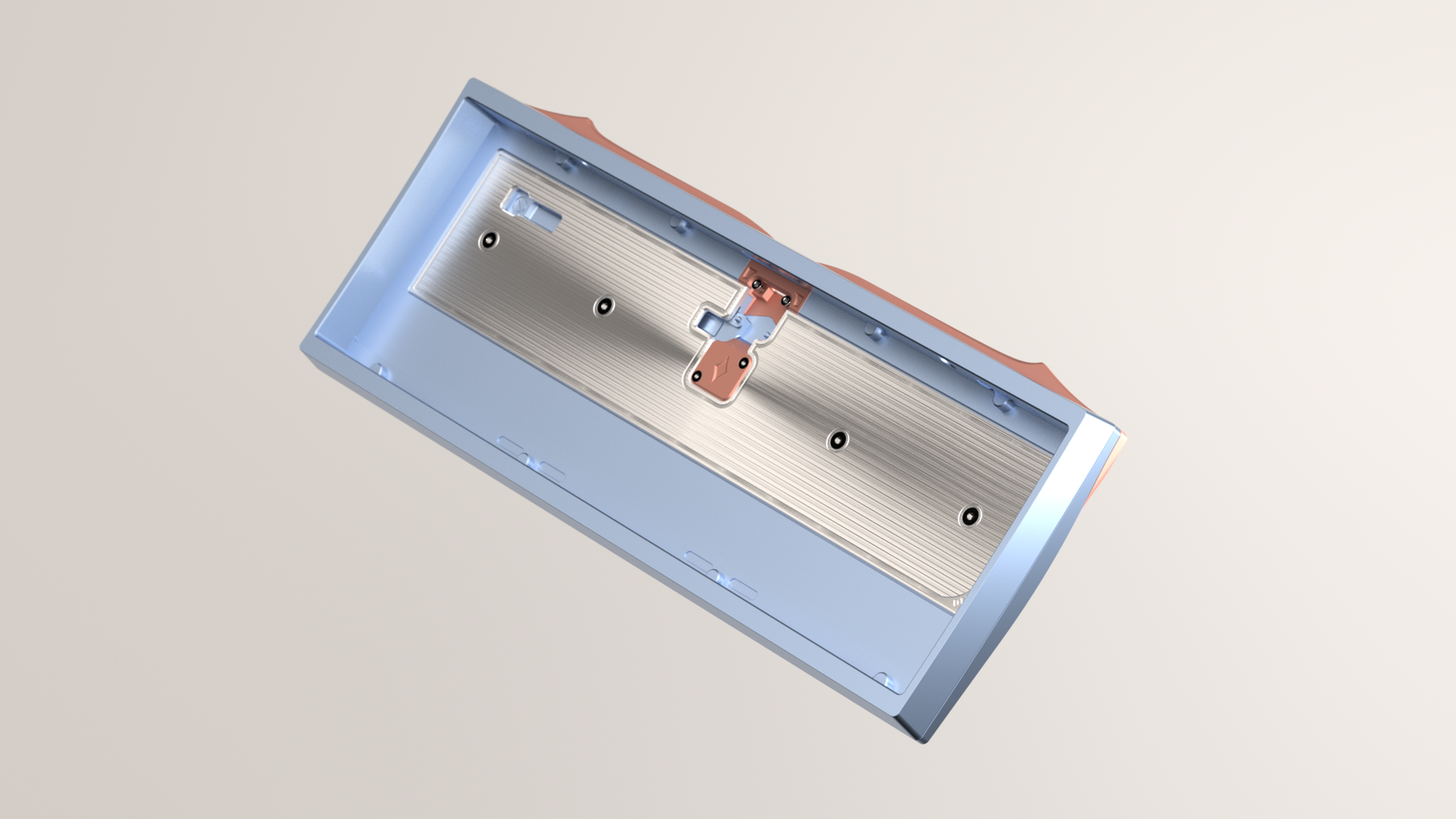

Rain Light Blue Anodized Light Blue Anodized Machinist Stainless Steel Sandblasted Copper Sandblasted Copper

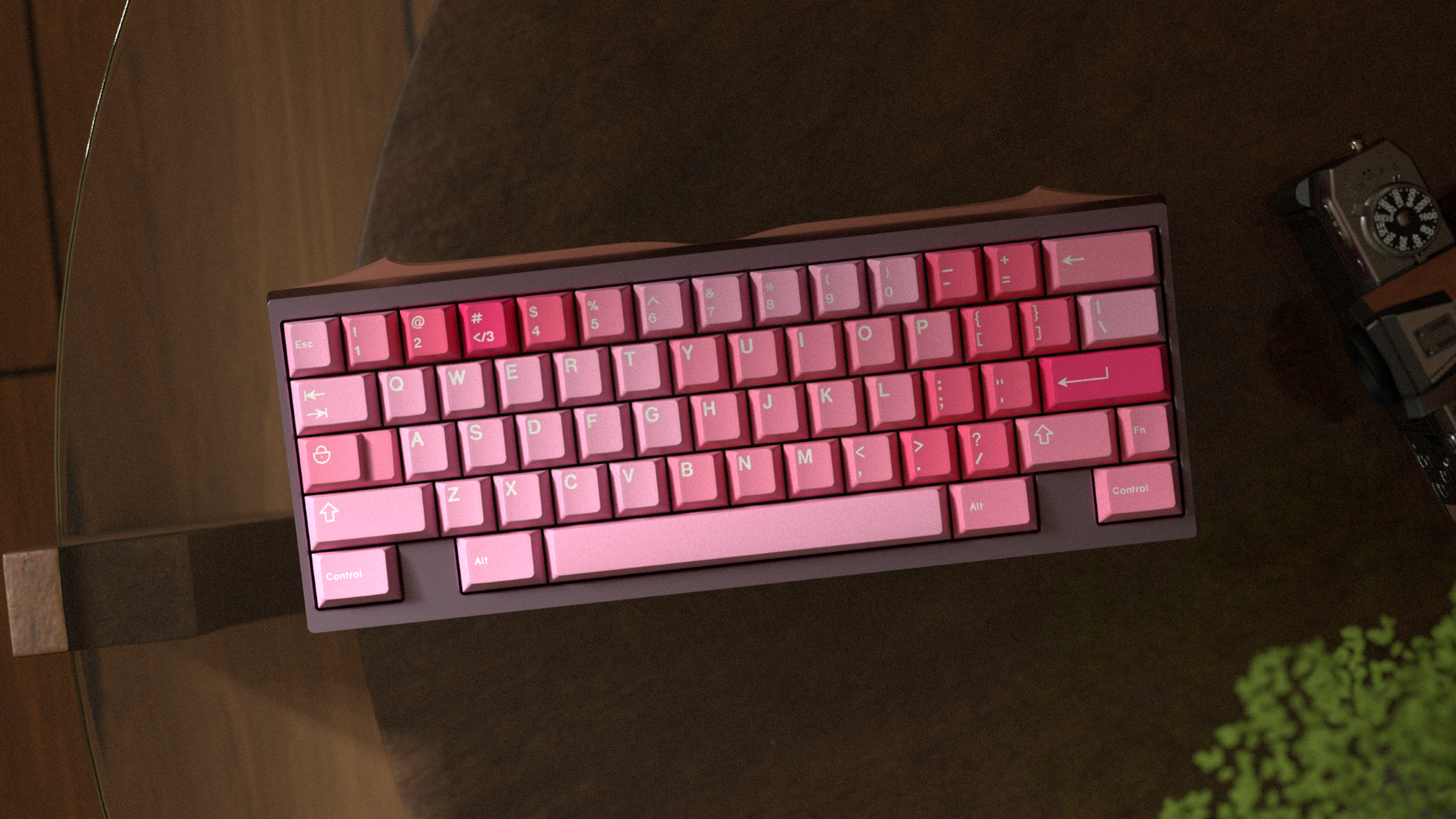

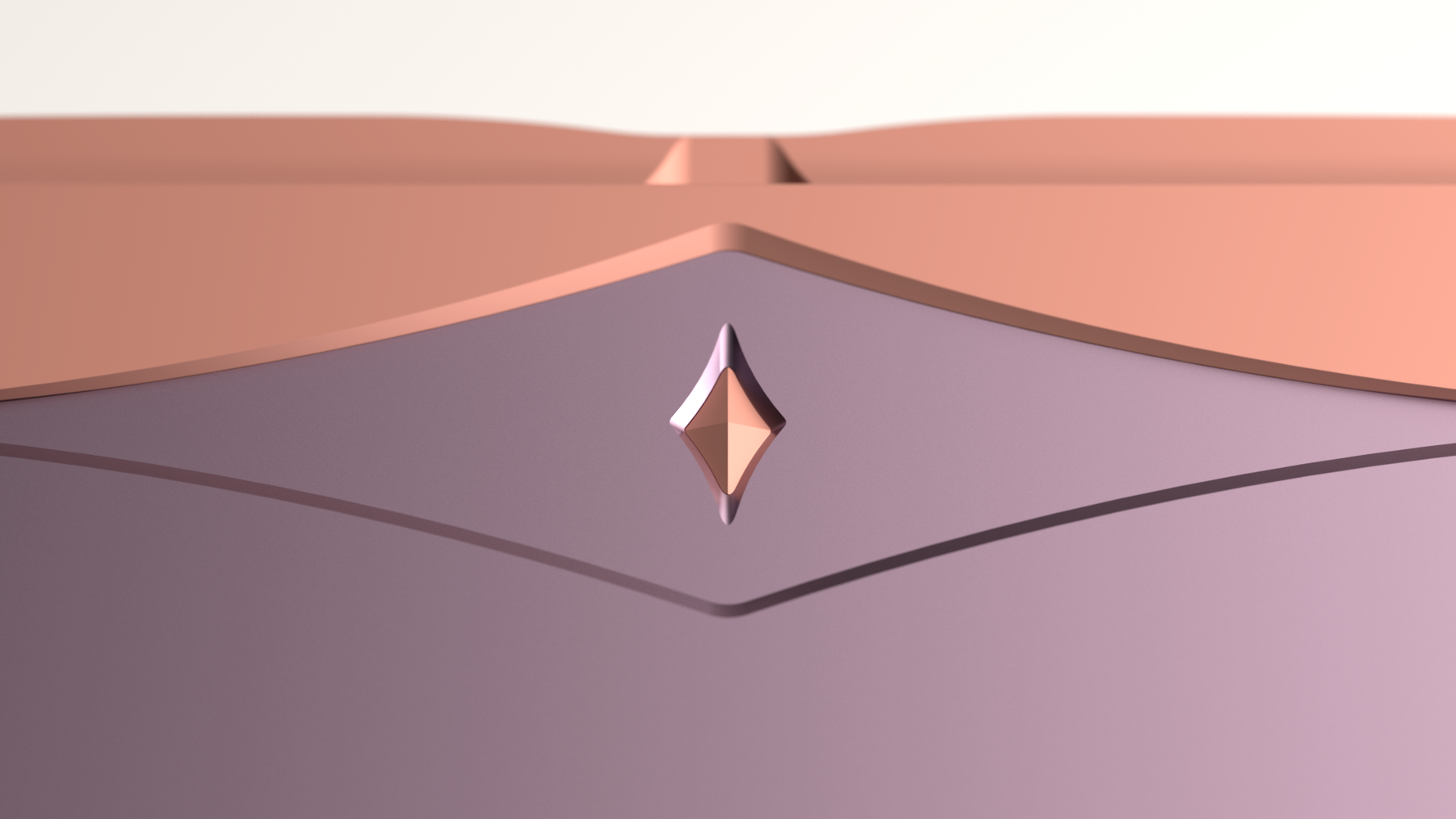

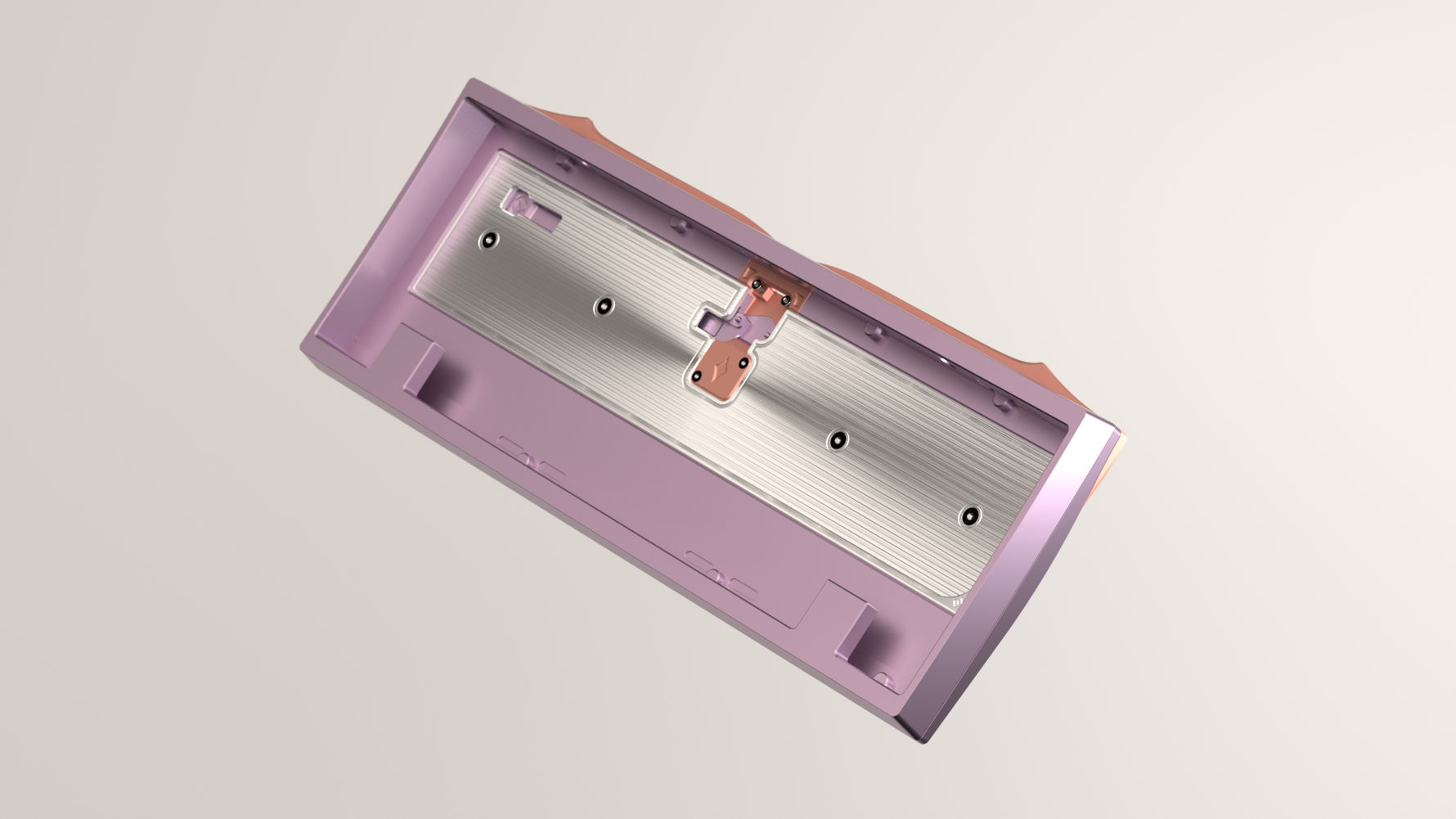

Dusk Pink Pink Anodized Pink Anodized Machinist Stainless Steel Sandblasted Copper Sandblasted Copper

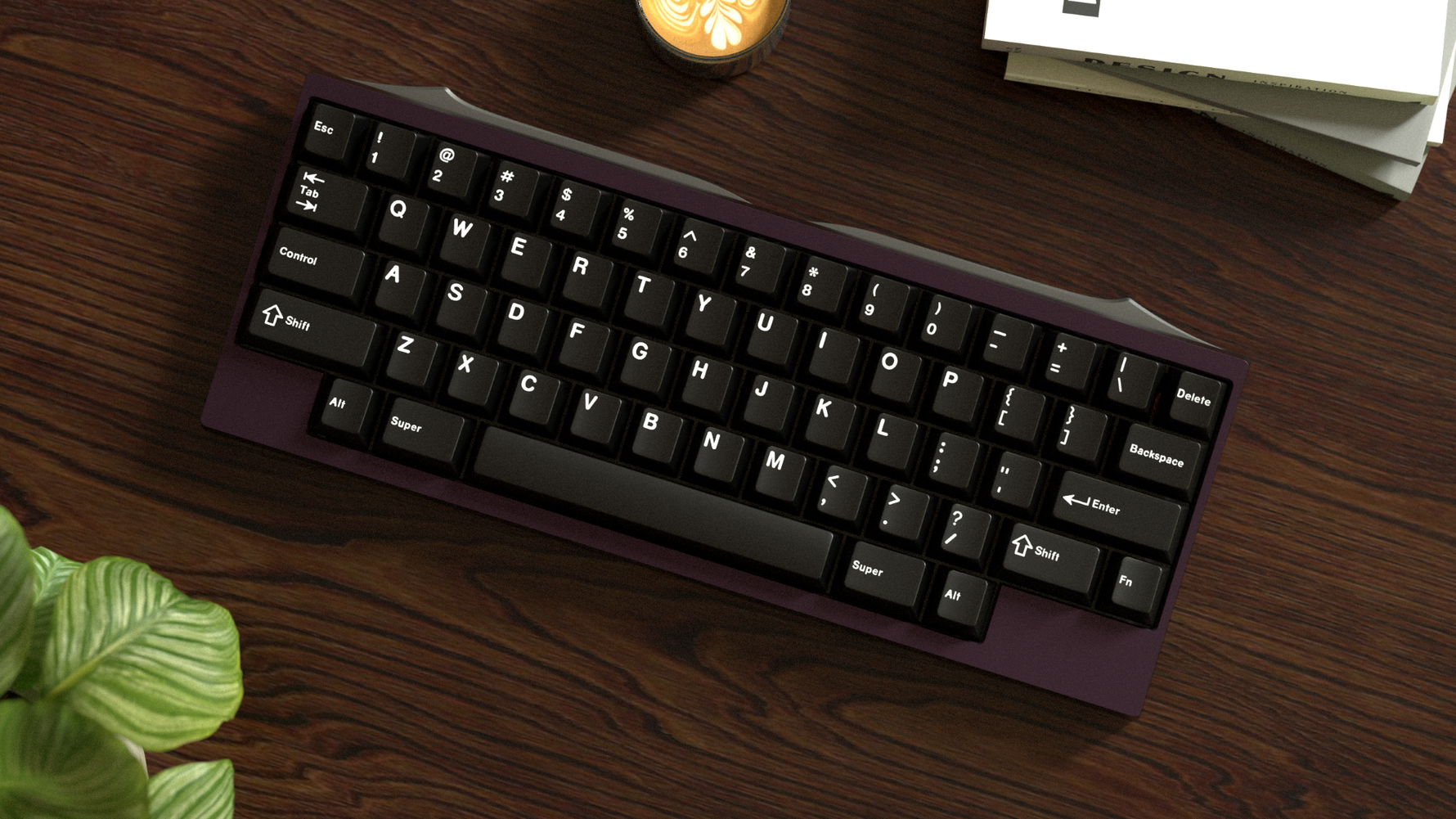

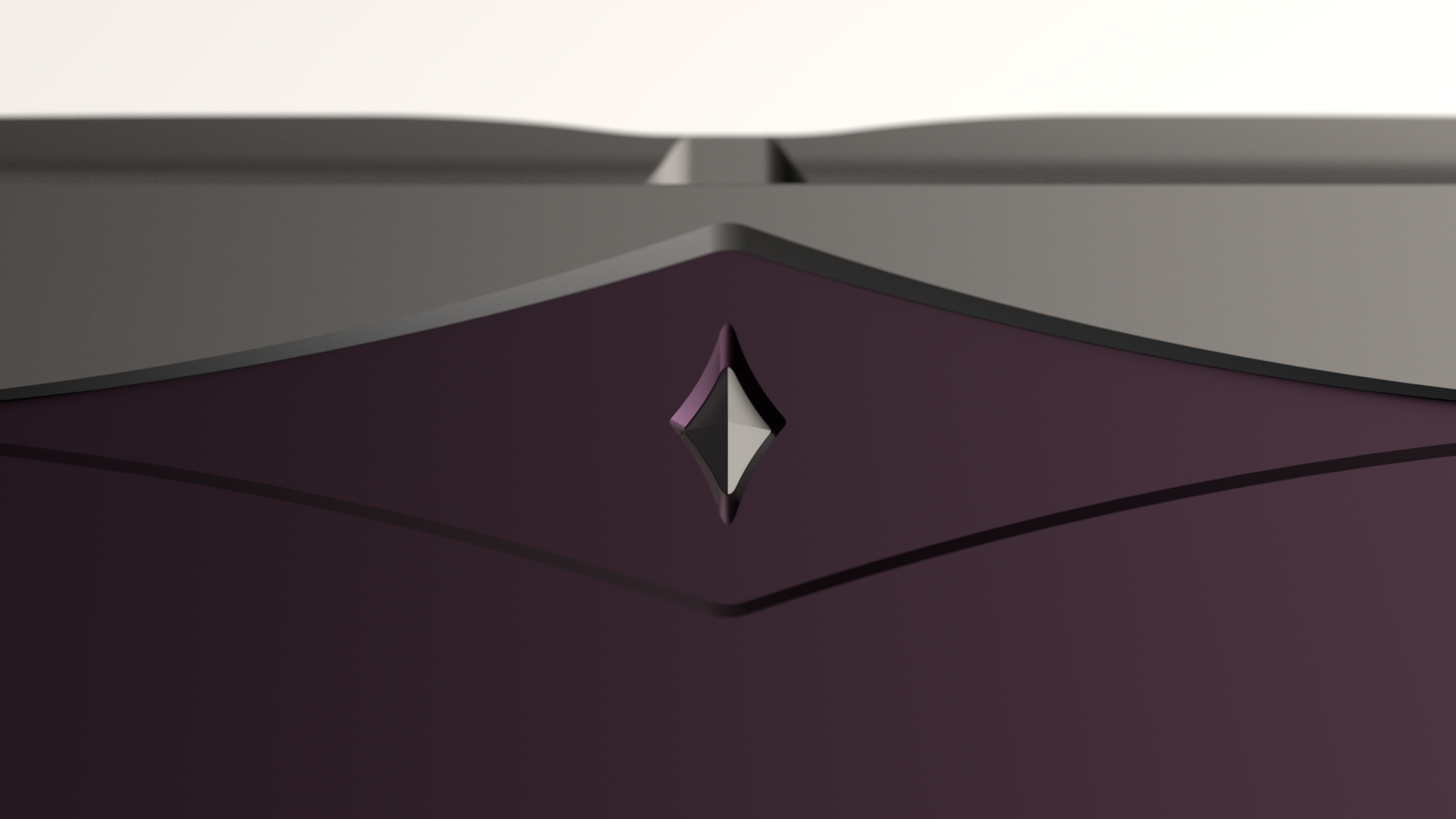

Midnight Plum Plum Anodized Plum Anodized Machinist Stainless Steel Sandblasted Stainless Steel  Sandblasted Stainless Steel

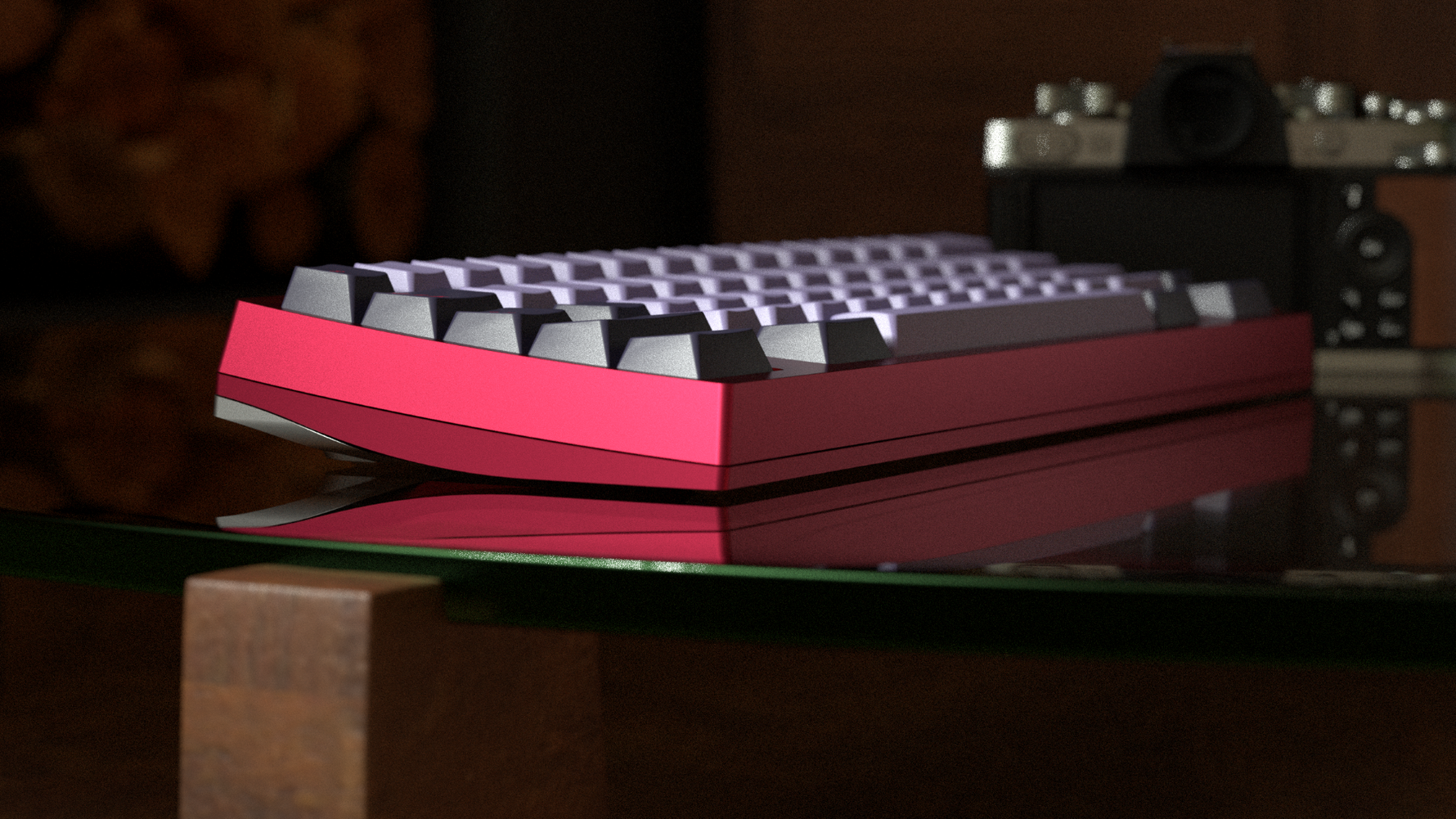

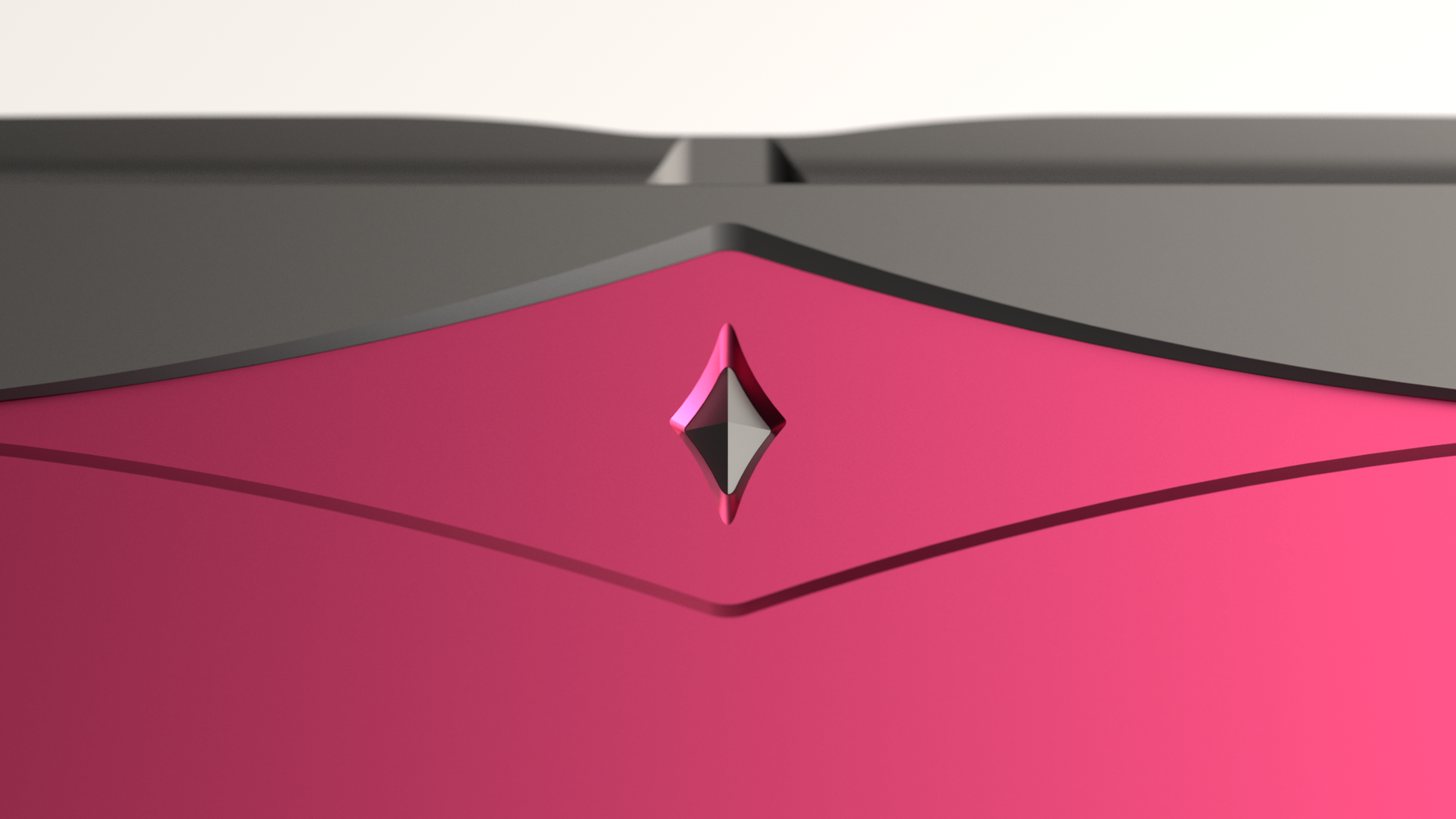

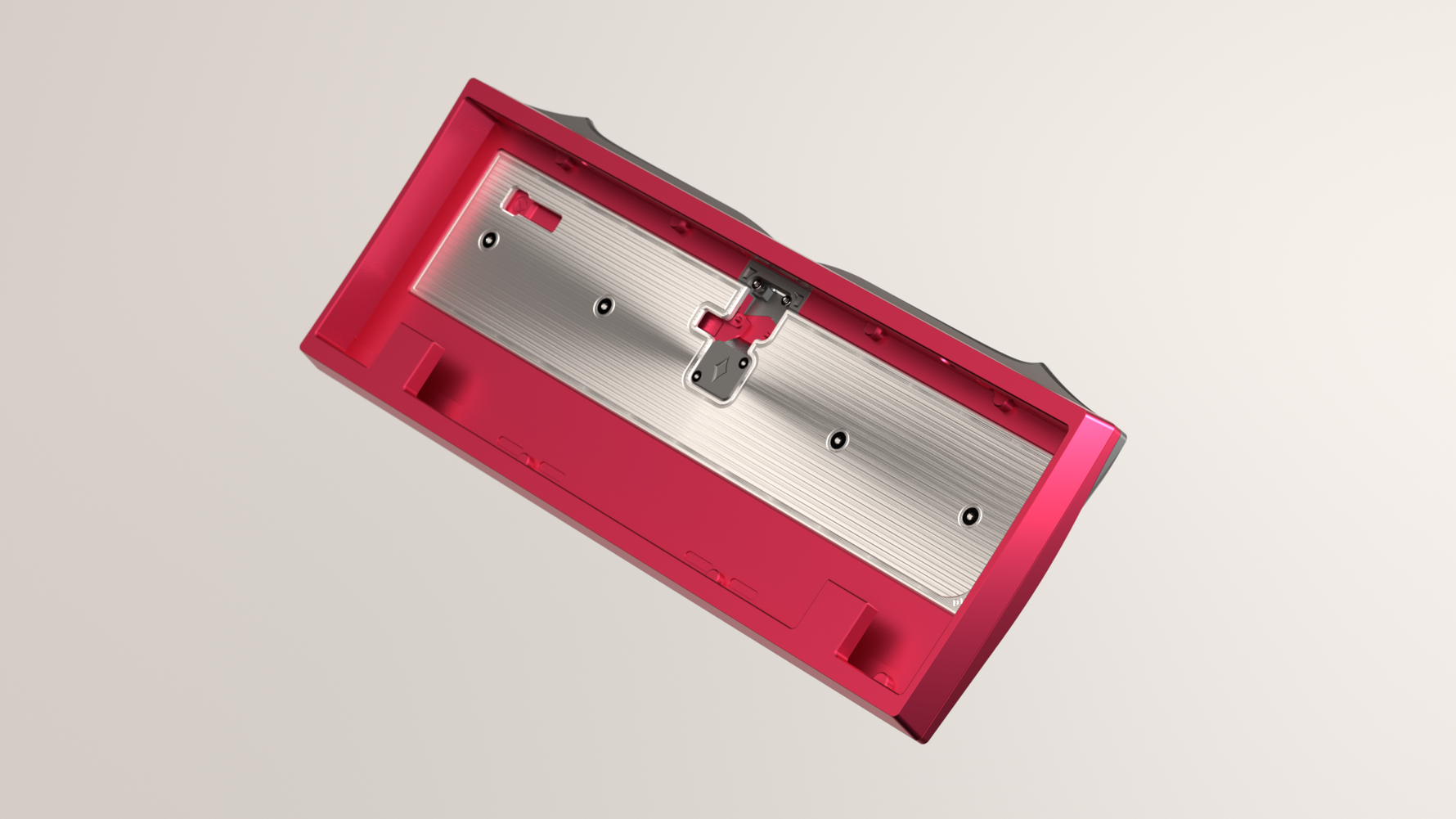

Feral Pink/Red Anodized Pink/Red Anodized Machinist Stainless Stee Sandblasted Stainless Steel Sandblasted Stainless Steel


PCB Specifications

  • Material: FR4
  • Thickness: 1.6mm
  • Connectivity: JST to Unified Daughterboard
  • Customizability: VIA
  • Type: Solderable and Hotswap
  • Designer: Gondolindrim

Kit Contents:

  • 1x Top Case
  • 1x Bottom Case
  • 1x Inner Weight
  • 1x Outer Weight
  • 1x Badge
  • 1x Plate of Choice
  • 1x PCB of Choice
  • 1x Daughterboard
  • Carrying Case
  • Screws/Oring/Other assembly hardware
