INSTOCK

Hotswap Layout:

Solder Layout:

NOTE: KIT DOES NOT INCLUDE PCB (NECESSARY TO BUILD THE KEYBOARD) PLEASE ADD A PCB FROM THE EE-AT ACCESSORIES PAGE.

Included in the kit:

1x 6063 Aluminum anodized top case
1x Brass front weight
1x Copper rear weight

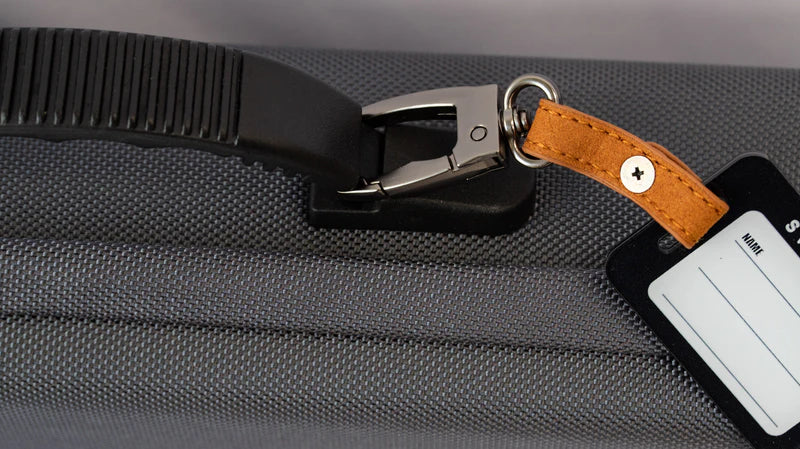

1x Carry case and microfiber bag
16x 50A Tadpoles
Necessary screws, feet, and other accessories

Note: Kit does not include Keycaps, stabilizers, or switches

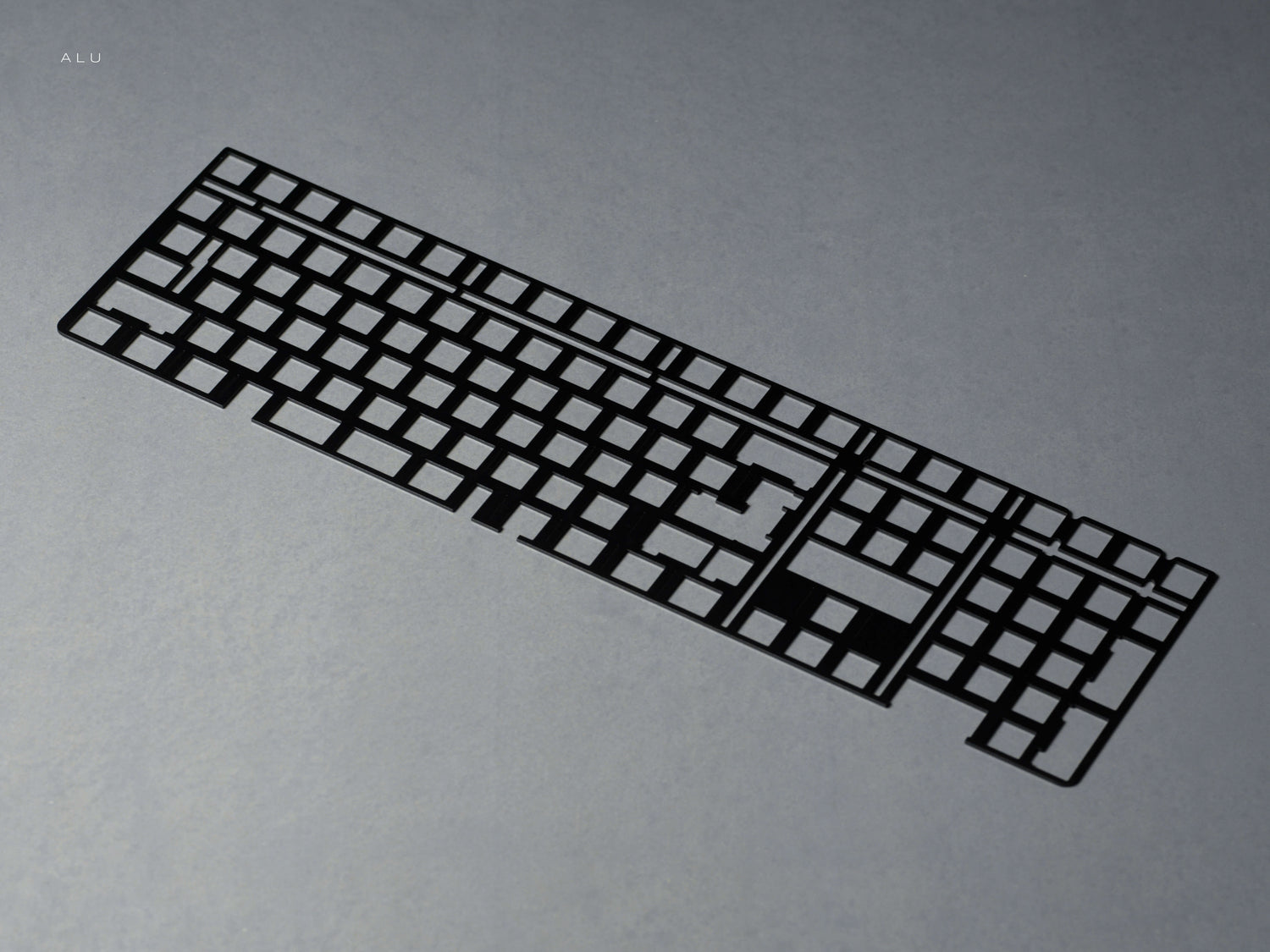

Plates and PCBs designed for OC-62. Plates are compatible with OC-62, PCBs are compatible with most 60% keyboard with a daughterboard.

B-stock PCB because only full caps lock is supported otherwise fully functional.
Ez-Mate Connector

PCB Support:

Included in the kit:

• 1x Green HHKB Anodized 6063 Alu Top case
• 1x Green 6063 Alu Bottom Case
• 1x Sandblasted Stainless Steel Weight (Exterior)
• 1x Sandblasted Brass Weight (Interior)
• 1x Green Anodized Logo Badge
• 2x Green Anodized Grill Accents
• 1x Dark Gray Anodized 5052 Alu Plate

• 1x S2 Daughterboard and Ez-mate to JST Cable
• 1x Geass60 Carrying Case and Microfiber Sleeve
• 8x 60a Gaskets

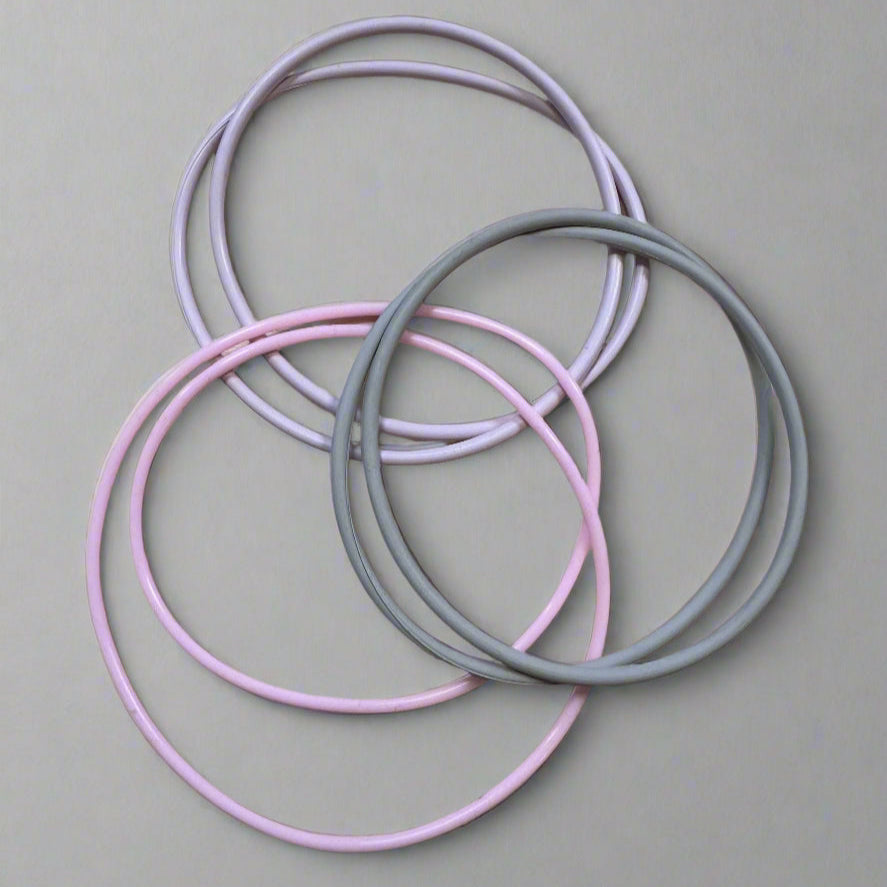

• 1x 70a Oring
• Other necessary components (feet, screws, etc)

Note: Kit does not include Keycaps, stabilizers, or switches
PCB IS NOT INCLUDED

Please note this is NOT compatible with Geass60 Revival, only R1

Standard Alice PCB and plate designed for Evalice, but usable in other standard Alice keyboards.

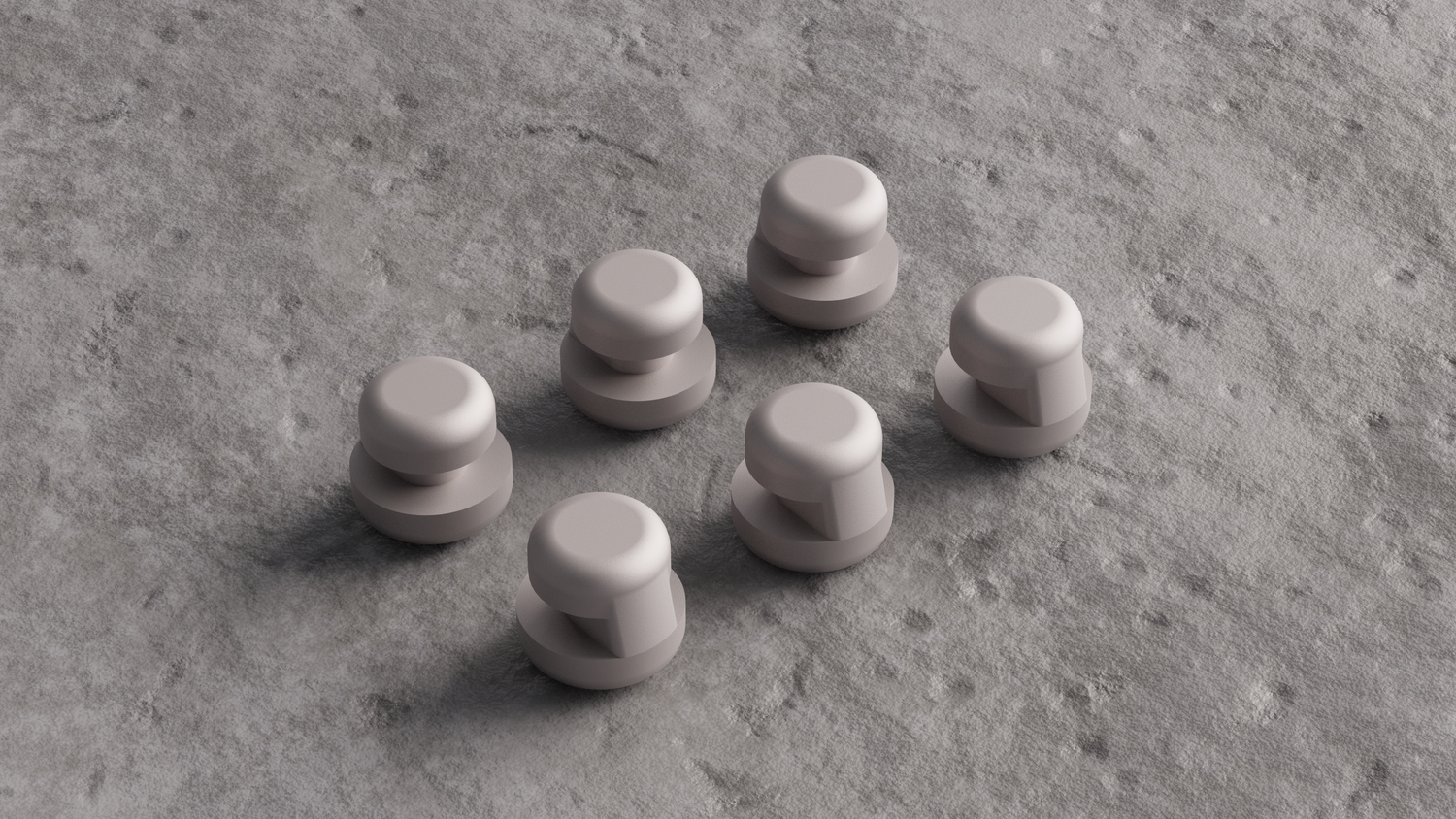

Extra gaskets for OC-62 sold in sets of 12.
