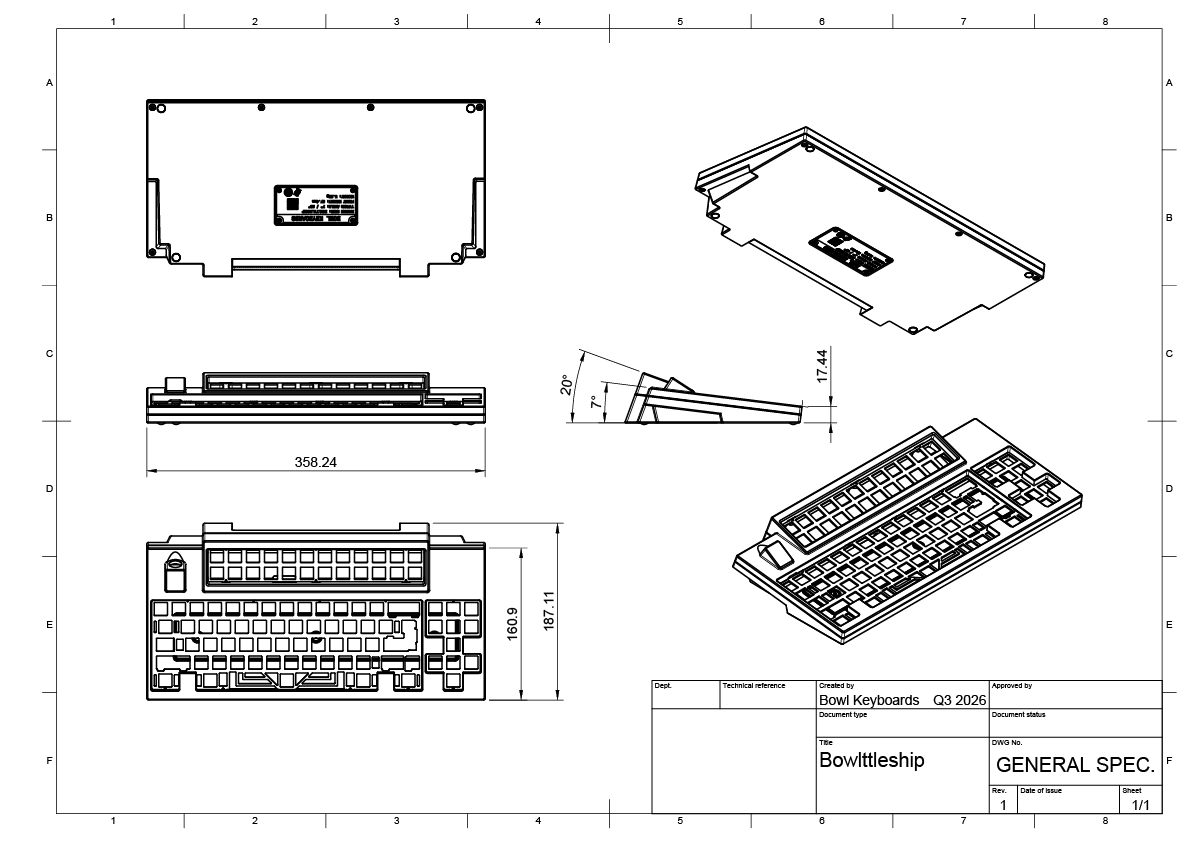

CASE SPECIFICATIONS

  • Materials: 6063 Aluminum, Stainless Steel, Copper
  • Layout: Battleship FRL - Cross Arrow / TKL / 8K Nav, WK / WKL
  • Typing Angles: Main - 7 Degrees, F rows - 20 Degrees
  • Front Height: 17.44 mm
  • EKH: 22.00 mm
  • Weight: 3.2 Kg
  • Mounting: Top

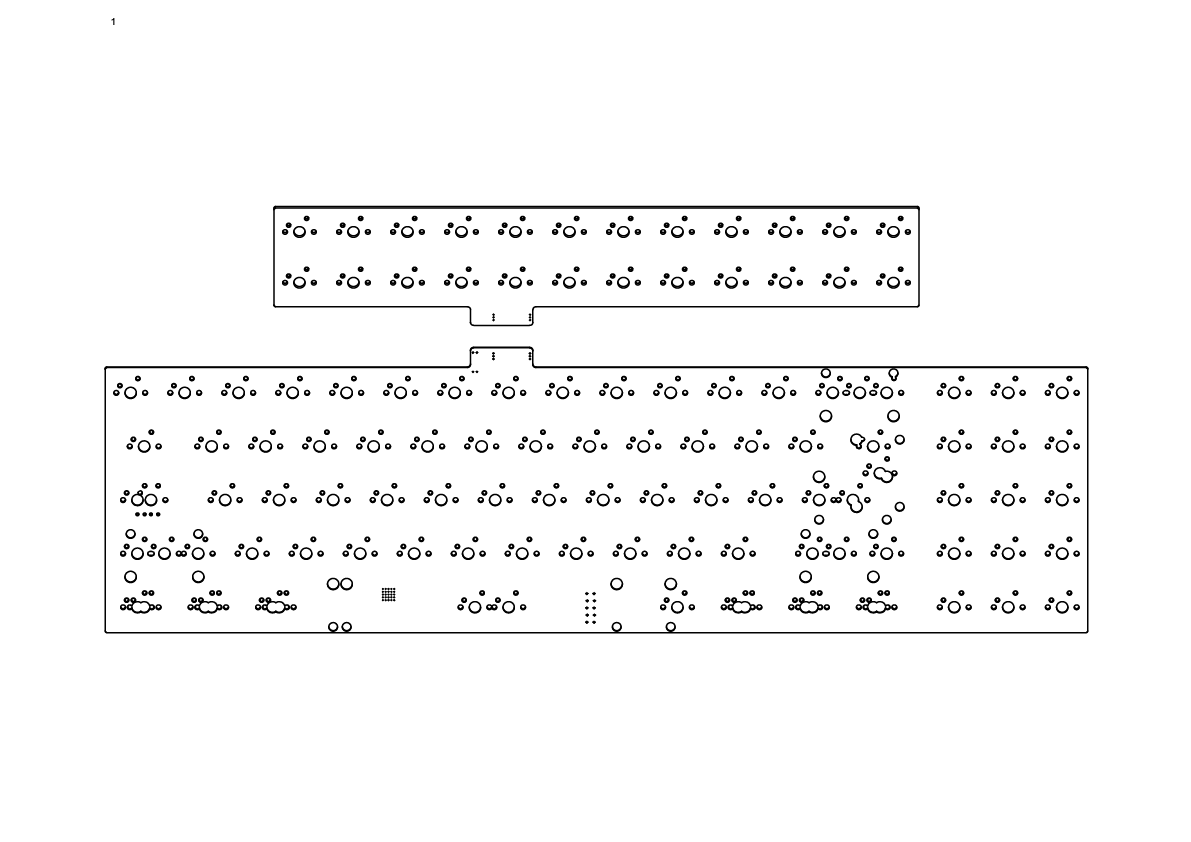

PCB SPECIFICATIONS

  • Material: Black FR4
  • Thickness: 1.6mm
  • Soldermask Color: Yellow
  • Silkscreen Color: White
  • Connectivity: JST to LEMO 1B
  • Customizability: VIA
  • Type: Solderable and Hotswap
  • Designer: Gondolindrim

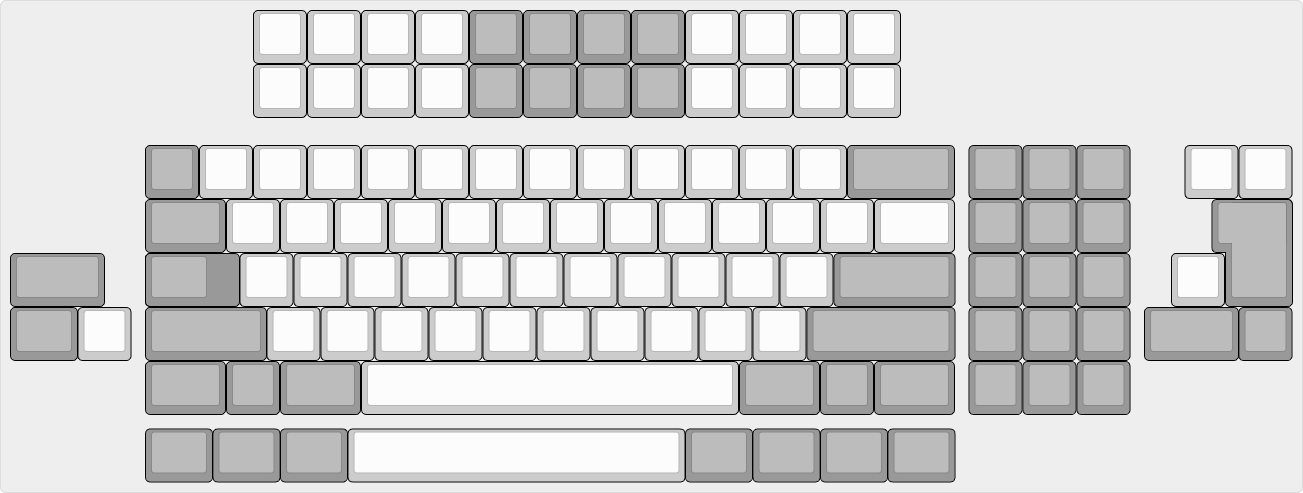

SOLDER COMPATIBILITY

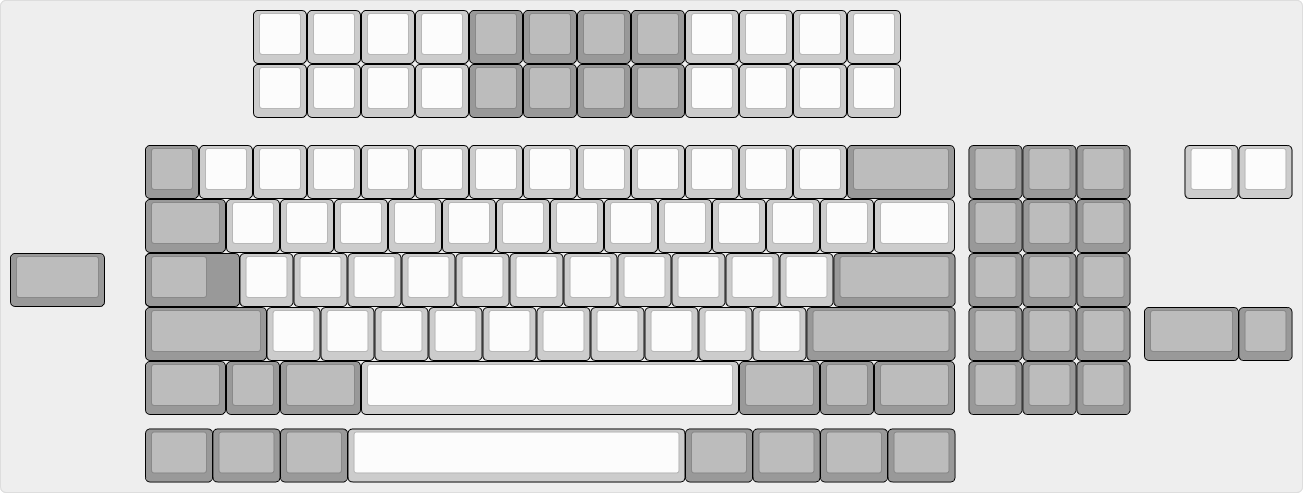

HOTSWAP COMPATIBILITY

DESIGN NOTES AND INSPIRATION

CASE DESIGN

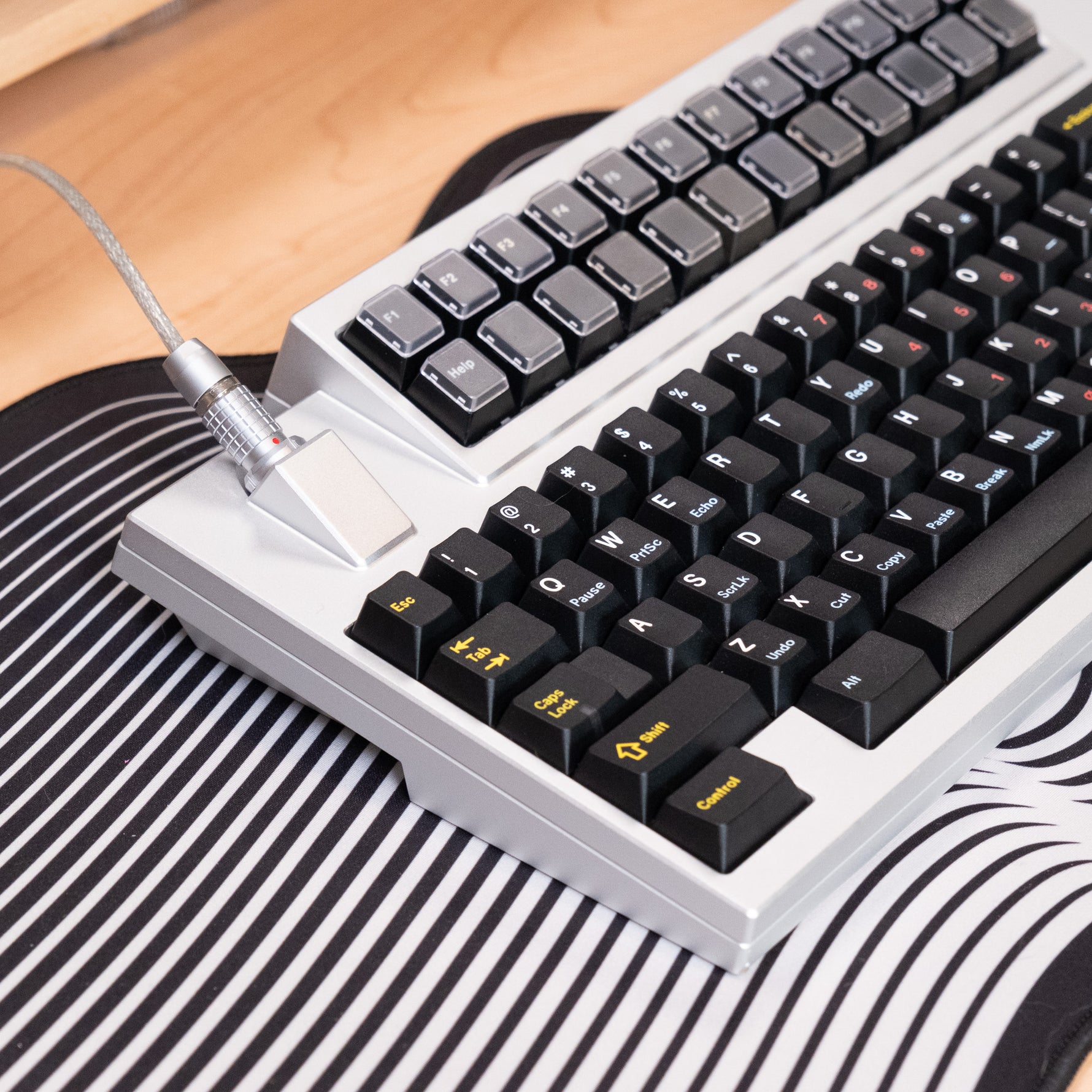

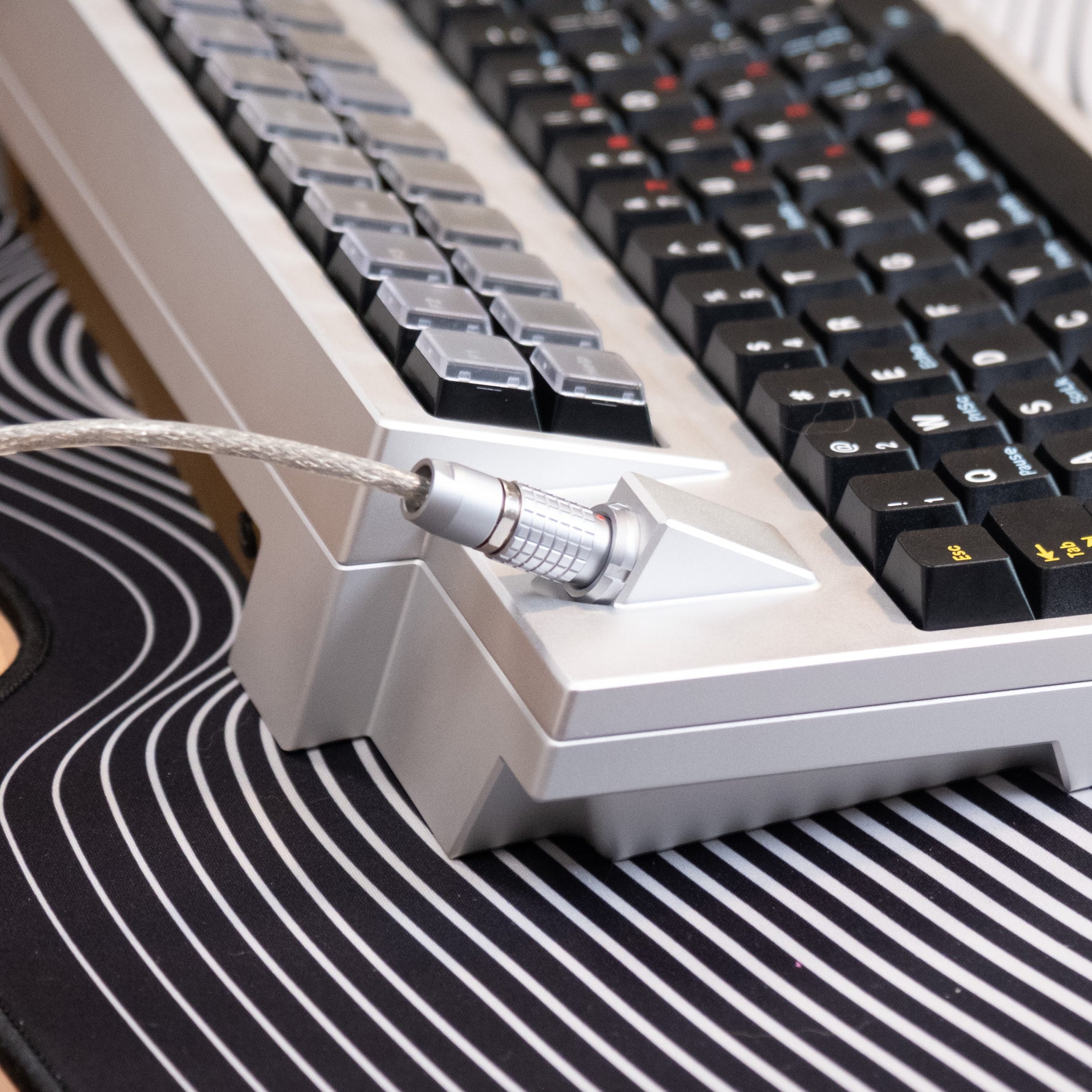

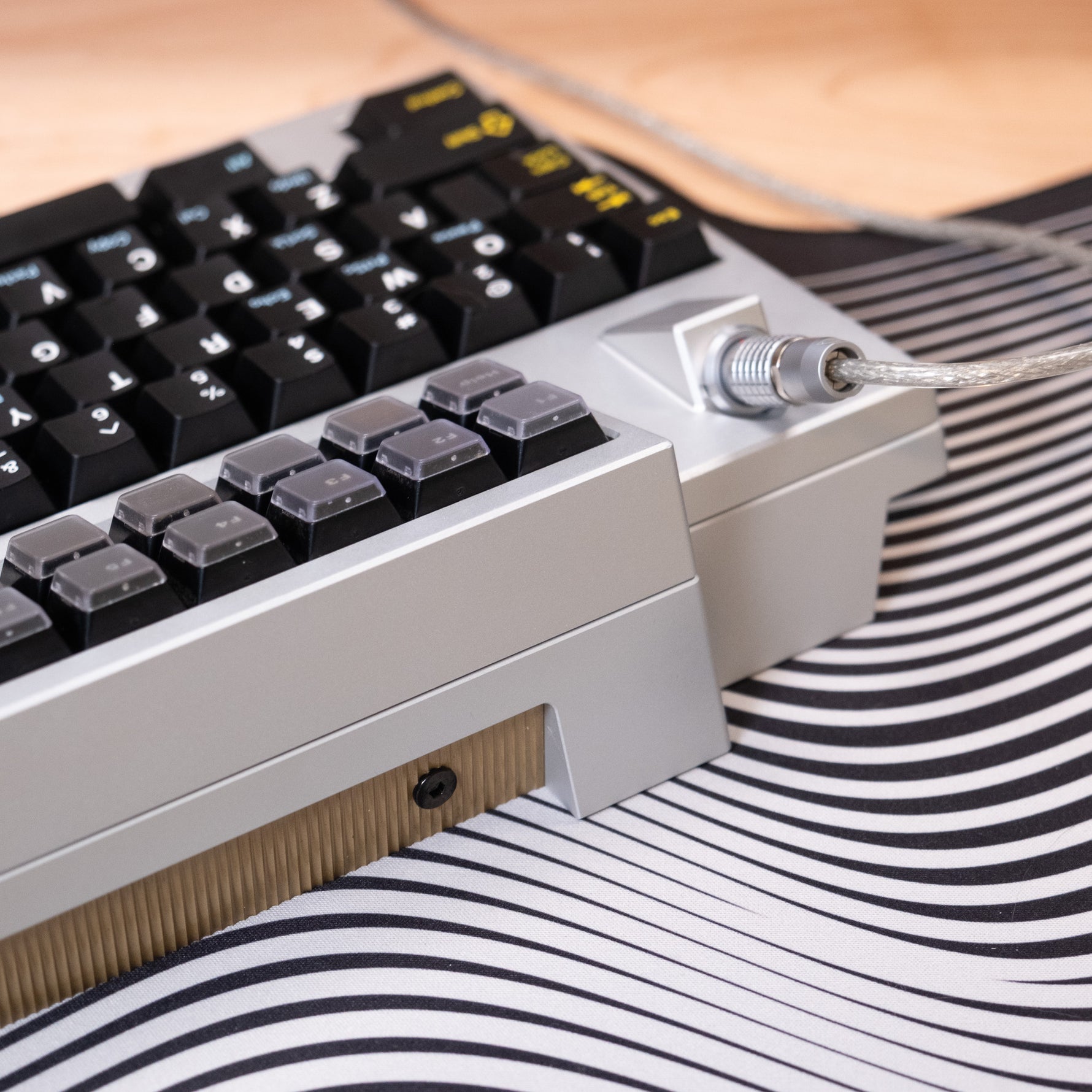

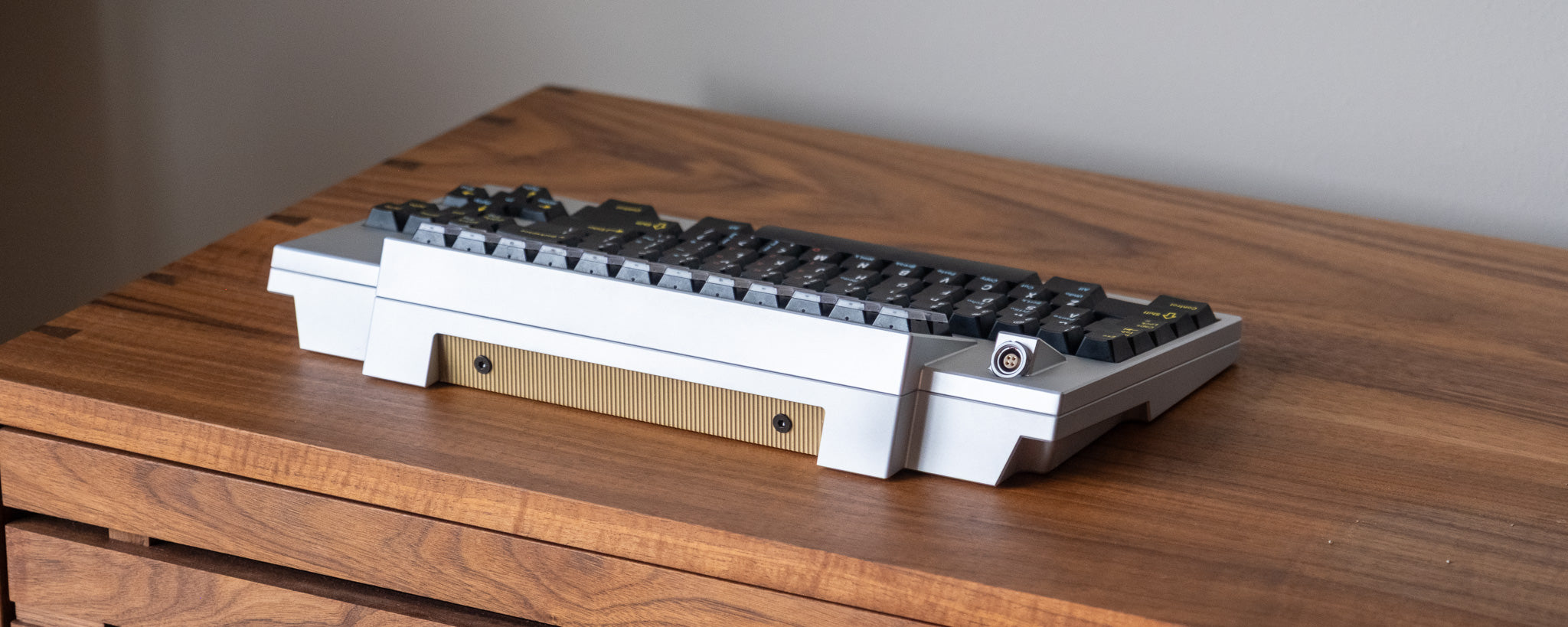

The case design centers around two main parts: the panel mounted connector and the dual f-rows. The stepped side profile and fluted back accent provide some visual flair to each angle of the keyboard.

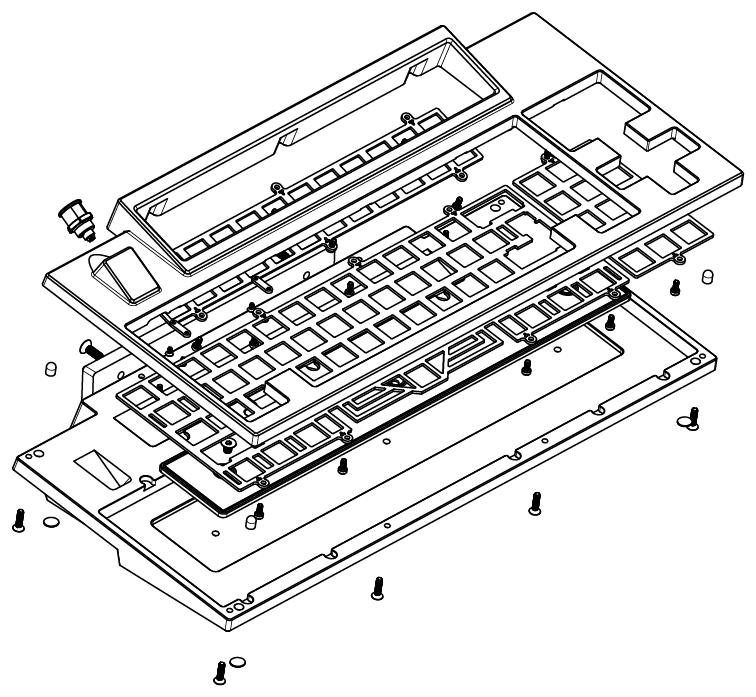

MOUNTING DESIGN

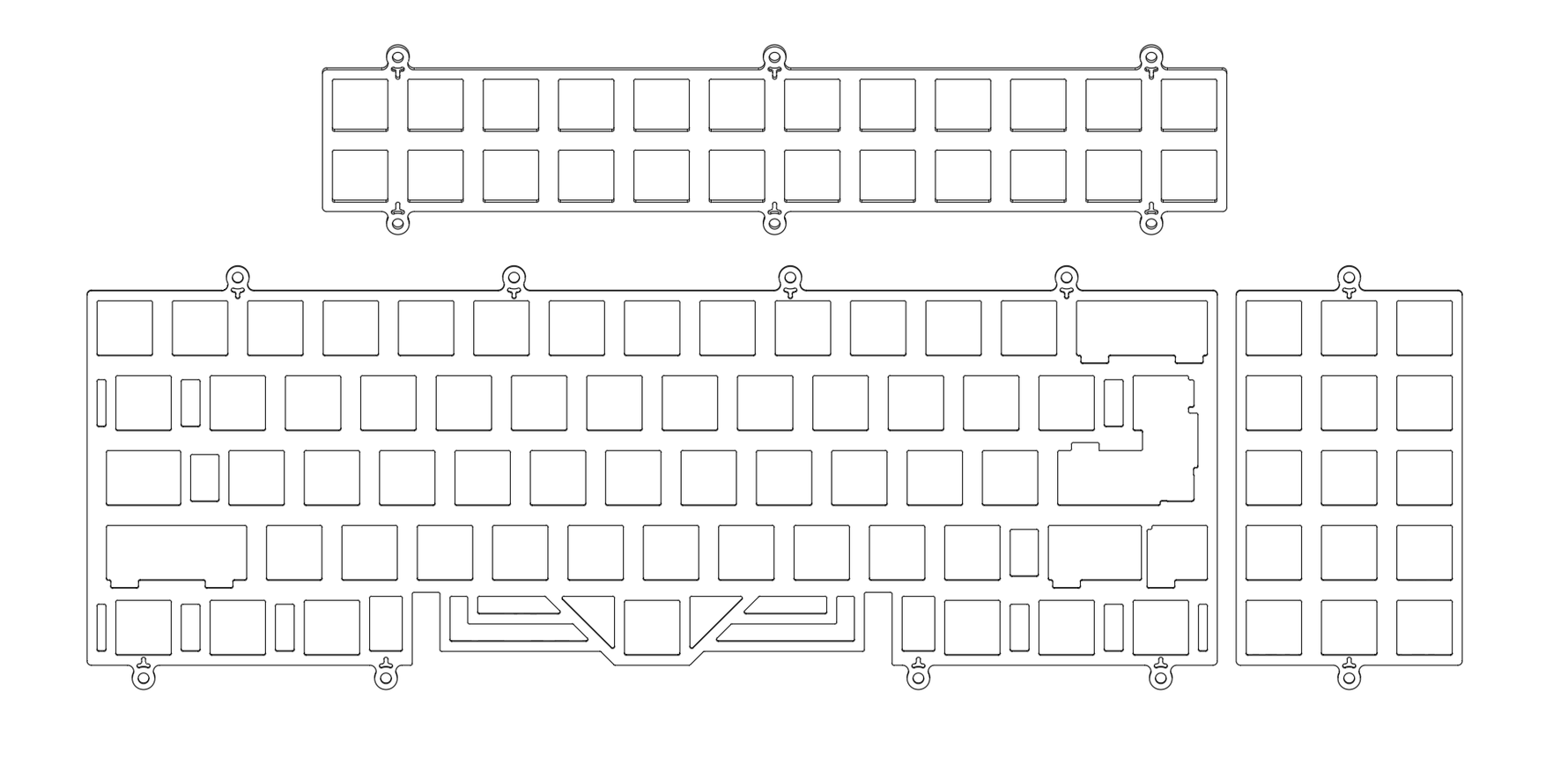

Bowlttleship uses top mounting for a reliable feel and sound with easy assembly. 3 Seperate plates are used to optimize sound in each area and creating a balanced feel. Relief cuts at each mounting location minimize vibration transfer to the rest of the case.

SALES INFO

US - Bowl Keyboards
EU - DeltaKeyCo
KR - Swagkeys
CN - TypistClub
More will be added

Group Buy Launch:
~ Before end of 2026
Fulfillment:
6-8 Months after GB closure (due to CNY holiday)

TBD with a goal of <$500

Included Items:
1x Aluminum Top Case
1x Aluminum Bottom Case
1x Stainless Steel Inner Weight
1x Copper Outer Accent Weight
1x Aluminum Badge
2x Acrylic JST Retainer
1x Main Plate
1x Nav Plate
1x F-row Plate
1x PCB Set
1x Panel Mount 1B Connector
1x 1B to USB A cable (1.6m, thick rubber)
Necessary Hardware

Optional Addons:
Hotswap PCB
Solder PCB
Aluminum Plate
PP Plate
PC Plate
CF Plate
Gray 1B to USB A Cable
Beige 1B to USB A Cable
DCS WOB Battleship Kit
DCS Beige Battleship Kit
DCS Orange on Beige Battleship Kit
DCS Grass Valley Battleship Kit

Nav Layouts

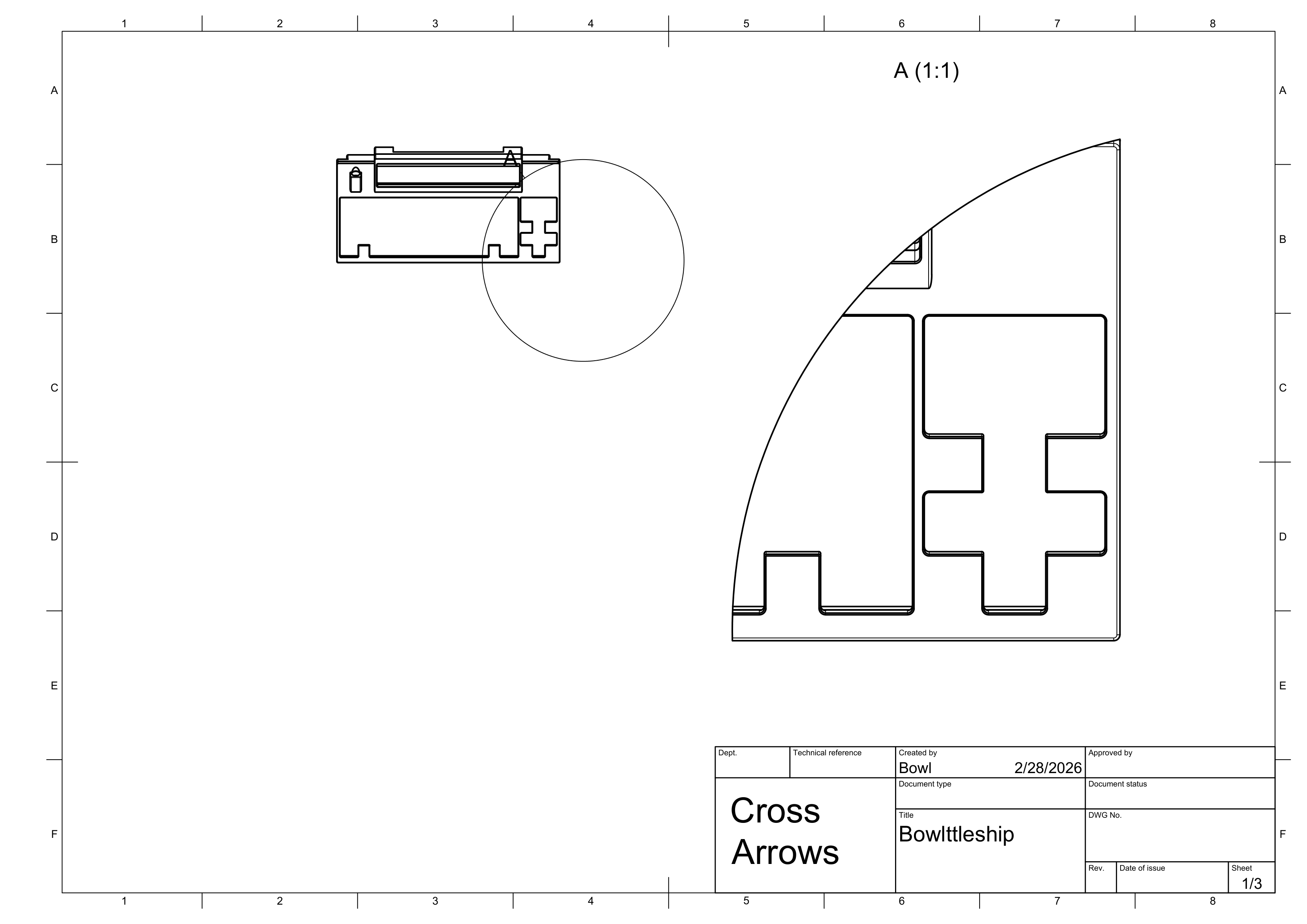

  • Cross Arrows

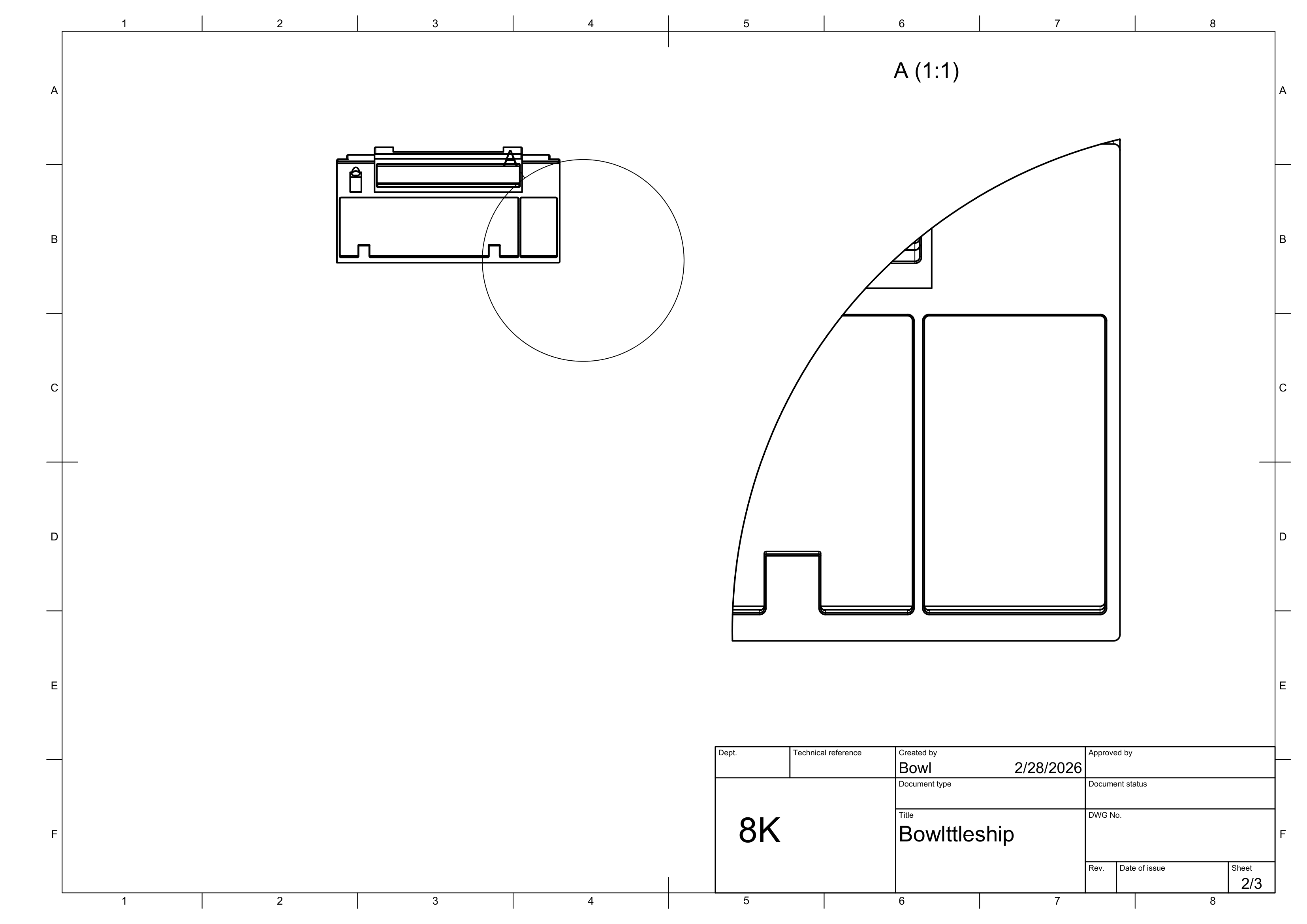

  • 8K

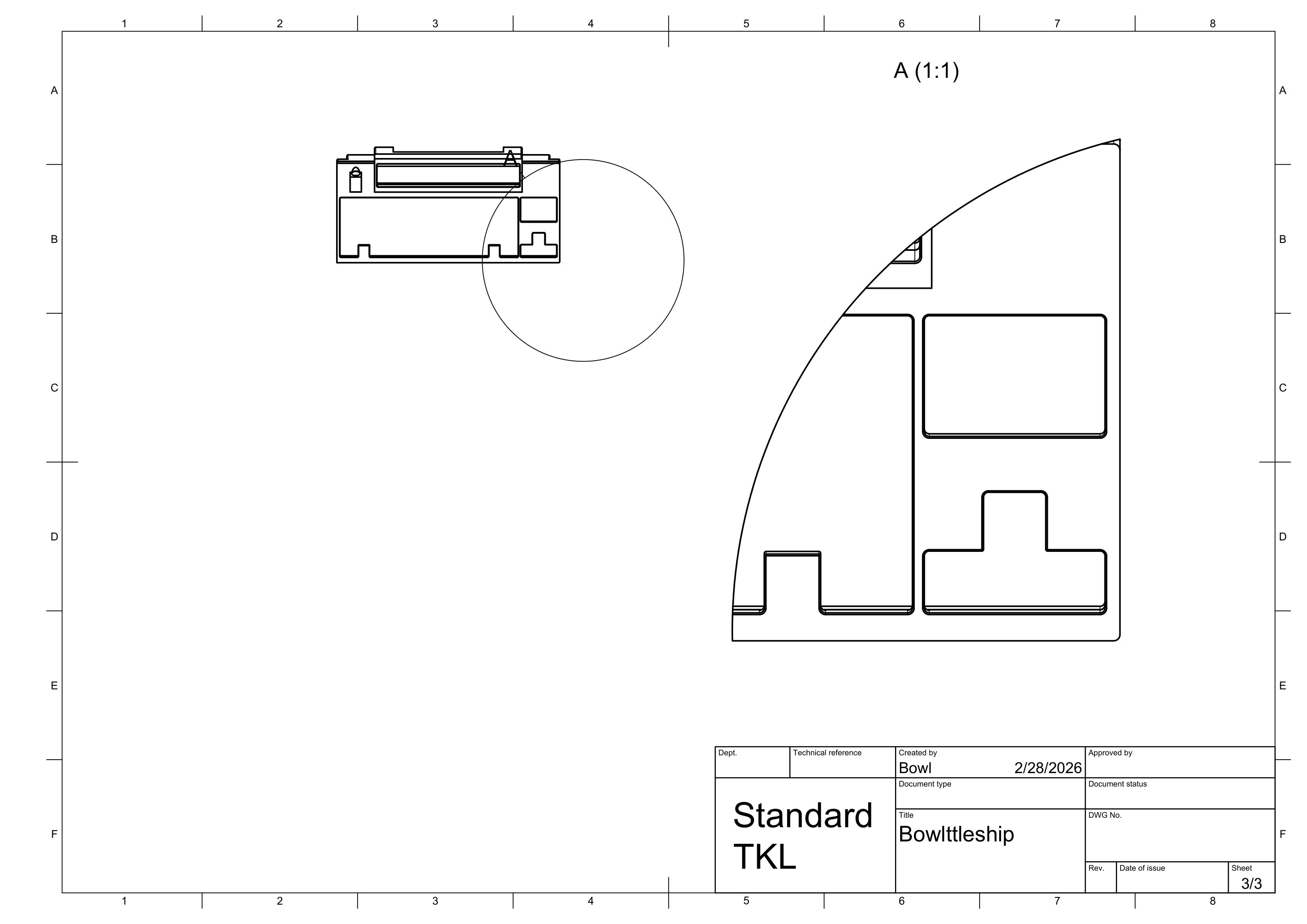

  • TKL

Planned Colorways

Renders and Prototypes In Progress

- Silver: Silver anodized top and bottom case

- Solar: Light anodized top case, dark anodized bottom case

- Classic: Beige coated top and bottom case

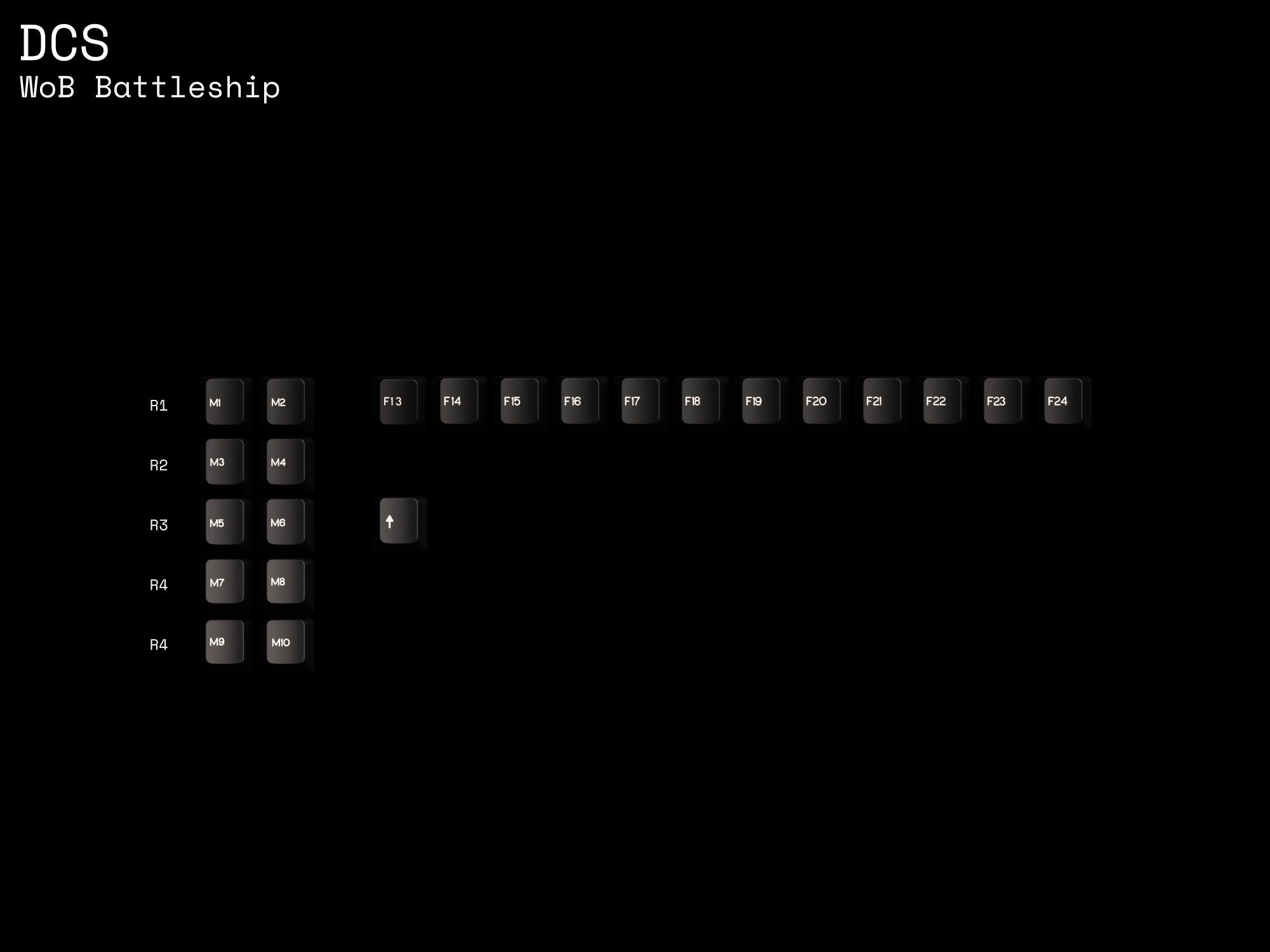

DCS Battleship Kits

Kitting is pending, more kits could be added

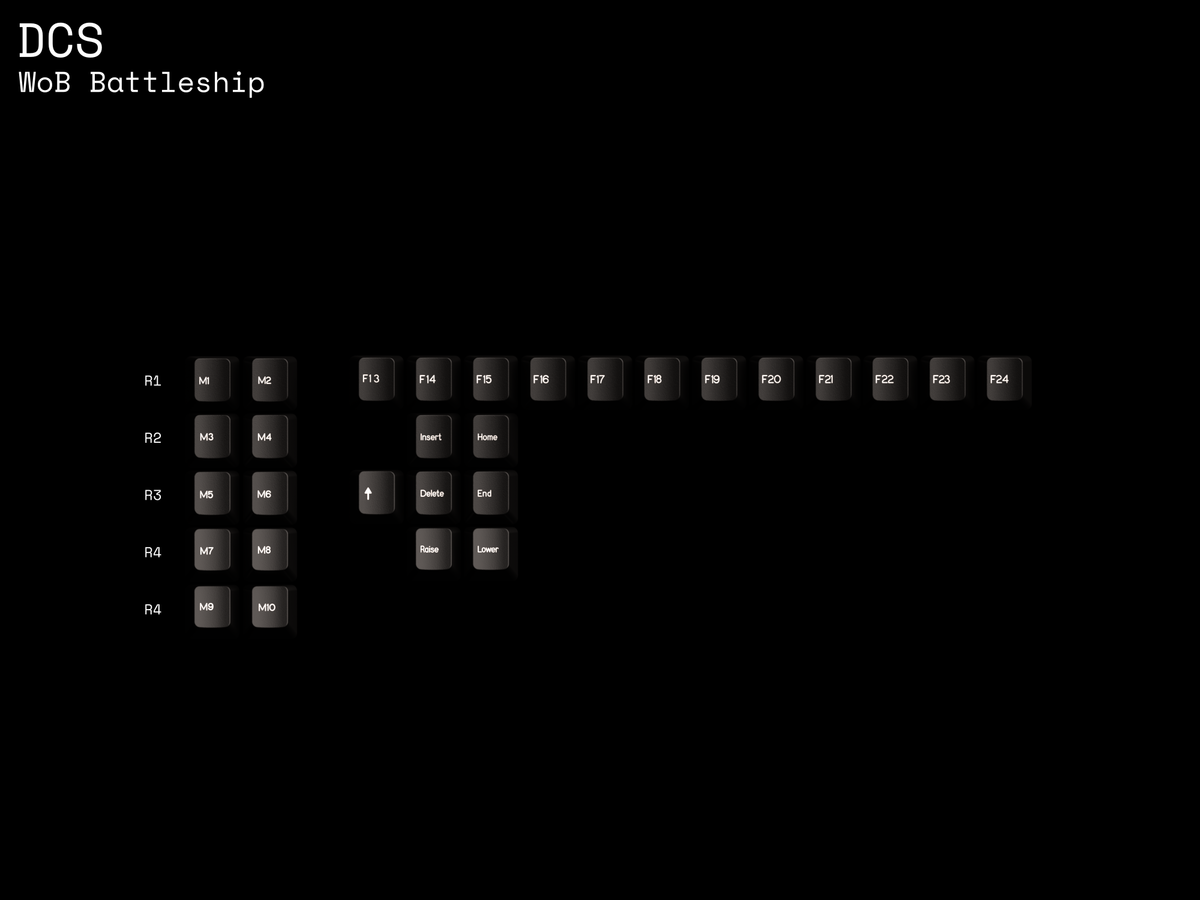

  • White on Black

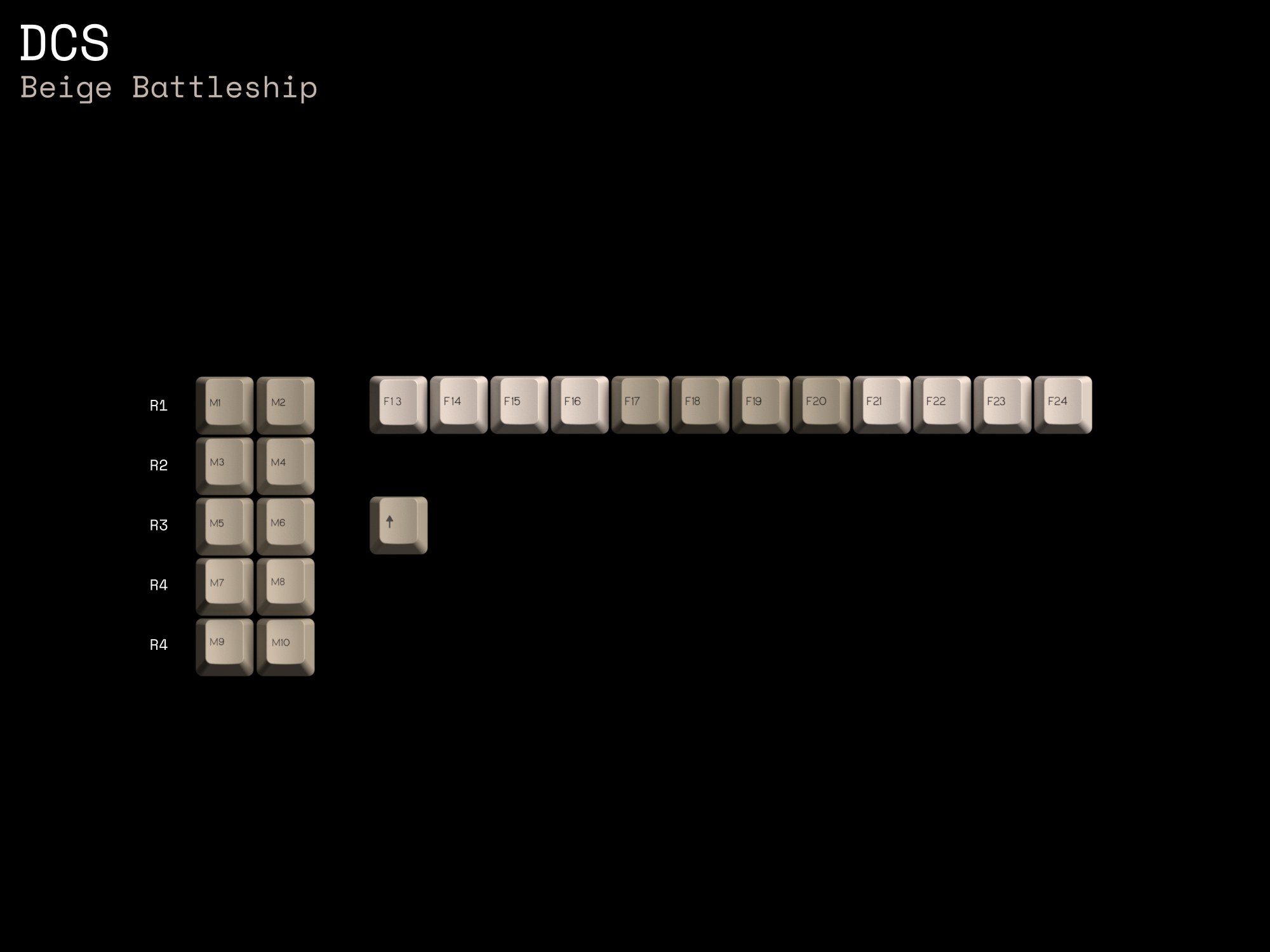

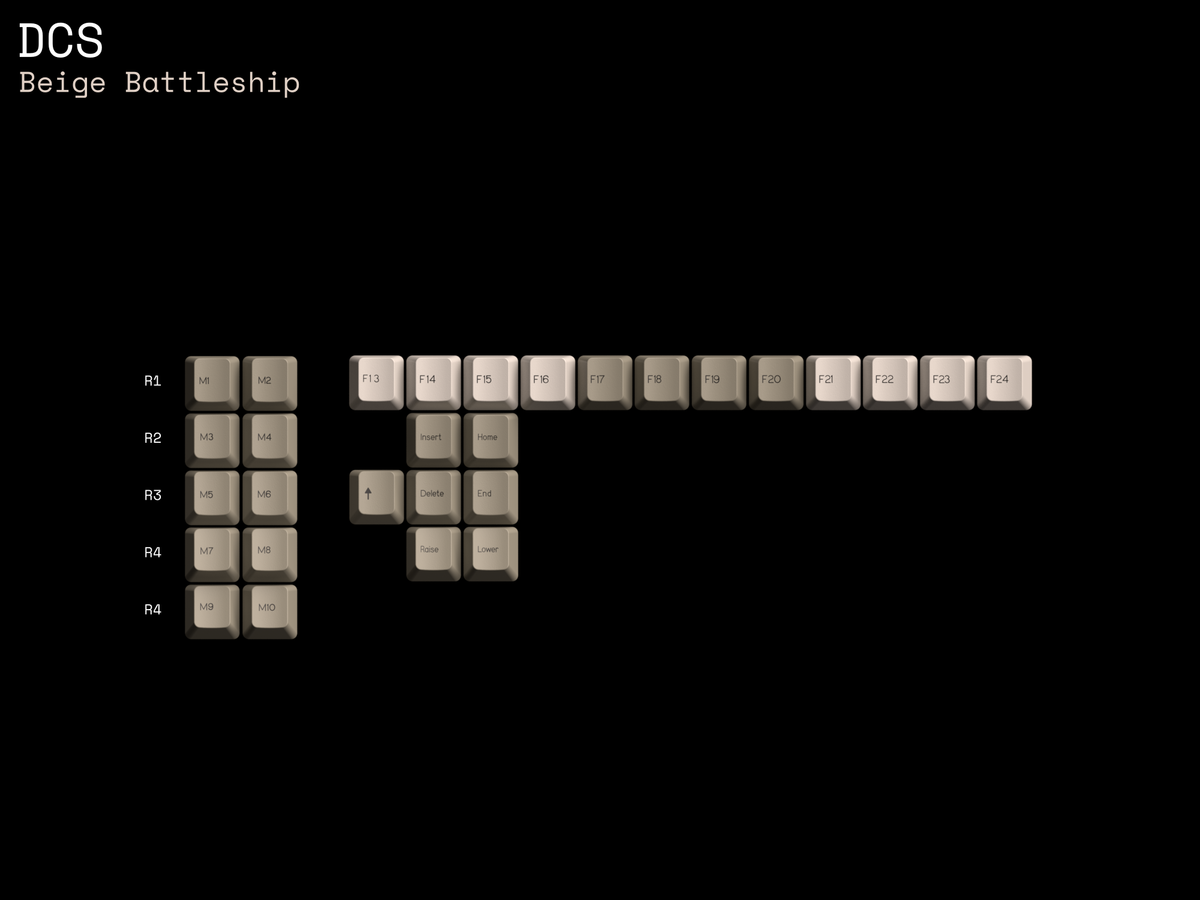

  • Beige

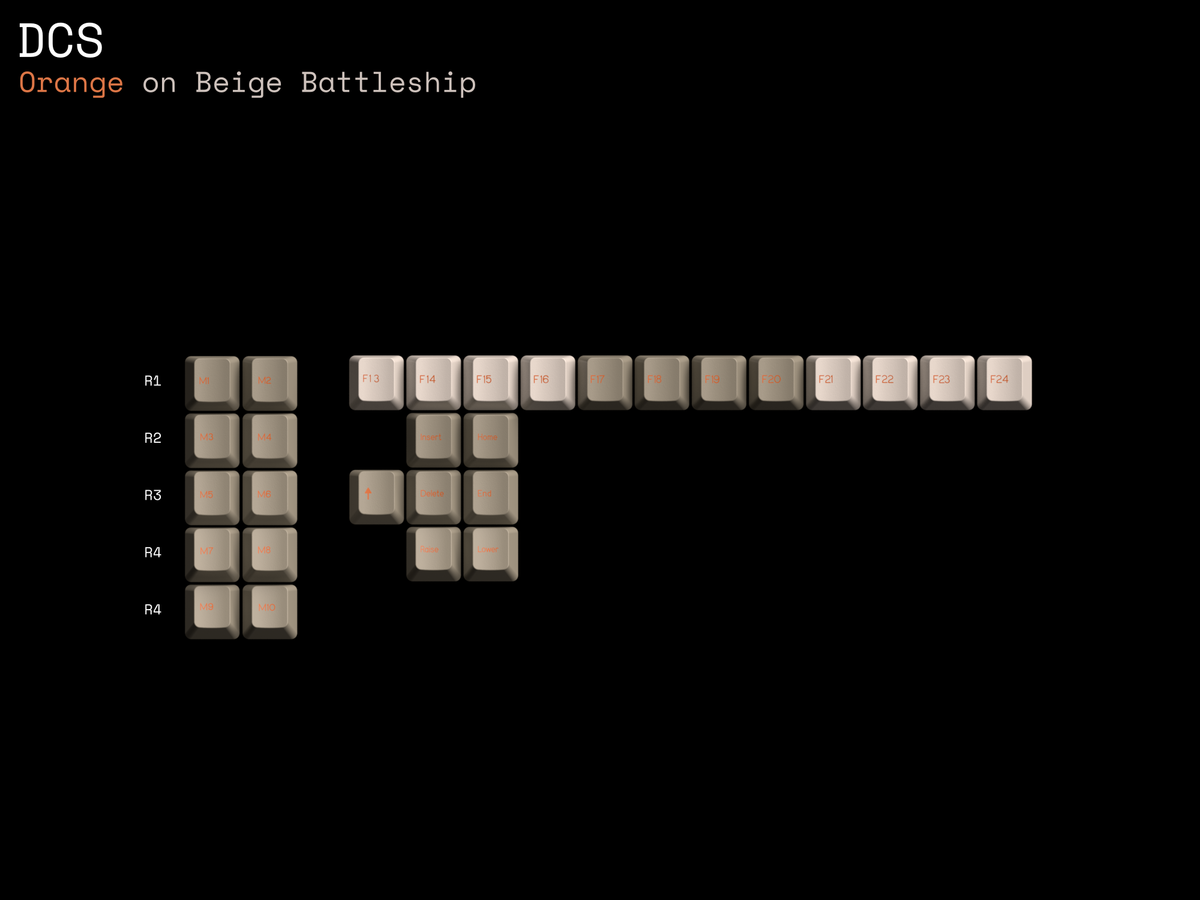

  • Orange on Beige

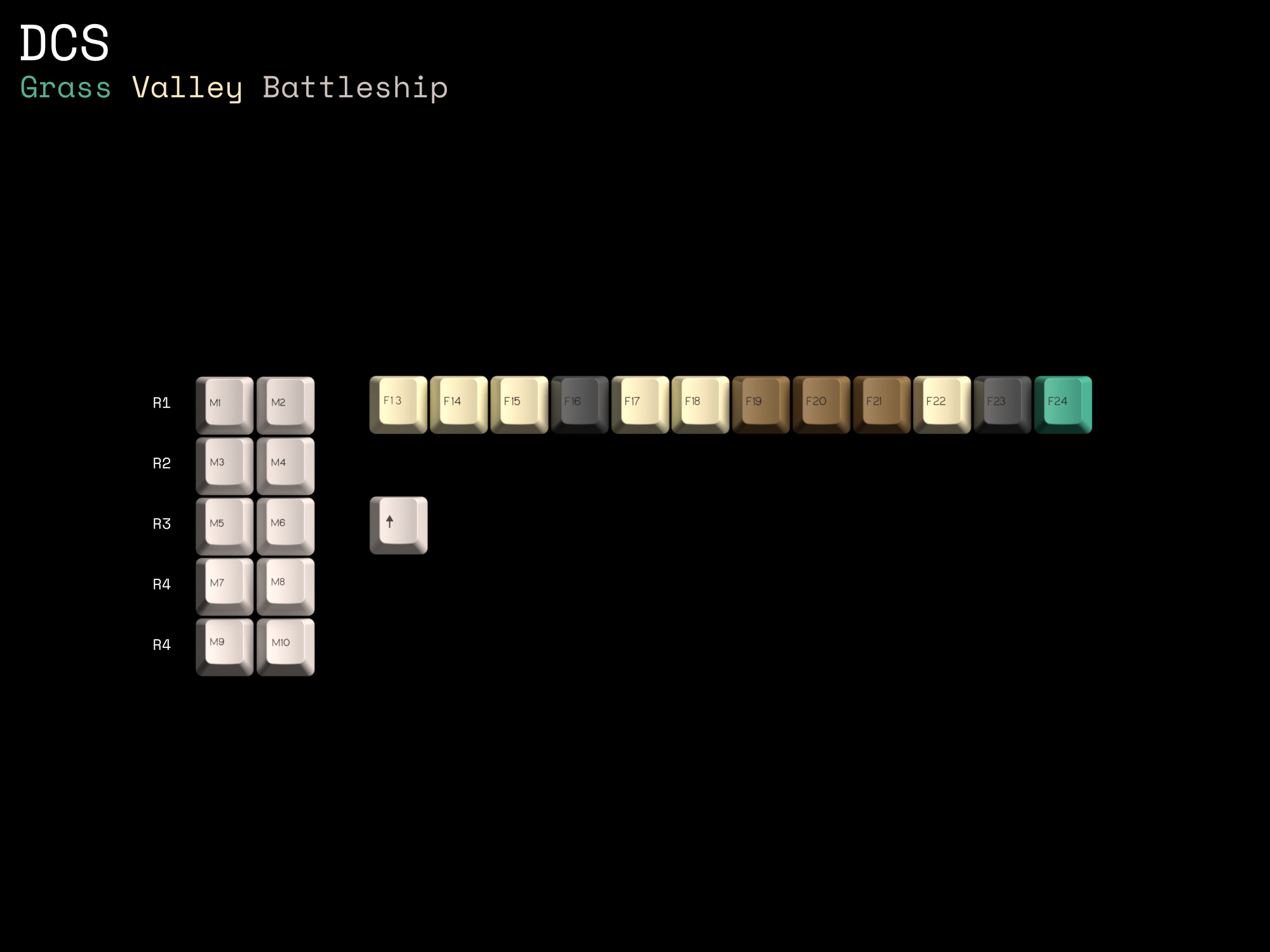

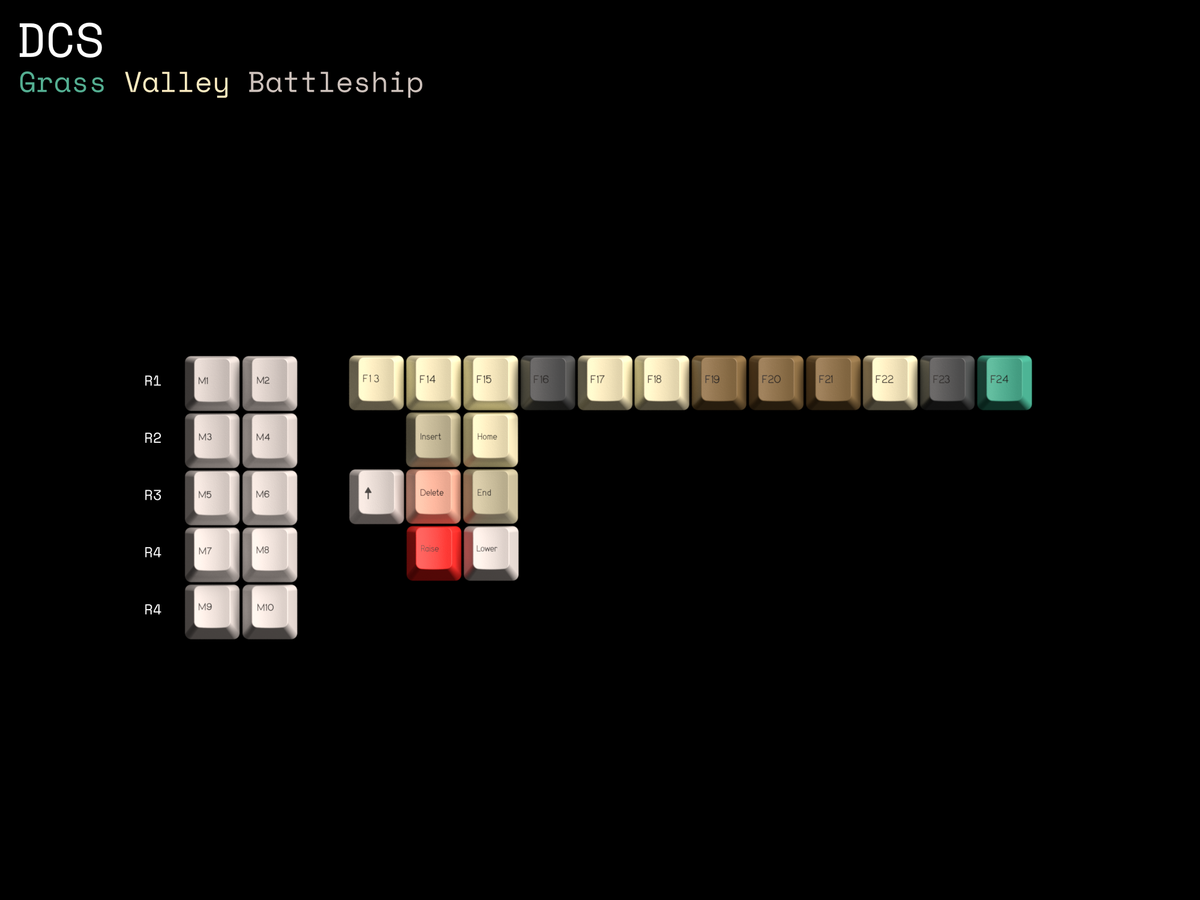

  • Grass Valley
