Capy60 Round 2

Capy60 made it's first debut in February of 2023 and it is now BACK and instock pulling up for a second round! Round 2 features all new colors and a new engraving while still keeping the same overall aesthetics and beloved typing feel and sound from round 1!

SALES INFO

US: Bowl Keyboards
US: Click Clack
EU: Delta Key Co
UK: Prototypist
KR: Swagkeys
AUS: KeebznCables
CN: NEXT
SG: PantheonKeys

Instock Sale: Early 2025

$320 for solder, $325 for hotswap
*May vary by vendor

1x Top Case
1x Bottom Case
1x Through Weight
1x Aluminum Plate
1x Solderable or Hotswap PCB
1x C5 Unified Daughterboard + JST to JST Cable
1x Carrying Case
10x 30A, 60A, 90A Gaskets
All Screws/Parts/Etc for assembly

*Note switches, keycaps and stabilizers are not included

Solder PCB
Hotswap PCB
Daughterboard and JST Cable
Aluminum/Carbon Fiber/Polypropylene Plates

CASE SPECIFICATIONS

  • Materials: 6063 Aluminum, Brass, Copper, Stainless Steel
  • Layout: 60% WK, WKL, HHKB
  • Typing Angle: 8 Degrees
  • Front Height: 18.4 mm
  • EKH: 23.4mm
  • Weight: 1.7kg
  • Mounting: Gasket

PCB SPECIFICATIONS

  • Material: Black FR4
  • Thickness: 1.6mm
  • Connectivity: JST to Unified Daughterboard
  • Customizability: VIA
  • Type: Solderable and Hotswap

HOTSWAP COMPATIBILITY

SOLDER COMPATIBILITY

DESIGN NOTES AND INSPIRATION

CASE DESIGN

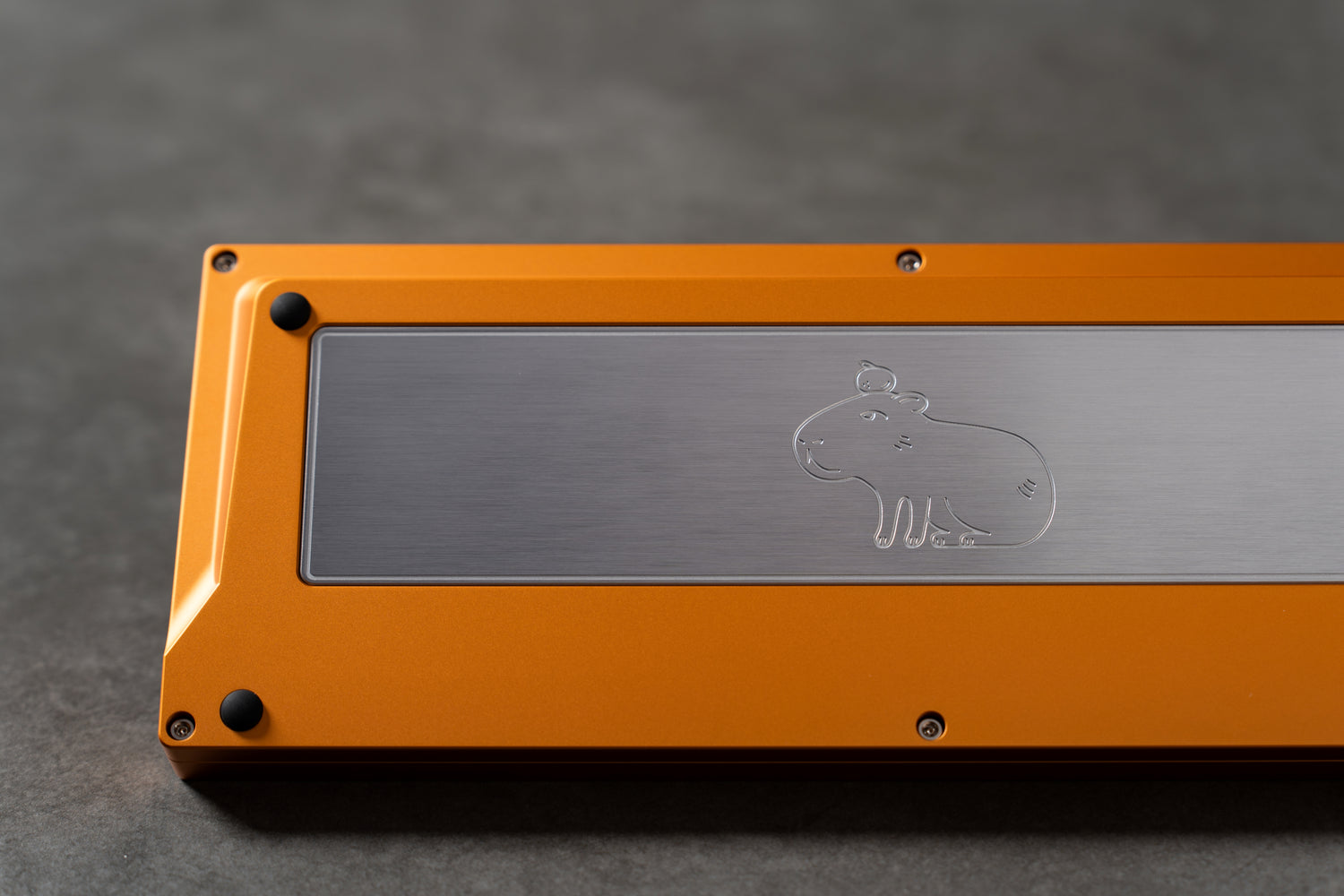

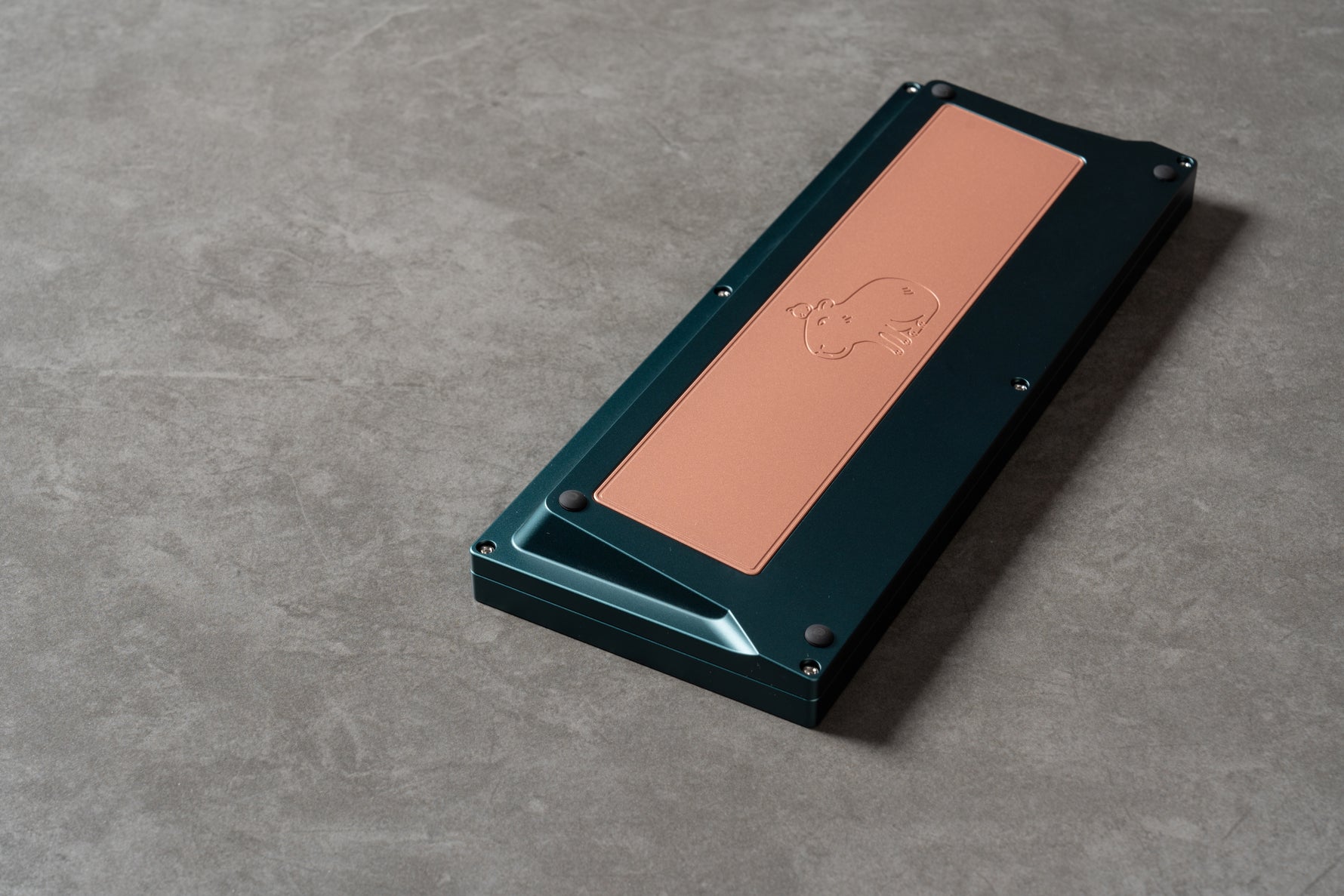

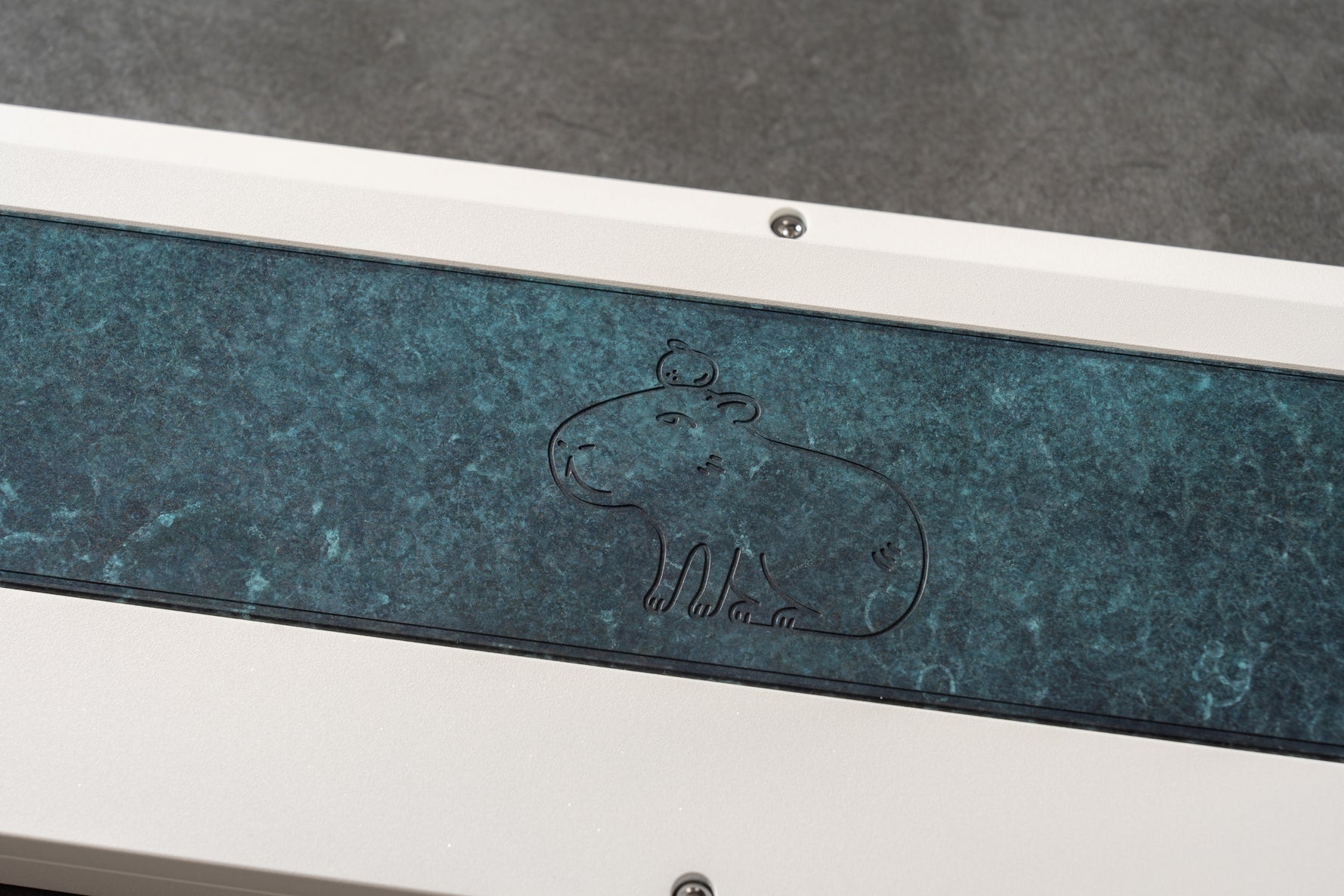

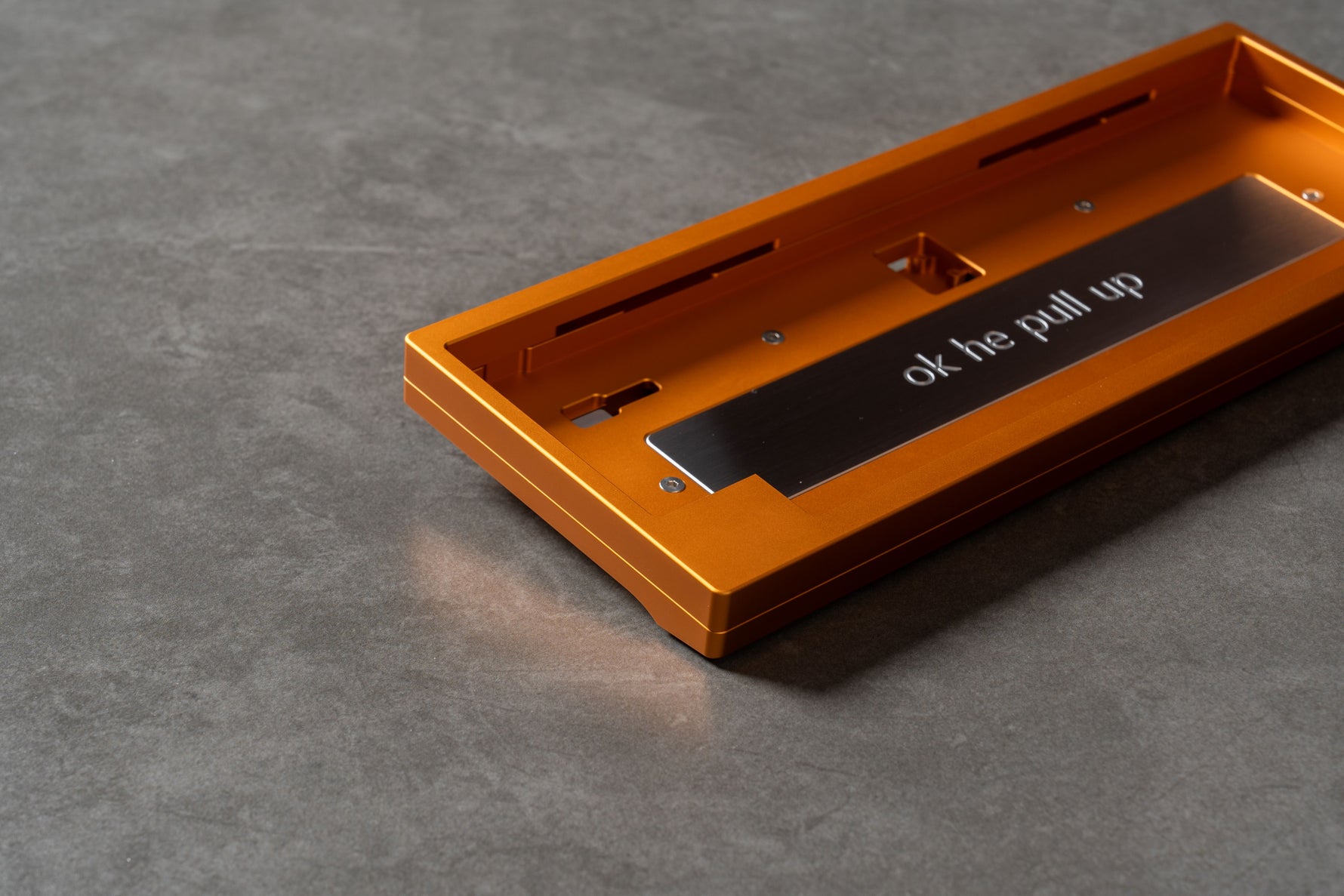

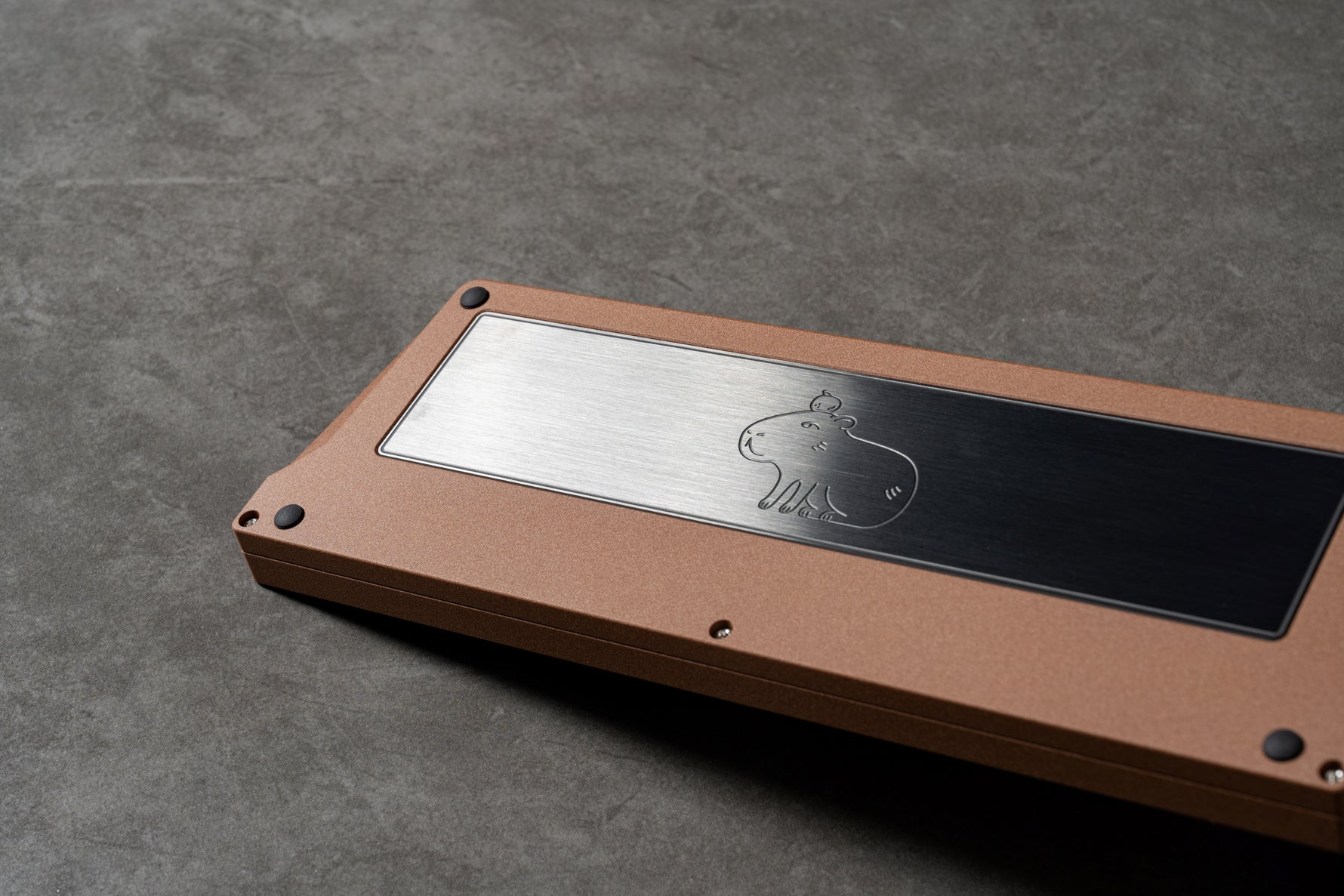

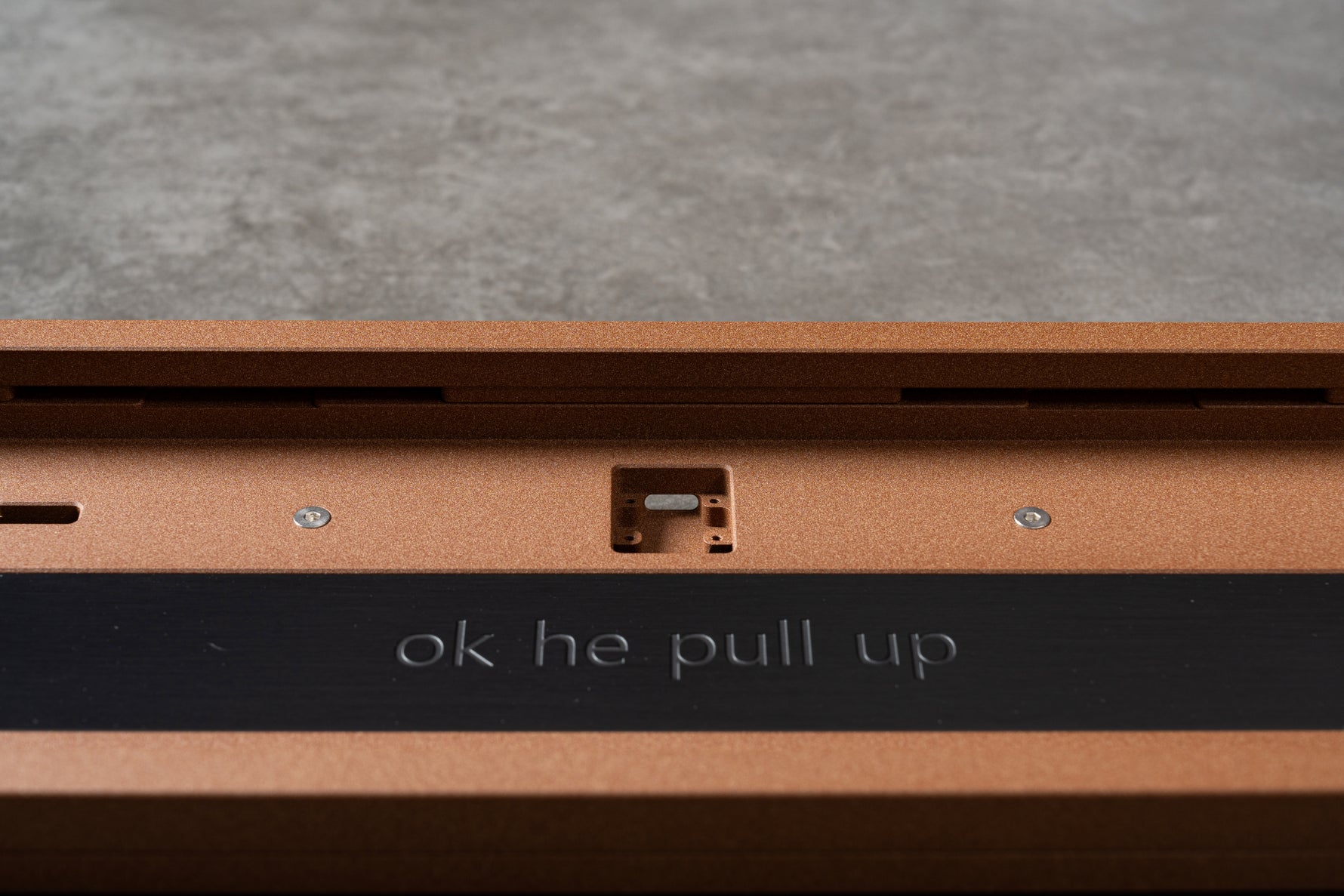

Capy60 is a straight forward 60% with a simple theme in mind: the world's largest rodent. The bottom weight on the keyboard features a cute engraving of a capybara with it's favorite fruit, an orange. Inside, the words "ok he pull up" are engraved based on the infamous meme. The rest of the case features a slightly accentuated seam, a clean box on wedge design with some added flair and a through weight with a large portion showing externally.

MOUNTING DESIGN

Capy60 R1 was my first design that used molded gaskets with a leafspring plate design. R1 used gaskets sourced from a third party retailer while R2 has switched to use custom designed gaskets used in some of my other designs like Pangea Fullsize and Geass60 Revival. This switch allows us to produce various hardnesses to offer a more customizable feel and sound!

COLORWAYS

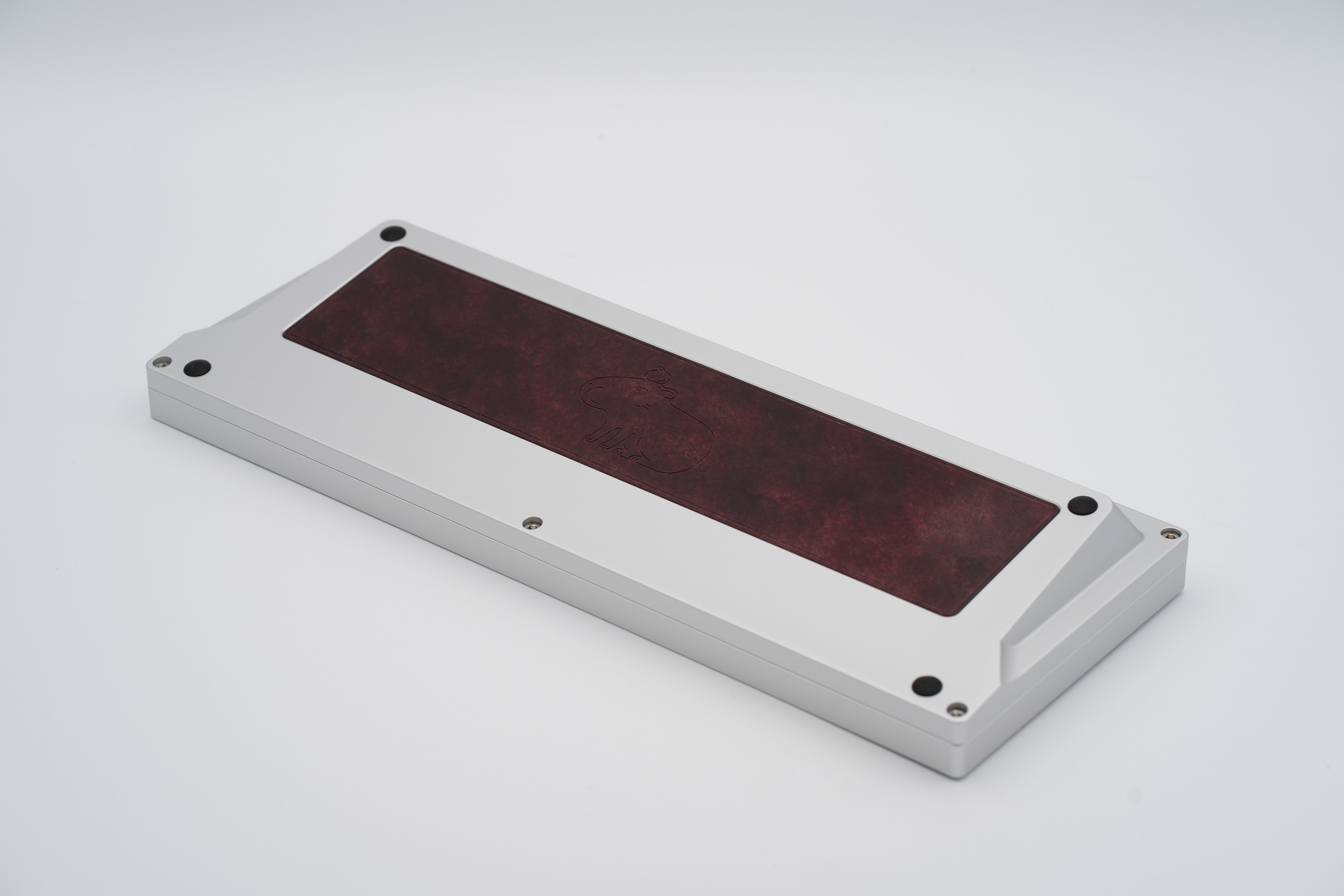

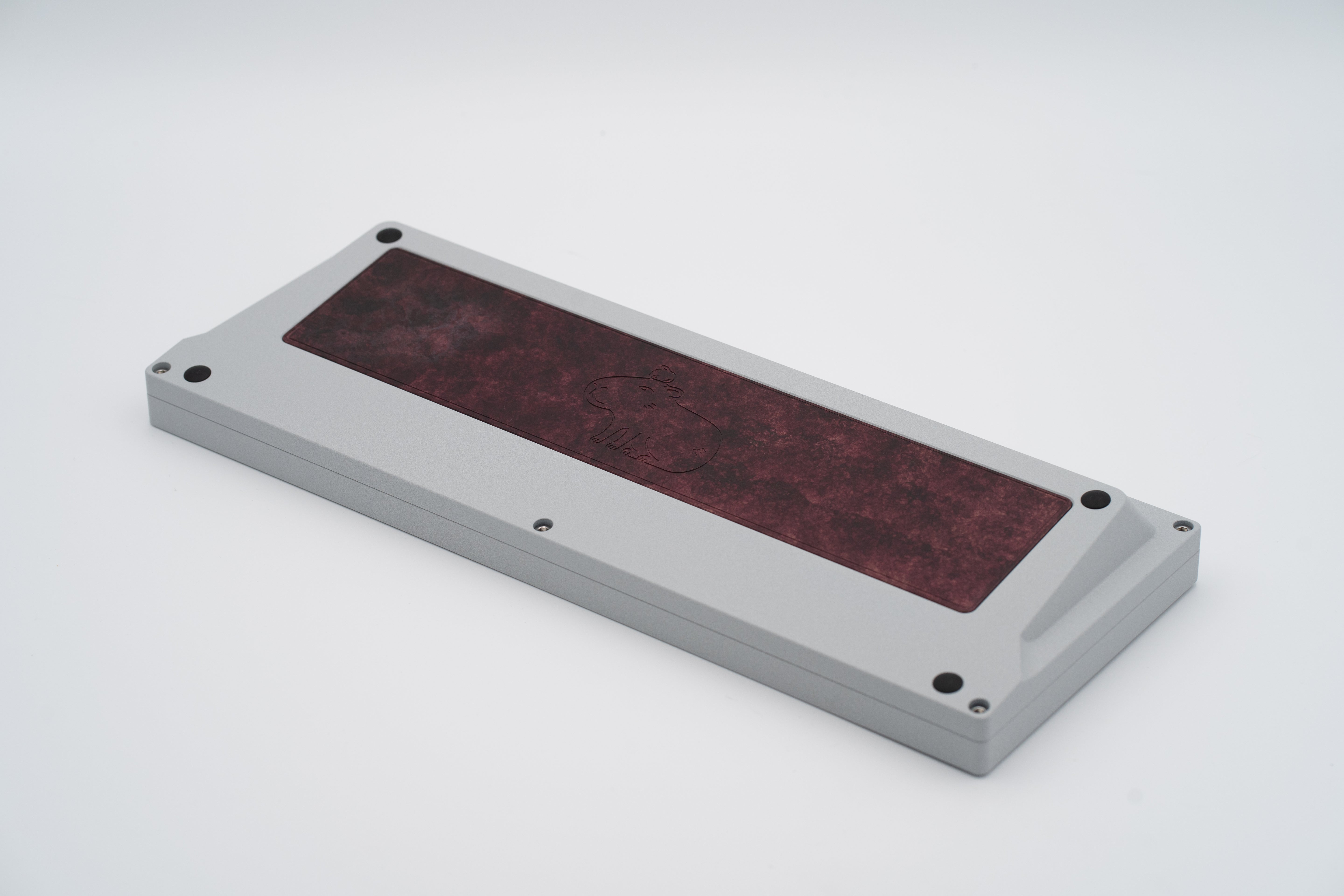

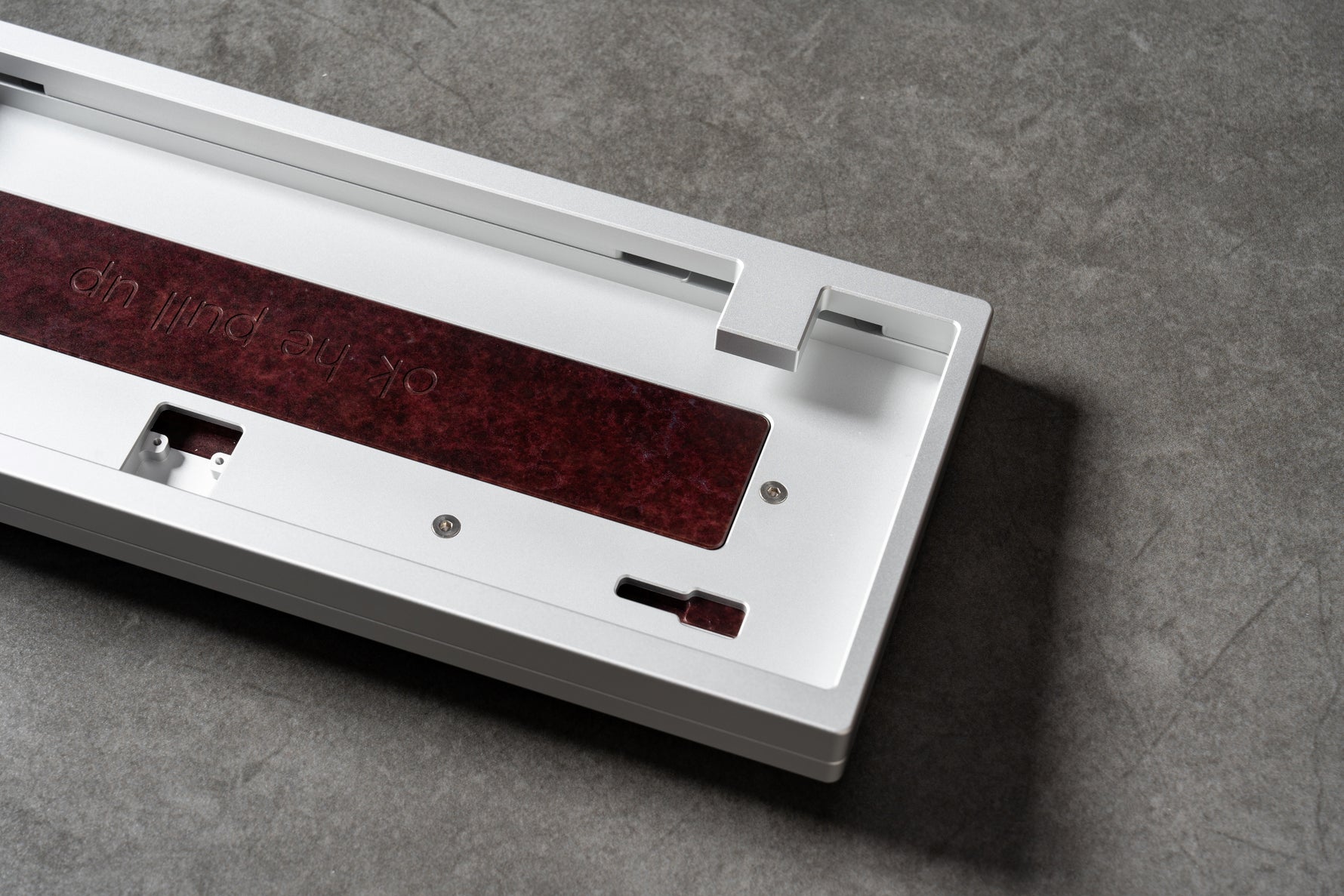

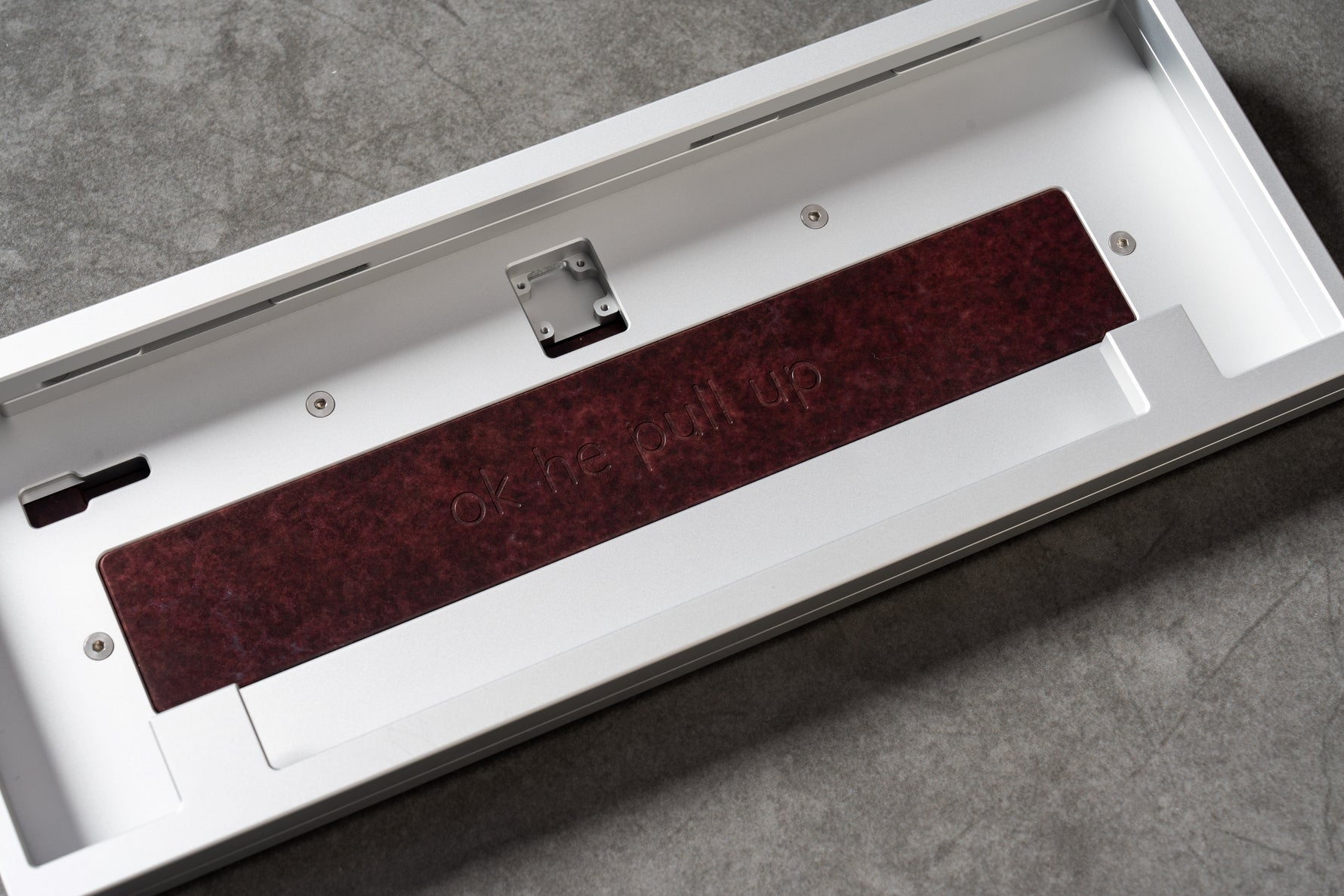

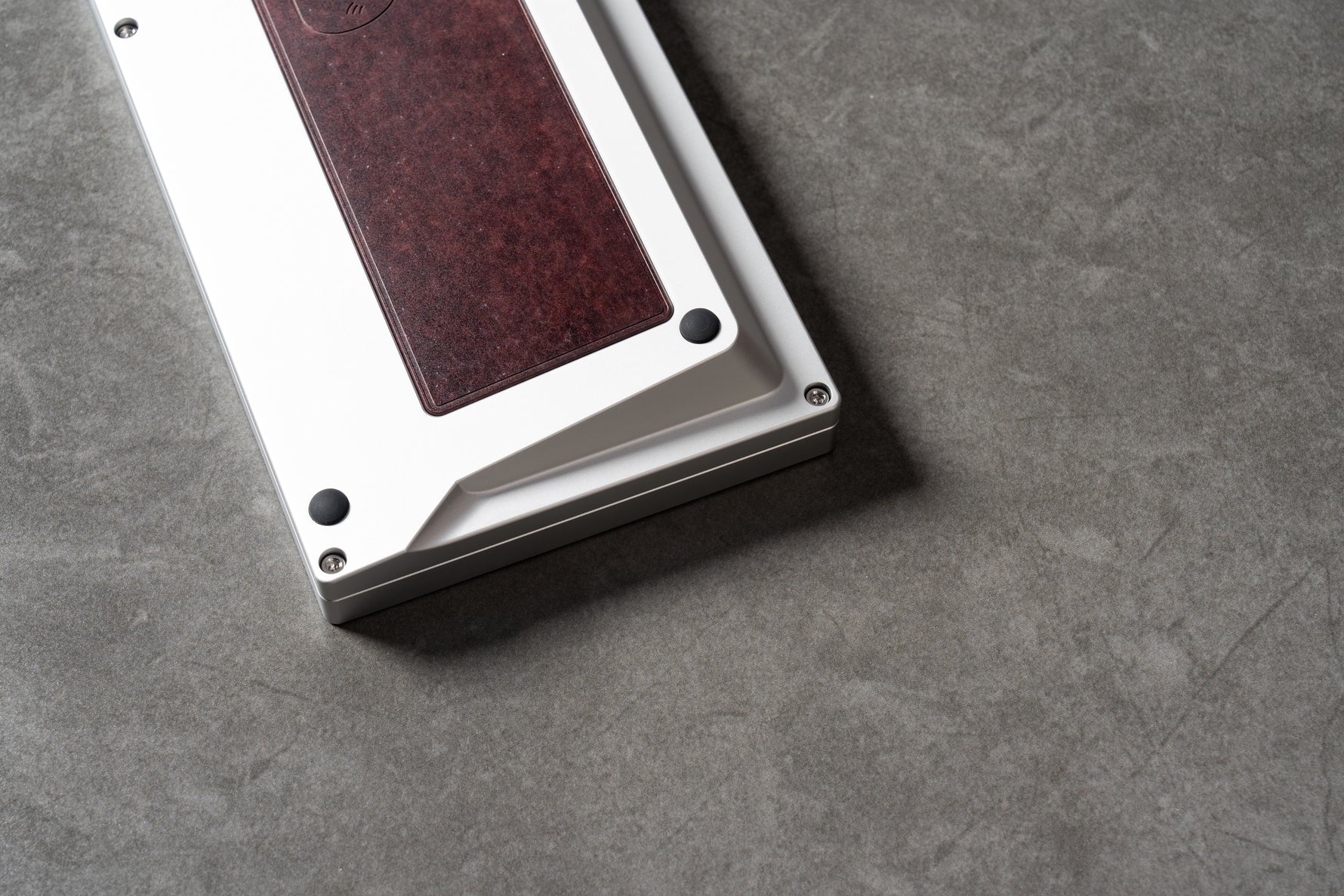

  • Silver

    anodized aluminum with dark red patina brass

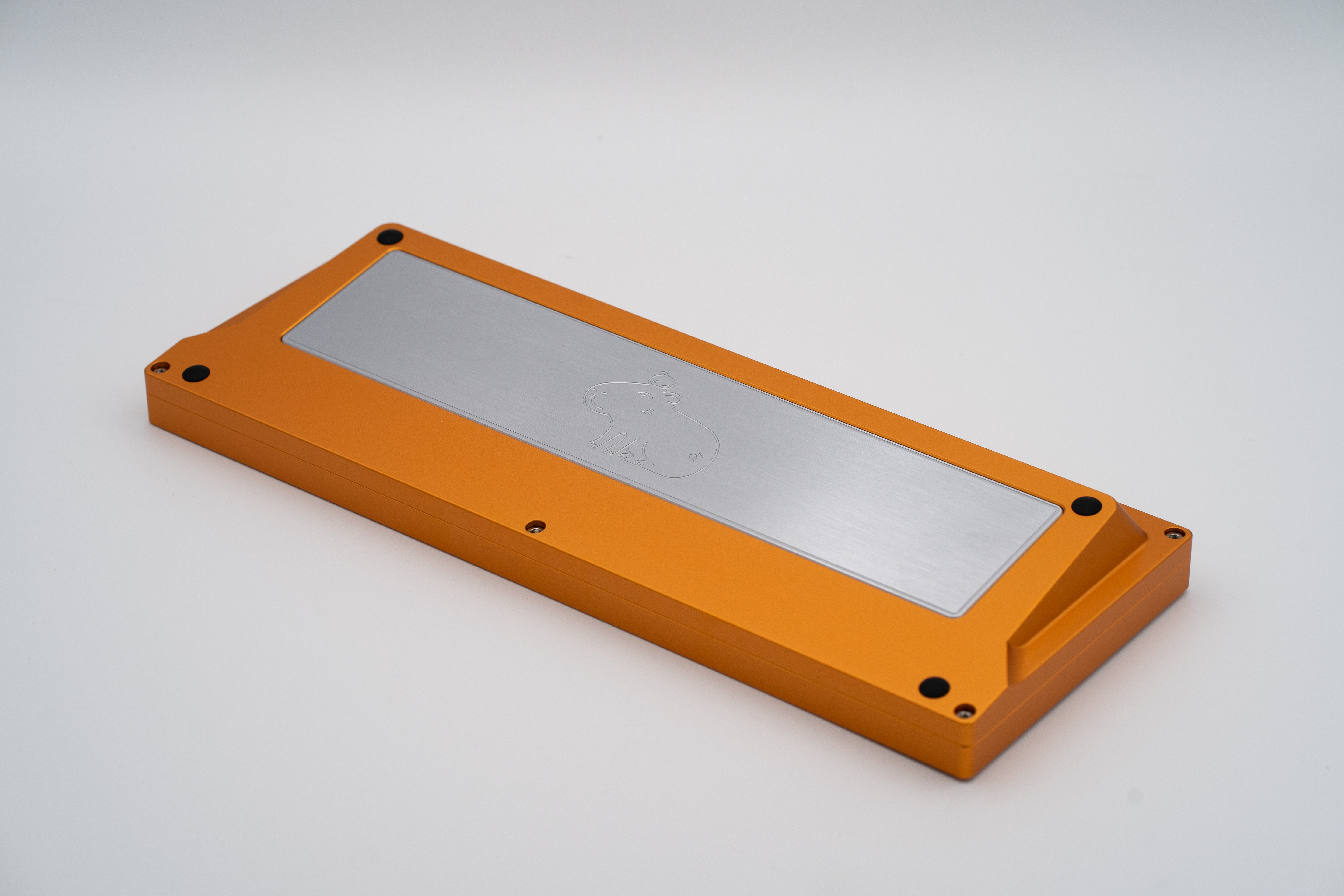

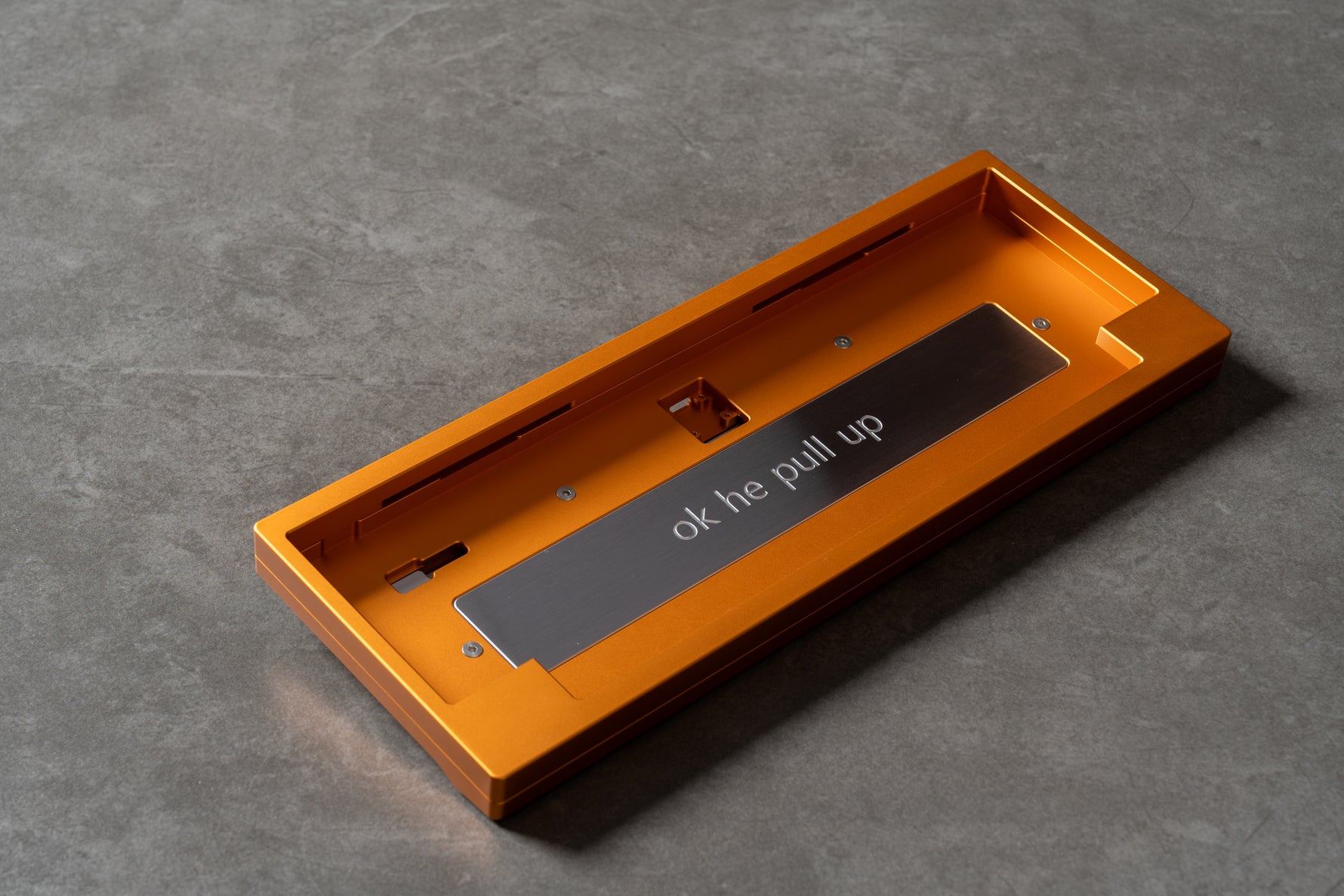

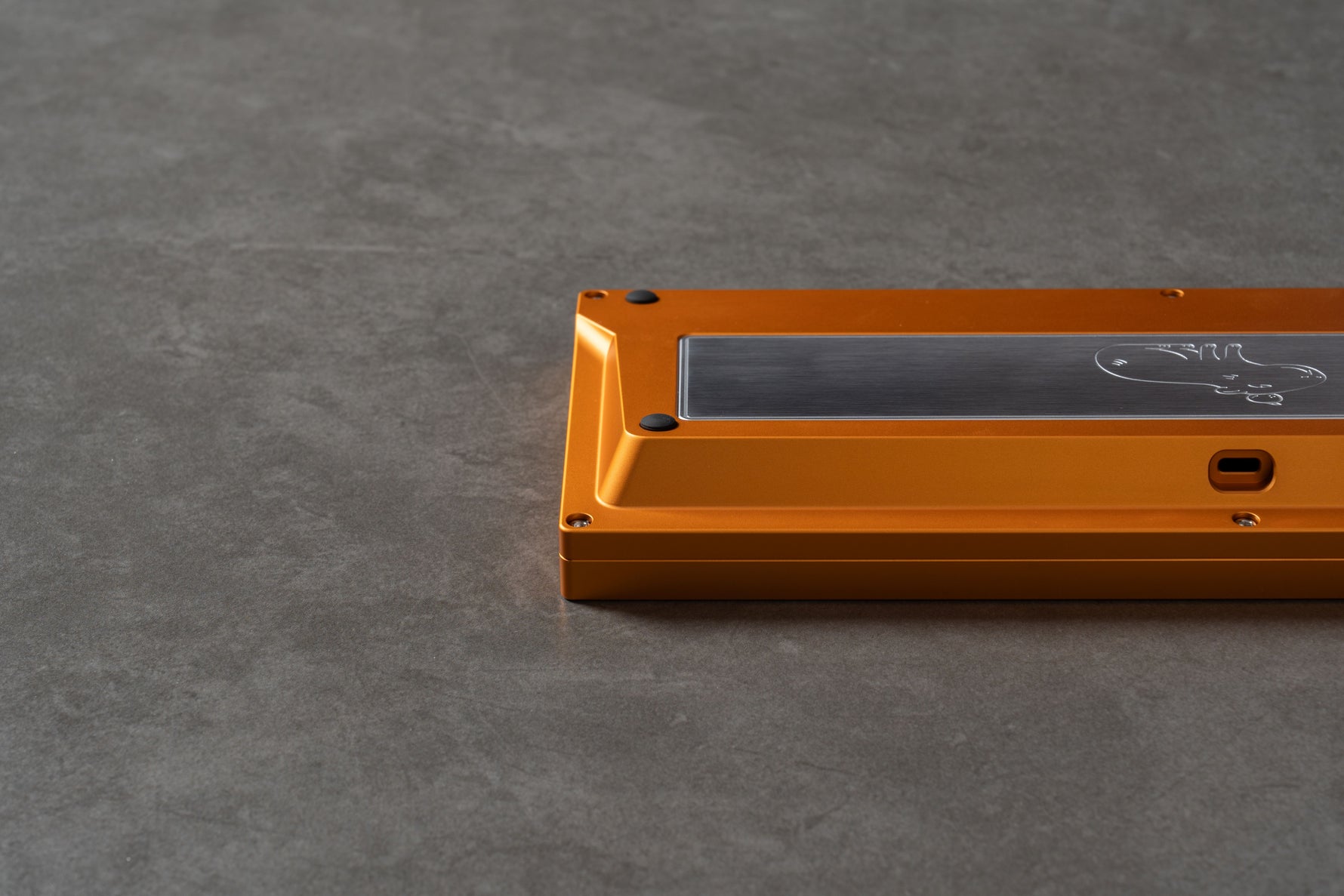

  • Tangerine

    anodized aluminum with brushed stainless steel

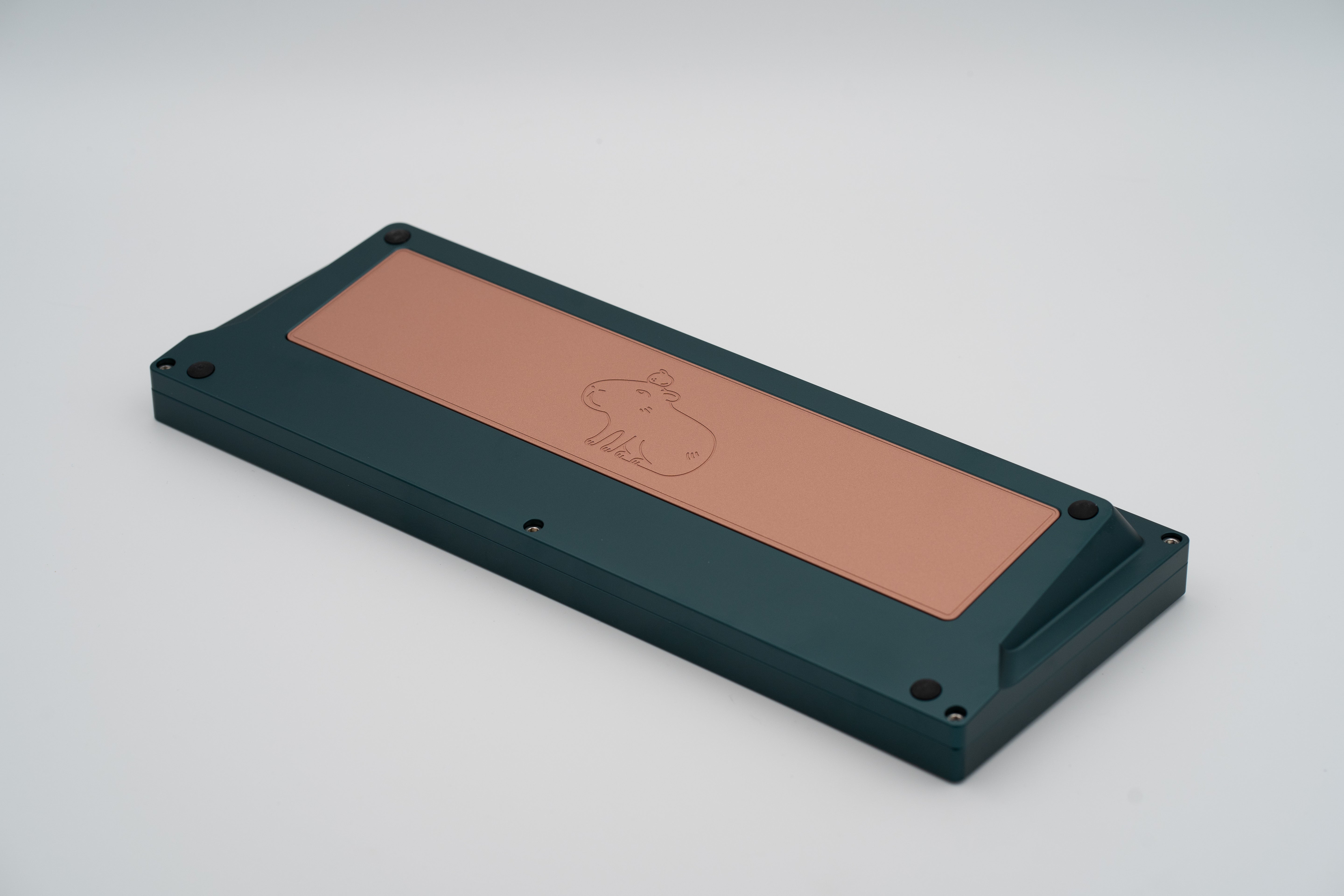

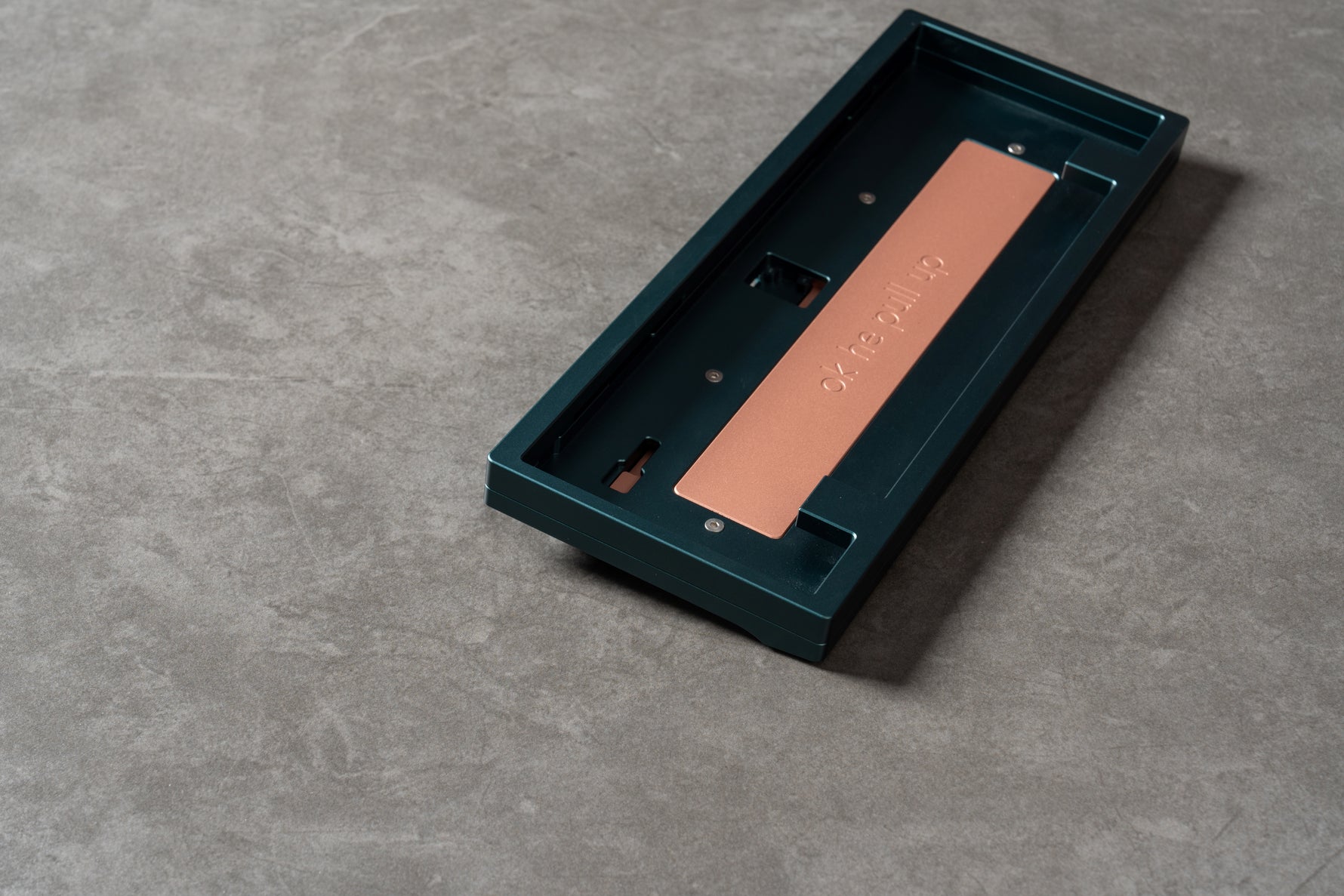

  • Prussian Blue

    anodized aluminum with sandblasted and coated copper

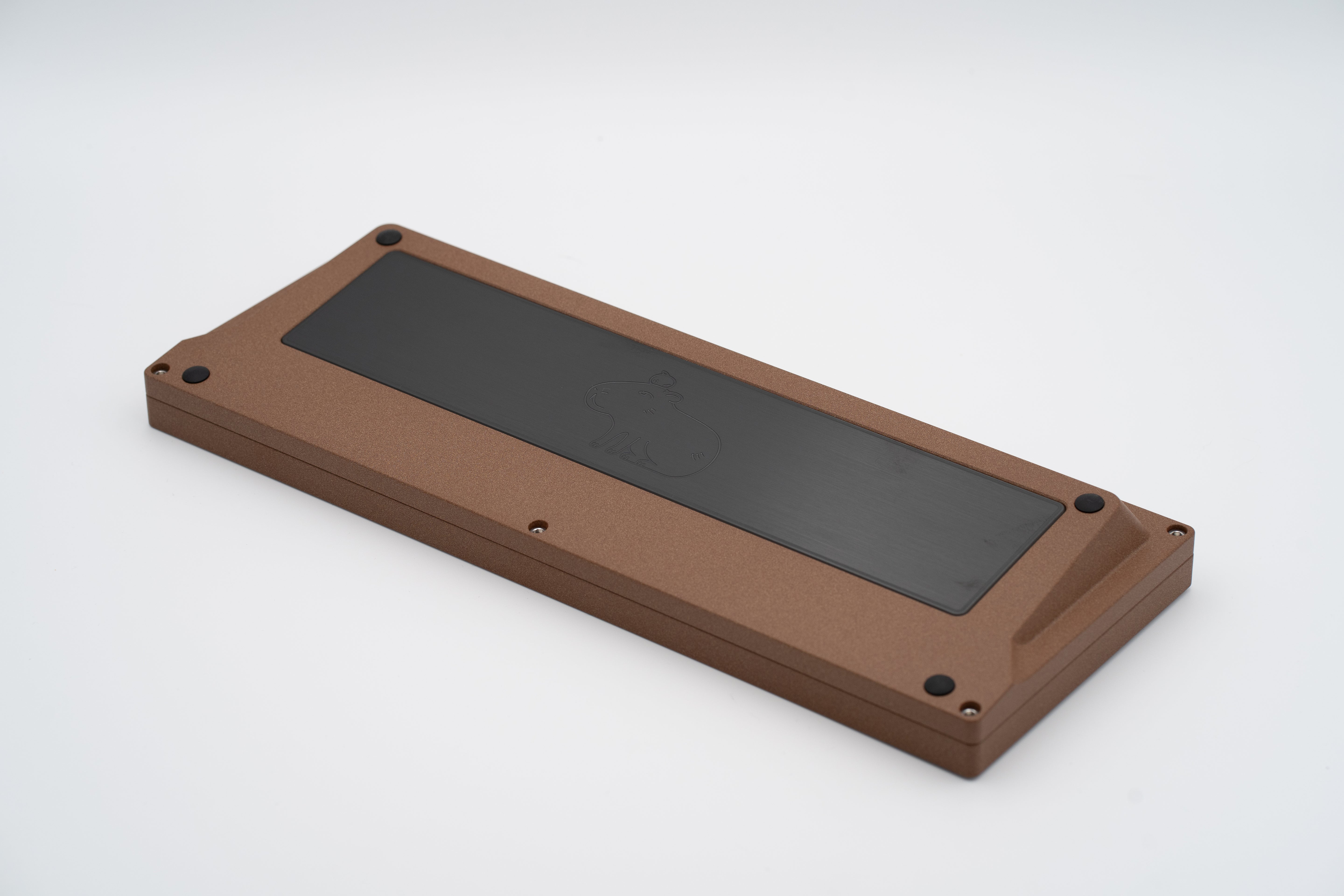

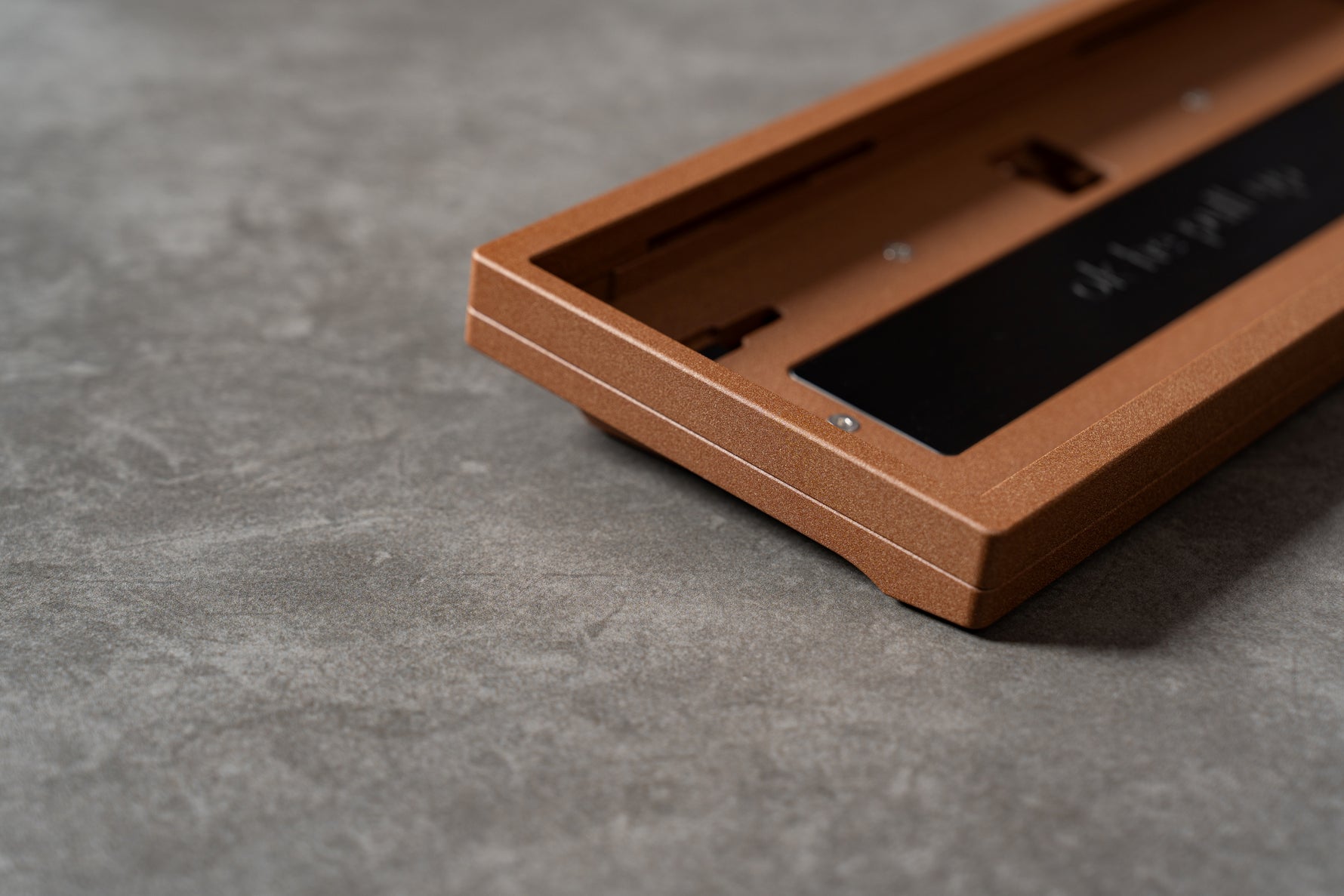

  • Brown

    coated aluminum with black brushed stainless steel

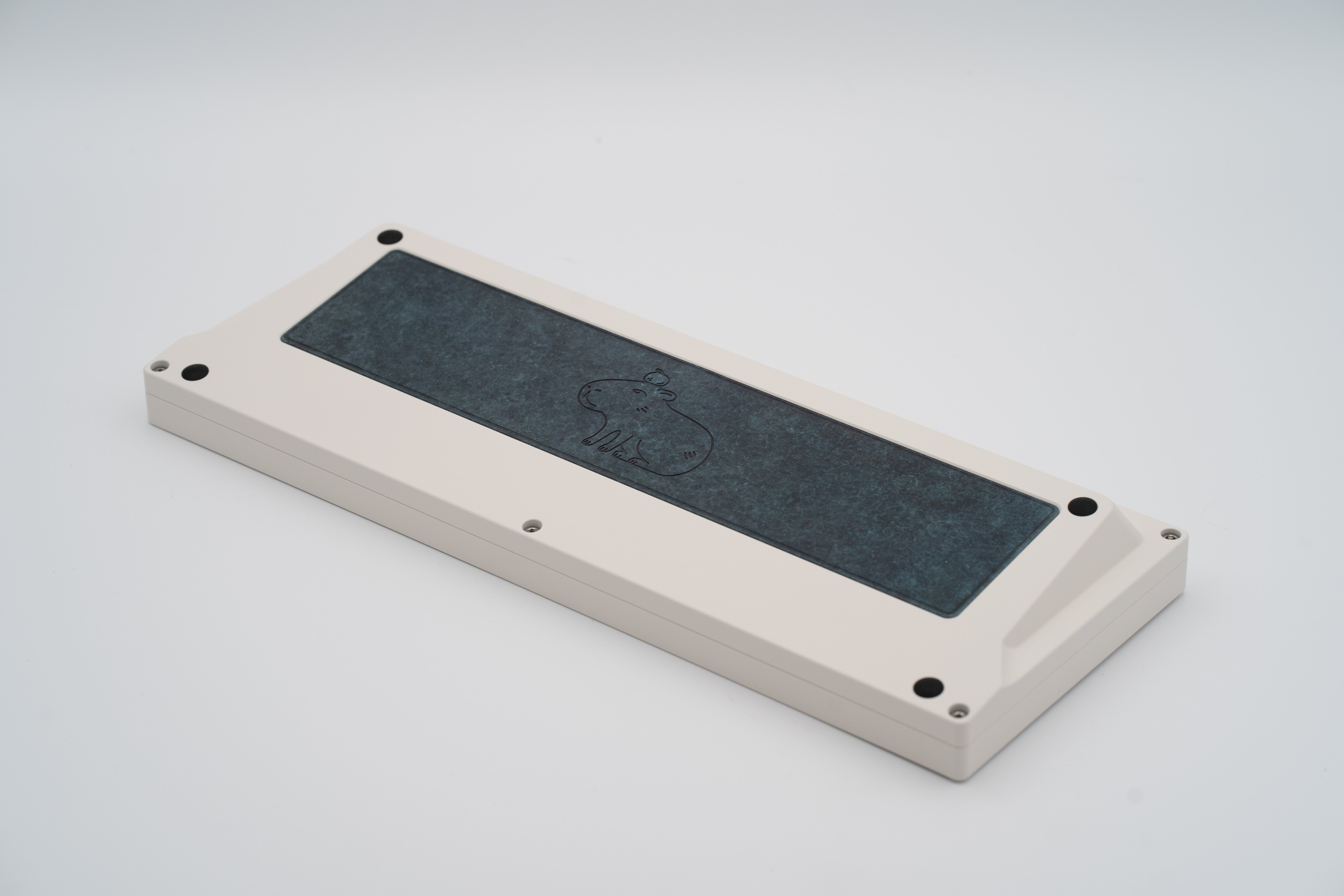

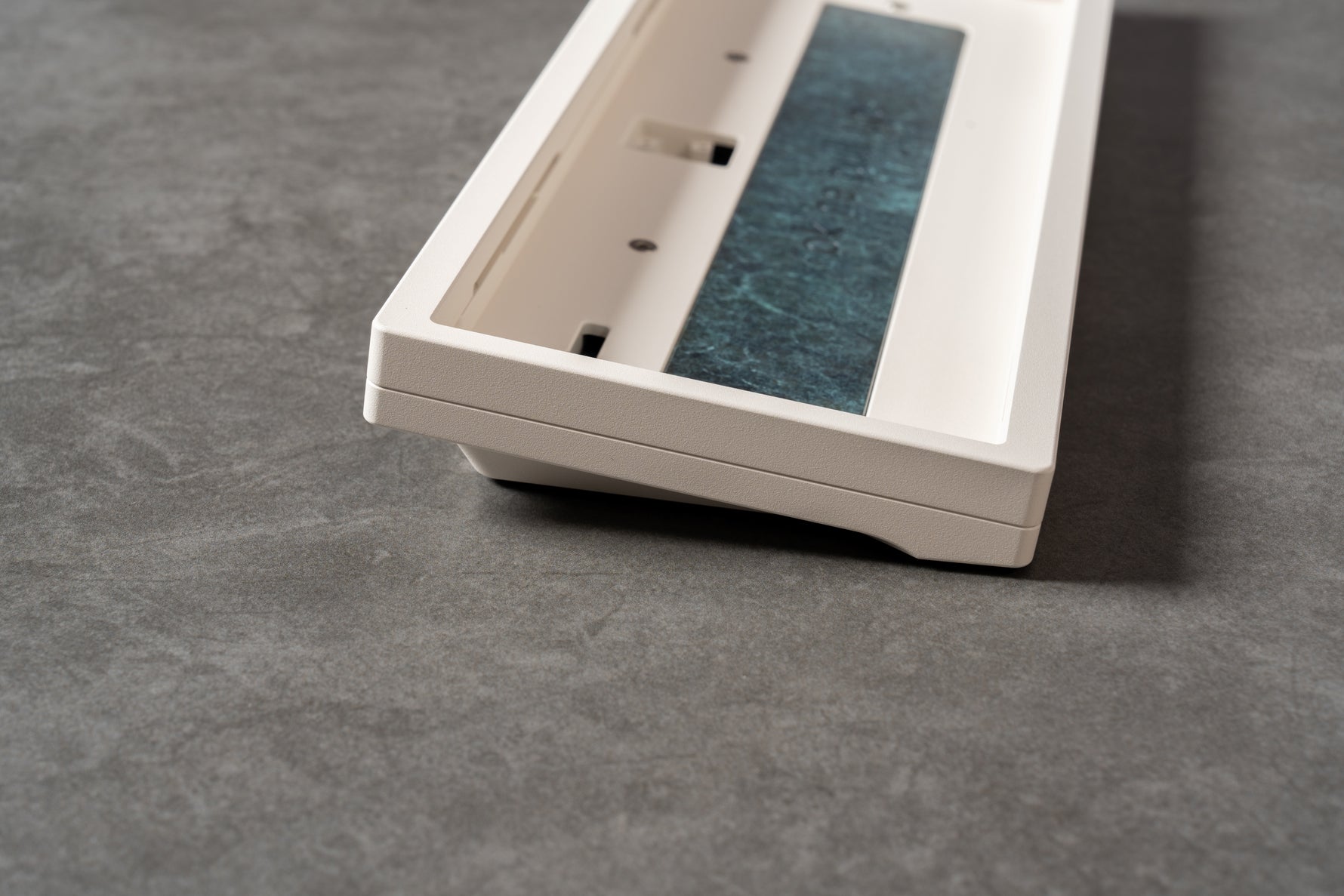

  • White

    coated aluminum with blue patina brass
