Dia

Designed by NoNumbers

Case Specifications

Keyboard

  • Layout: 60%, WKL, WK. 7U HHKB, 6U HHKB
  • Typing Angle: 6 Degrees
  • Front height: 18.5 mm
  • EKH: 21.54mm
  • Weight: ~1.2Kg
  • Mount: Top, Gummy Oring
  • Materials: 6063 Aluminum, Copper, Stainless Steel

PCB Specifications

  • Material: Black FR4
  • Thickness: 1.6mm
  • Connectivity: JST to Unified Daughterboard
  • Customizability: VIA
  • Type: Solderable and Hotswap
  • Designer: Gondolindrim

PCB Compatibility

Solder

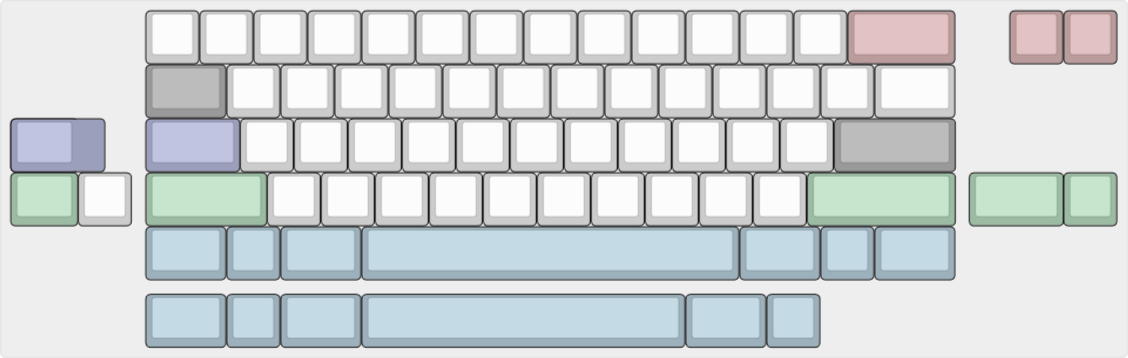

Hotswap

Sales Info

US: Bowl Keyboards
EU: DeltaKeyCo

Rest TBA

  • GB Timeline: TBA
  • Estimated Fulfillment: TBA
  • Price: TBA
  • 1x Top Case
  • 1x Bottom Case
  • 1x Inner Weight
  • 1x Outer Weight
  • 1x Accent
  • 1x Plate of Choice
  • 1x PCB and Daughterboard
  • Screws and other hardware

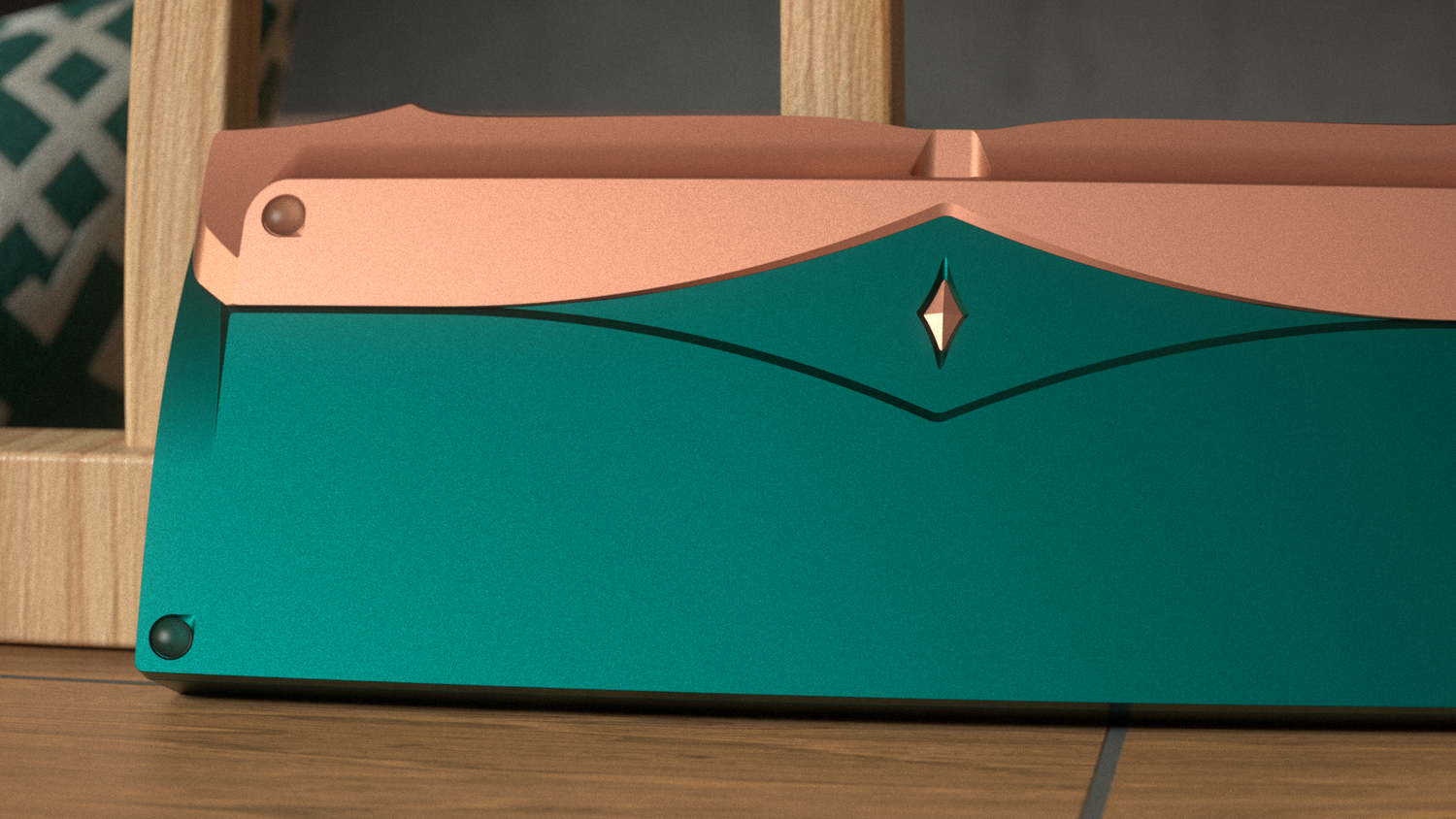

Solar

Green Anodized Top and Bottom Case, Copper Outer Weight and Accent

Solar

Green Anodized Top and Bottom Case, Copper Outer Weight and Accent

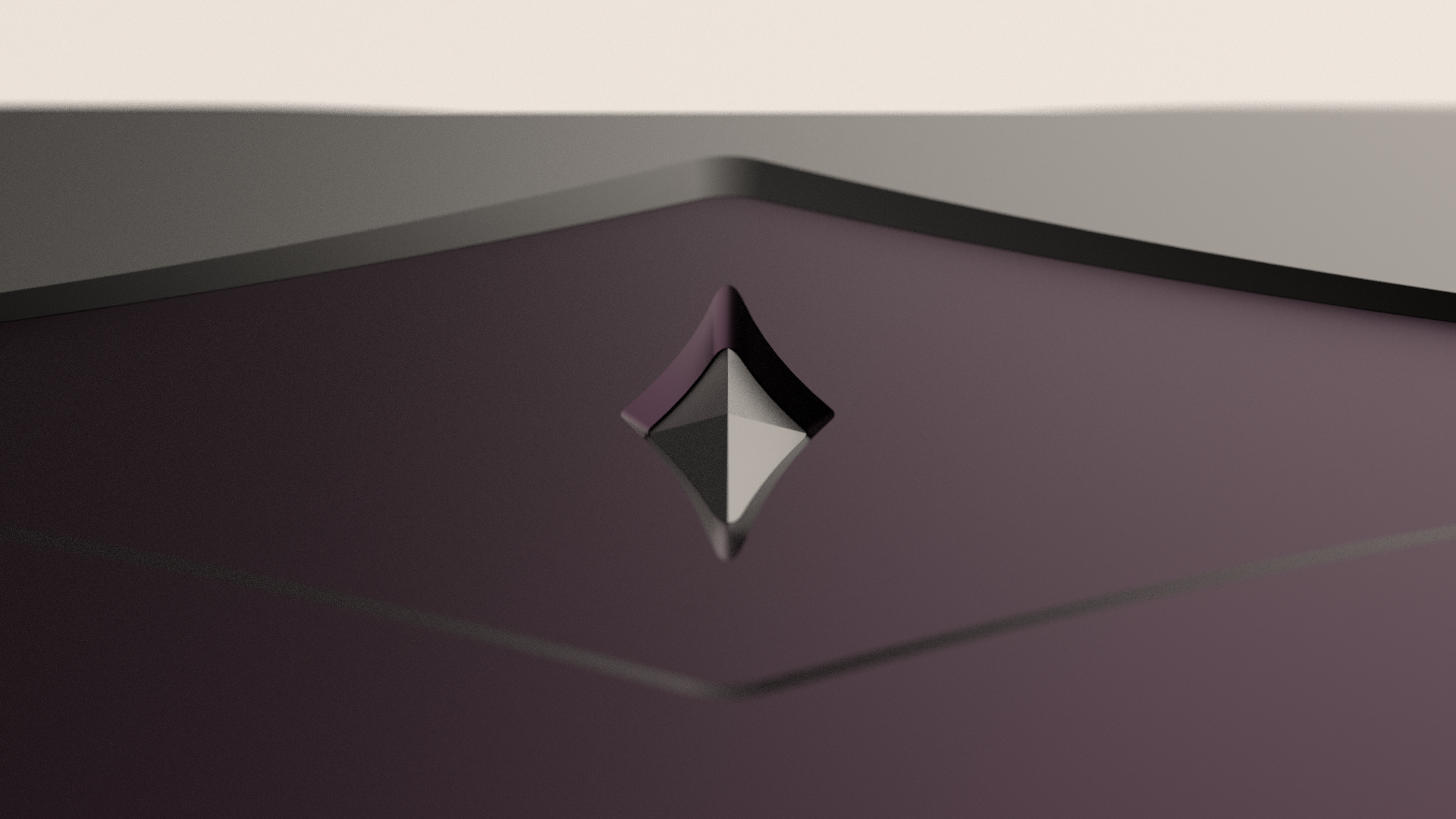

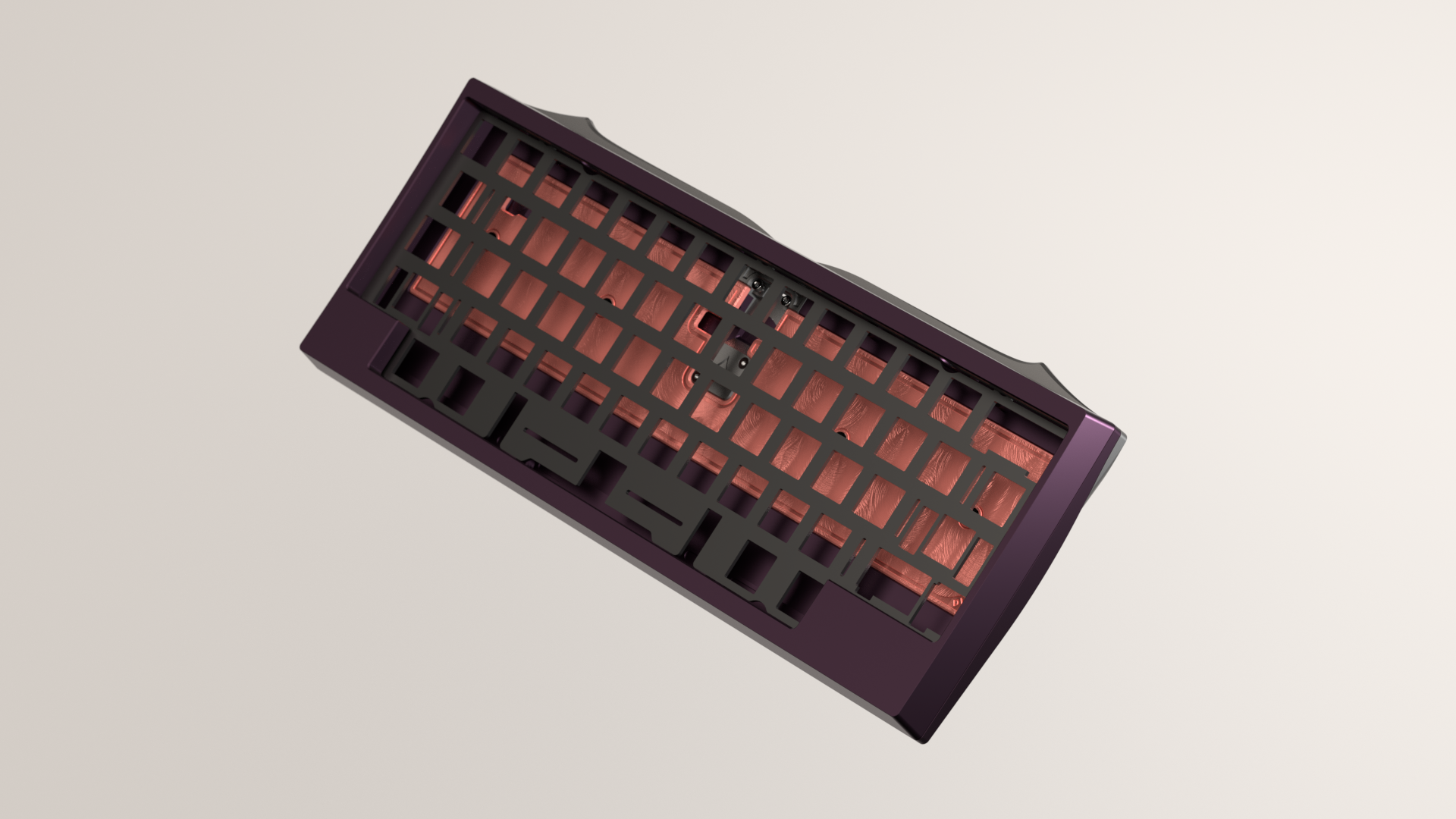

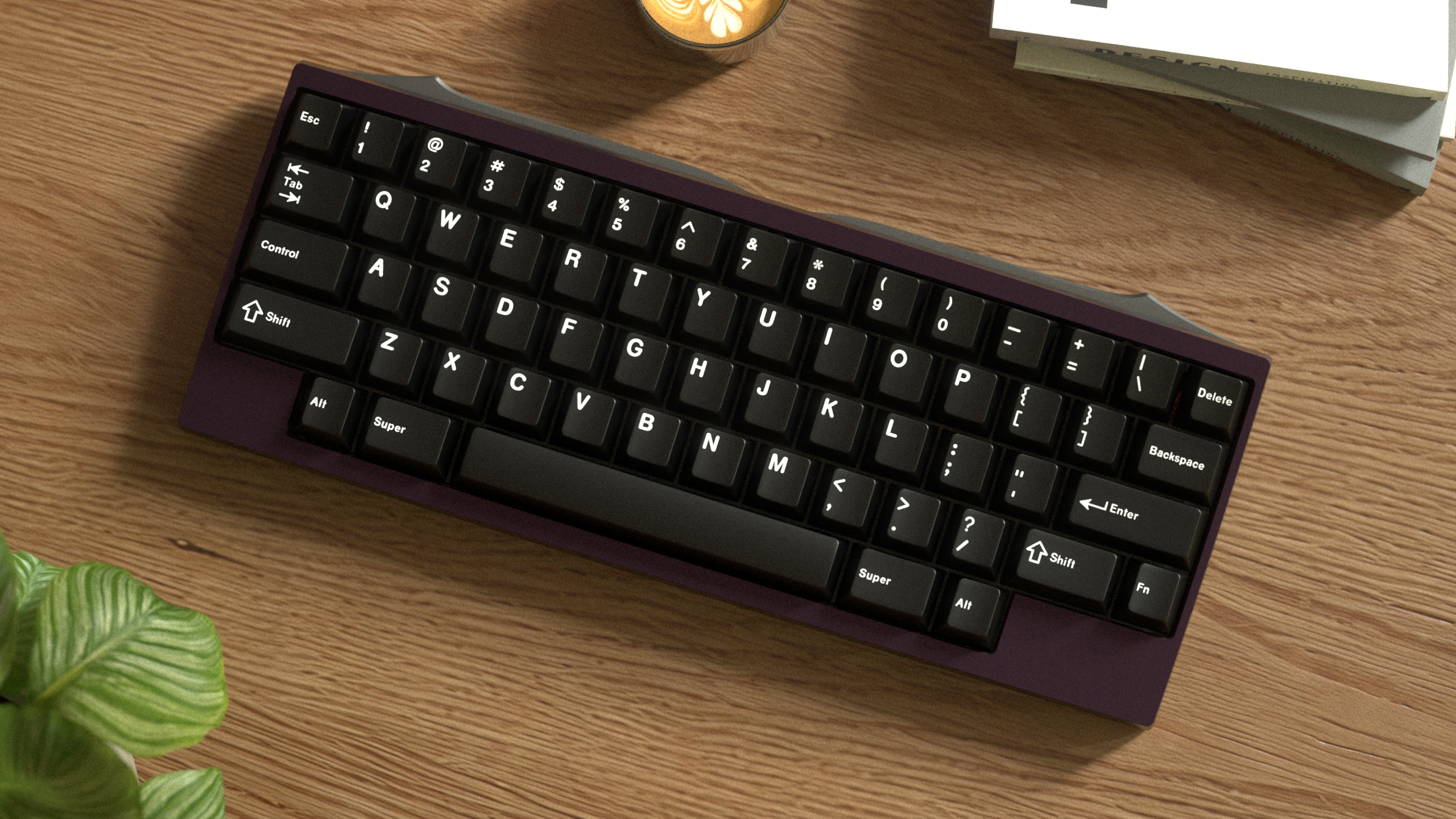

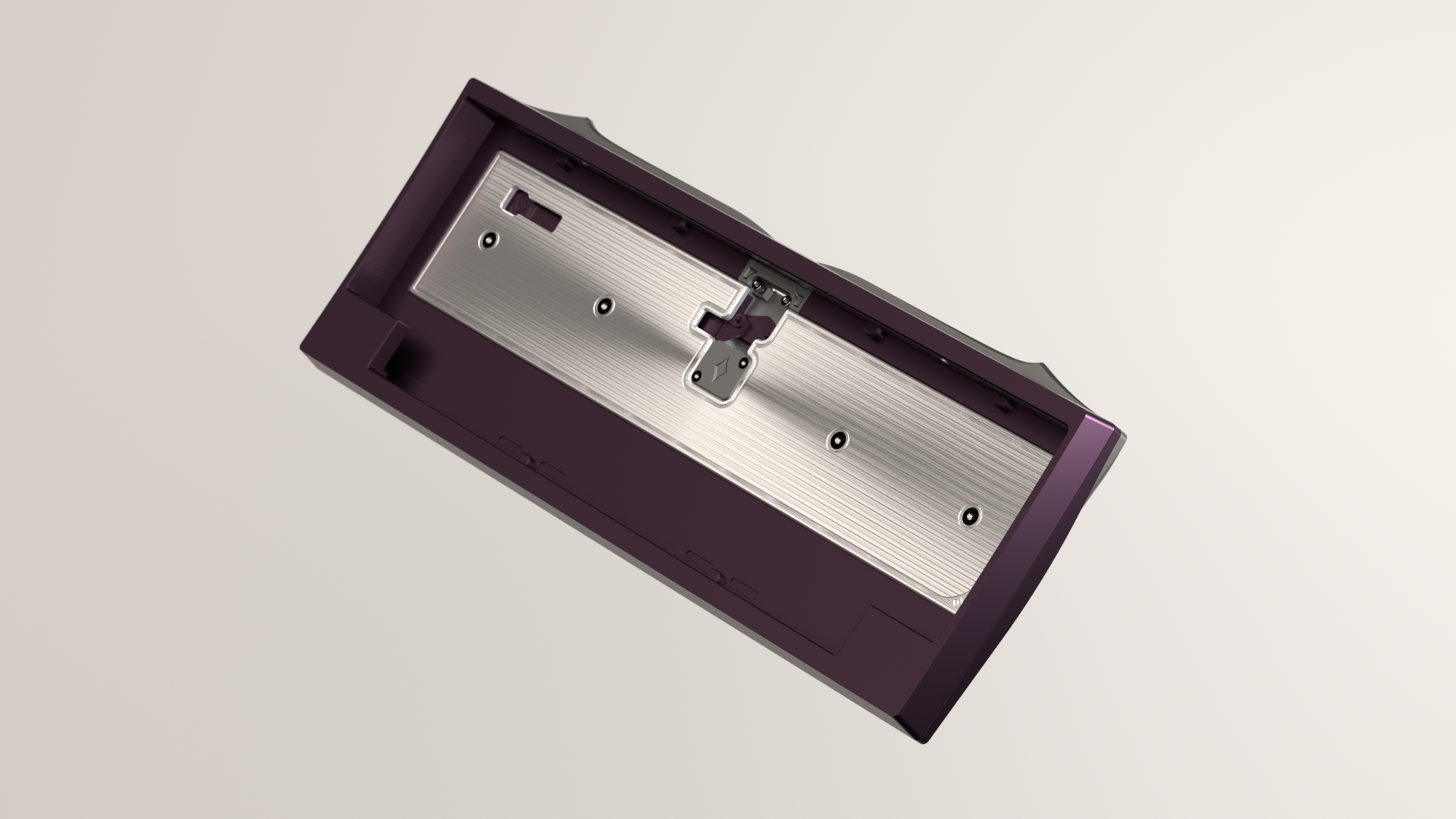

Midnight Plum

Plum Anodized Top and Bottom Case, Sandblasted Stainless Steel Outer Weight and Accent

Midnight Plum

Plum Anodized Top and Bottom Case, Sandblasted Stainless Steel Outer Weight and Accent

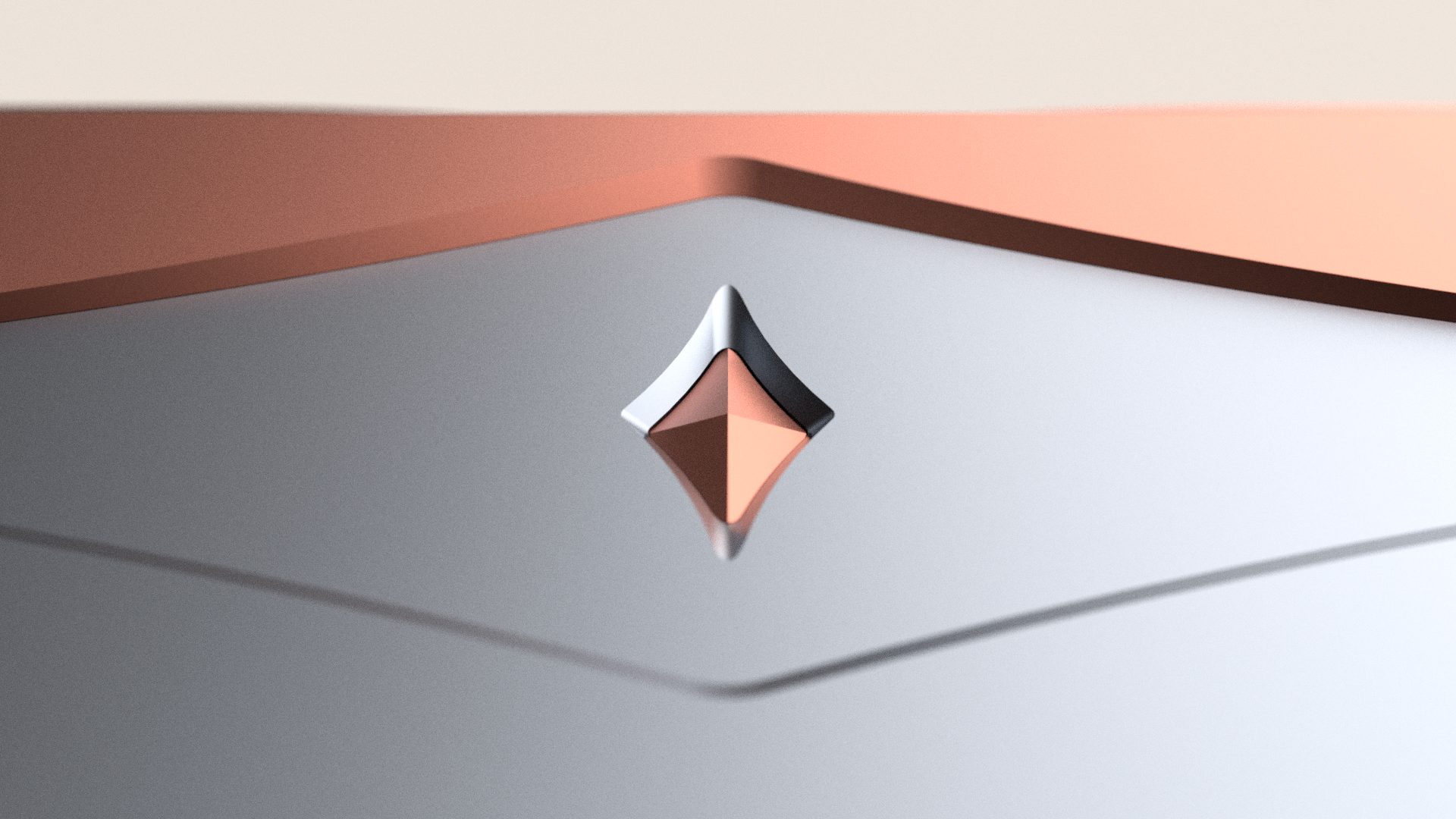

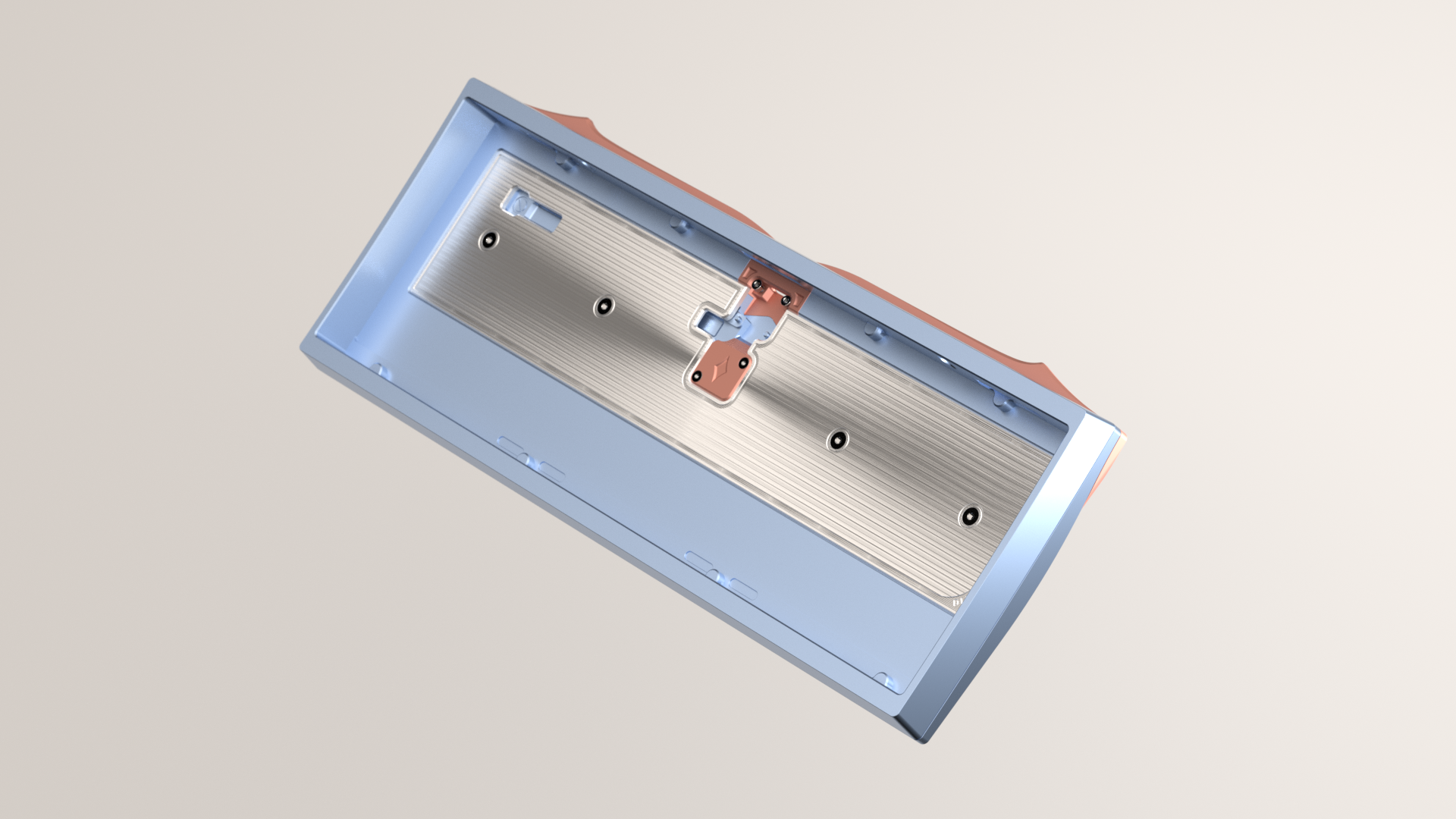

Rain

Light Blue Anodized Top and Bottom Case, Copper Outer Weight and Accent

Rain

Light Blue Anodized Top and Bottom Case, Copper Outer Weight and Accent

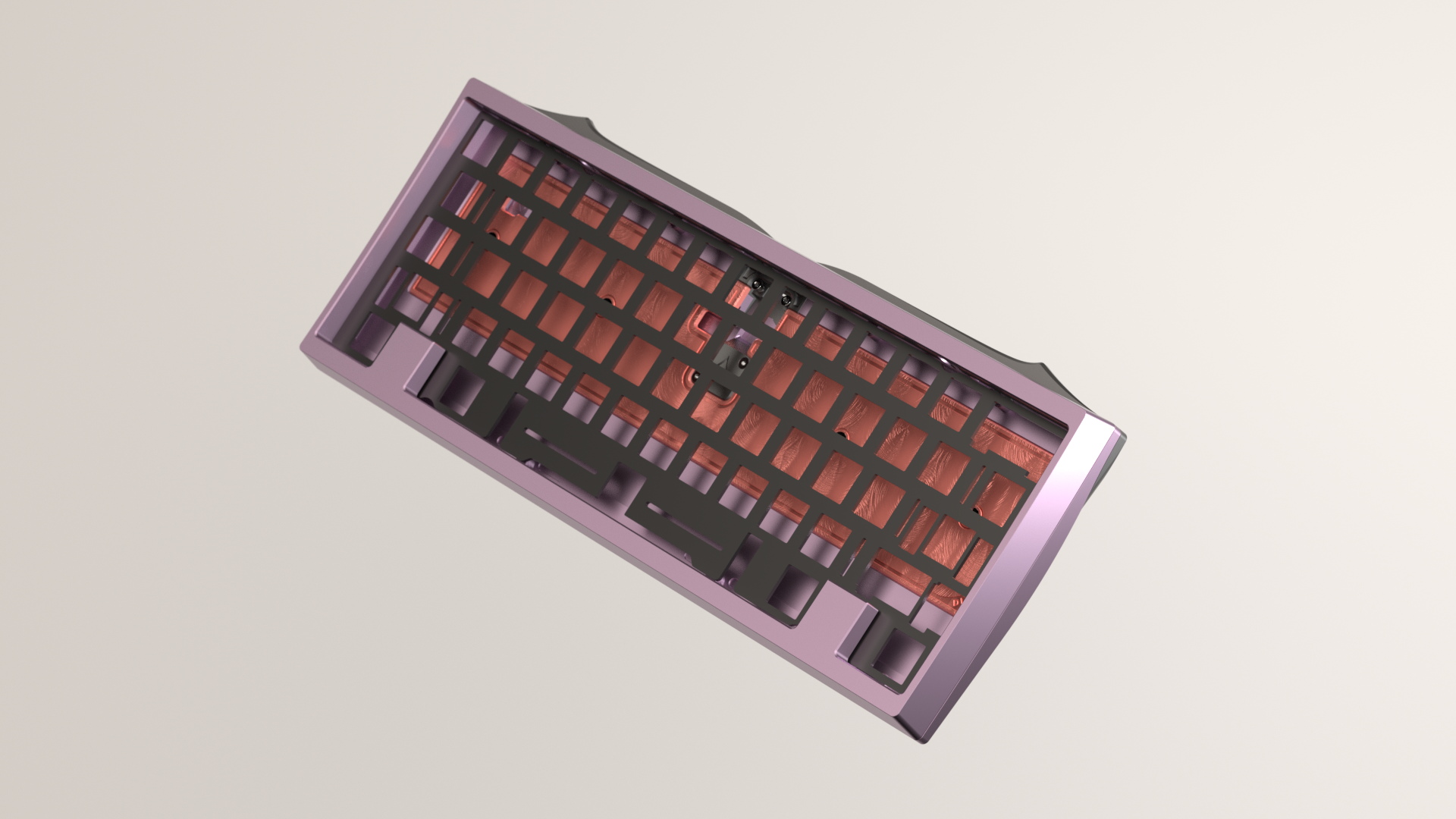

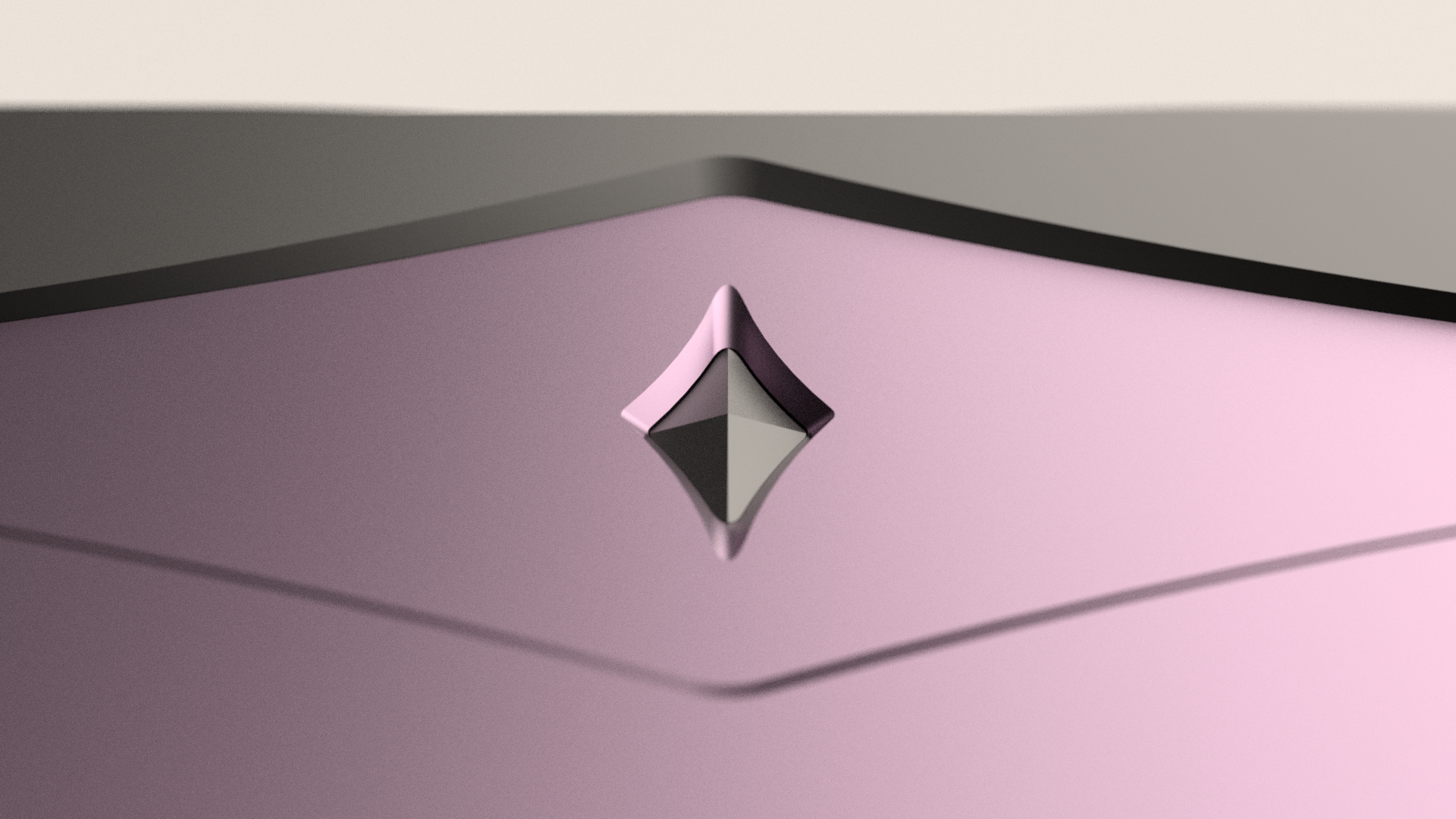

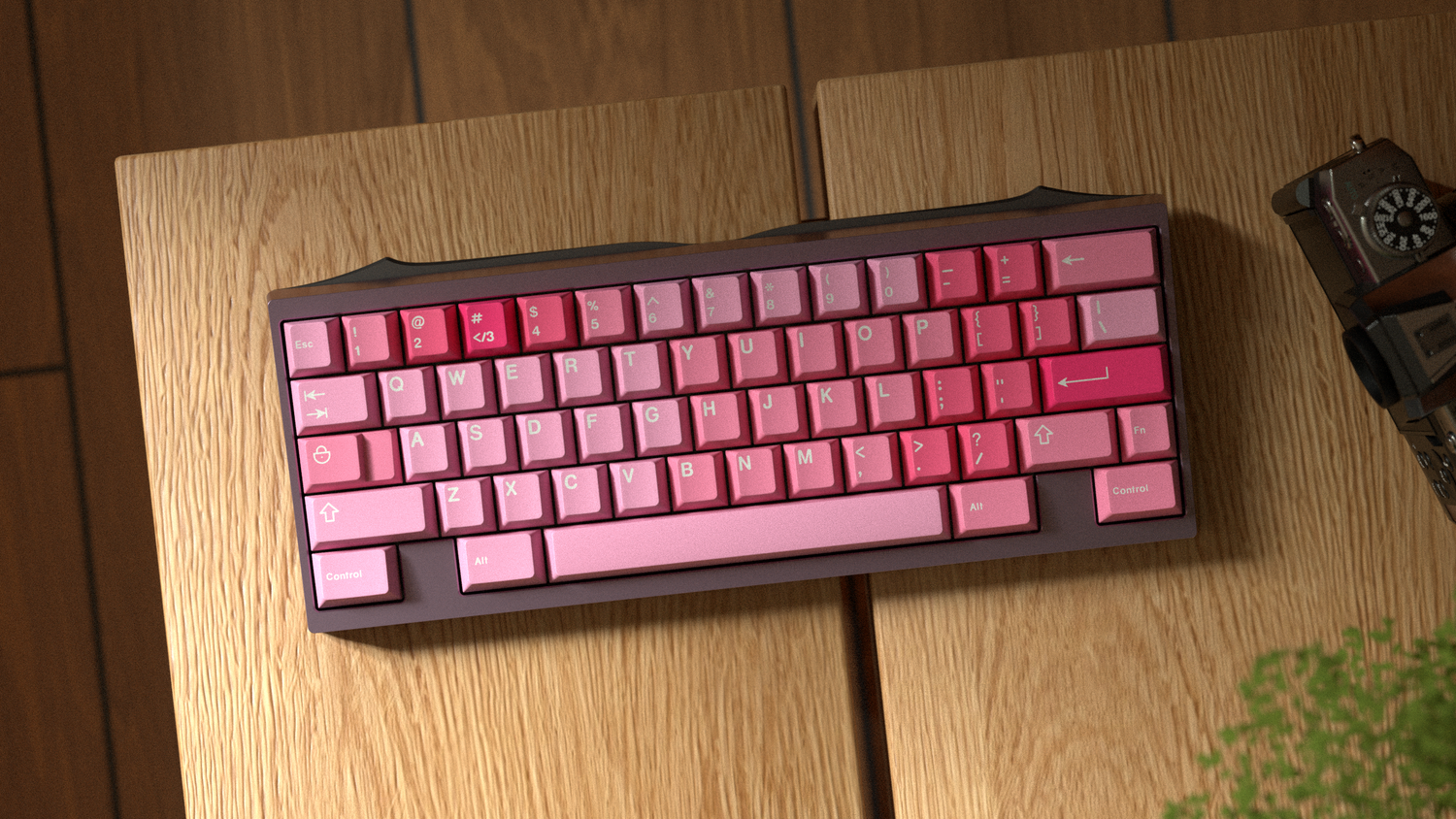

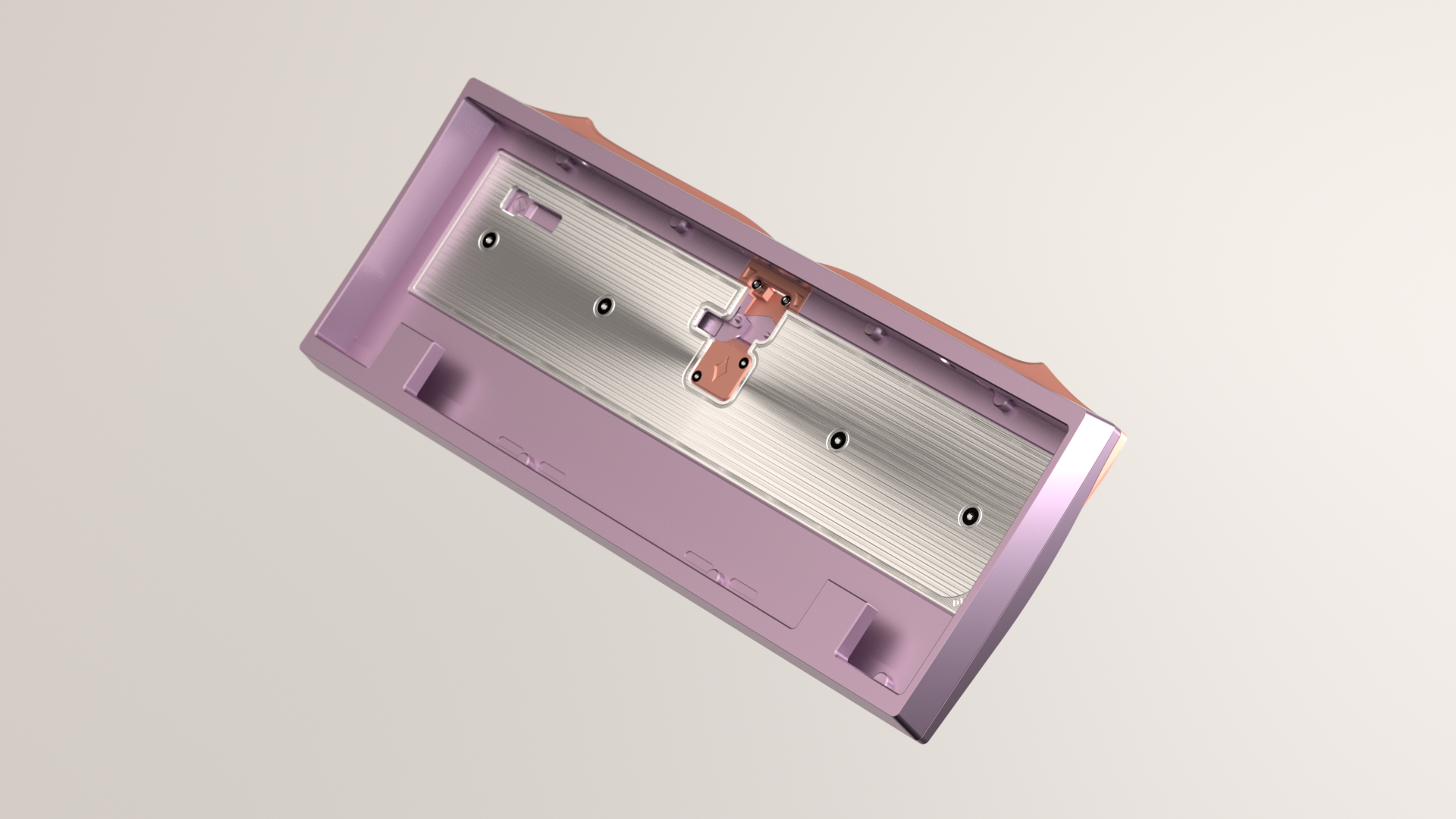

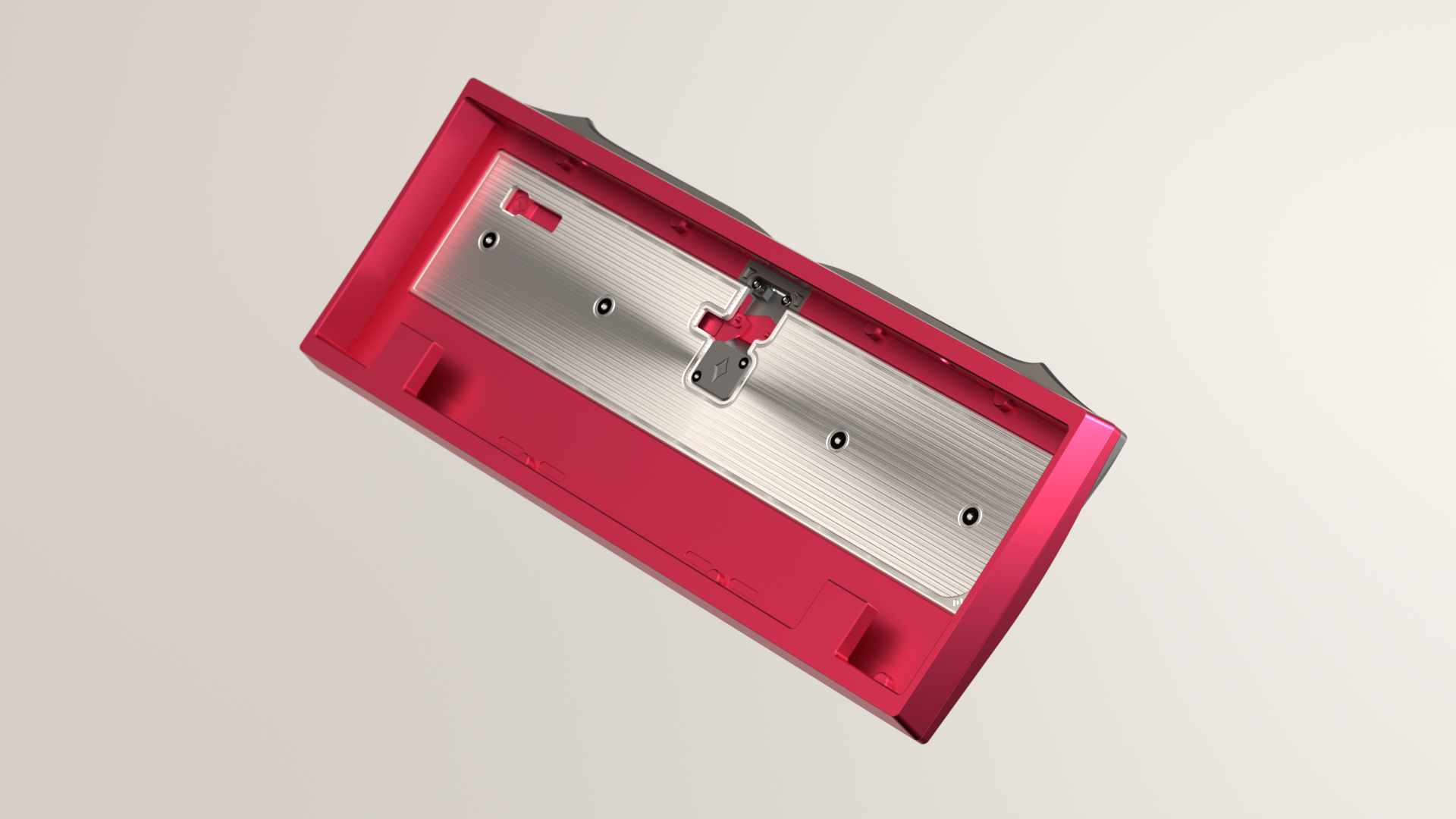

Pink Dusk

Pink Anodized Top and Bottom Case, Sandblasted Stainless Steel Outer Weight and Accent

Pink Dusk

Pink Anodized Top and Bottom Case, Sandblasted Stainless Steel Outer Weight and Accent
