Case Specifications

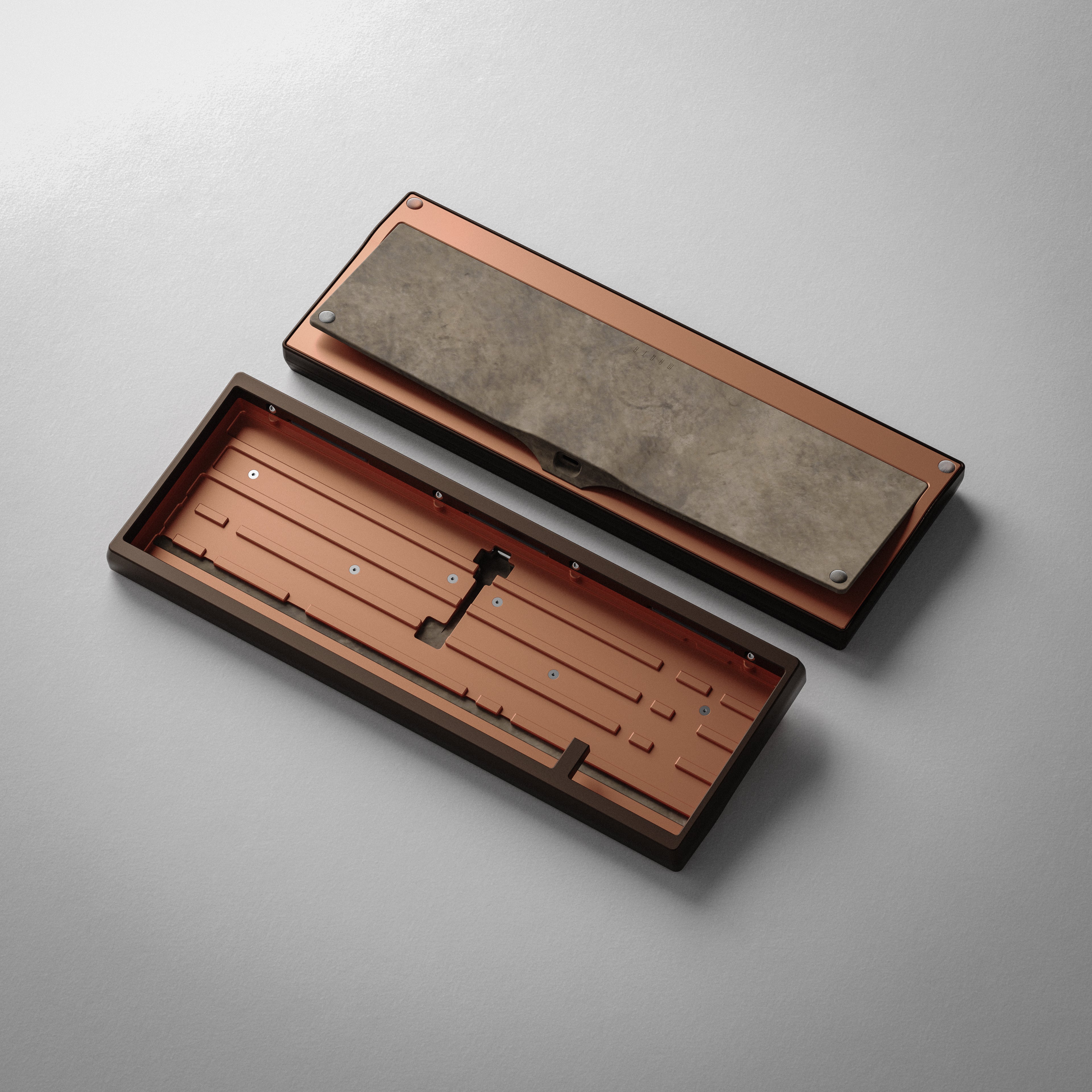

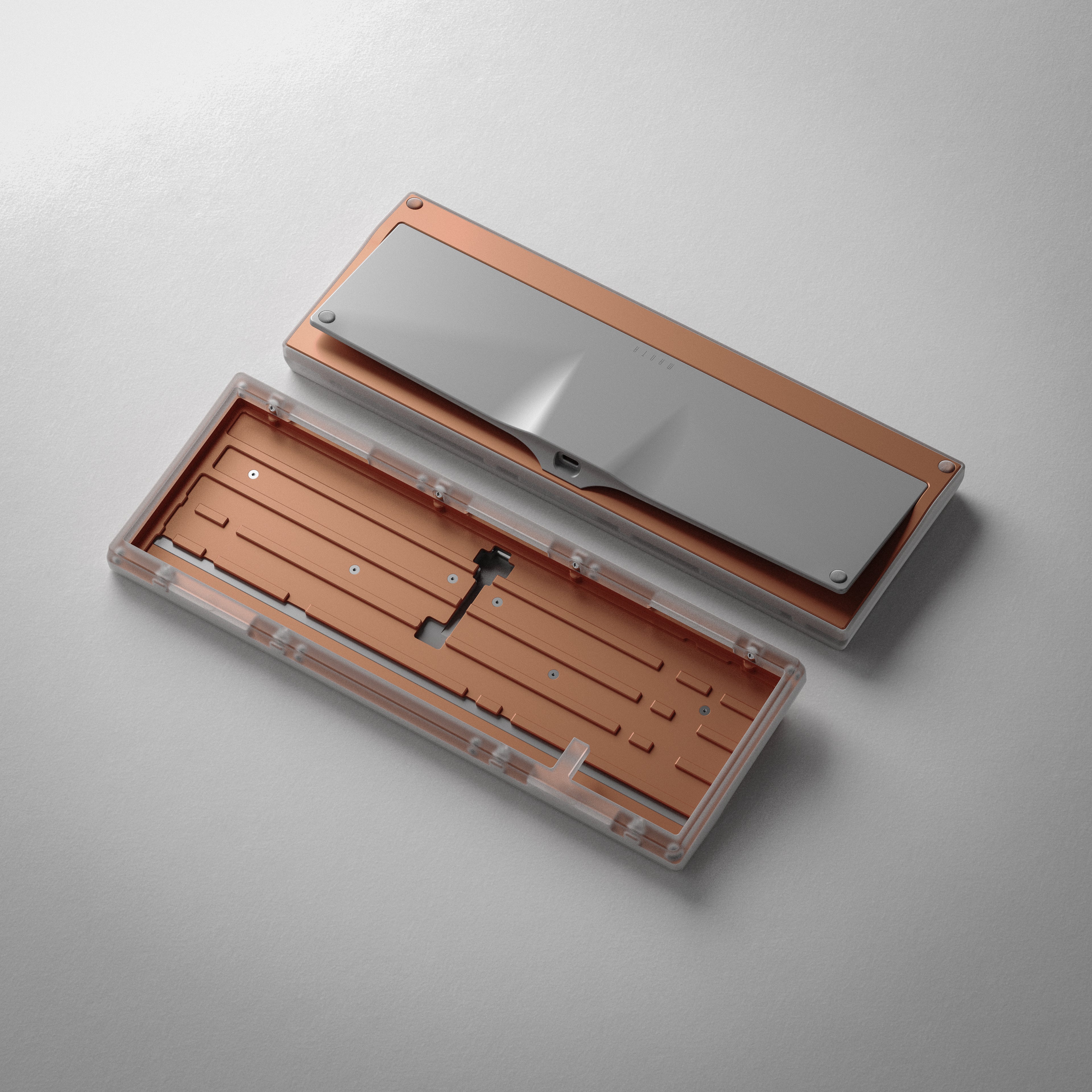

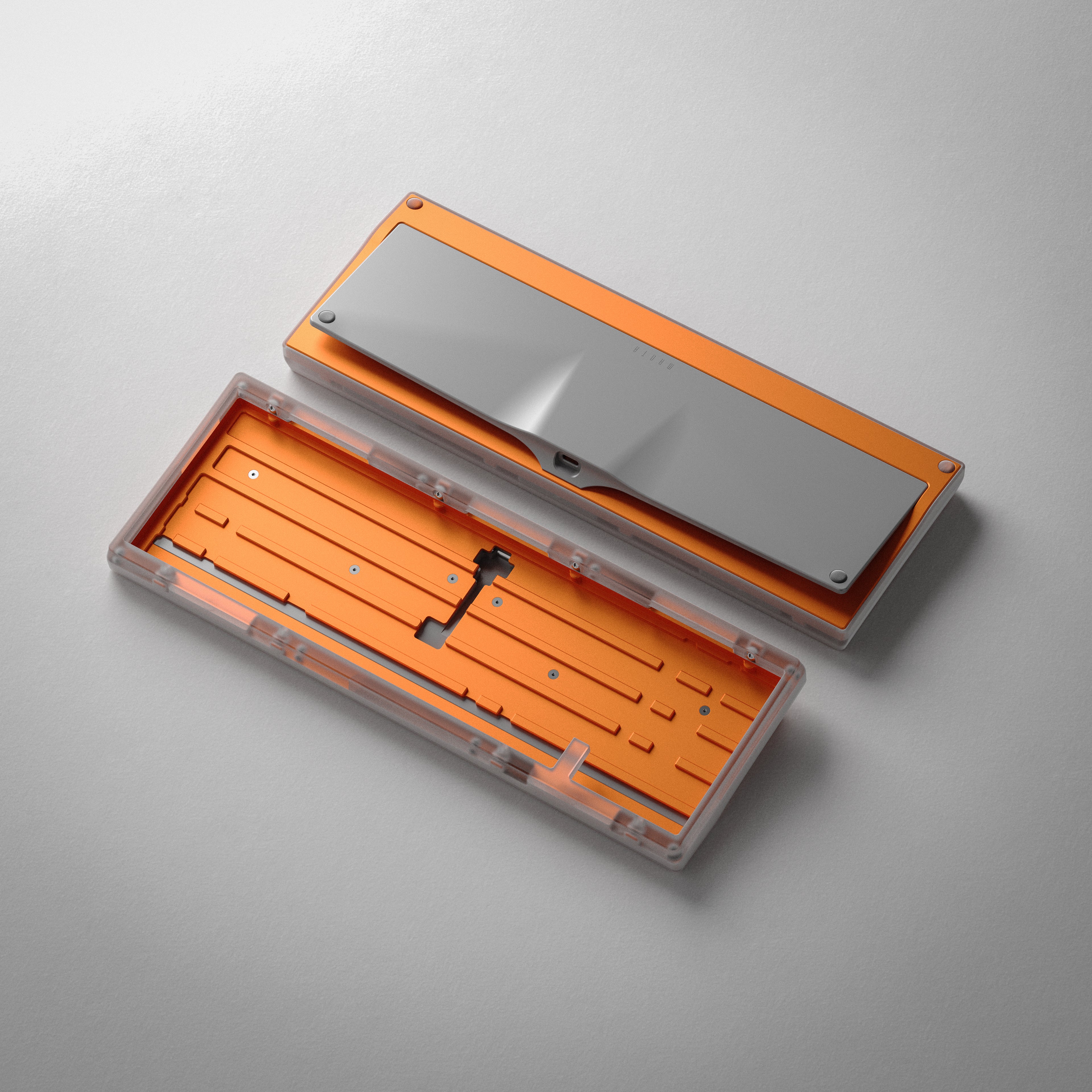

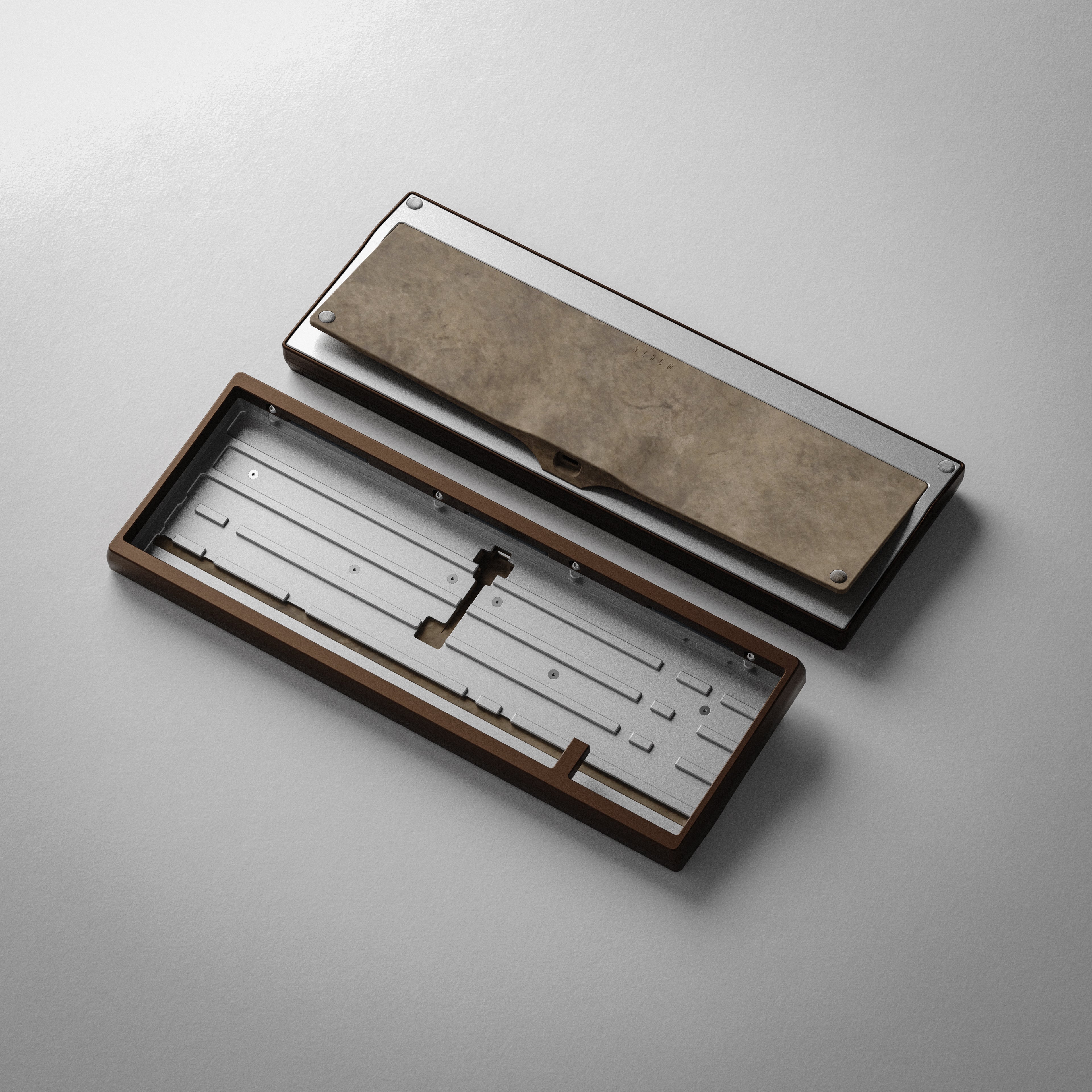

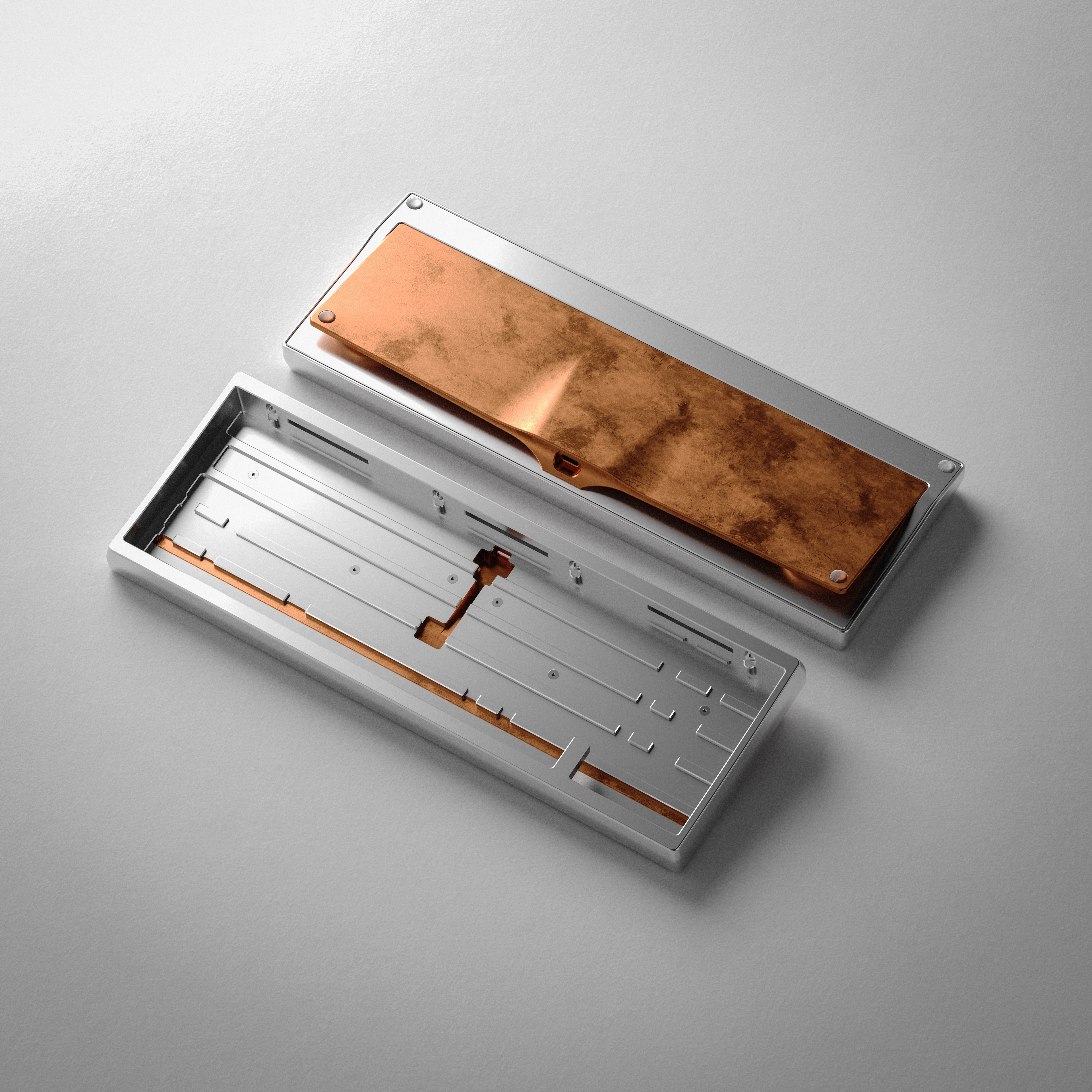

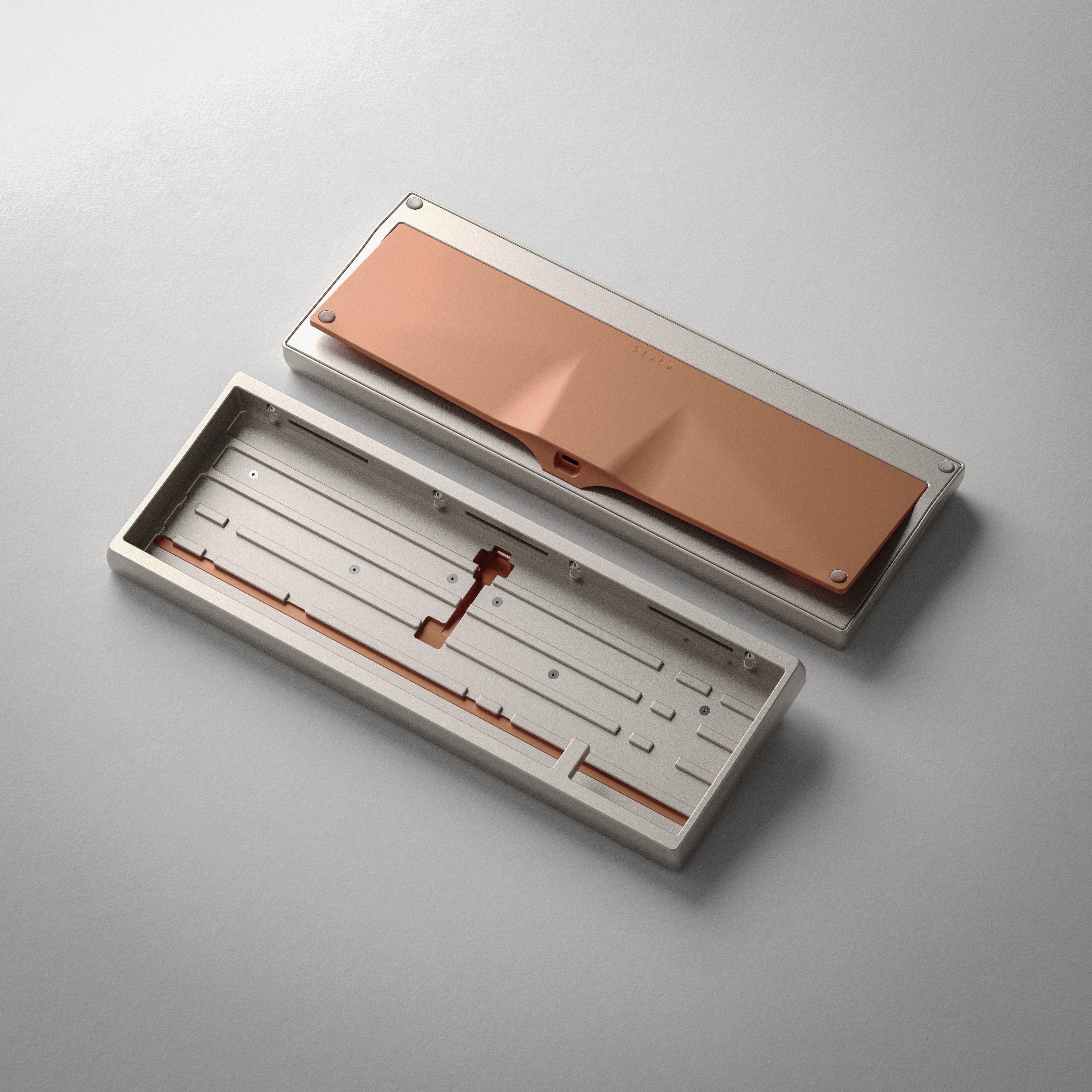

- Materials: 6063 Aluminum, Acrylic, Copper, Stainless Steel
- Layout: 65%
- Typing Angle: 8 Degrees
- Front Height: 16.9mm
- EKH: 22.0 mm
- Weight: 1.4-2.0 kg
- Mounting: Gasket Sock, Gasket Grommet, Oring
PCB Specifications
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and Hotswap
- Designer: Gondolindrim
PCB Compatiblity
Hotswap
Solder

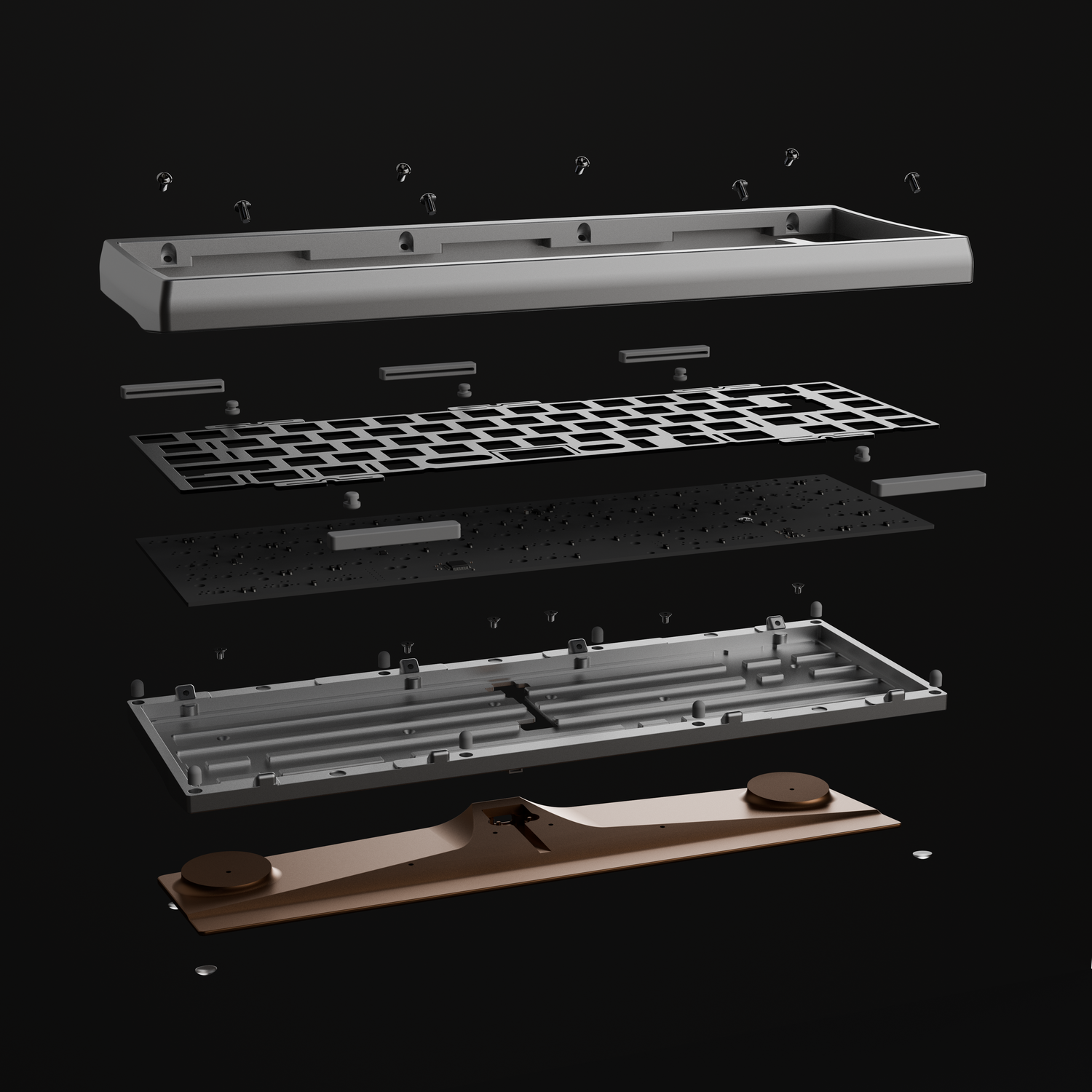

Mounting Design
The goal of manta was to have a few good mounting styles that allow users to customize the feel and sound without being overwhelmed with options. Each option is distinct and has a unique feel or sound that differentiates it from the other options. All options are optimized to ensure each one is noticeably different while still maintaining our high expectations for feel and sound. The three options are gasket sock, gasket grommet, and gummy oring.
Sales Info
US: Bowl Keyboards
More will be added
Groupbuy Mid 2025
Starting at $450
1x Top Case
1x Bottom Case
1x External Weight
1x Choice of Plate
1x Solderable or Hotswap PCB
1x C5 Unified Daughterboard + JST to JST Cable
1x Carrying Case
6x 30A and 60A Gaskets (sock and grommet)
1x 50A Oring
All Screws/Parts/Etc for assembly
*Note switches, keycaps and stabilizers are not included
