Instock September 2025
Starting at $405
*may vary by vendor
1x Top Case
1x Bottom Case
1x Weight
1x Plate of choice
1x PCB of choice
1x Carrying case
12x 30a, 60a, 90a Gaskets
1x S2 unified daughterboard
4x Alignment bumpers
Necessary screws, feet and accessories for case assembly
*Note switches, keycaps and stabilizers are not included
Solder PCB

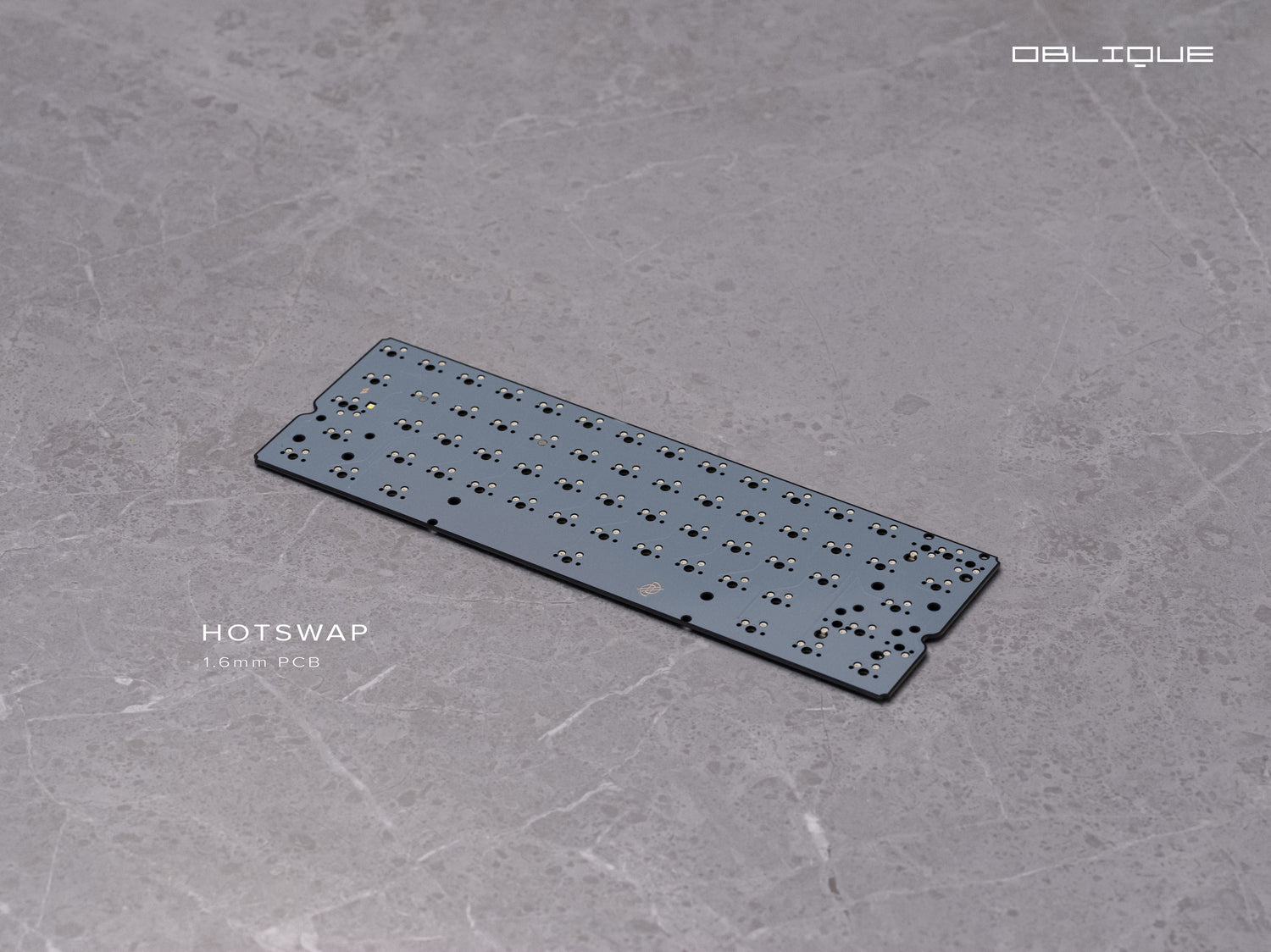

Hotswap PCB
Daughterboard and JST Cable

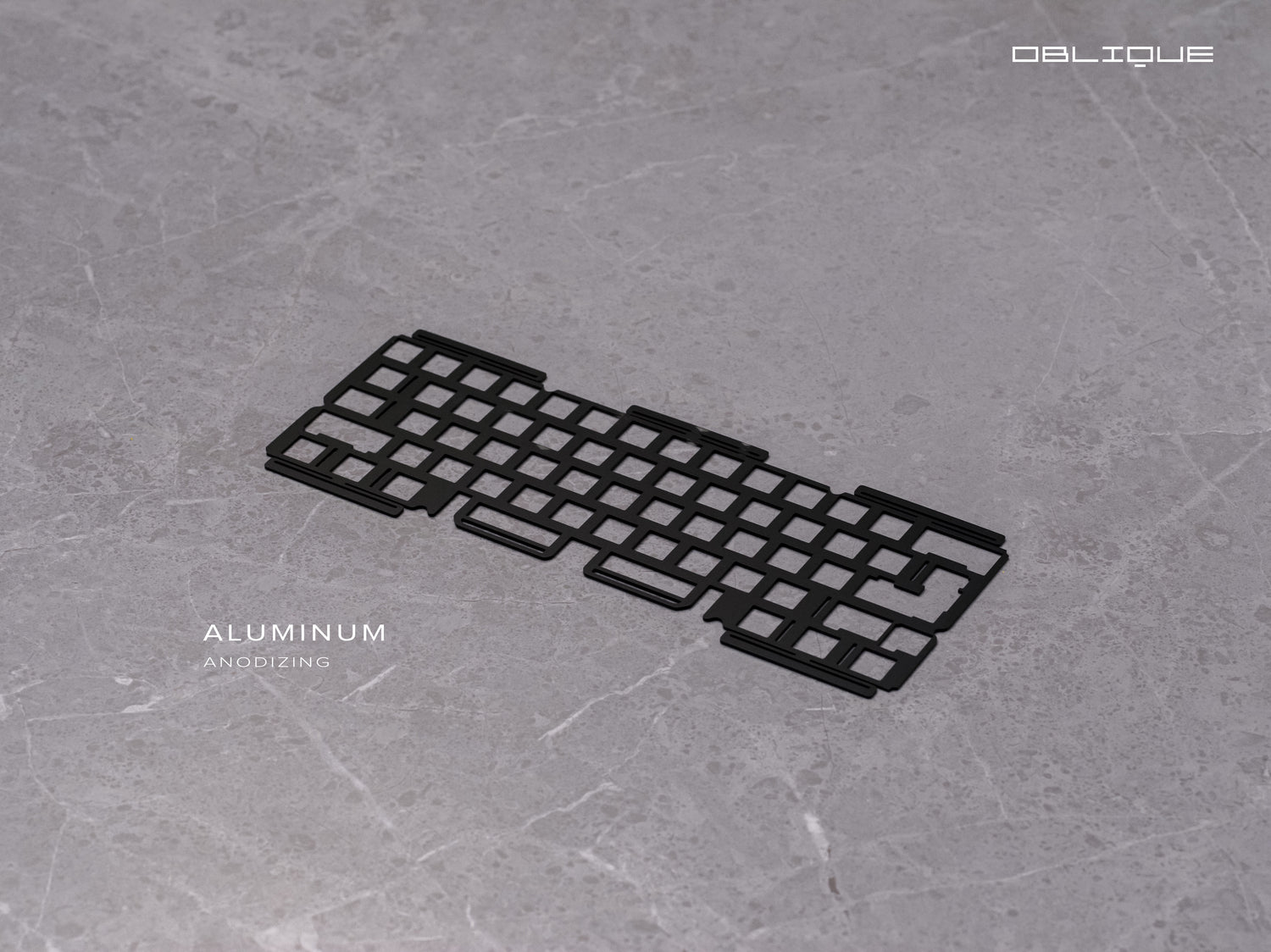

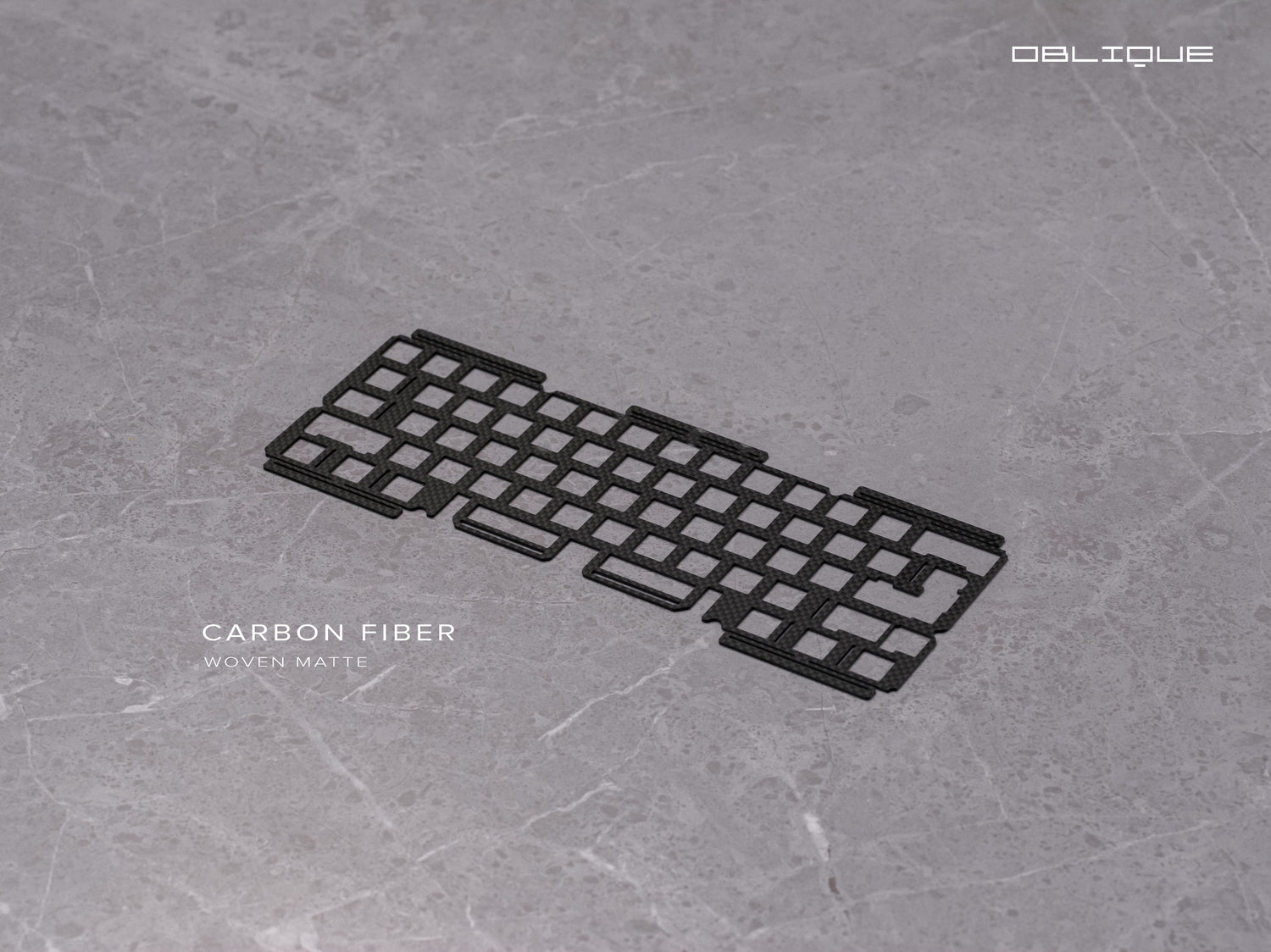

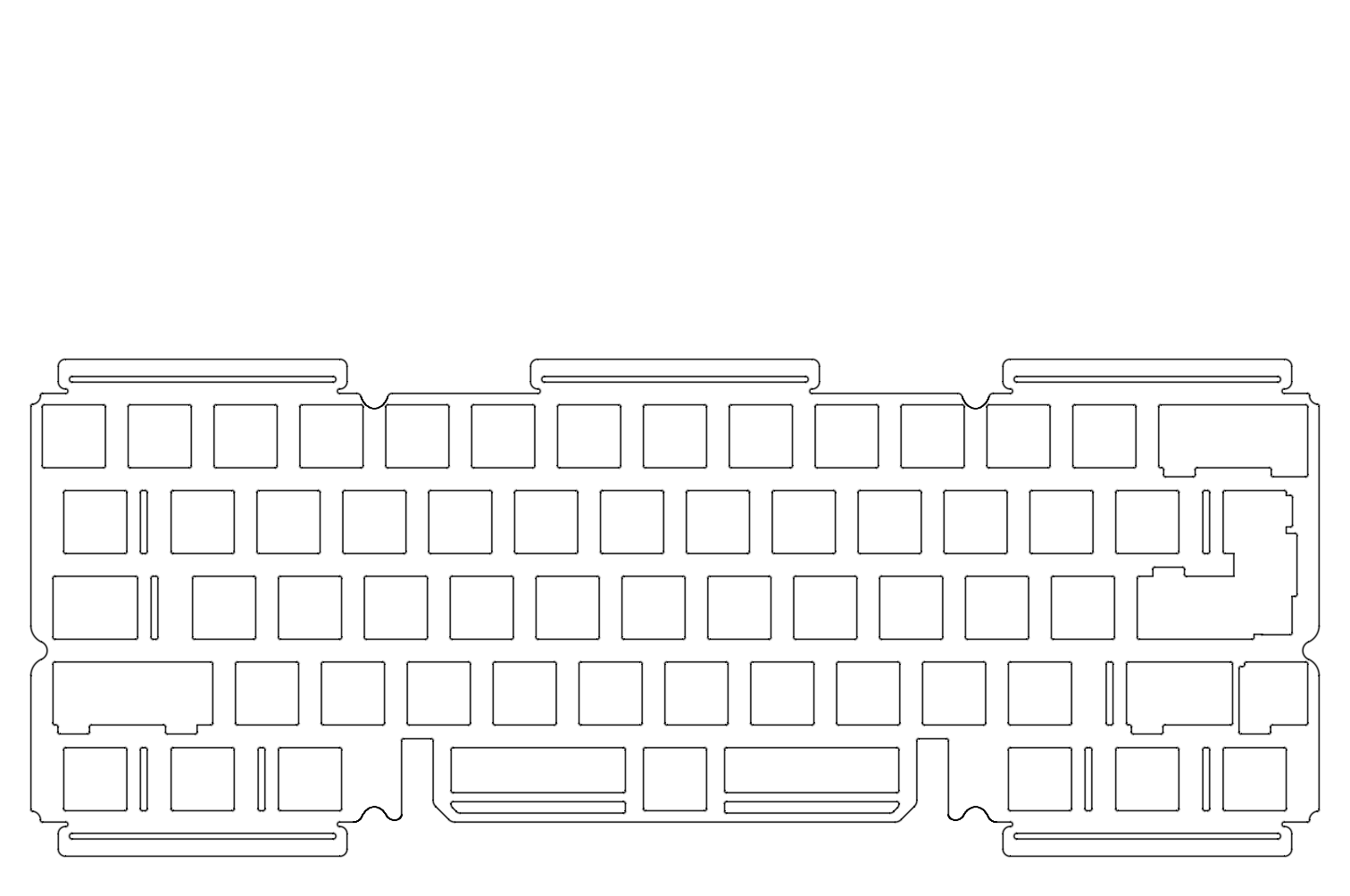

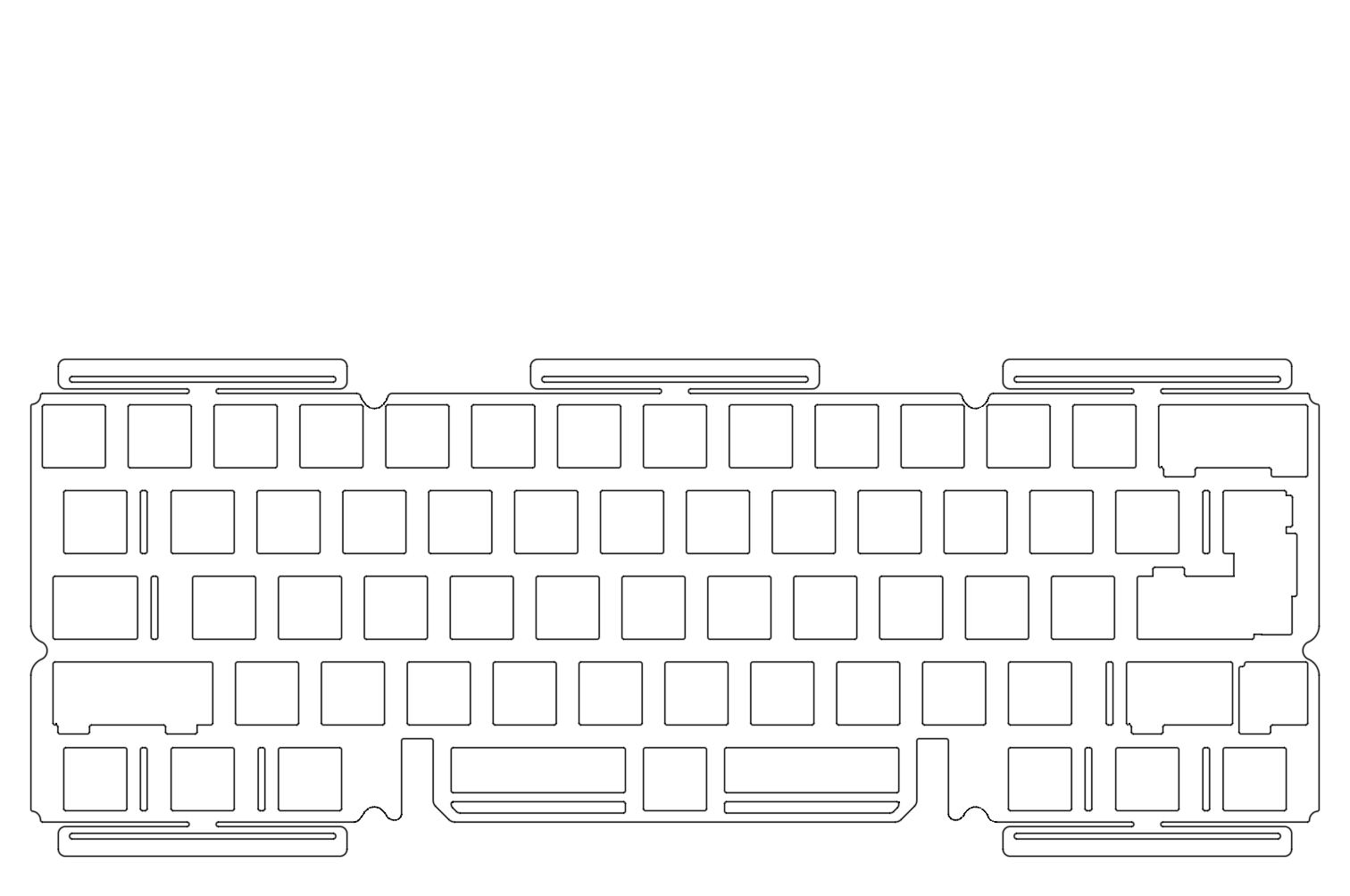

Aluminum/Carbon Fiber/Polypropylene/Polycarbonate Plates

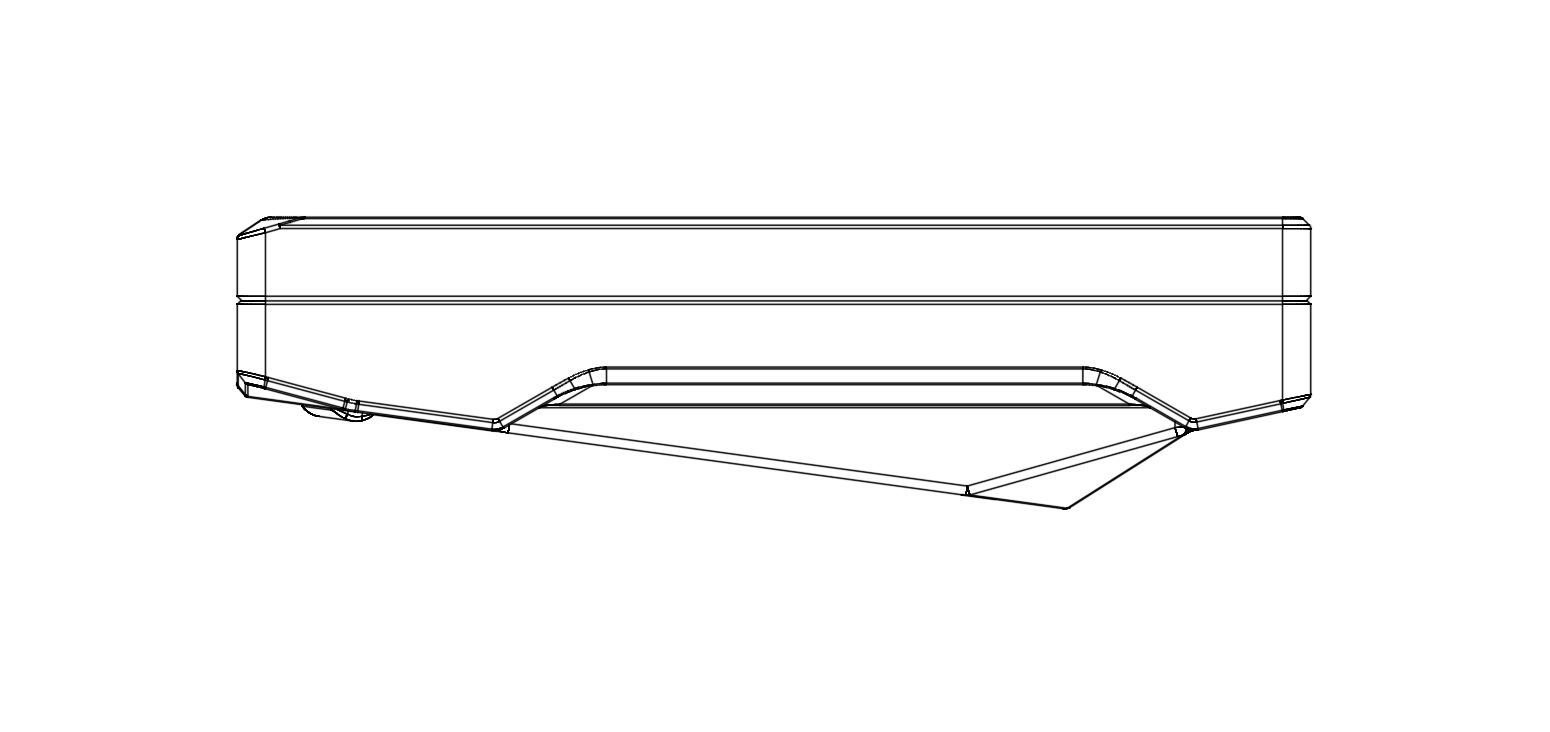

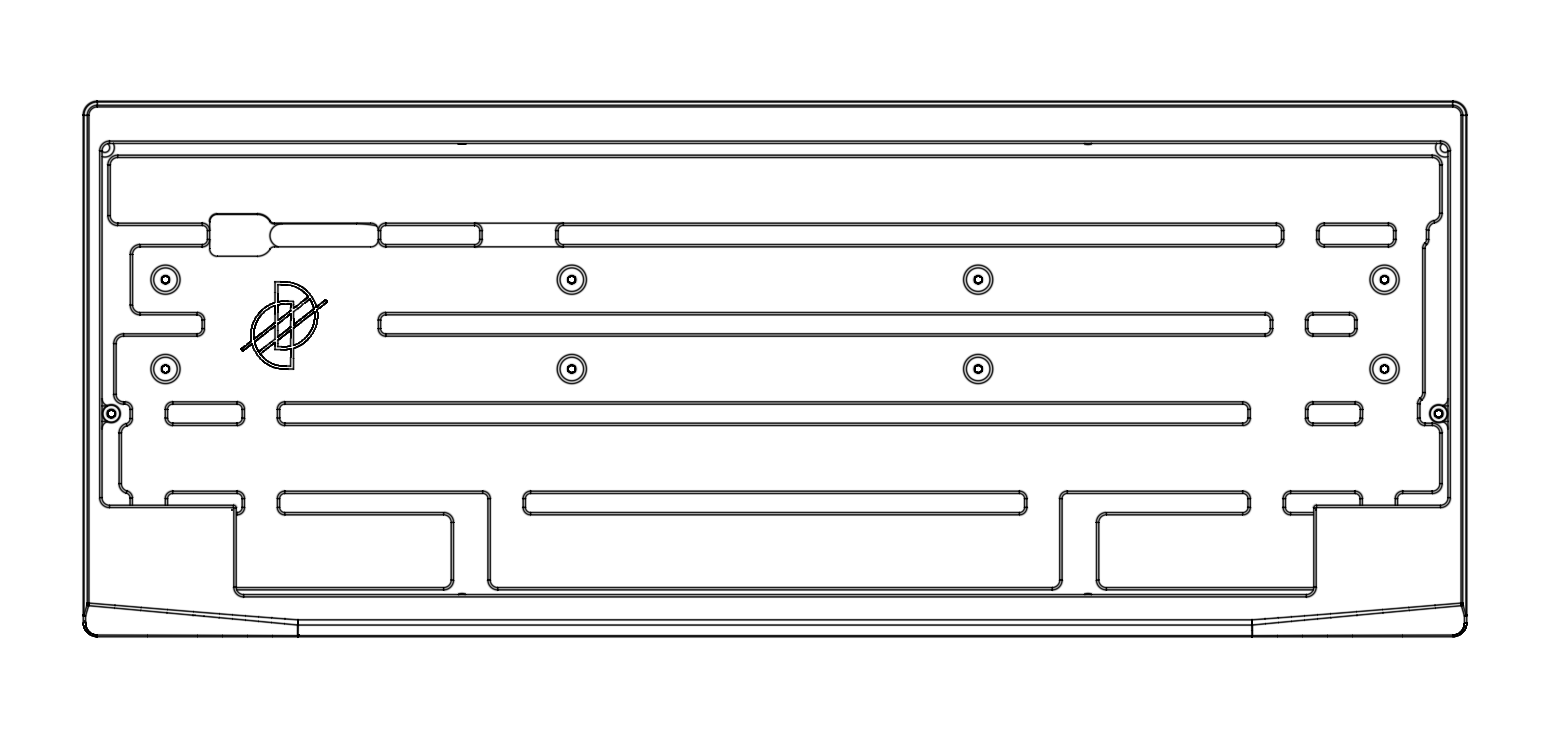

CASE SPECIFICATIONS

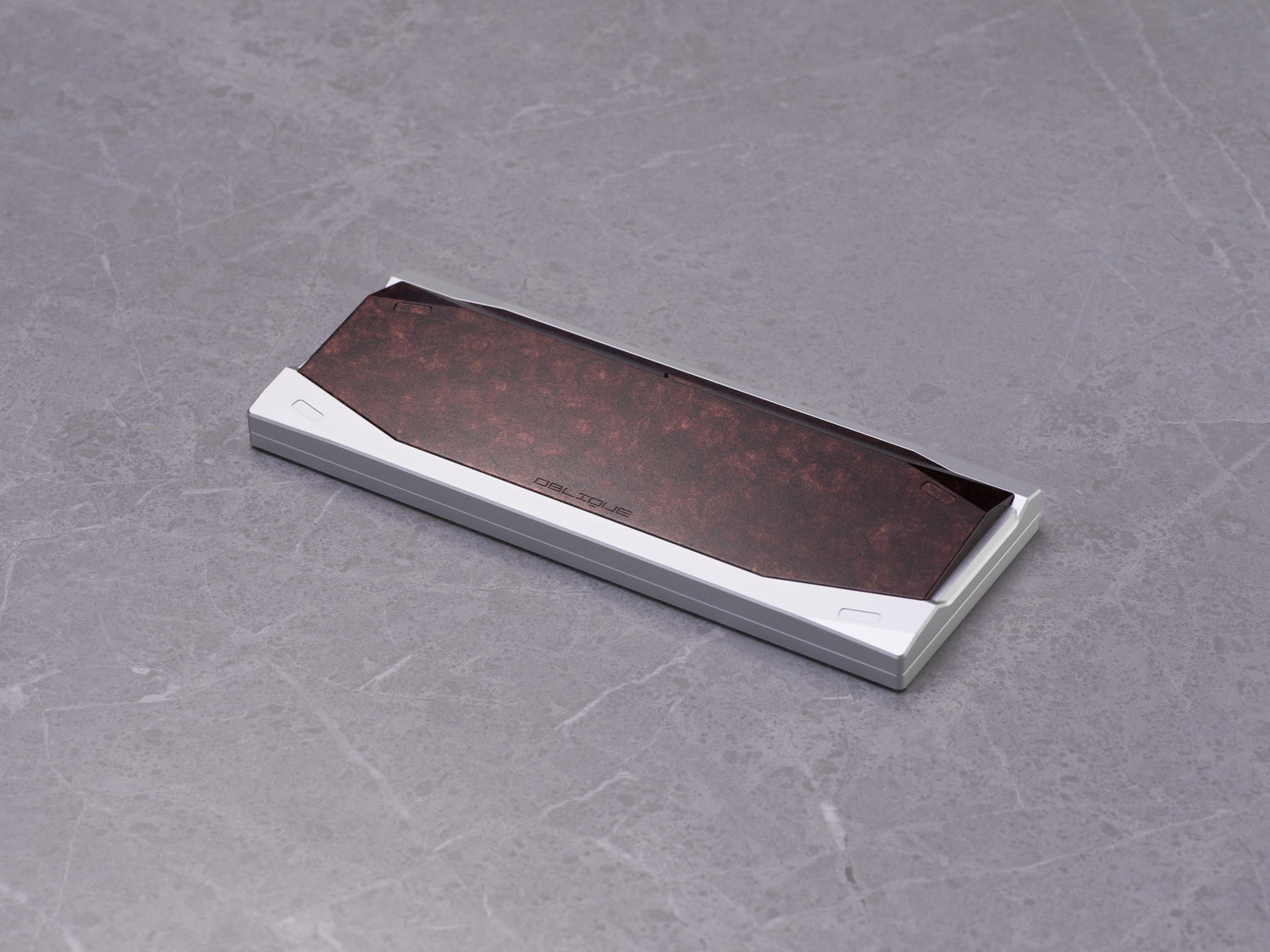

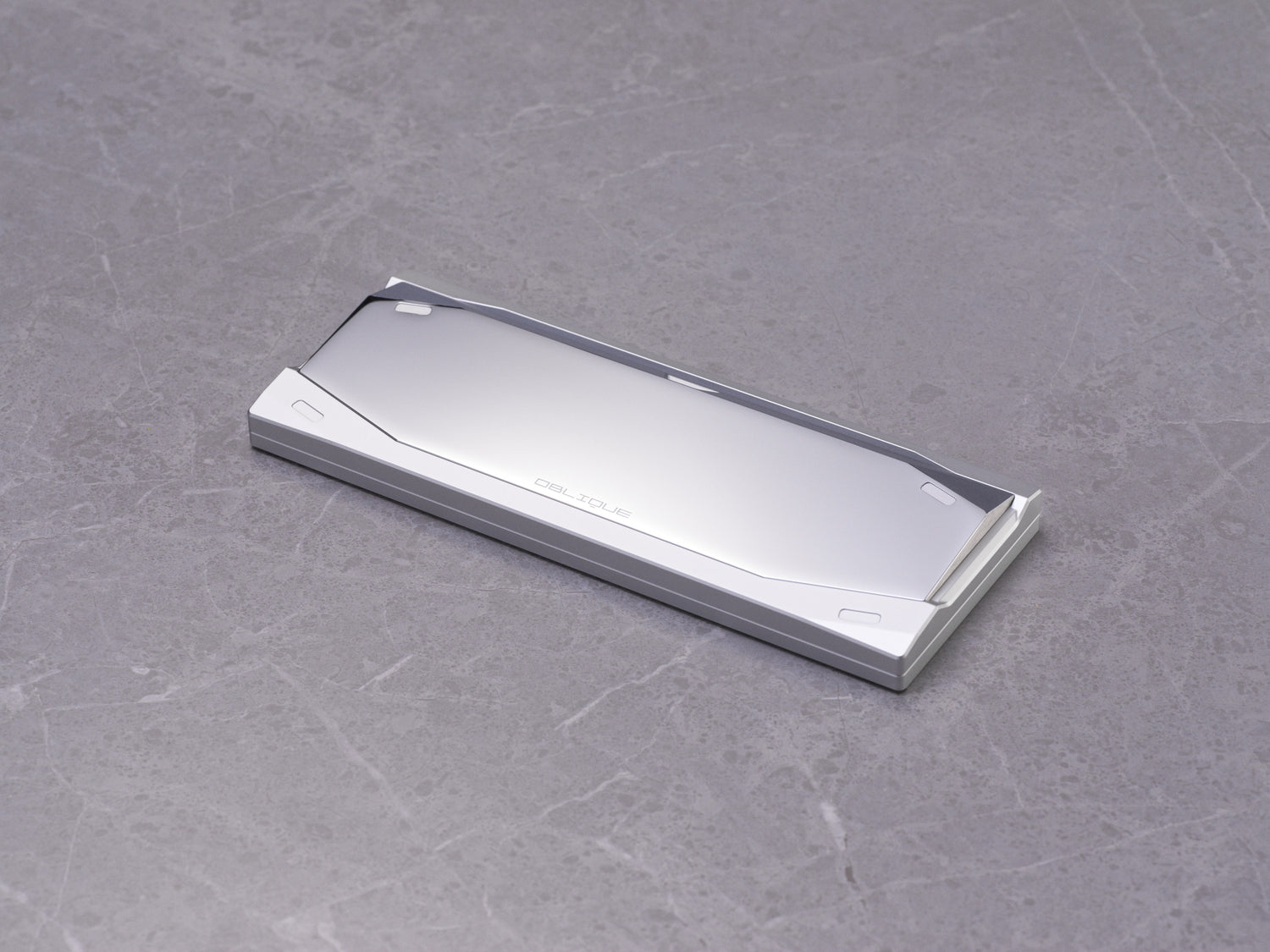

- Materials: 6063 Aluminum, Brass, Copper, Stainless Steel
- Layout: 60% WK, WKL, HHKB
- Typing Angle: 7.8 Degrees
- Front Height: 18.8 mm
- EKH: 23.8 mm
- Weight: 1.8 kg
- Mounting: Silicone Strip
PCB SPECIFICATIONS
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and Hotswap
DESIGN NOTES AND INSPIRATION

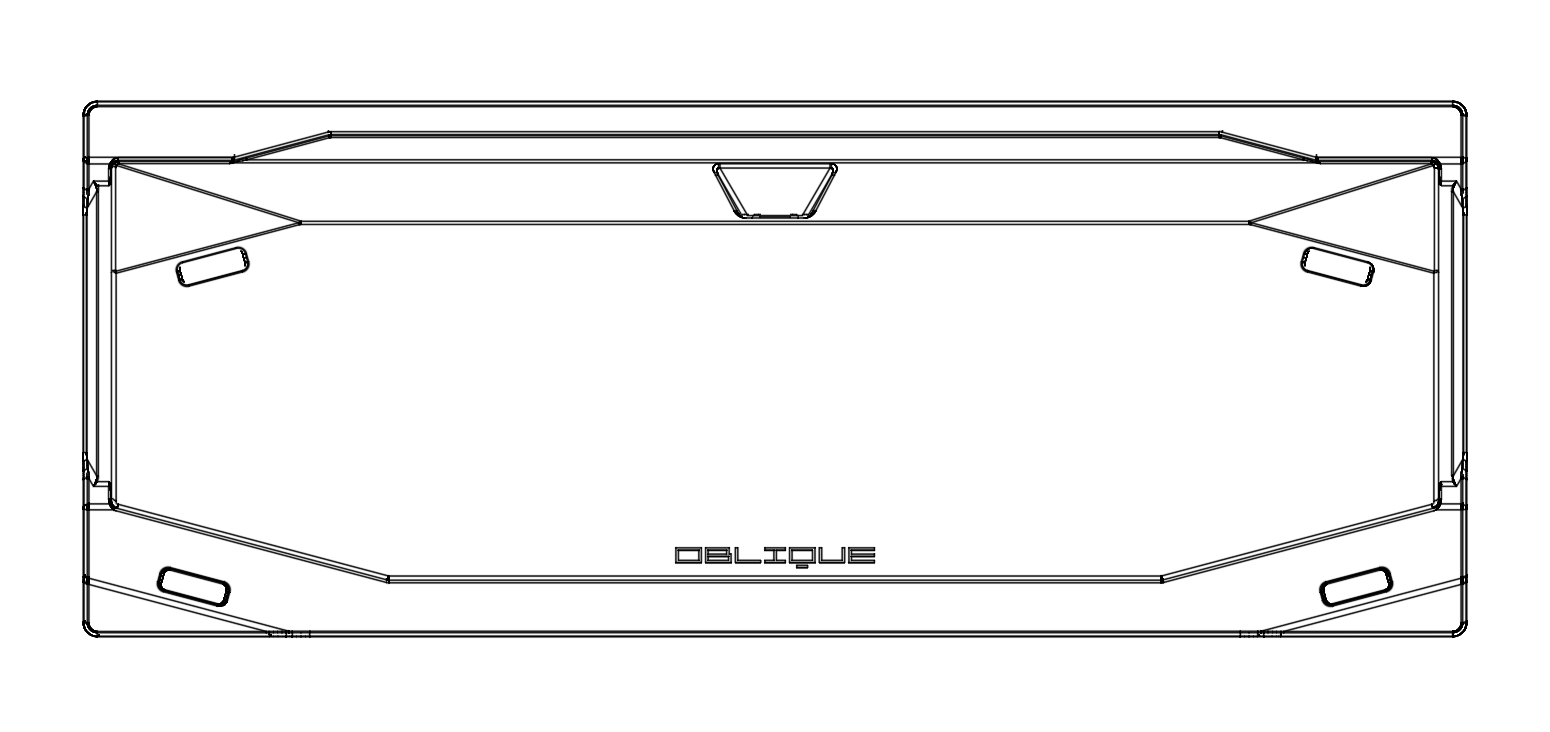

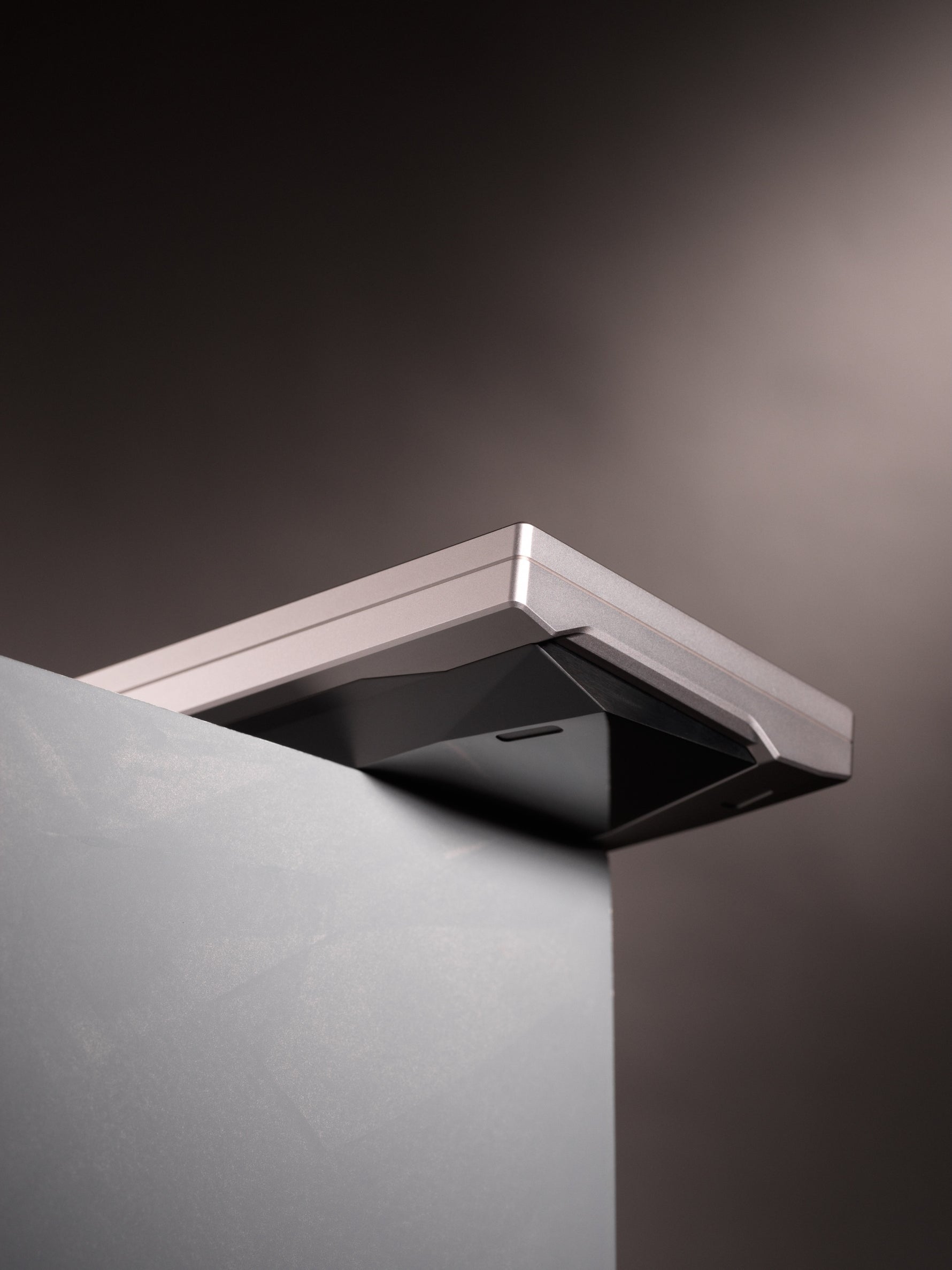

CASE DESIGN

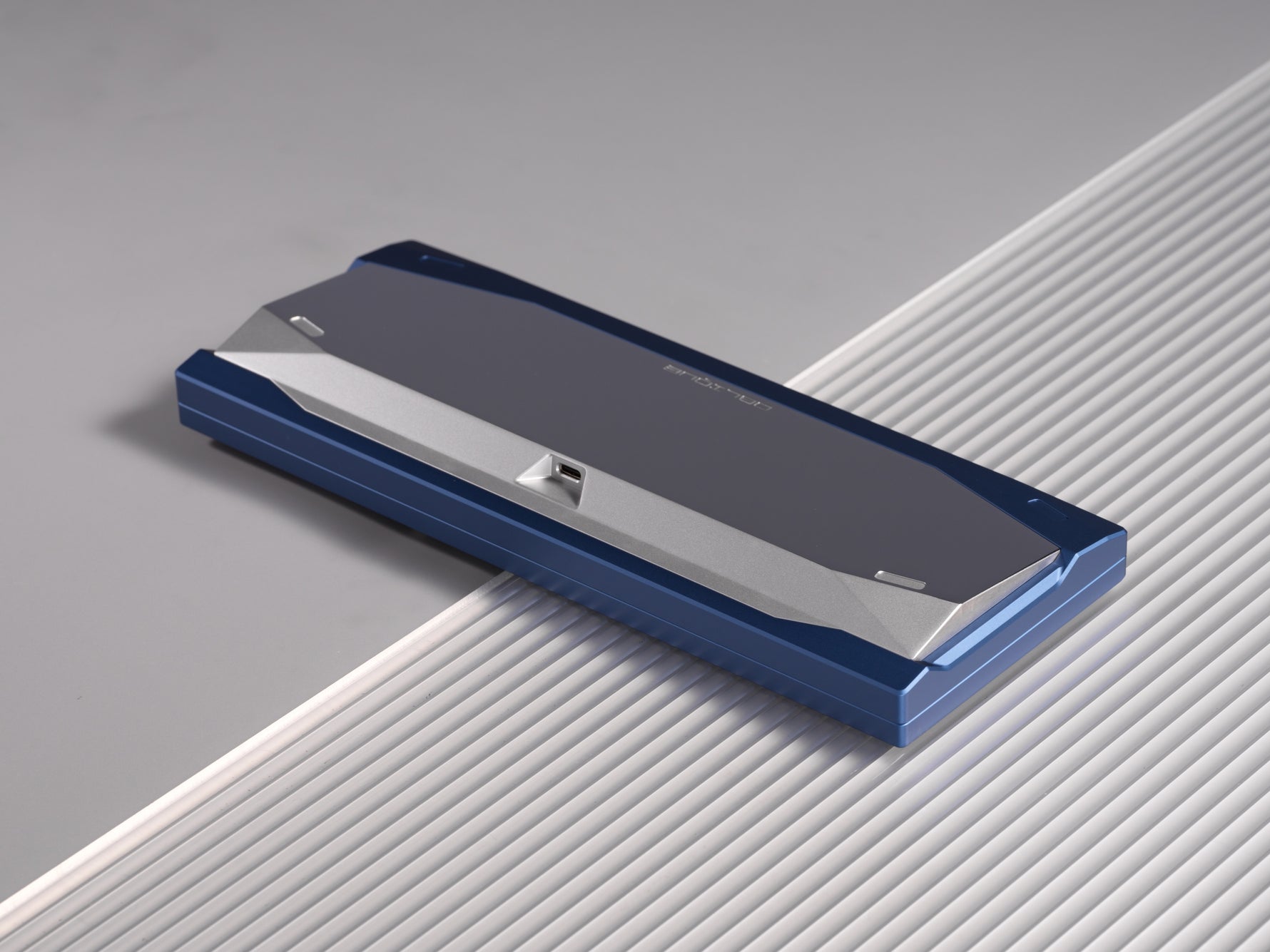

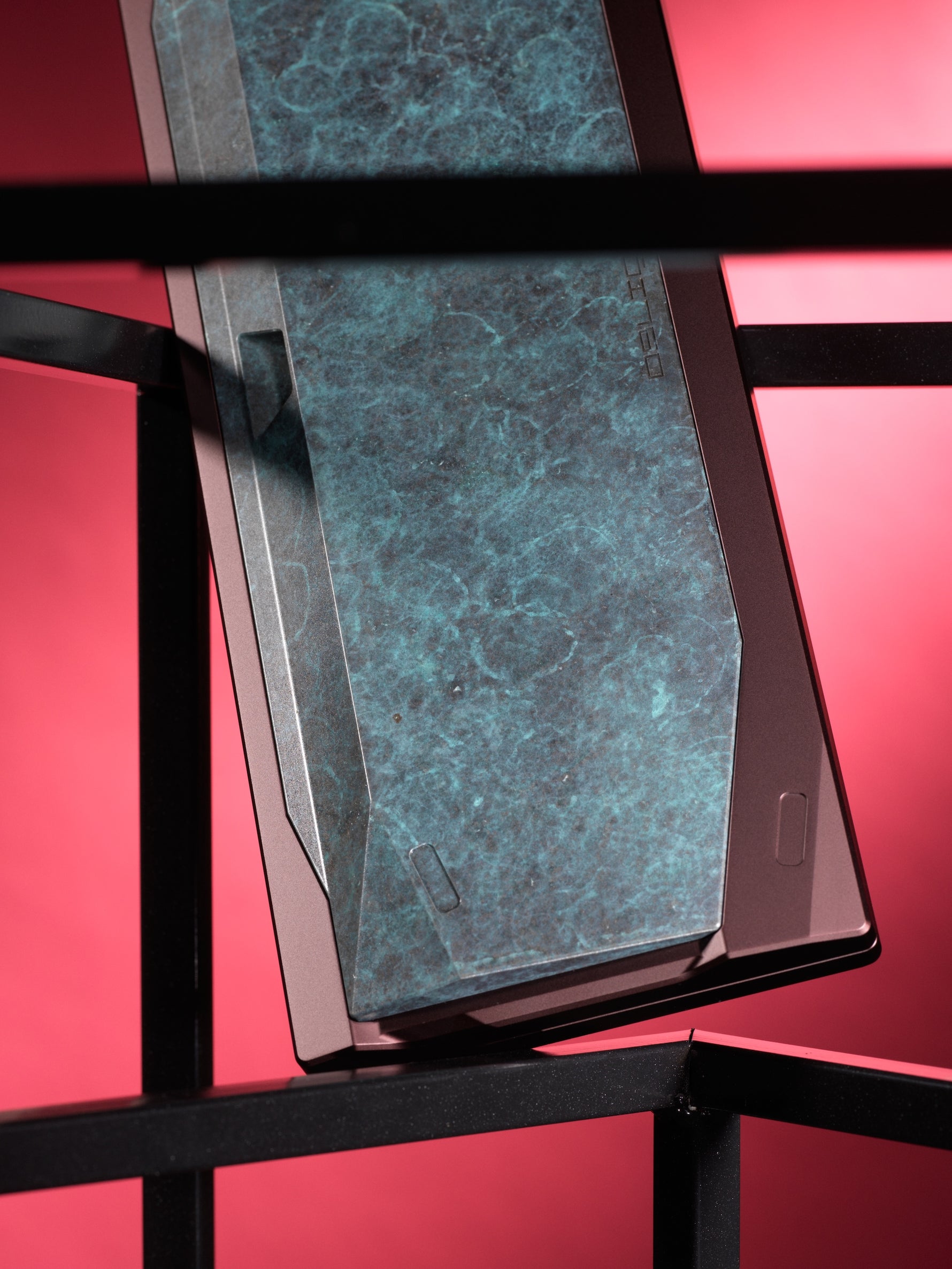

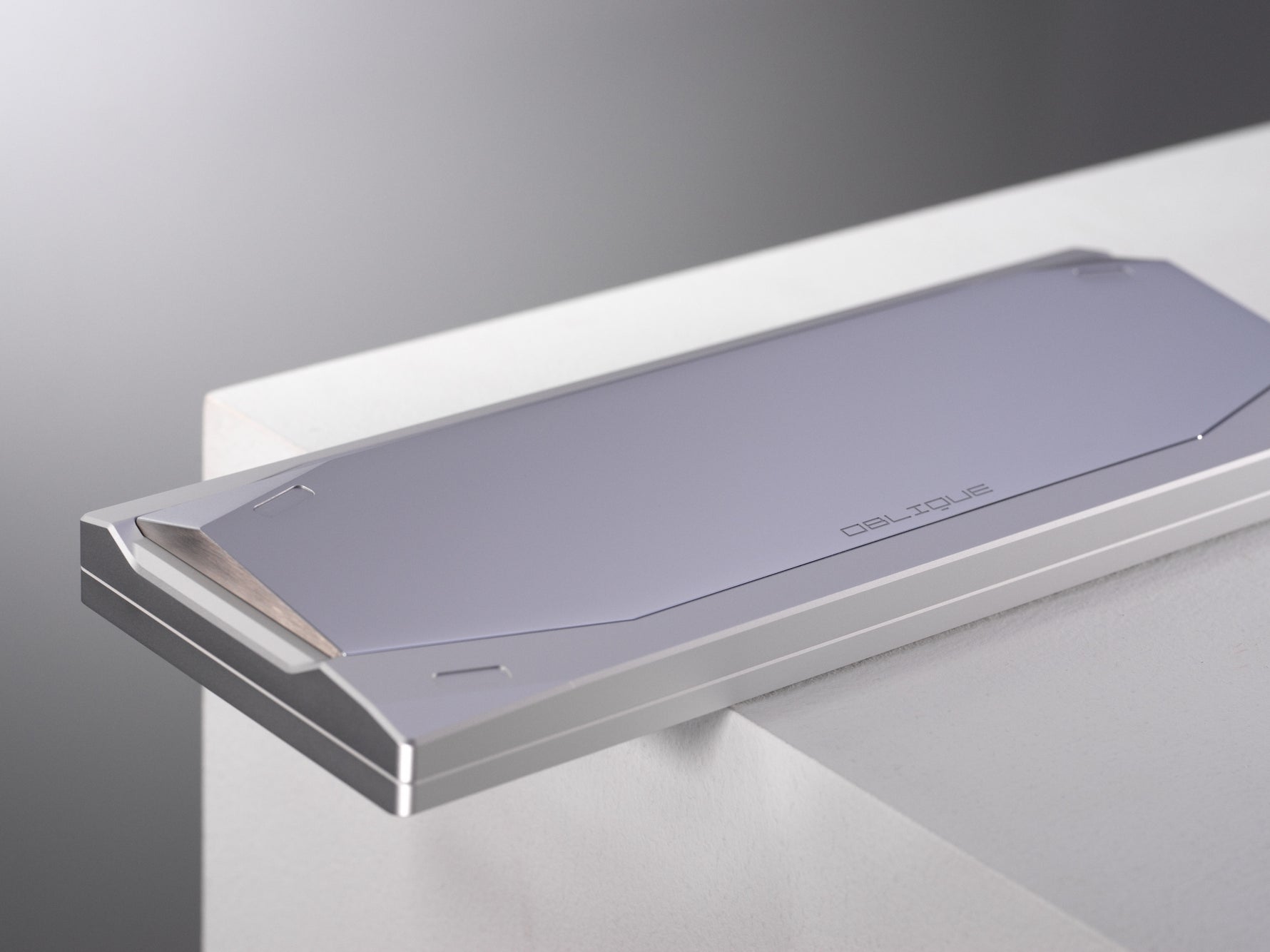

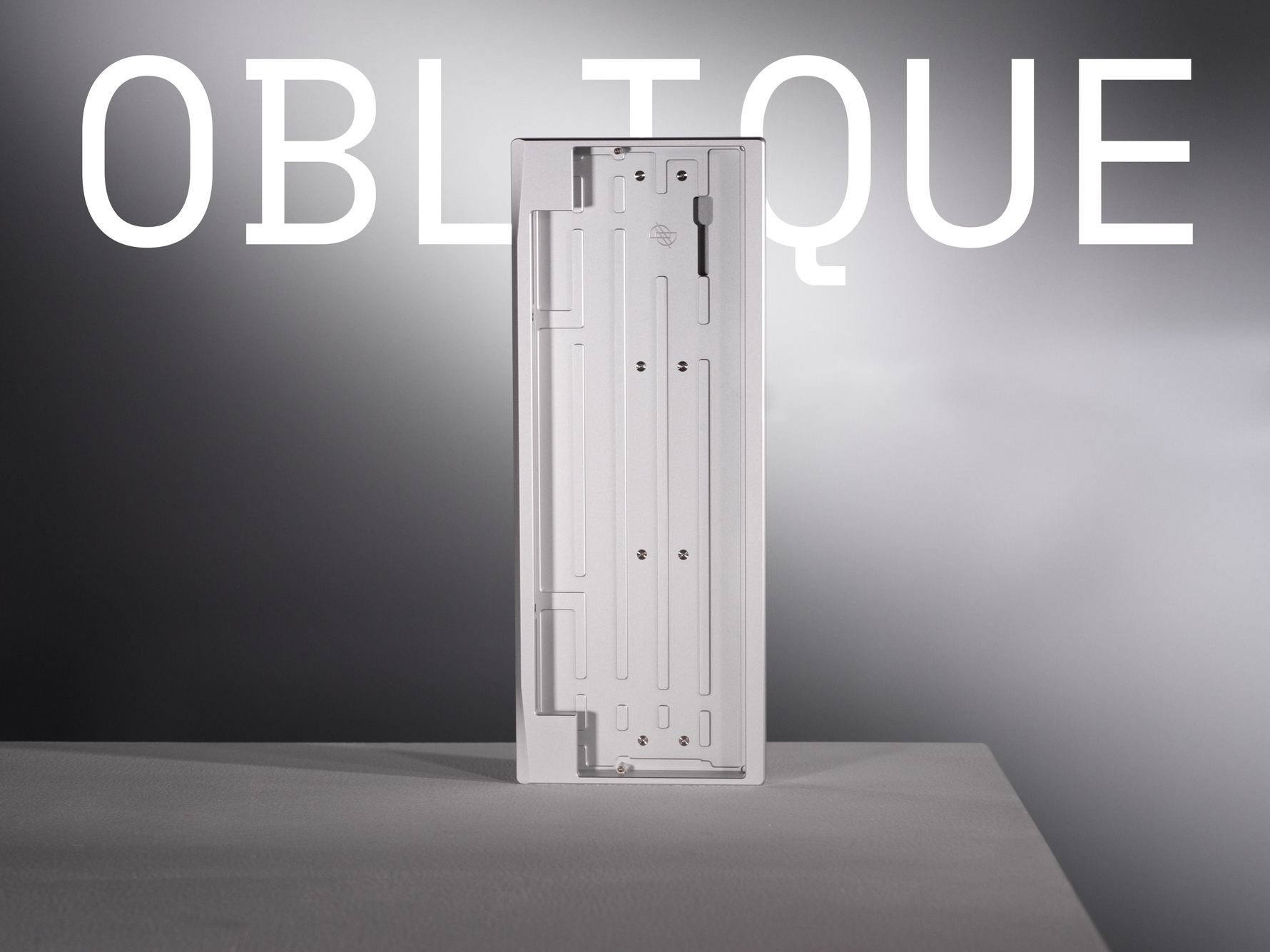

Oblique is a successor to the OC-62 which originally ran in 2023. The oblique takes heavy aesthetic inspiration from the OC-62 while having it's own distinct look. Oblique gets its' name from the intersecting faces visible from all angles of the keyboard. It was designed to draw the eye to different parts of the board using angled faces and intersecting edges.
MOUNTING DESIGN
Oblique uses 10 custom designed gaskets that press-fit into the top and bottom case for easy assembly. These gaskets are provided in 30a, 60a and 90a durometers for customizable feel and sound. They sandwhich the plate on leaf spring or relief cut tabs fully isolating the plate and PCB assembly from the case.
