Case Specifications
- Materials: 6063 Aluminum, Brass, Stainless Steel
- Layout: WKL 65%
- Typing Angle: 7 Degrees
- EKH: 22.3mm
- Weight: 1.2kg unbuilt
- Mounting: Dampened Top or PCB Gasket
PCB Specifications
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: Onboard USB-C
- Customizability: VIA
- Type: Solderable and Hotswap
PCB Compatiblity
Hotswap and Solder
Mounting Design
Ophanim has two mounting options with multiple options of how to build it.

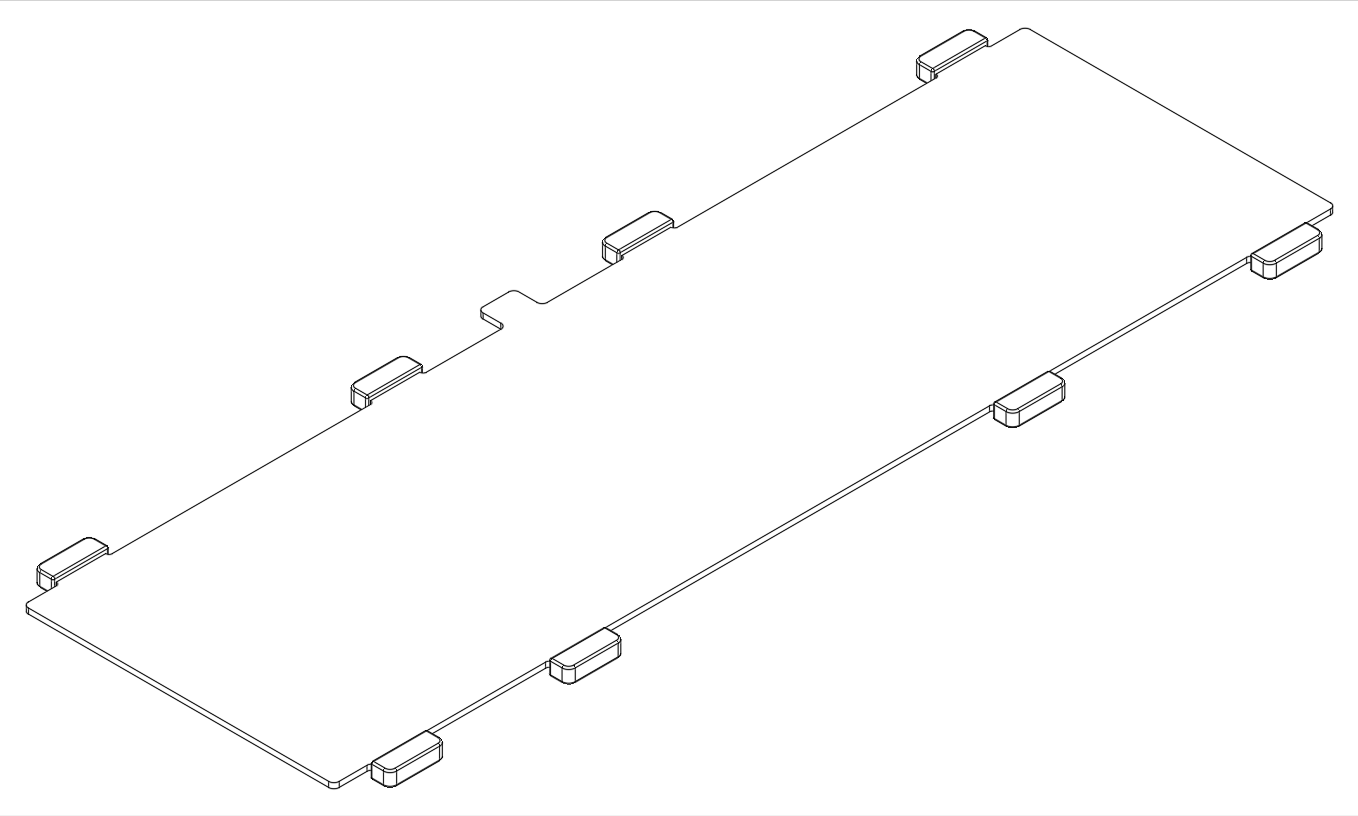

Option 1: PCB Gasket Mount - It can be built with or without the plate and uses molded gaskets to isolate the PCB from the top and bottom case

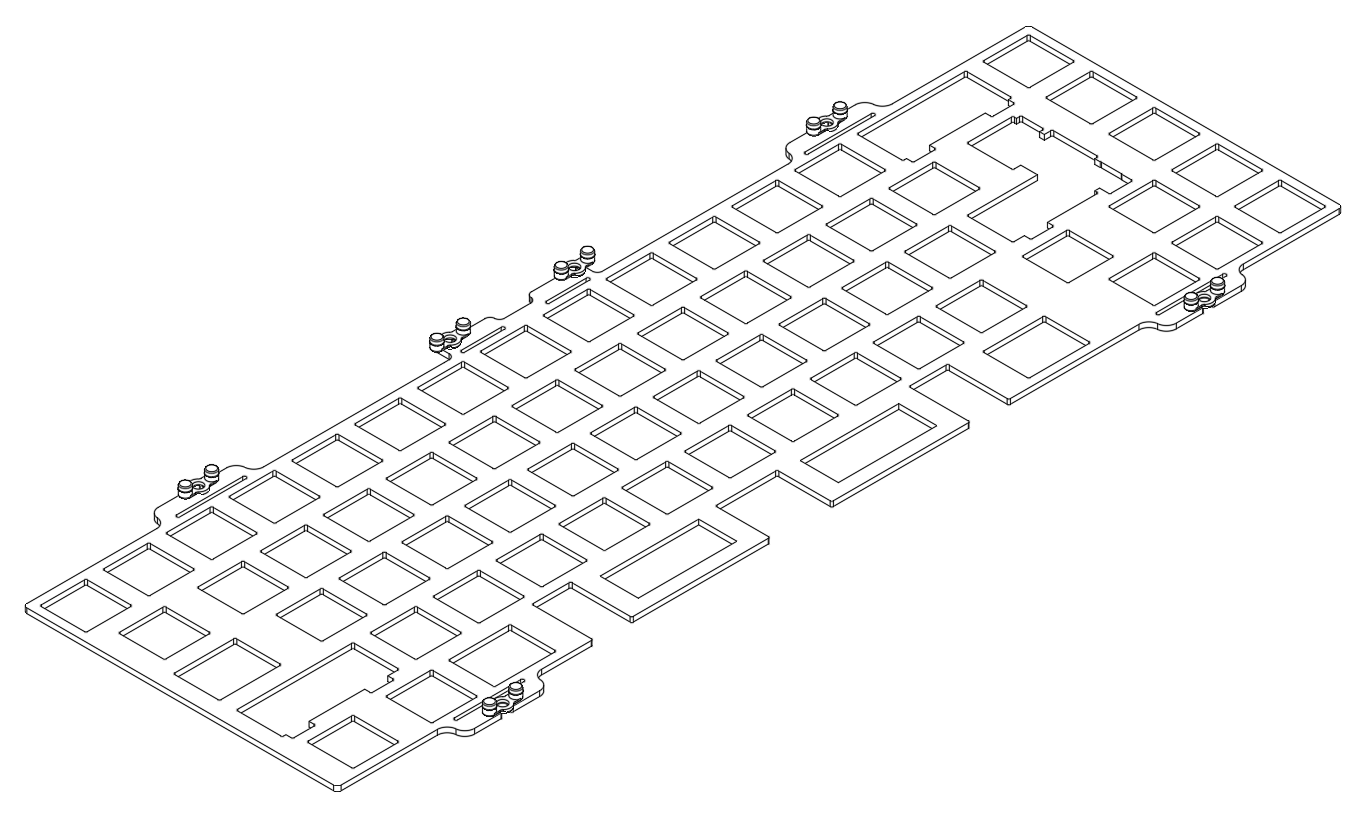

Option 2: Dampened Top Mount - Two plate designs to accomodate for softer materials. Gaskets can be removed when using plate with PCB gasket mounting to prevent rattle between plate and top case.

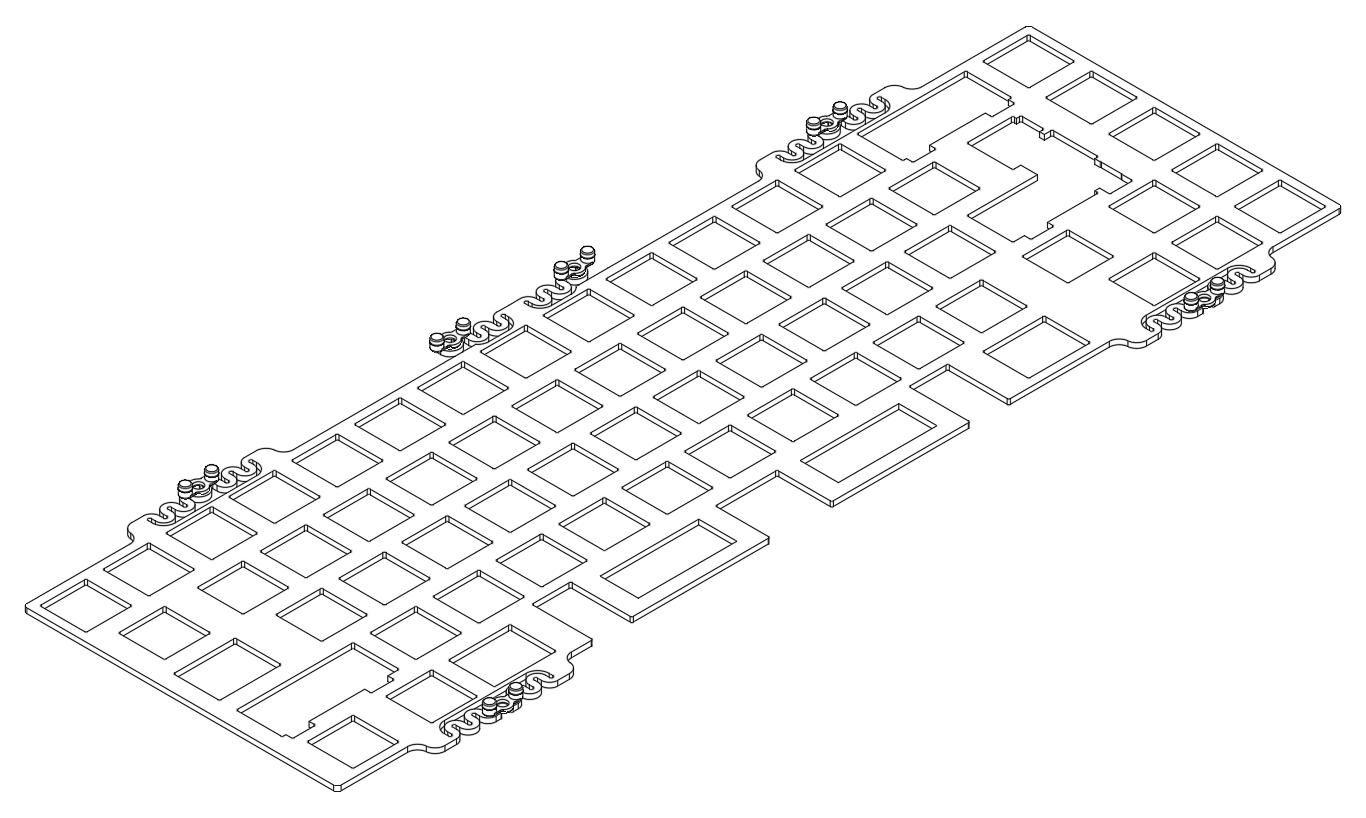

Soft material plate
Stiff material plate
Sales Info
- North America: BowlKeyboards
- Europe: DeltakeyCo
- China:
- Australia:
- United Kingdom: ProtoTypist
- South East Asia:
- Canada:
- Korea: Swagkeys
- Thailand:
- GB Timeline: June 8th - July 10th
- Estimated Fulfillment: Q1 2027
- Price: starting at 375 USD
1x Top Case
1x Bottom Case
1x Weight
1x Choice of Plate
1x Choice of PCB
10x PCB gaskets
10x Plate Gaskets
1x Carrying Case
1x Microfiber Cloth
Other necessary hardware
*Note does not include keycaps, stabilizers, switches

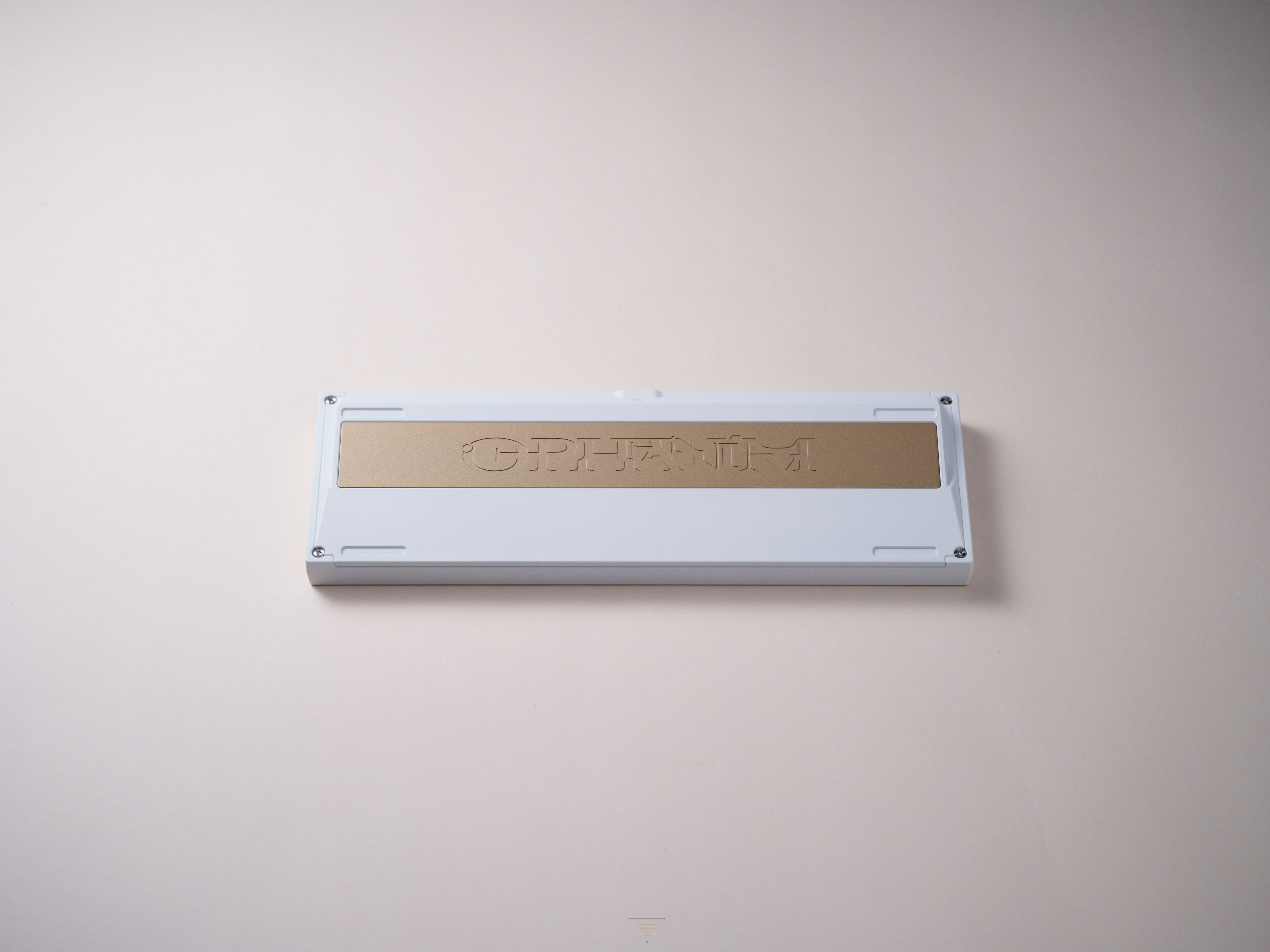

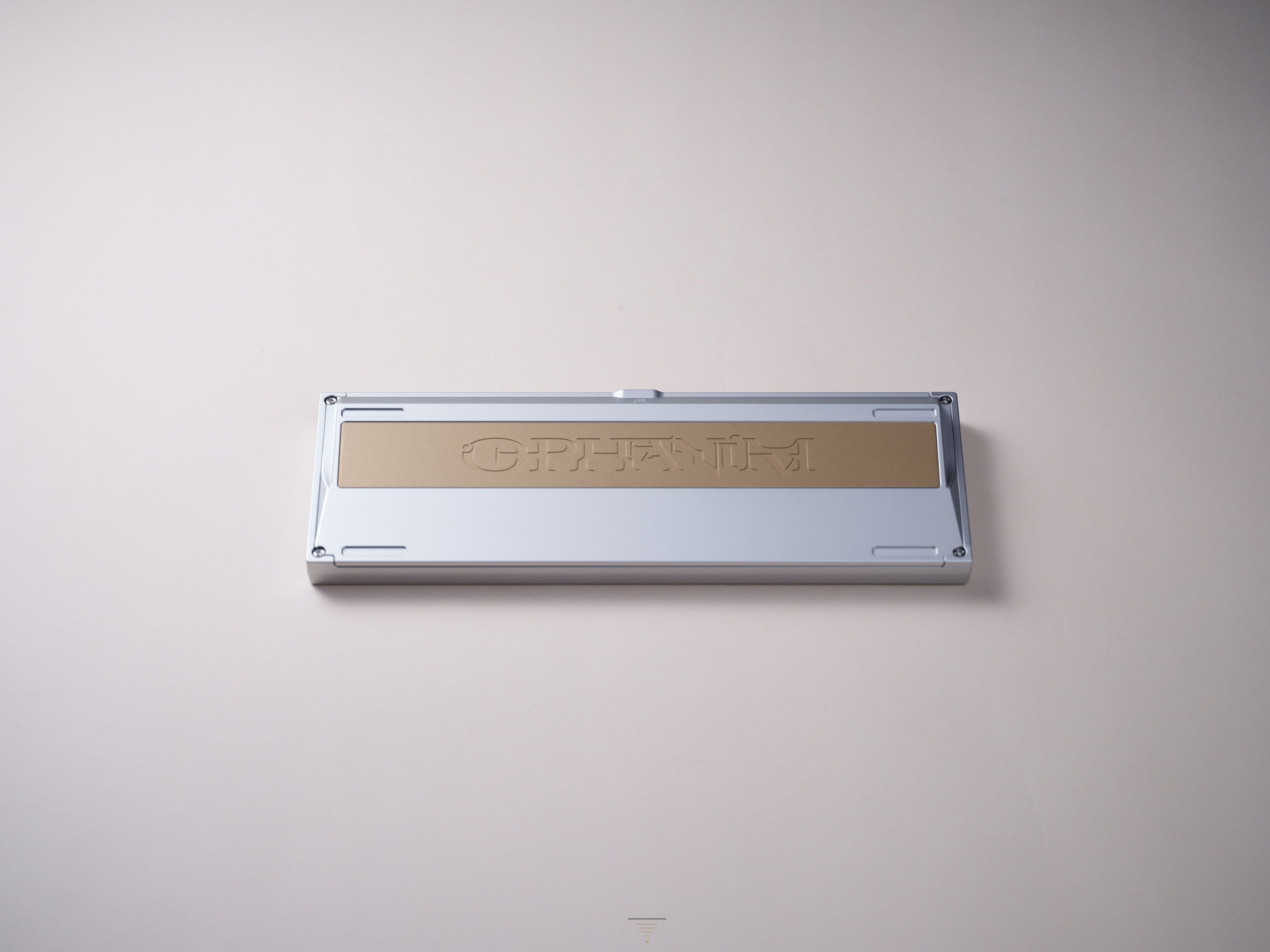

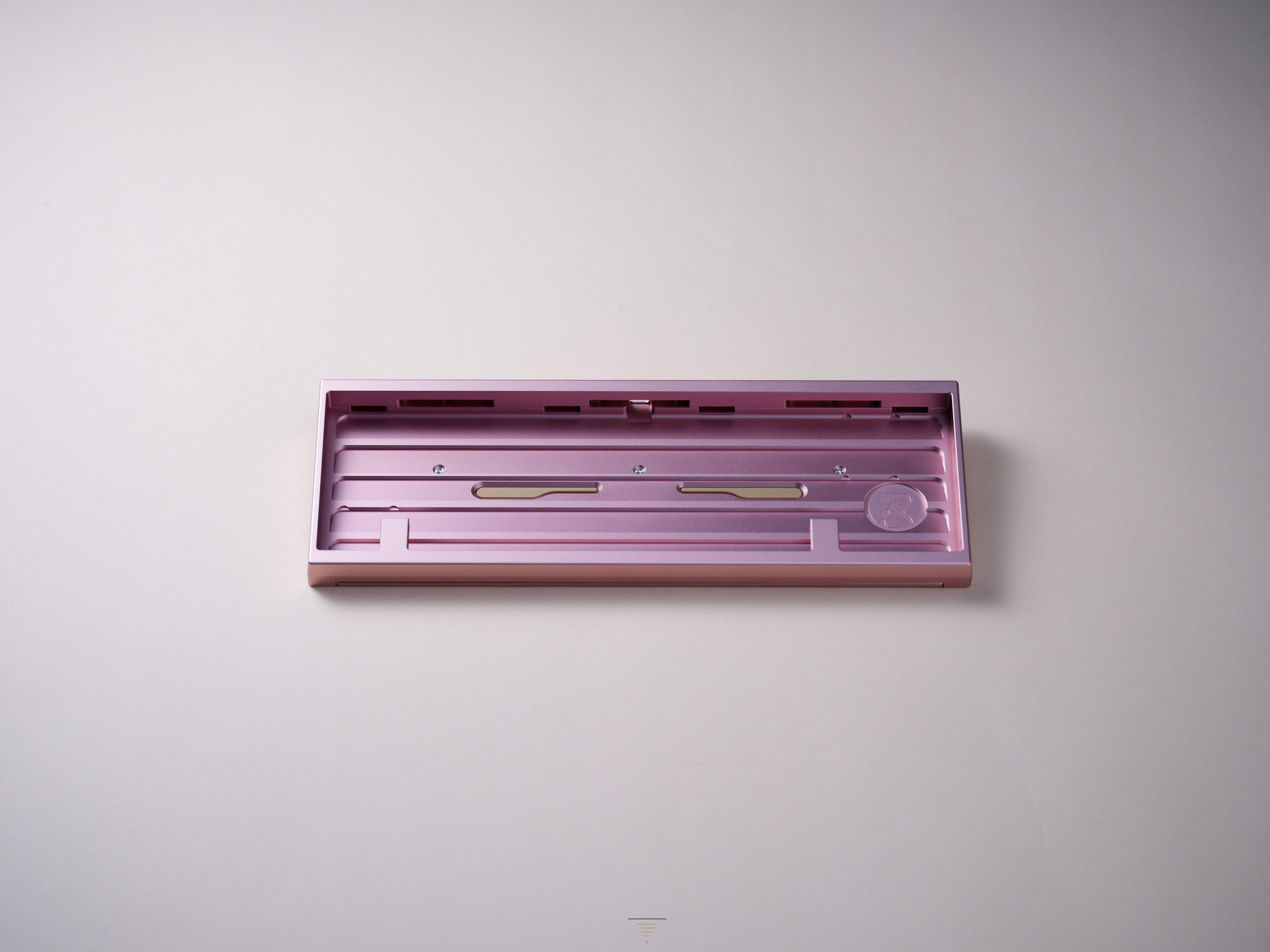

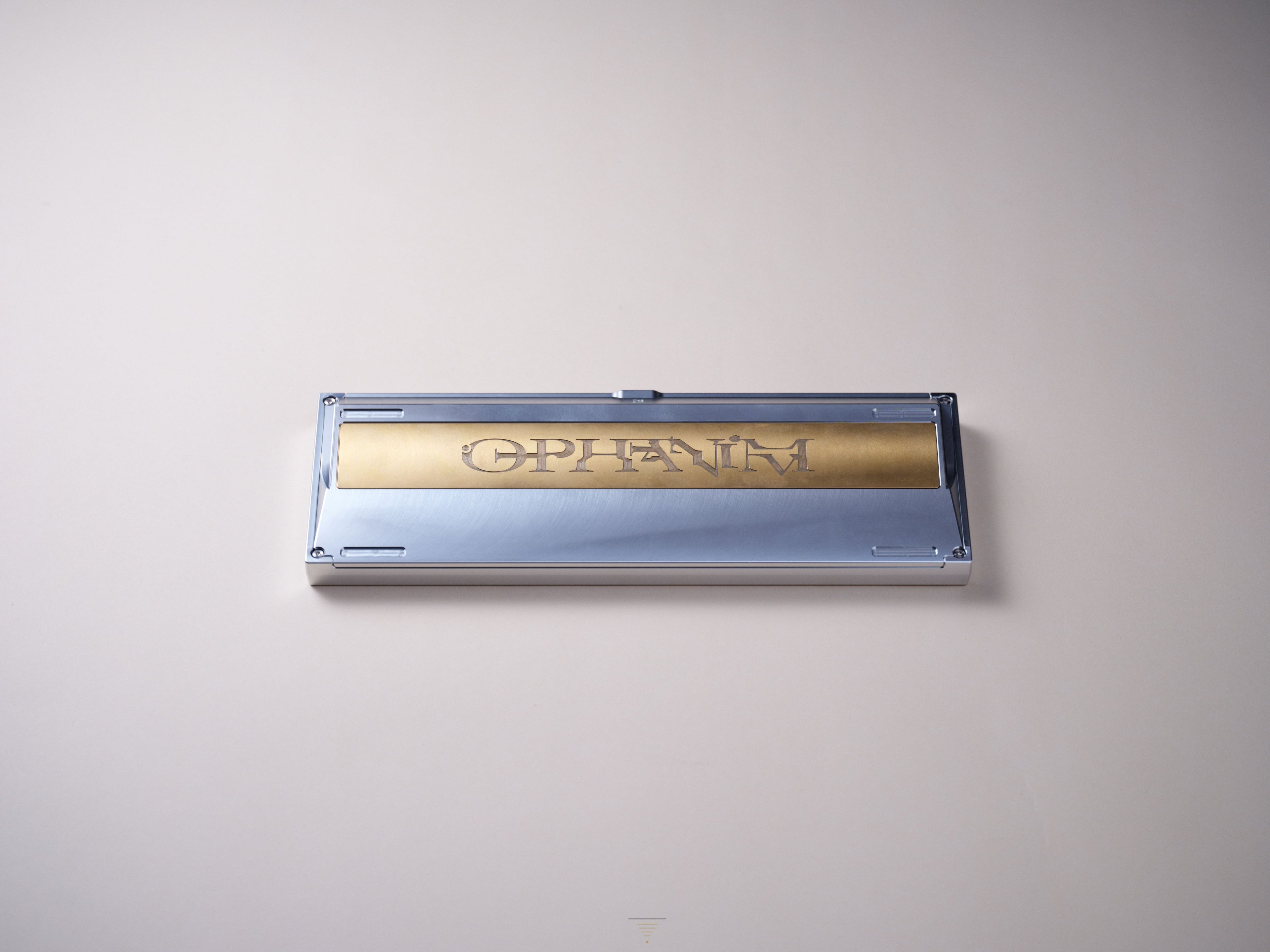

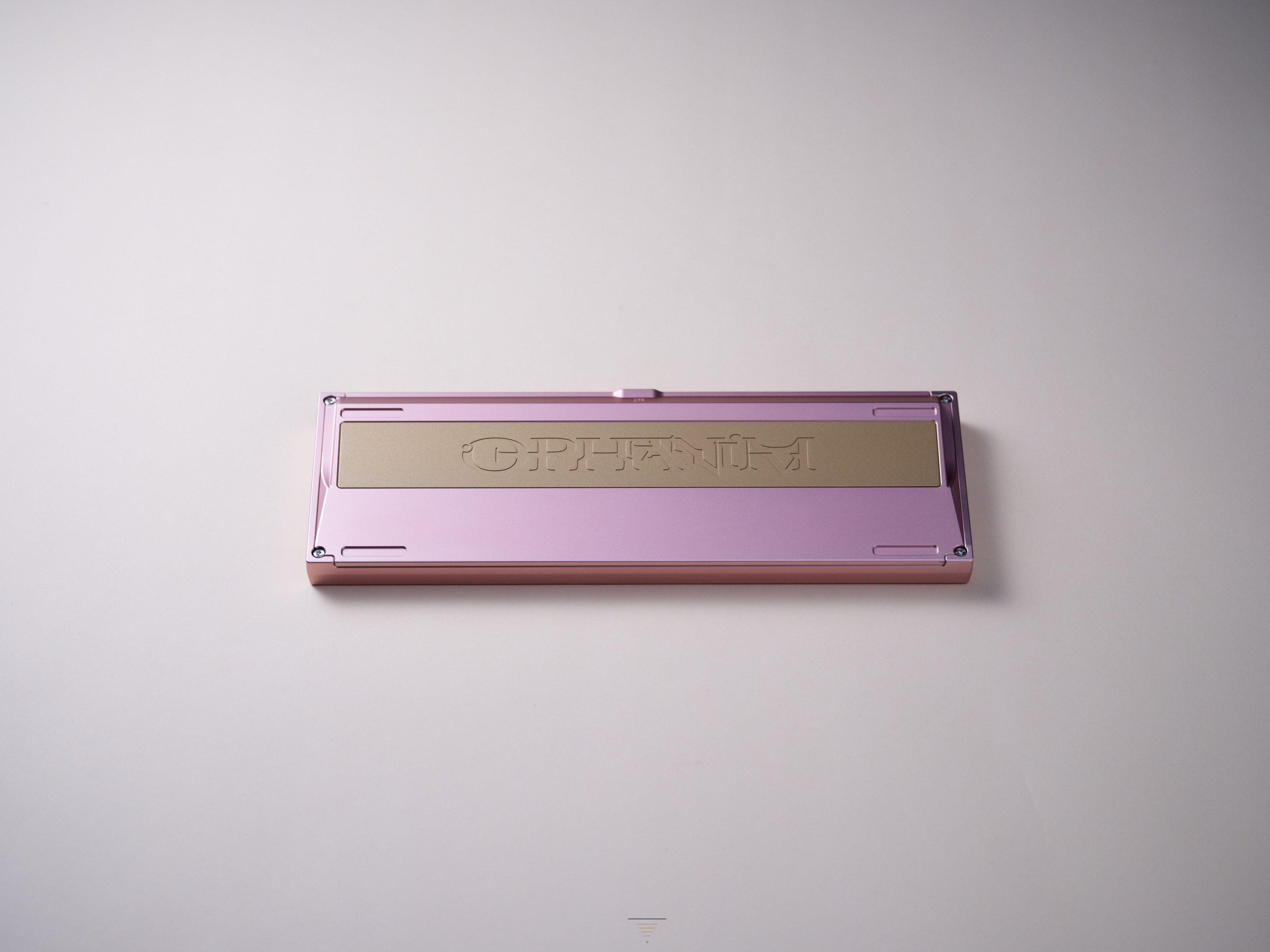

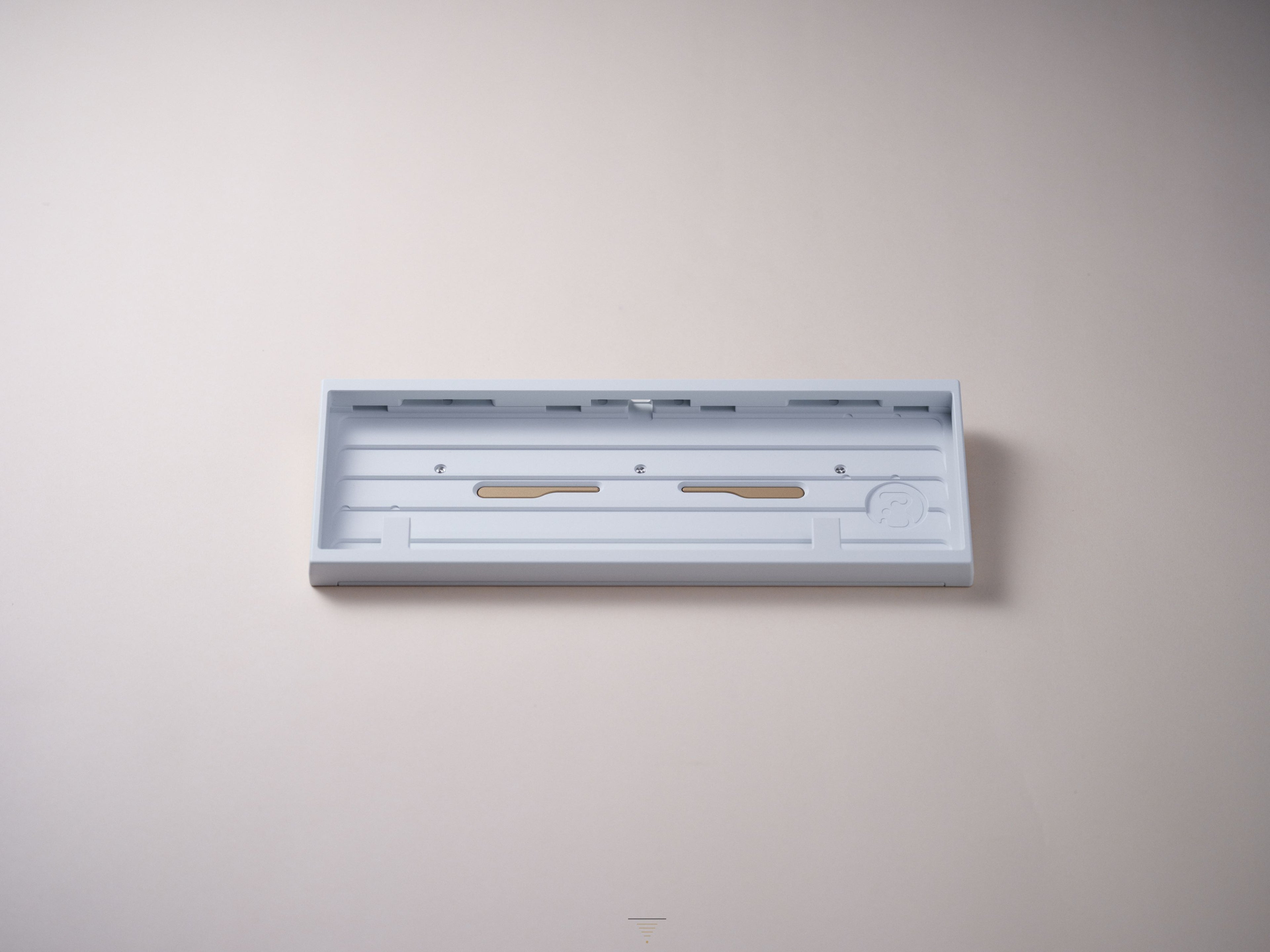

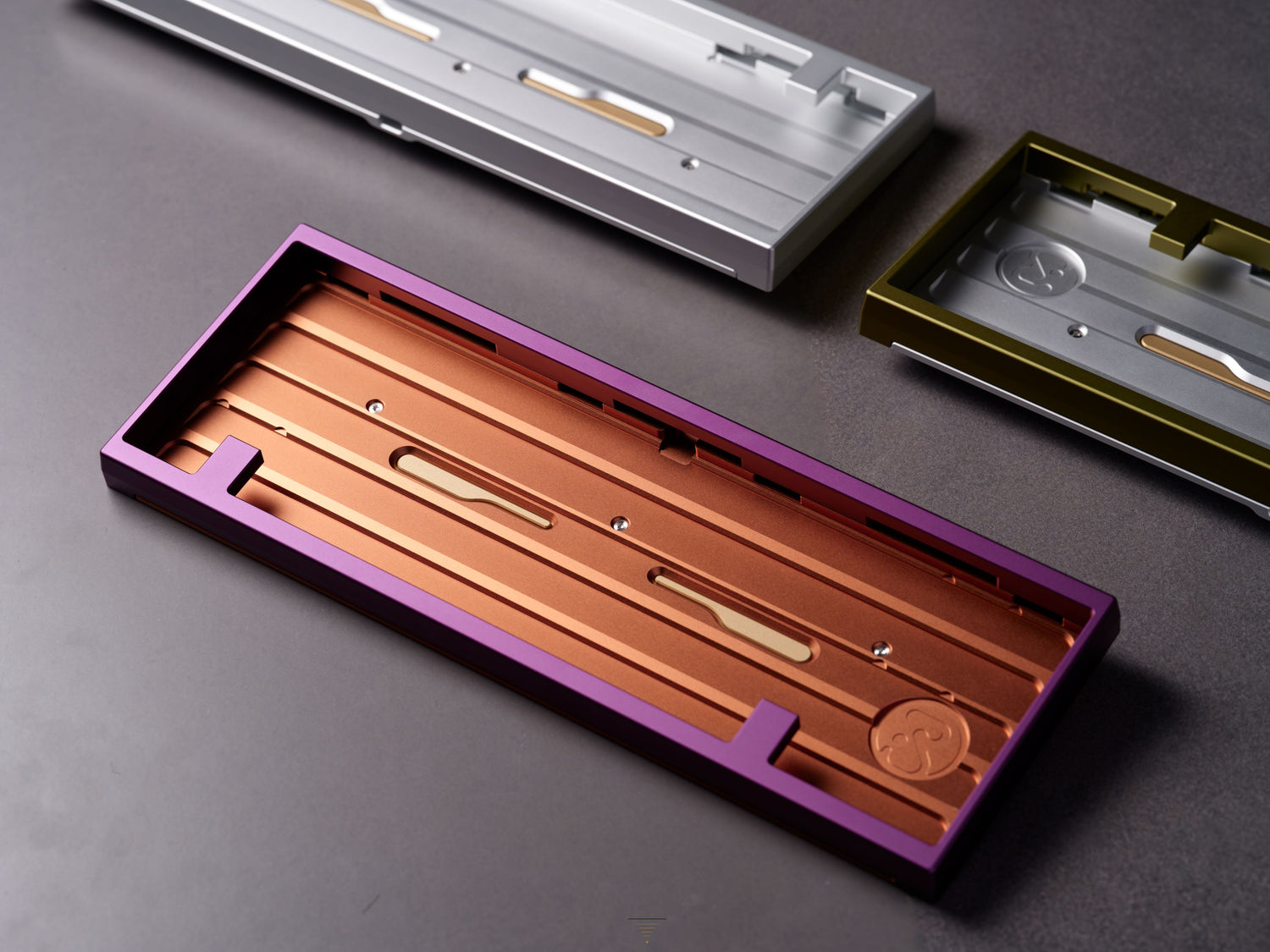

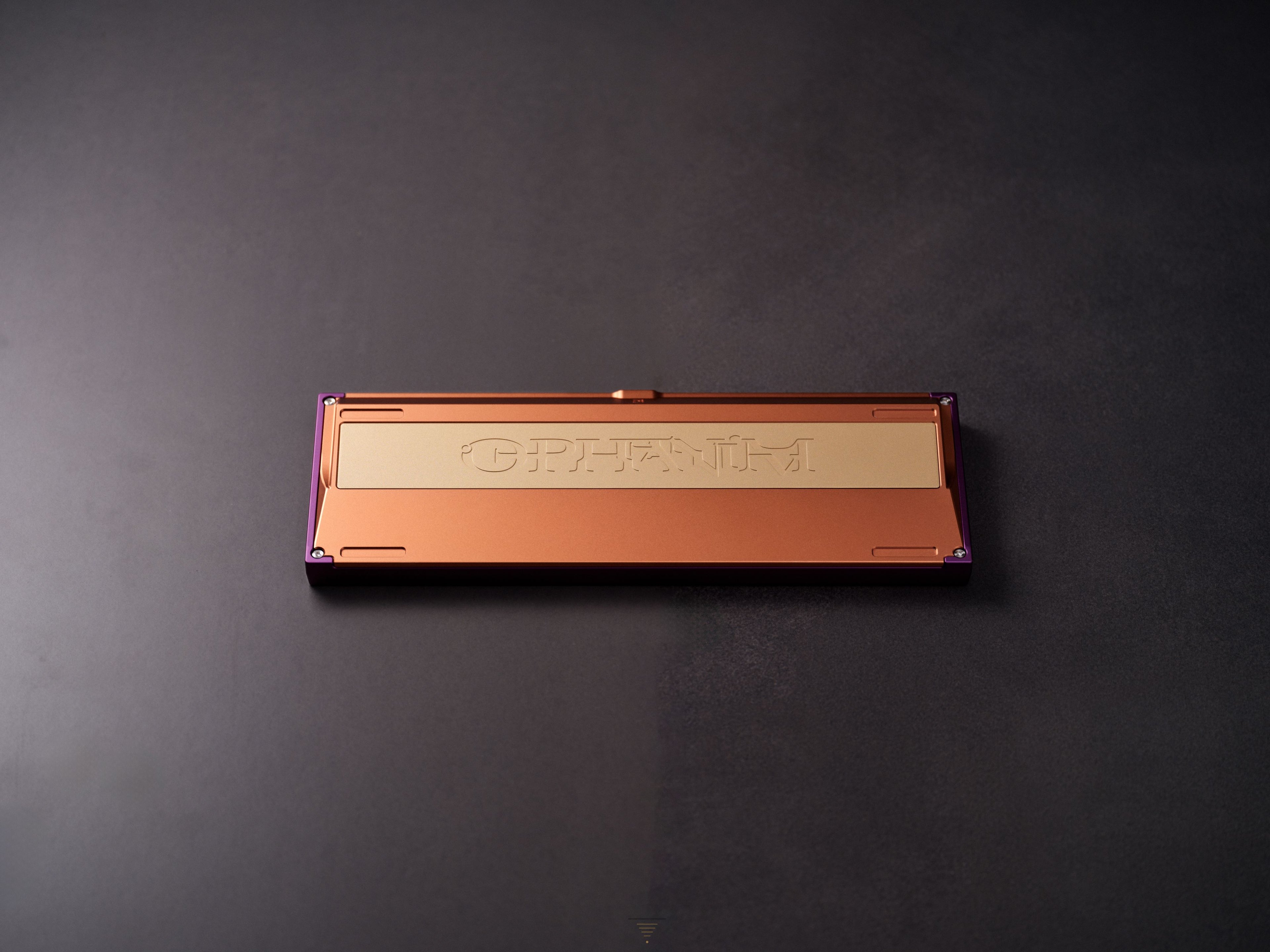

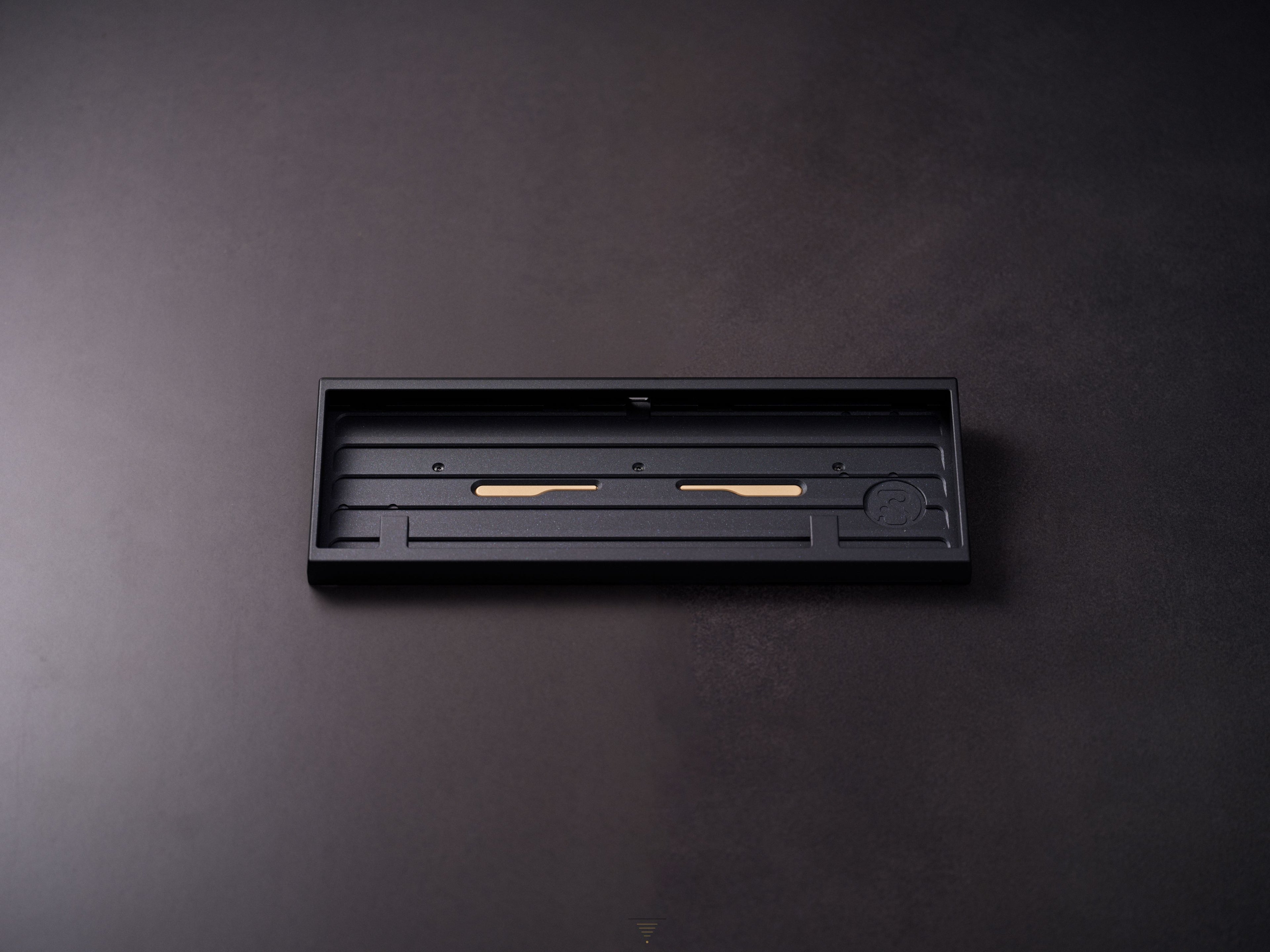

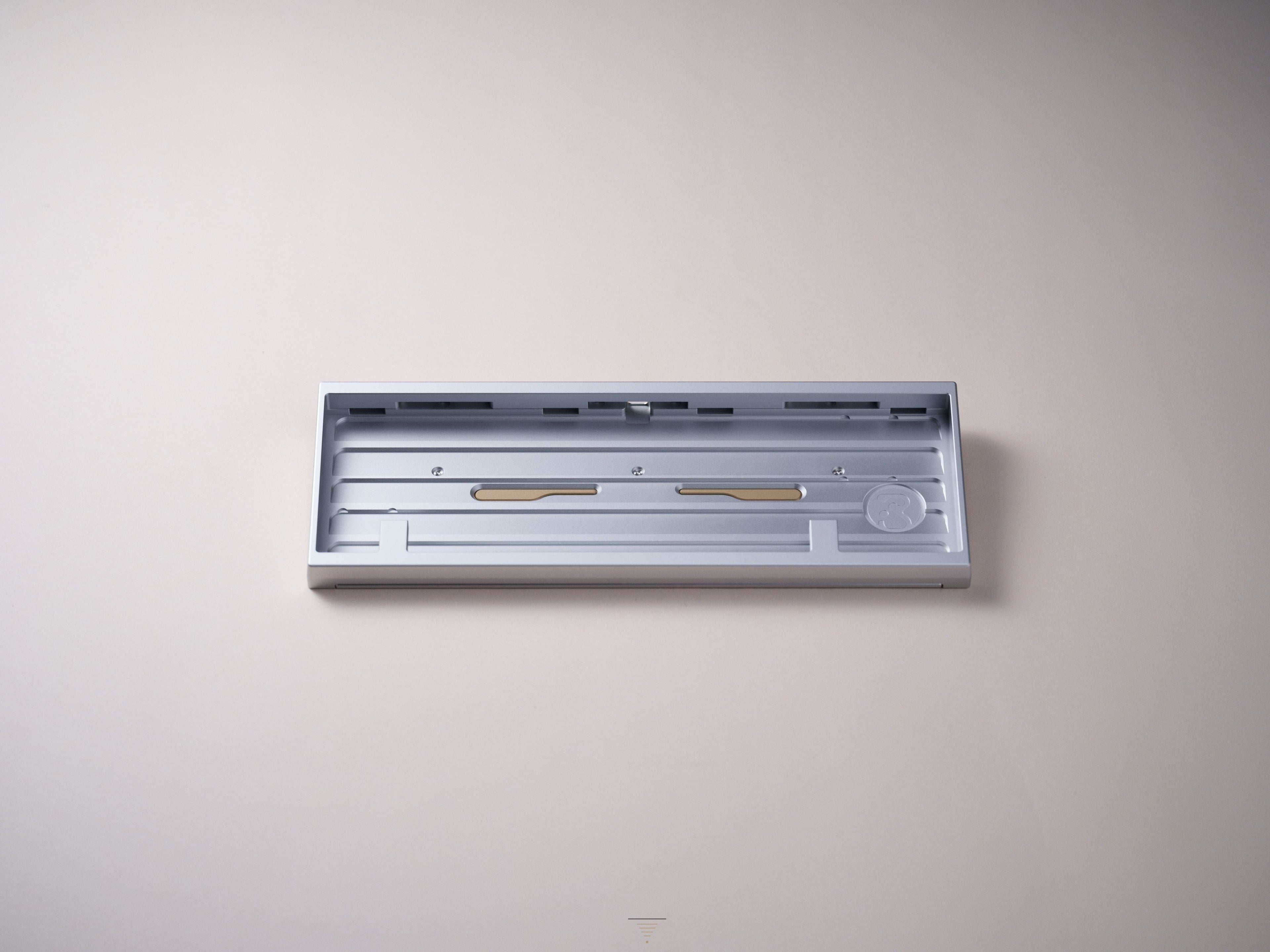

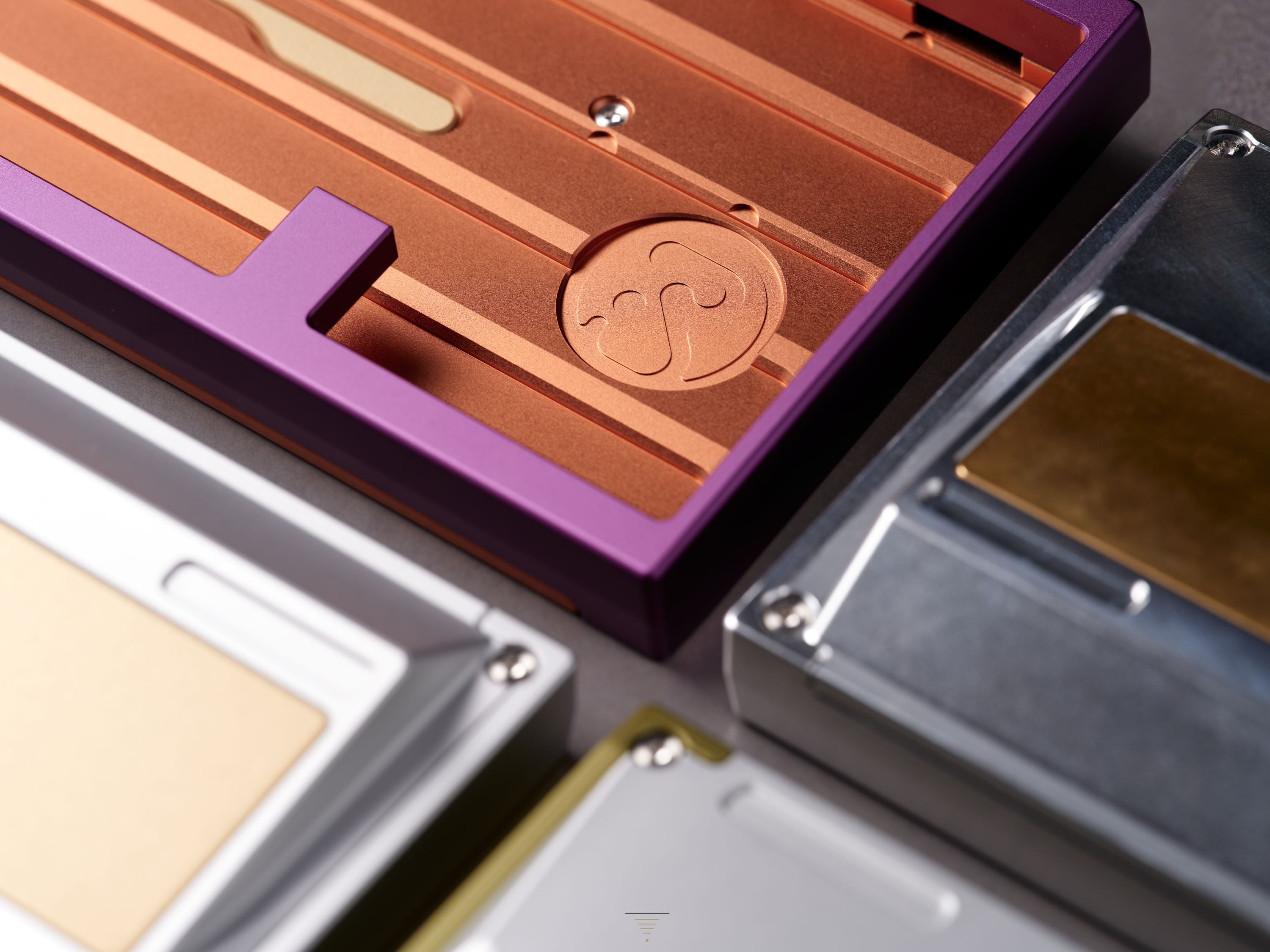

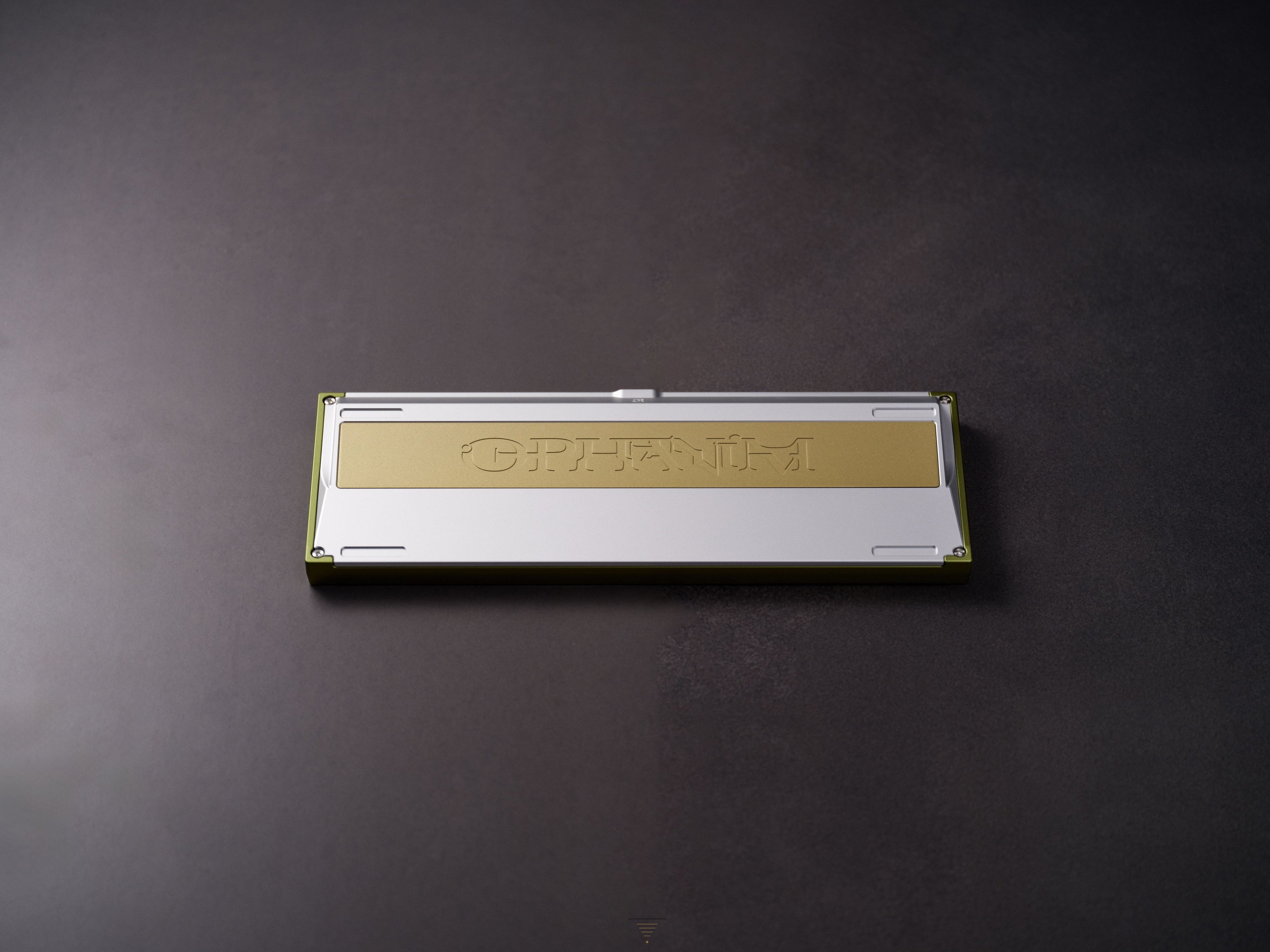

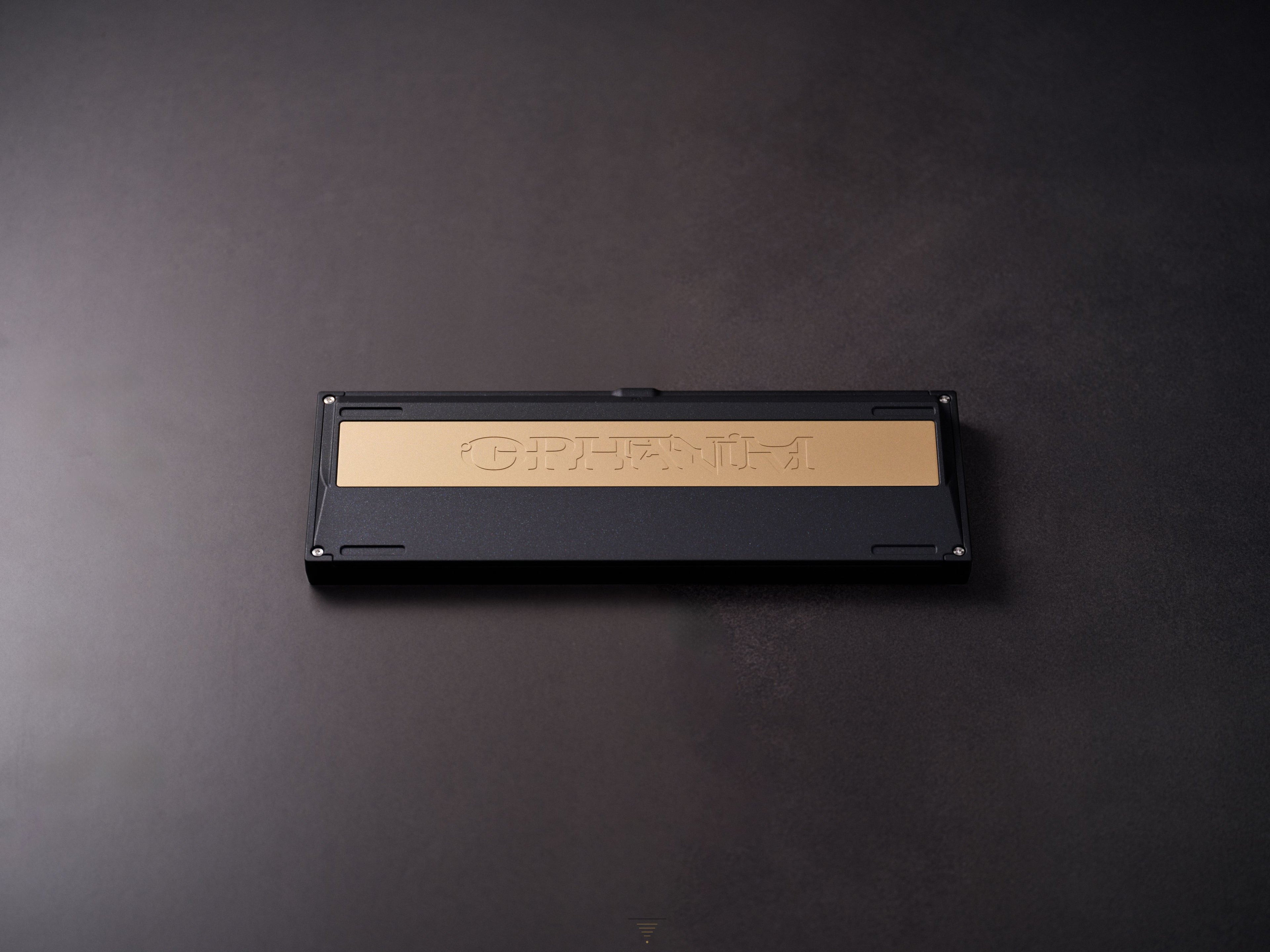

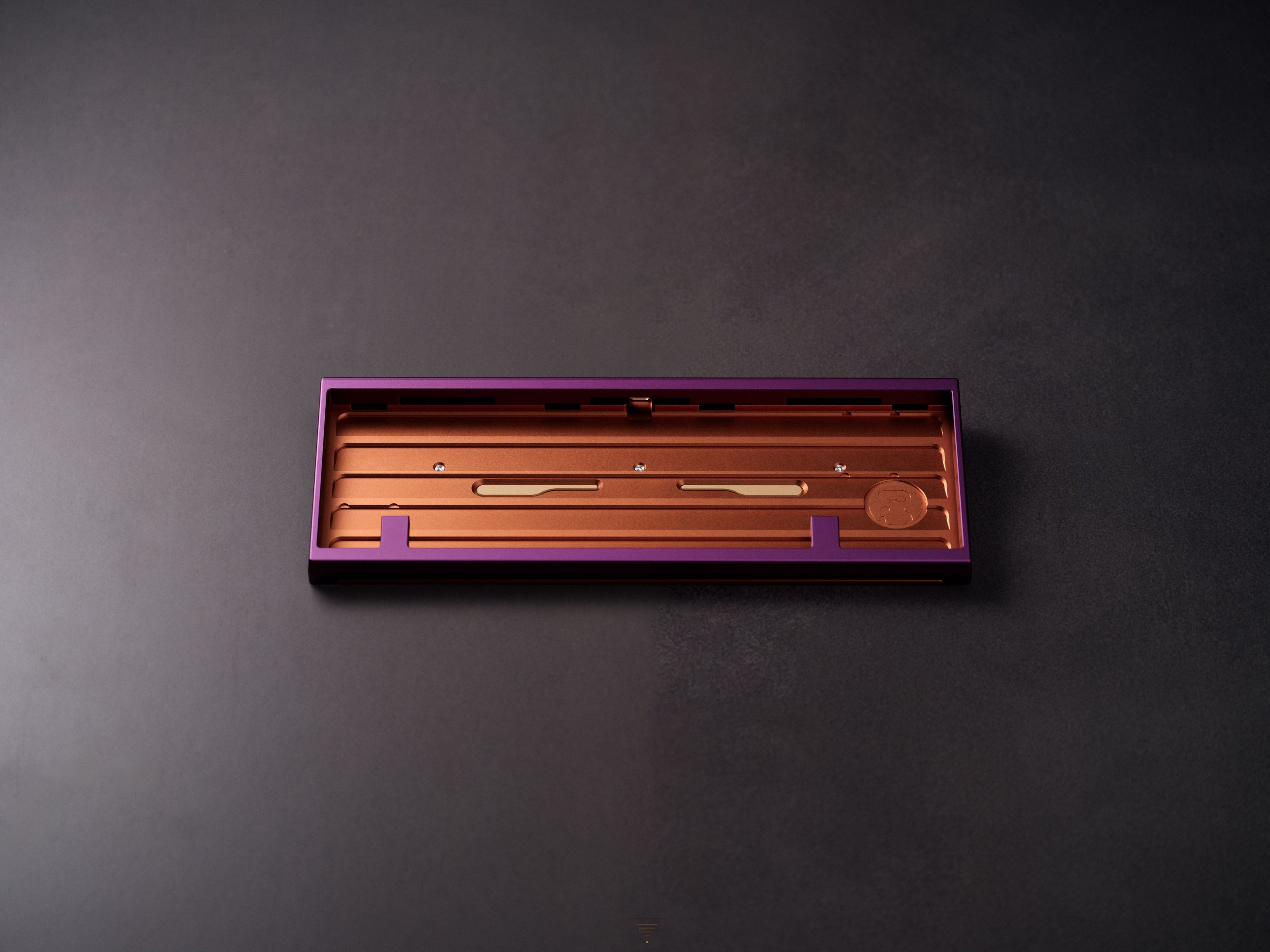

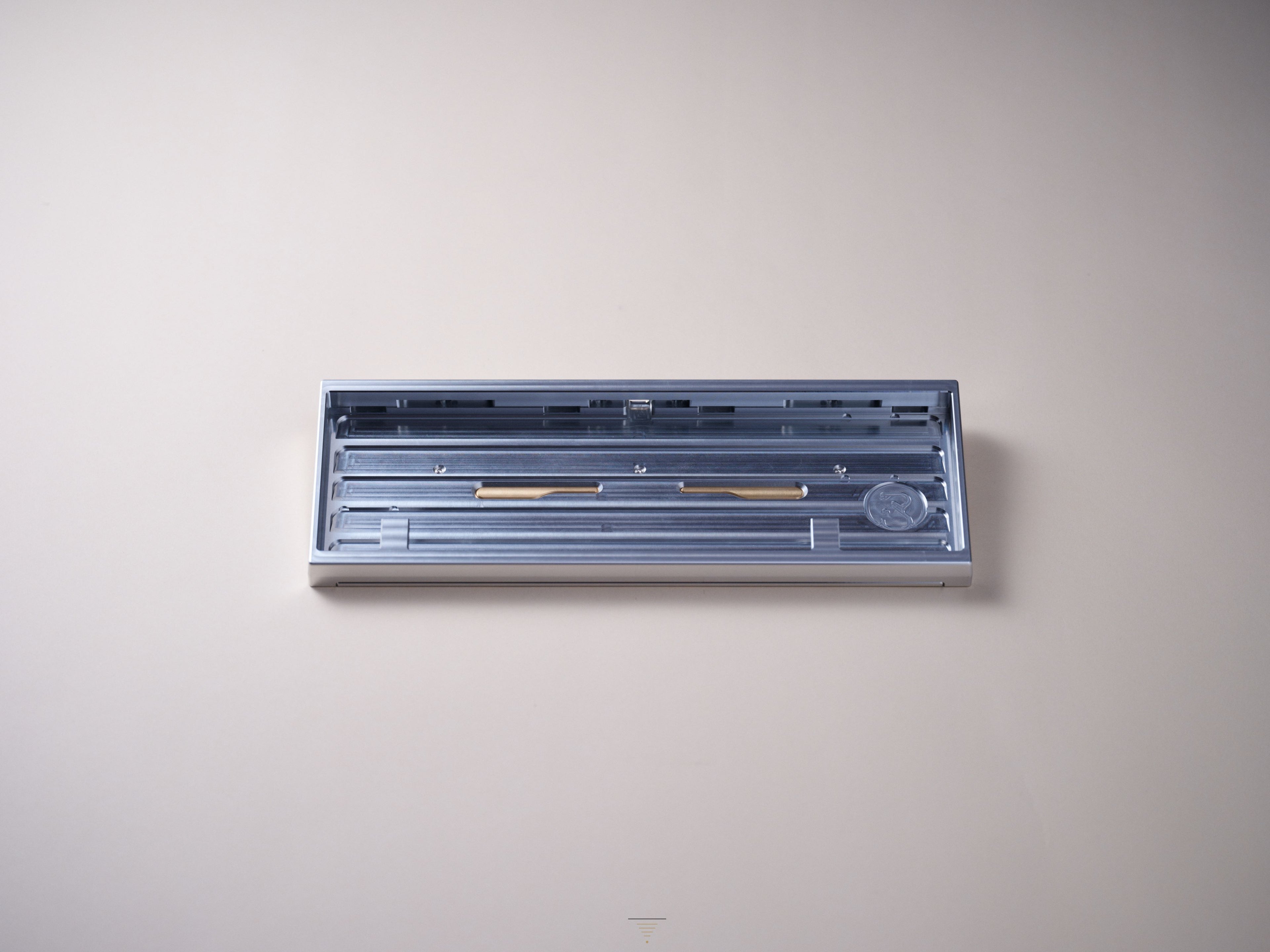

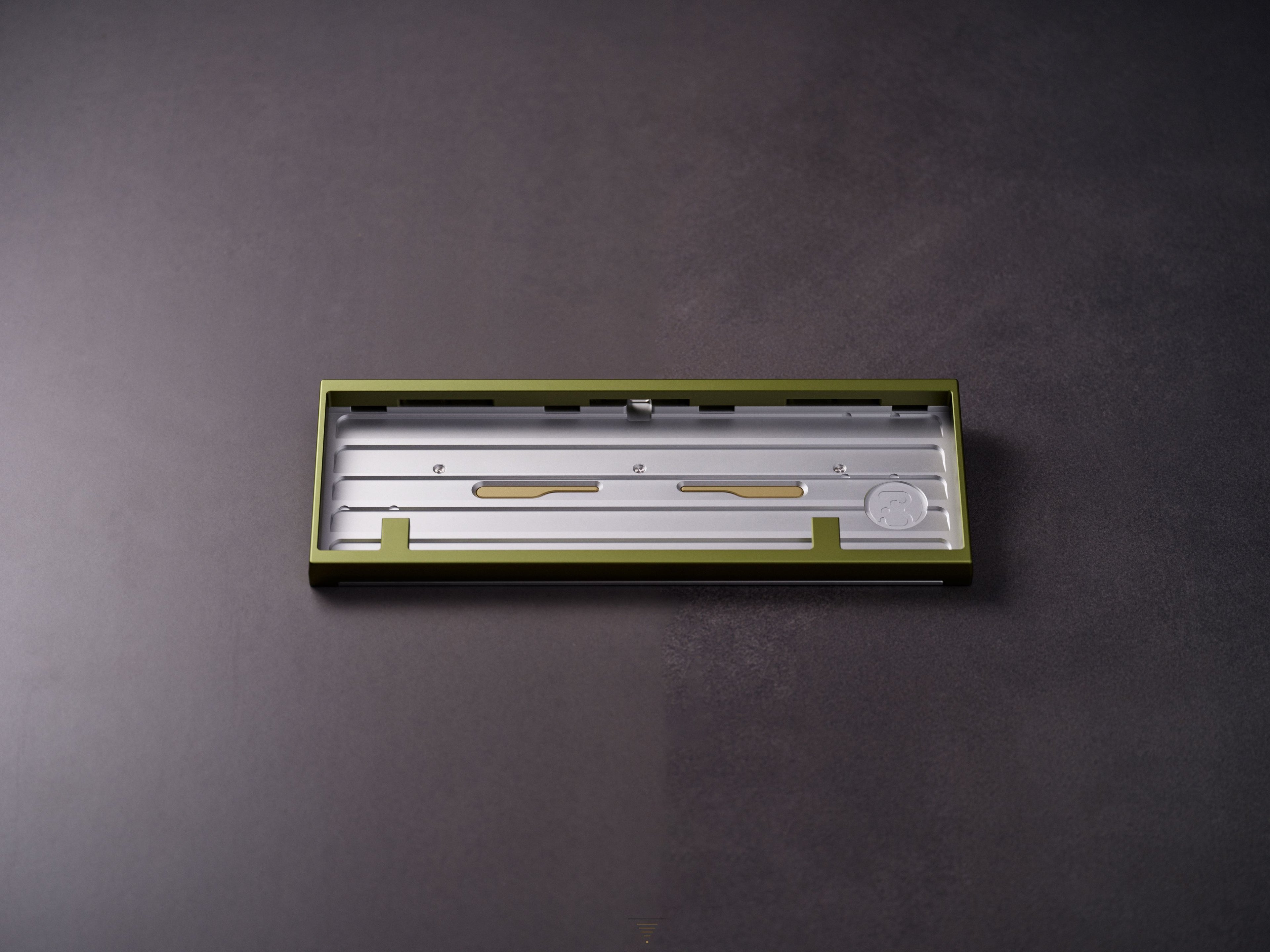

Colorways
CONTENT
