FILL OUT THE BATCH ONE INTEREST CHECK

Interest Check

SALES INFO

US: Bowl Keyboards
EU: Delta Key Co
UK: Prototypist
KR: Swagkeys
TH: Aiglatson
CN: Typist Club
SG: PantheonKeys
CA: Keybaytech

Instock sale November-December 2026

Kit with PCB: $125
Kit without PCB: $105

*May vary by vendor

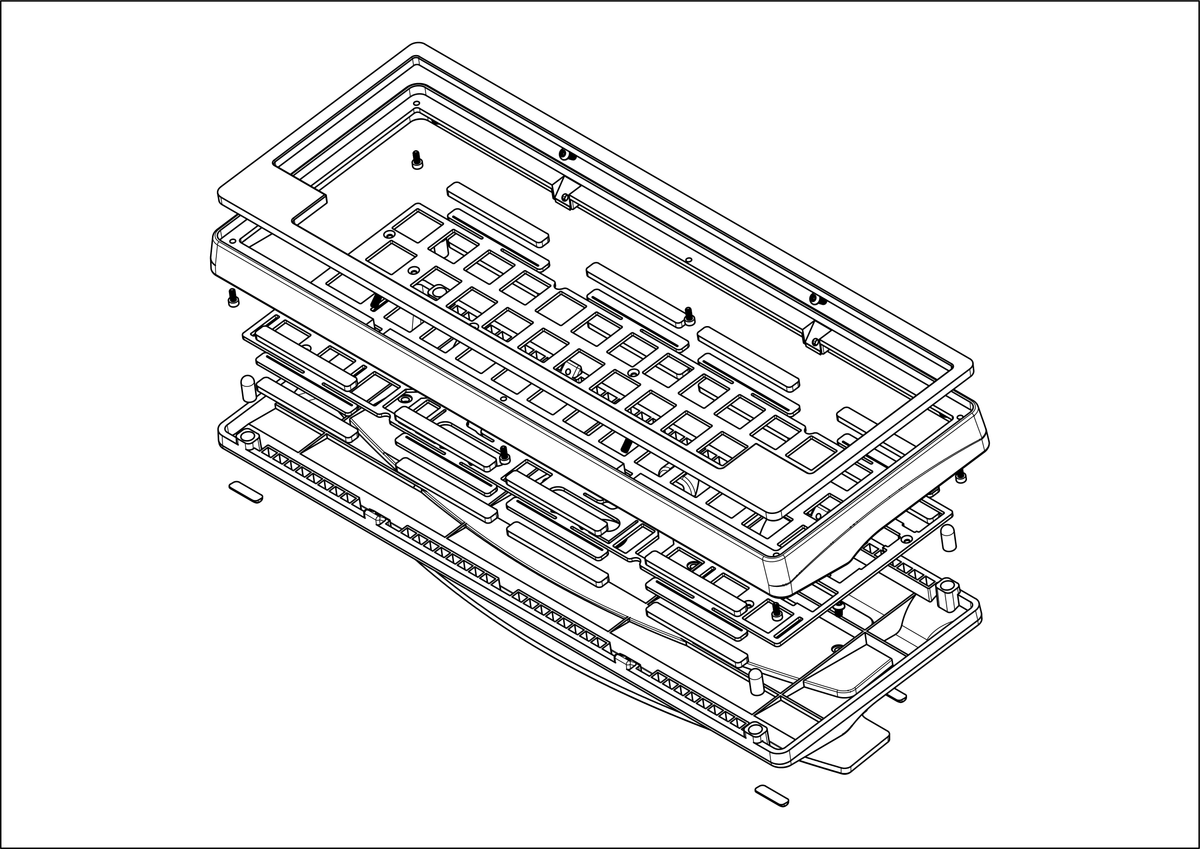

1x Injection Molded Top Case
1x Injection Molded Bottom Case
1x CNC 6063 Aluminum Weight
1x CNC 6063 Aluminum Top Frame
1x Plate of choice
1x PCB of choice (or no PCB)
1x C5 Unified Daughterboard + JST to JST Cable
1x Carrying Case
16x Gaskets (per plate)
4x Custom Molded Feet
All Screws/Parts/Etc for assembly

*Note switches, keycaps and stabilizers are not included

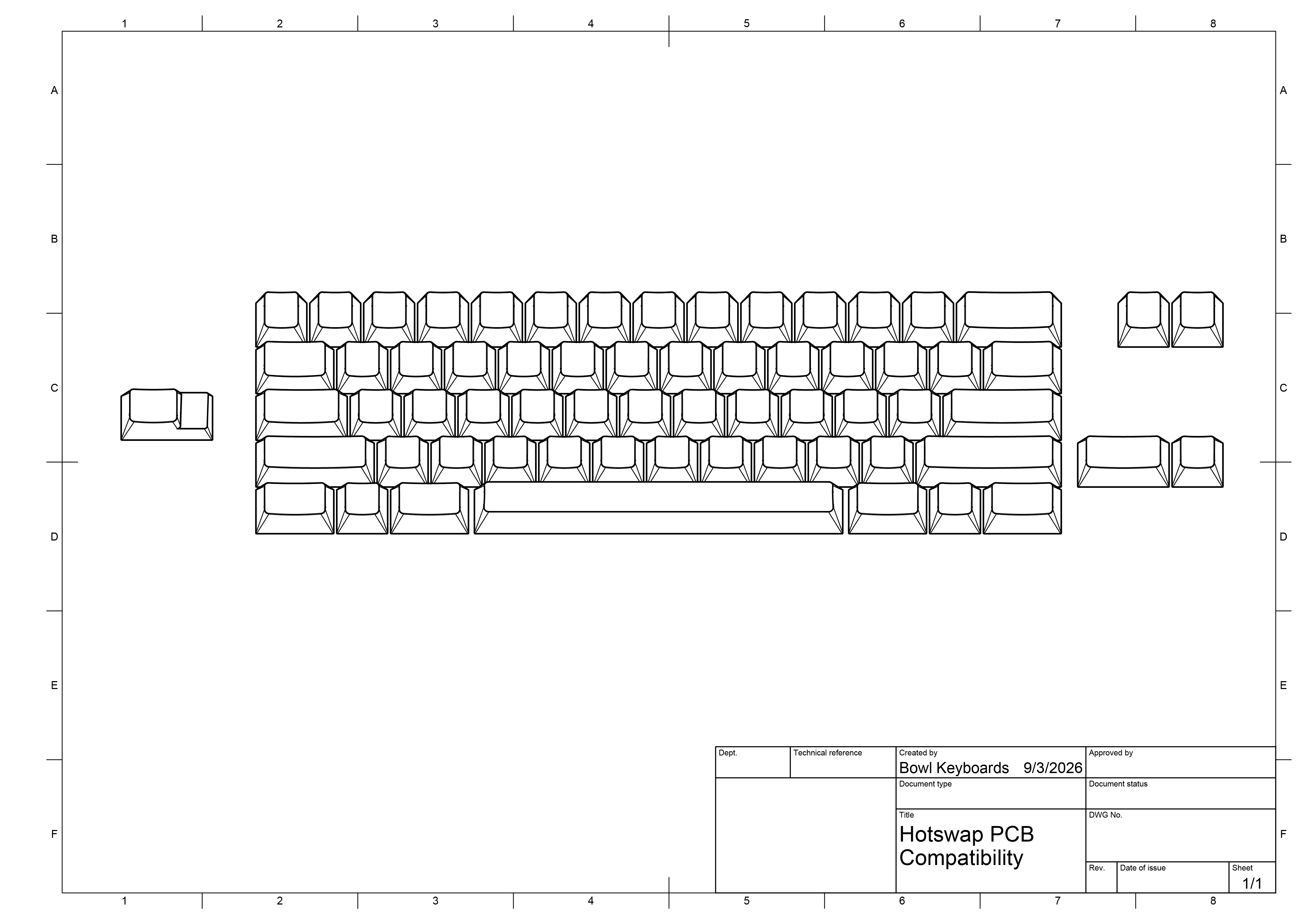

Hotswap PCB

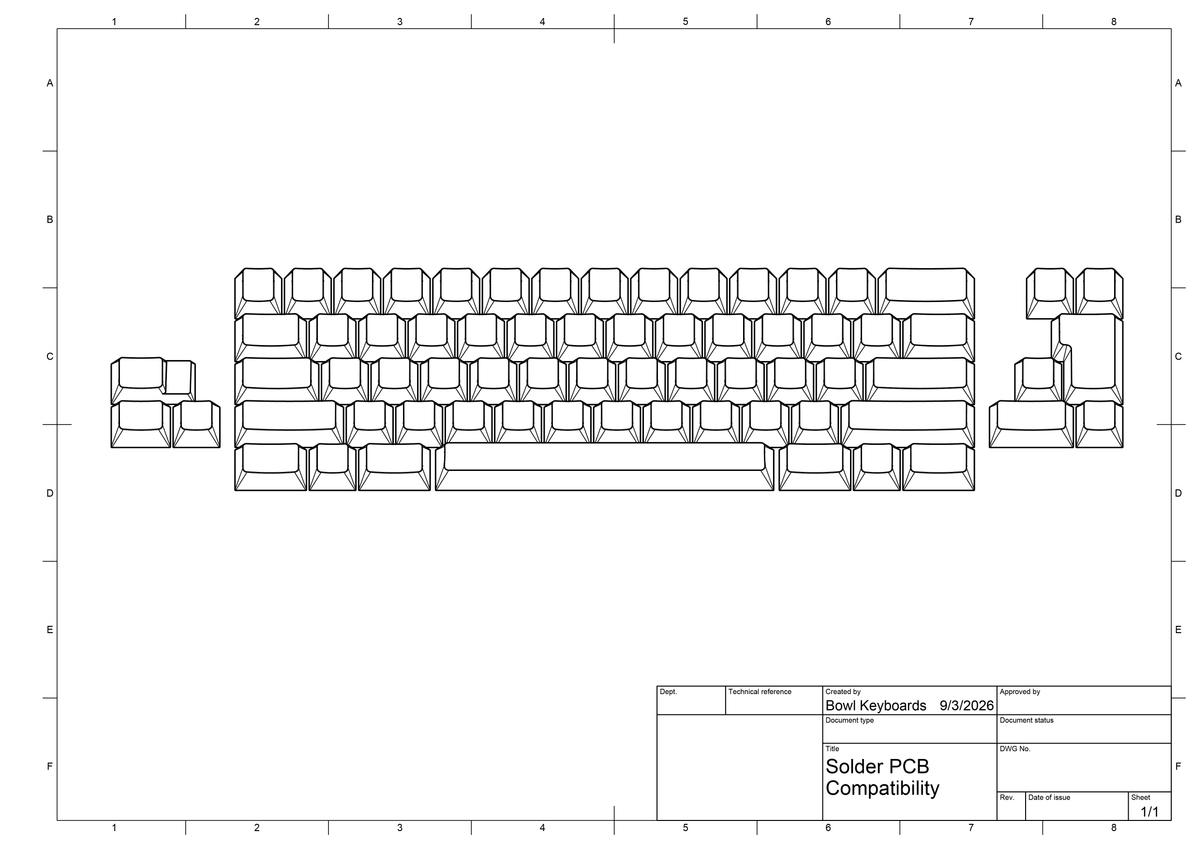

Solder PCB

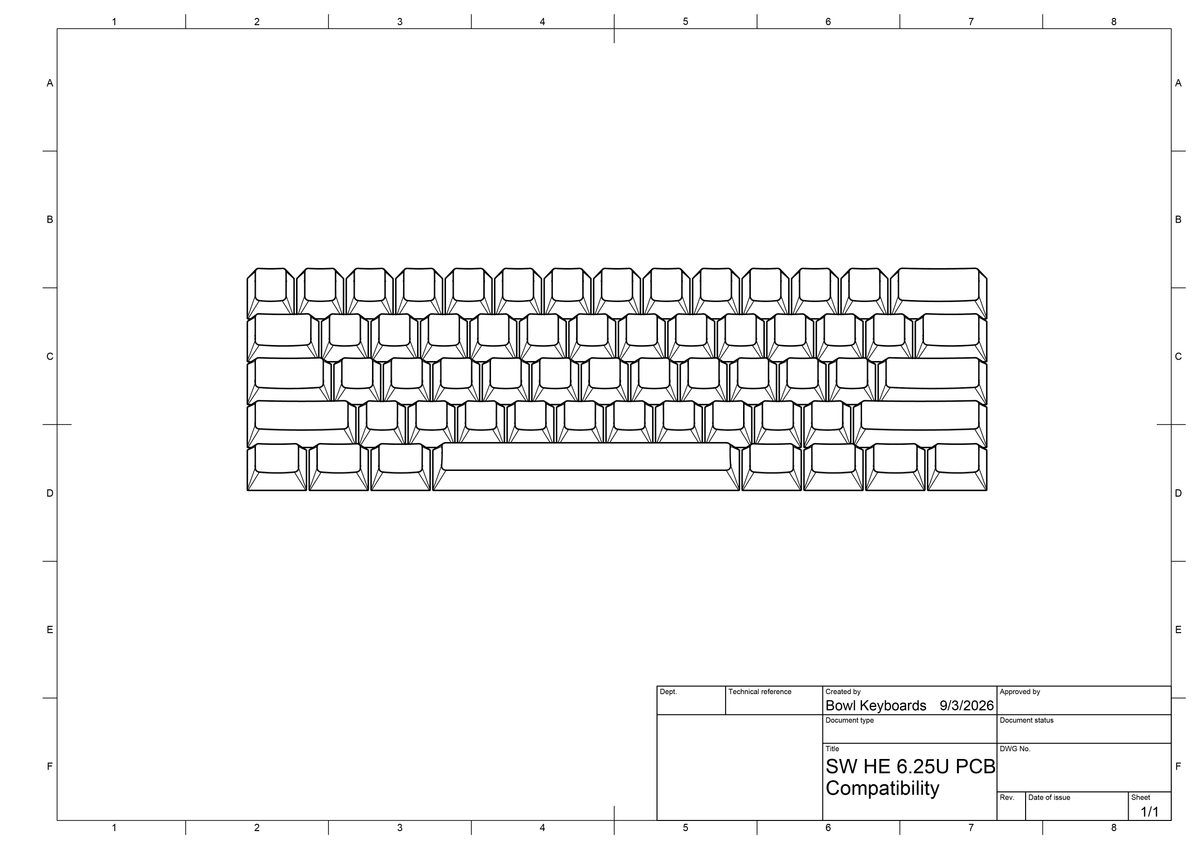

SW HE 6.25u PCB
Aluminum/Carbon Fiber/Polypropylene/Polycarbonate Plates

CONFIGURATOR

Pangea Mini IM Main View

Layout
Case Color
Frame and Weight Color

CASE SPECIFICATIONS

  • Materials: ABS, 6063 Aluminum
  • Layout: 60% WK, WKL, HHKB
  • Typing Angle: 8.5 Degrees
  • Front Height: 17.5mm
  • EKH: 22.7mm
  • Weight: 650g built
  • Mounting: Gasket

PCB Specifications

  • Hotswap

    • Material: Black FR4
    • Thickness: 1.6mm
    • Connectivity: JST to C5 DB
    • Customizability: VIA
    • Type: Hotswap
    • Lighting: Underglow
    • Designer: Gondolindrim

  • Solder

    • Material: Black FR4
    • Thickness: 1.6mm
    • Connectivity: JST to C5 DB
    • Customizability: VIA
    • Type: Solder
    • Lighting: Underglow
    • Designer: Gondolindrim

  • SW HE 6.25U

    • Material: FR4
    • Thickness: 1.6mm
    • Connectivity: JST to C5 DB
    • Customizability: Neon HE
    • Type: HE Magentic
    • Lighting: Underglow
    • Designer: Swagkeys

Typing Sounds

Keygeek INTRO with GMK
Gateron Deeping With DCS
Gateron Deeping with SWG

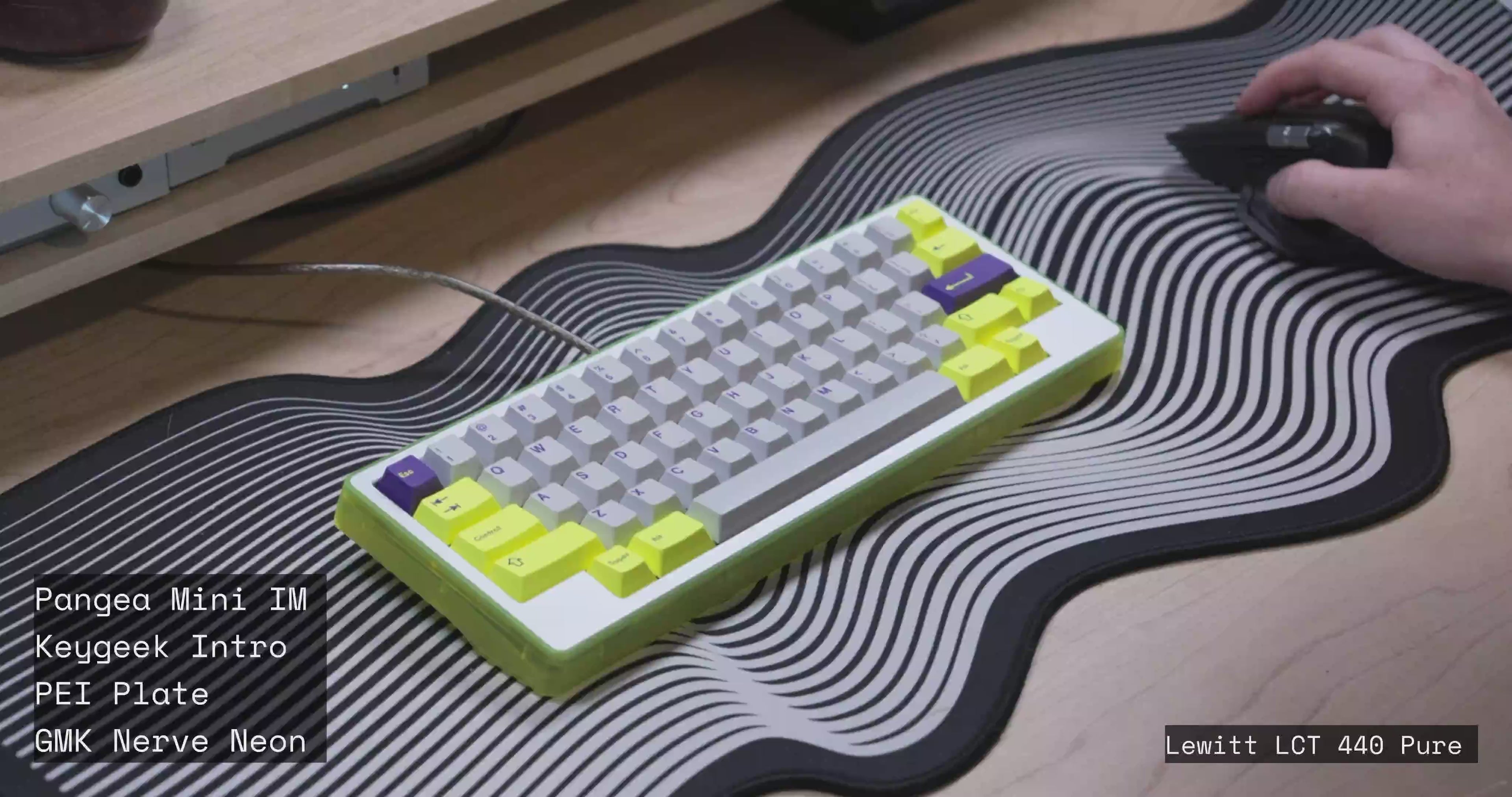

  • Keyboard: Pangea Mini IM
  • Switches: Keygeek Intro
  • Plate: PEI
  • Keycaps: GMK Nerve Neon
  • Mount: Poron Gasket

Keygeek INTROs

Keyboard: Pangea Mini IM
Switches: Gateron Deeping 4.0mm
Plate: Aluminum
Keycaps: DCS Solar Green
Mount: Poron Gasket

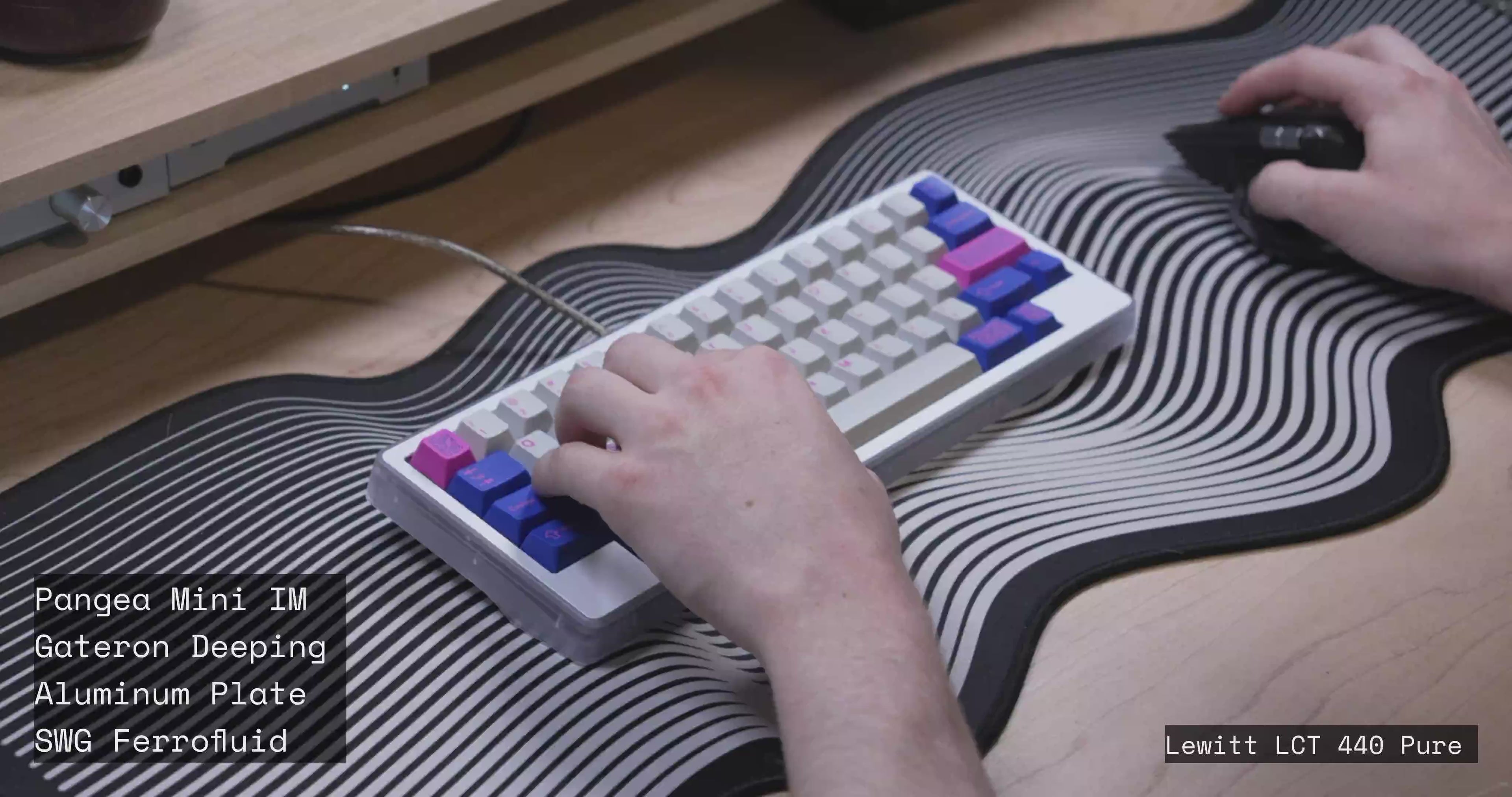

Keyboard: Pangea Mini IM
Switches: Gateron Deeping 4.0mm
Plate: Aluminum
Keycaps: SWG Ferrofluid
Mount: Poron Gasket

DESIGN NOTES AND INSPIRATION

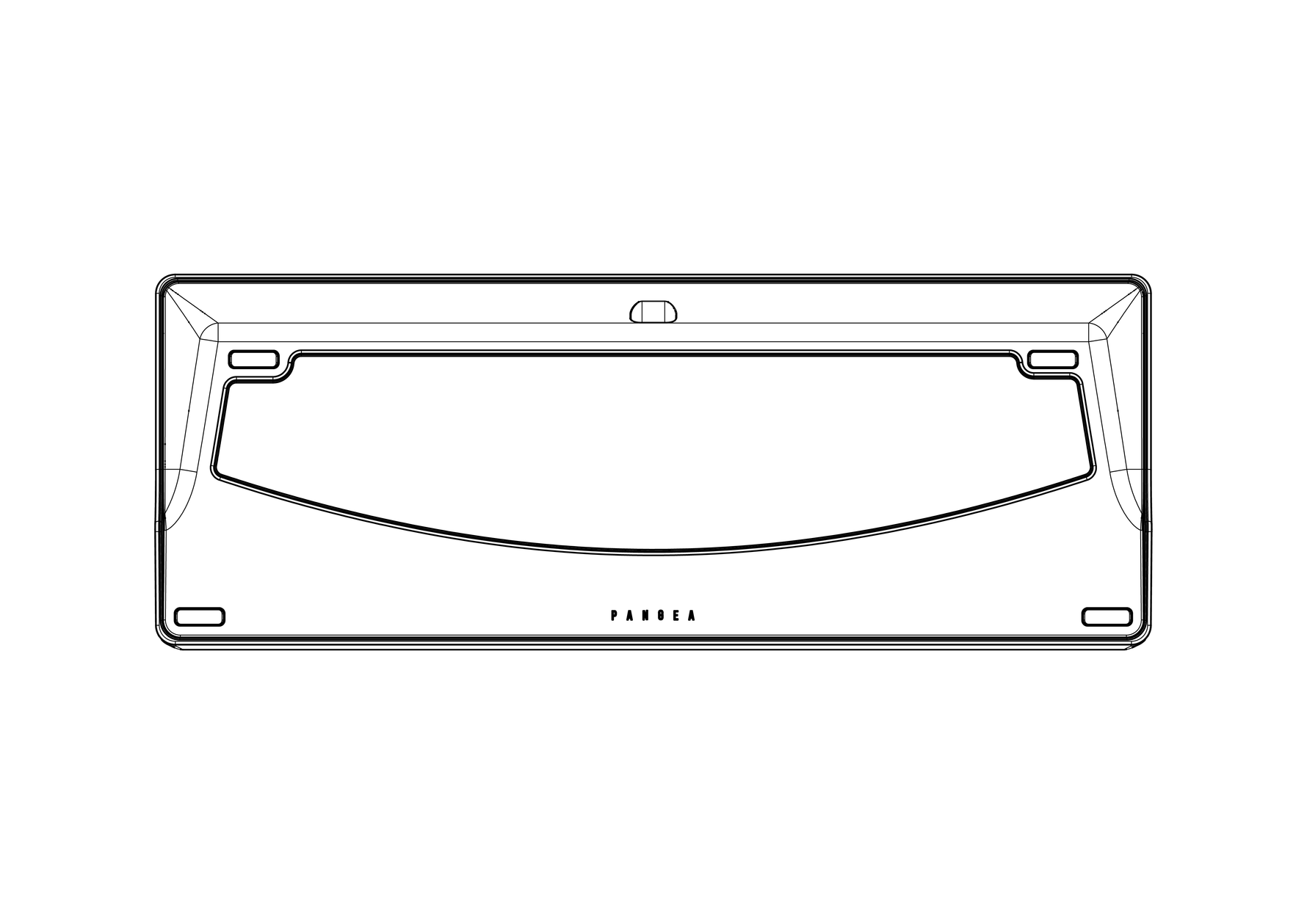

CASE DESIGN

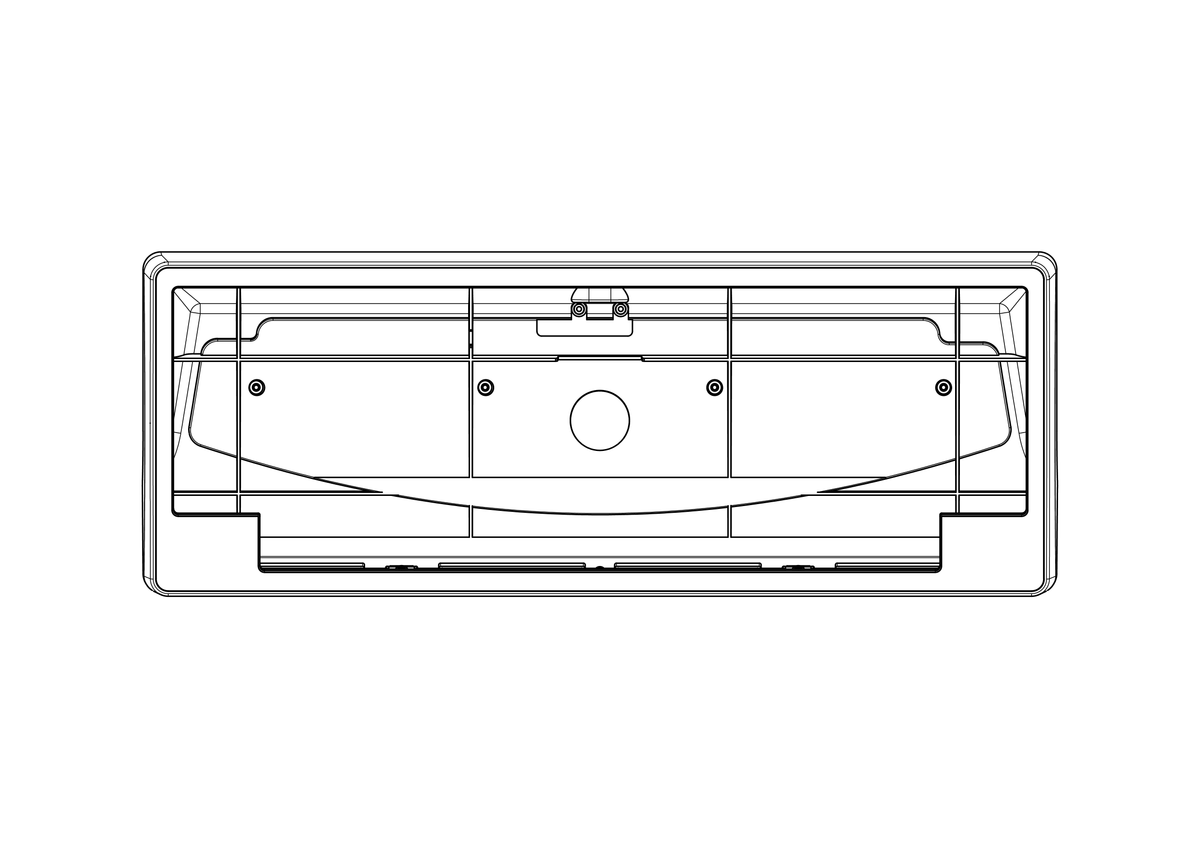

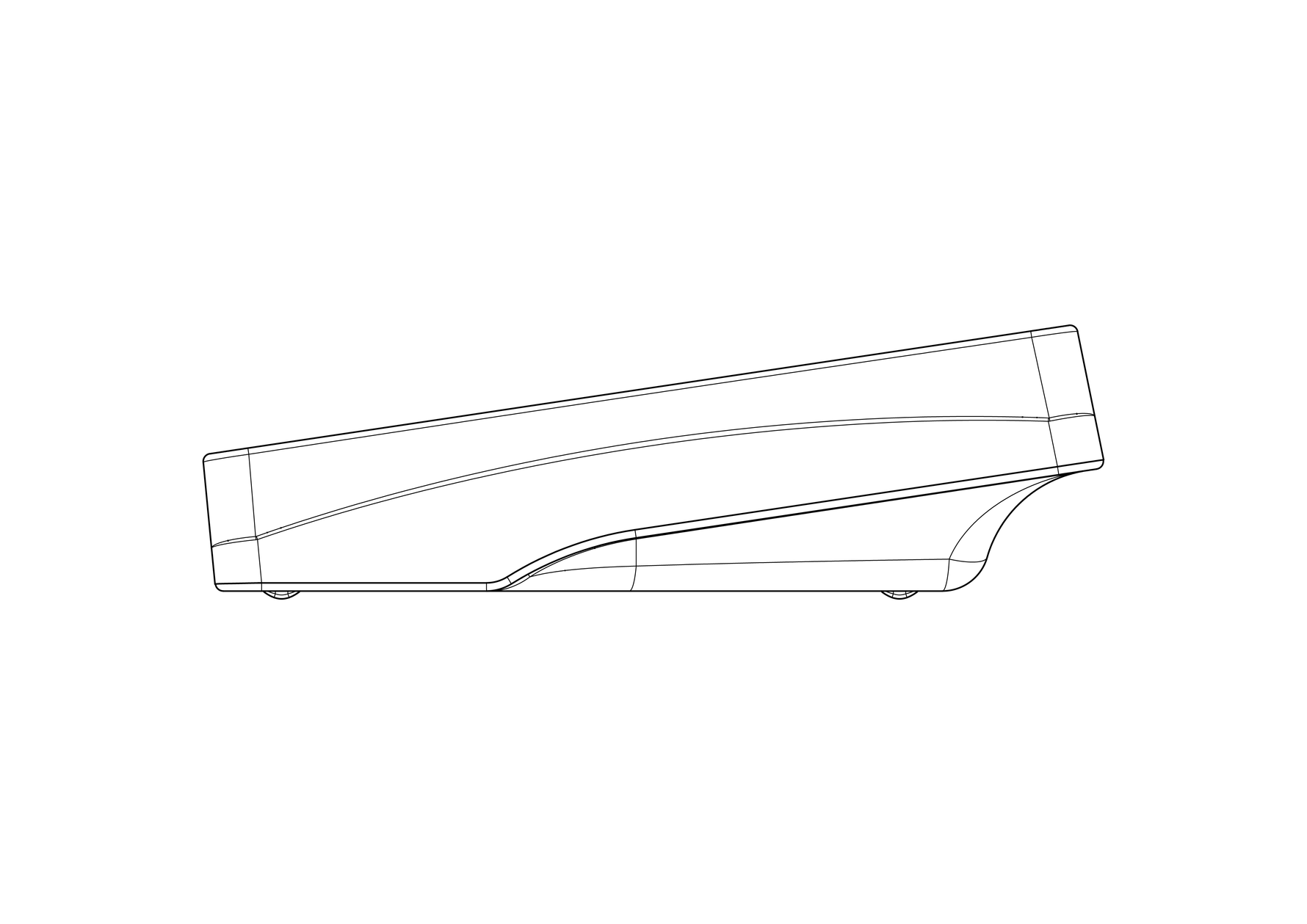

Pangea Mini takes many design elements from the Pangea Fullsize. The side profile shares the same arching HG style taper to give some depth when viewed from the side. The top view also showcases the interchangeable top frame. While Pangea Fullsize used this part to allow for a swappable numpad, Pangea Mini has different layout options offered in many different material and finishing options for a distinctive top down aesthetic.

MOUNTING DESIGN

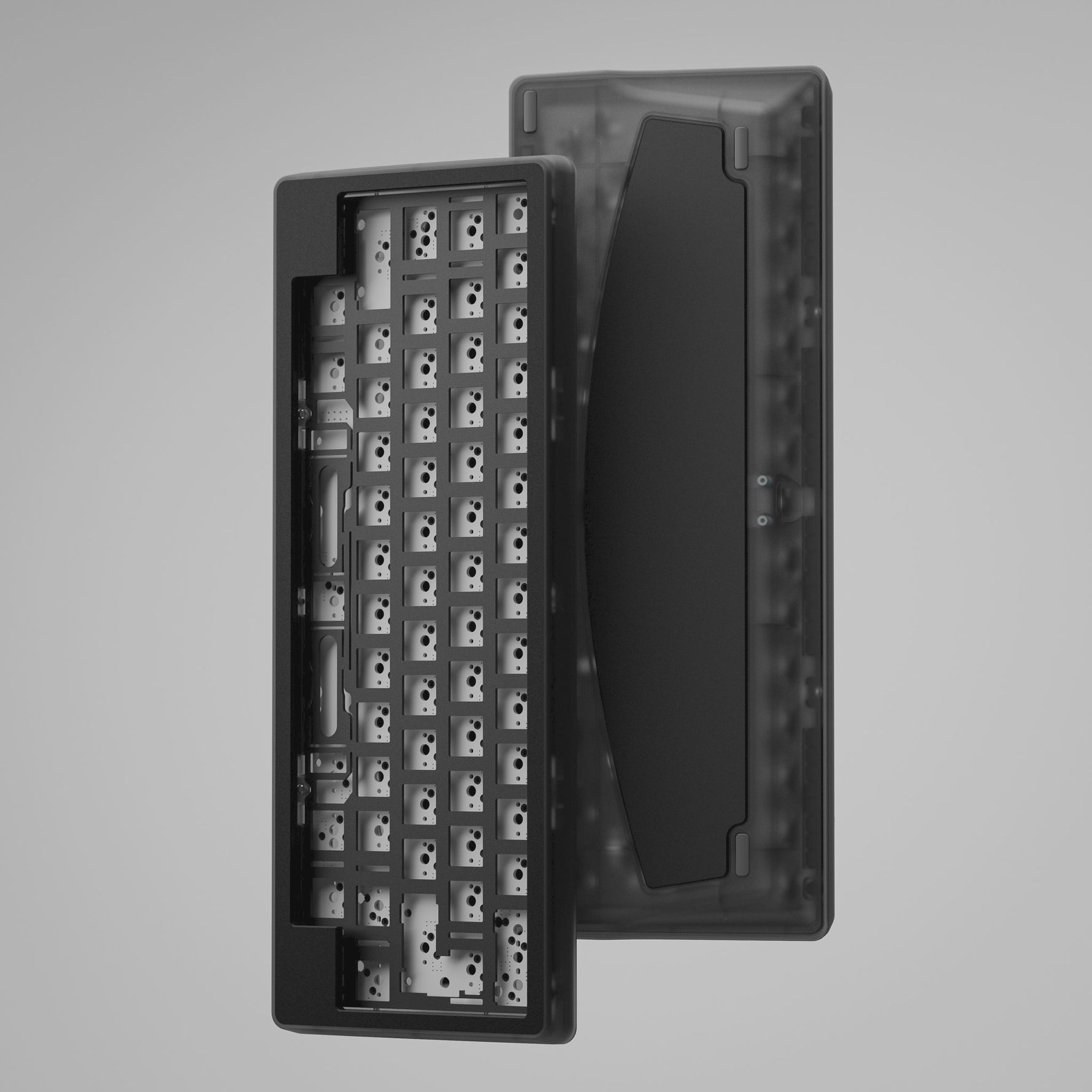

The goal of pangea mini was to have a soft, uniform feel across the entire board. To achieve that I chose to use leafspring poron gasket mount. The relief cuts near the spacebar allow for more flex in that area while giving it a responsive feel and maintaining a uniform typing feel on the whole keyboard. Poron is an optimal material to absorb the vibrations produced by typing, preventing transfer to the case, which can cause pinging.

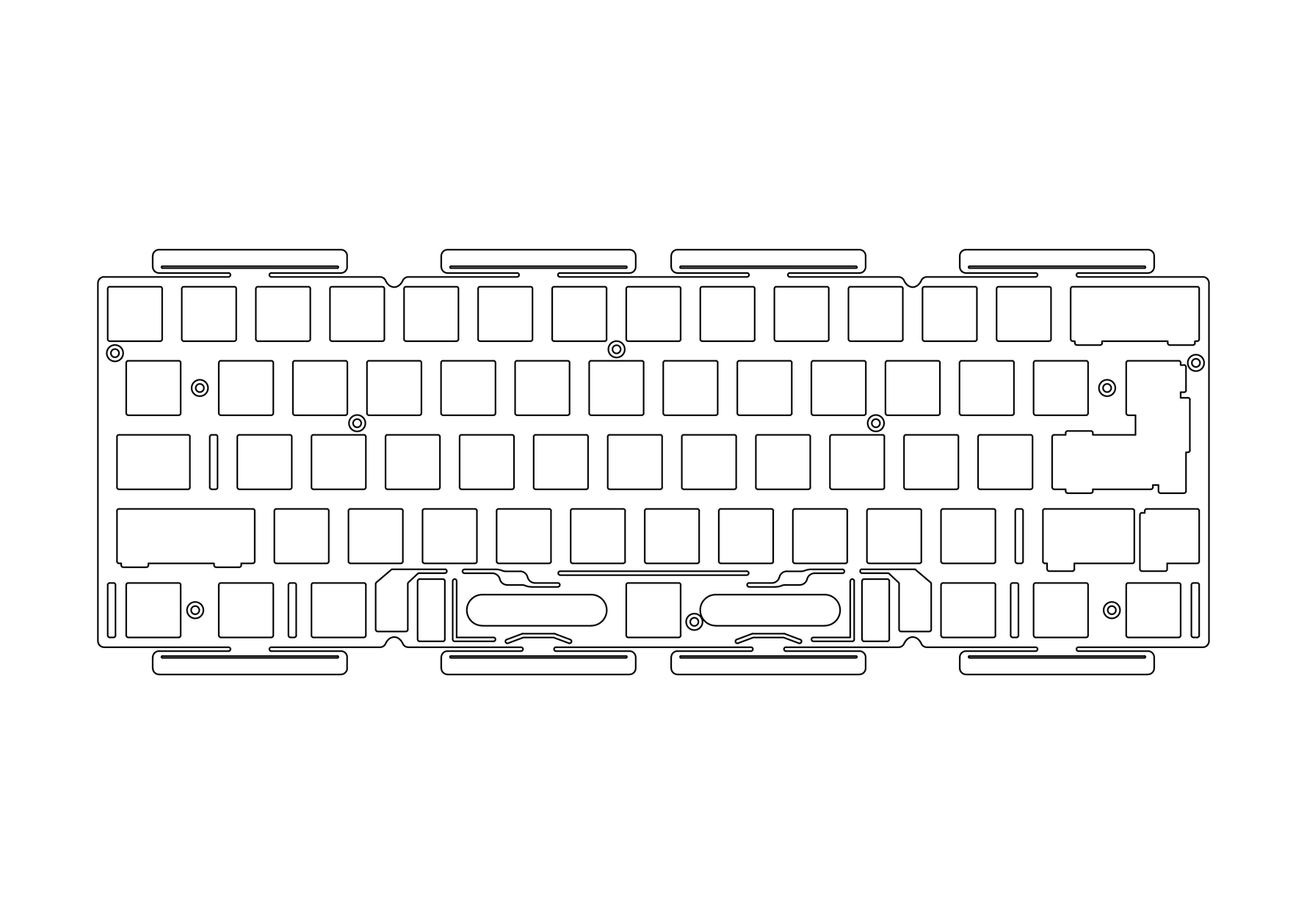

STIFF MATERIAL PLATE

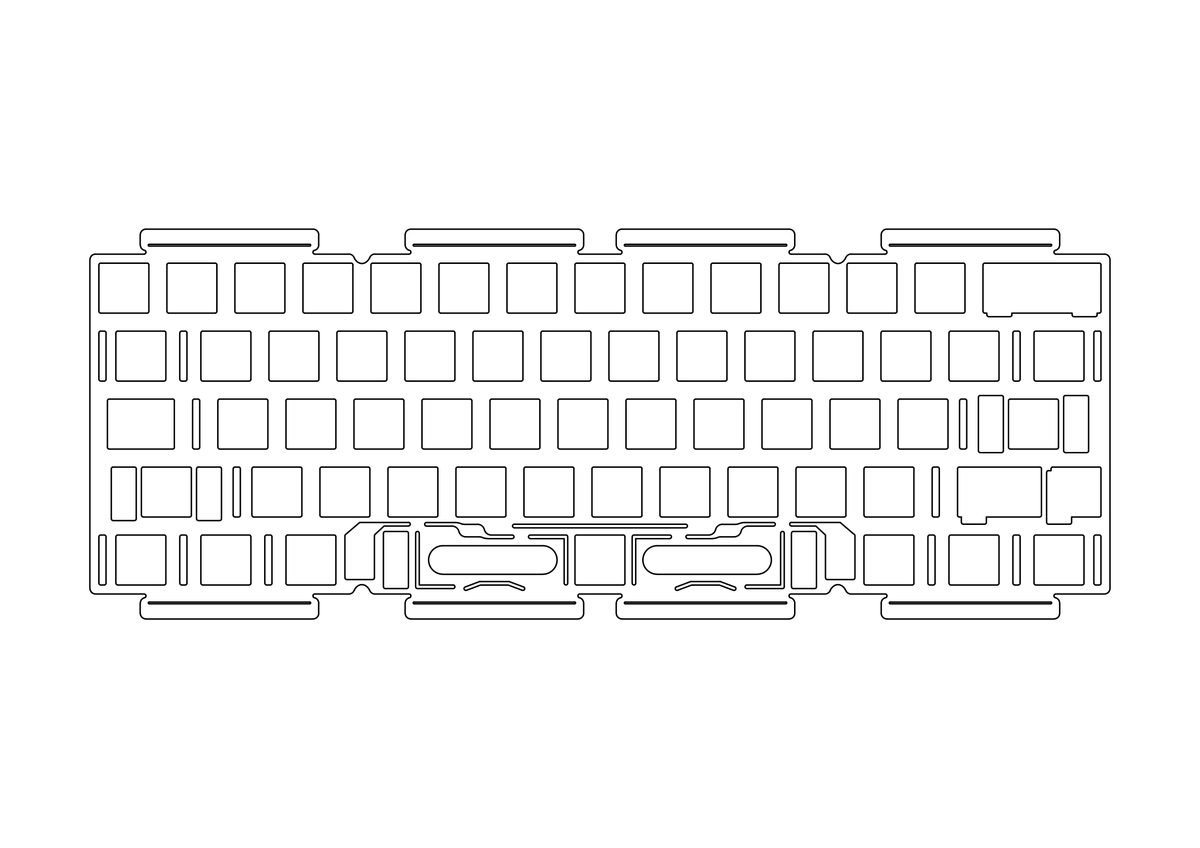

SOFT MATERIAL PLATE

SWG Keycap Collaborations

SWG Feralis

By Bowl Keyboards Team x Stellaidoscope

SWG Hypermix

By GTour
